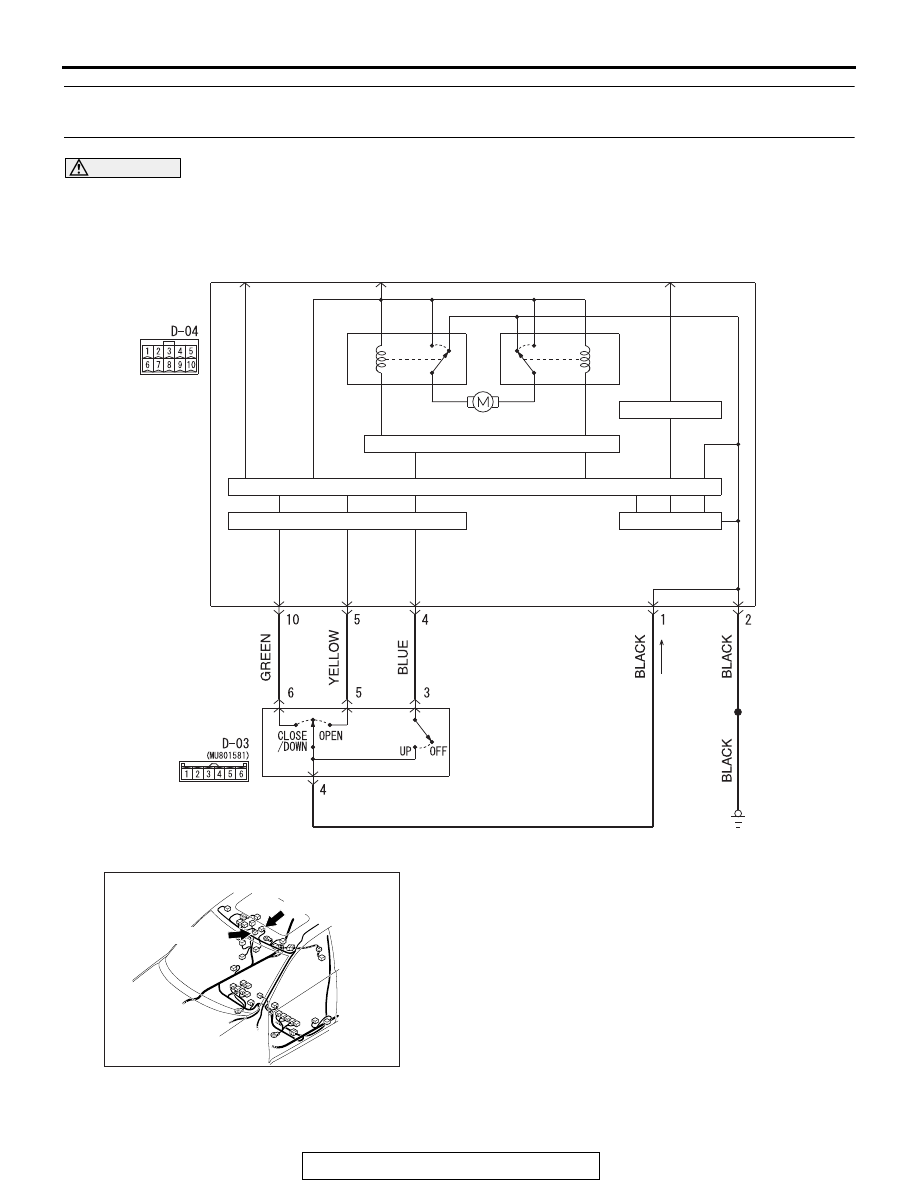

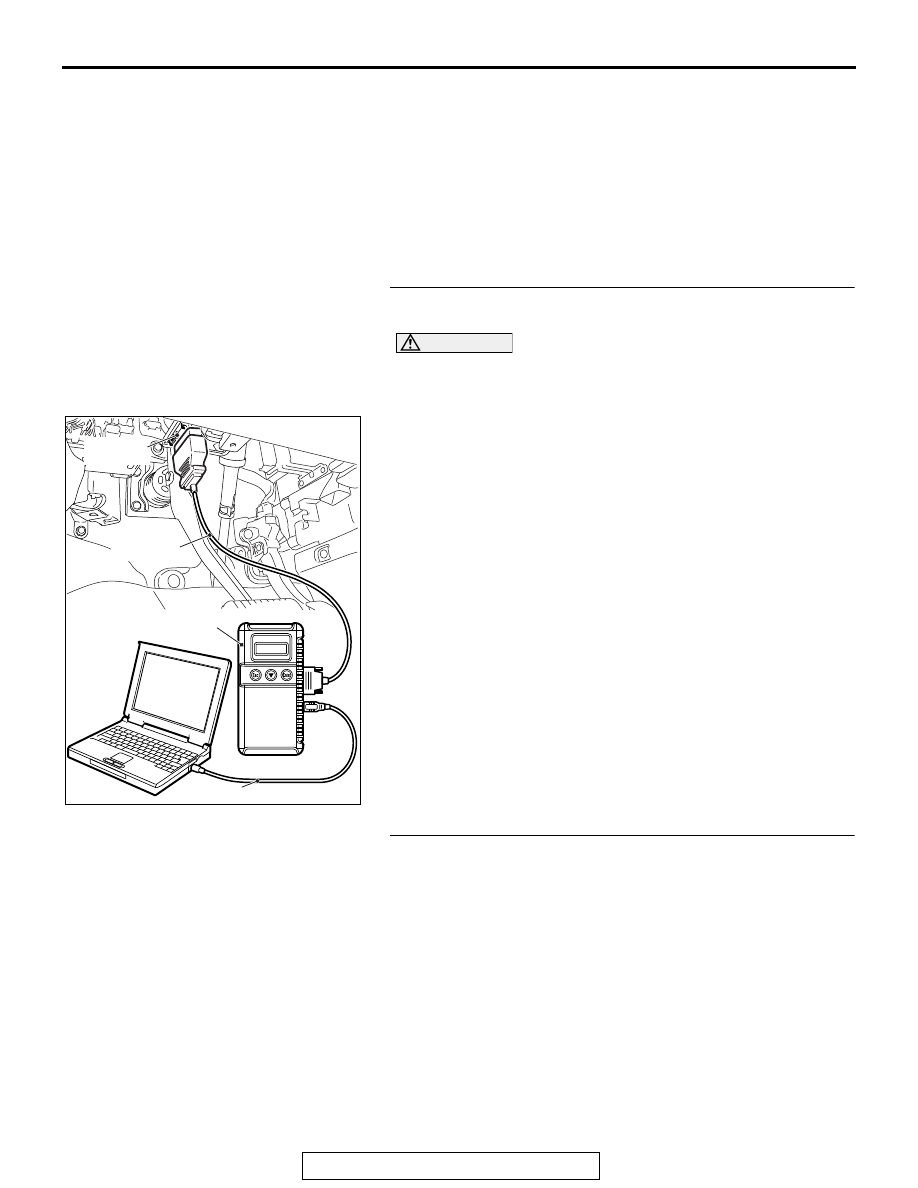

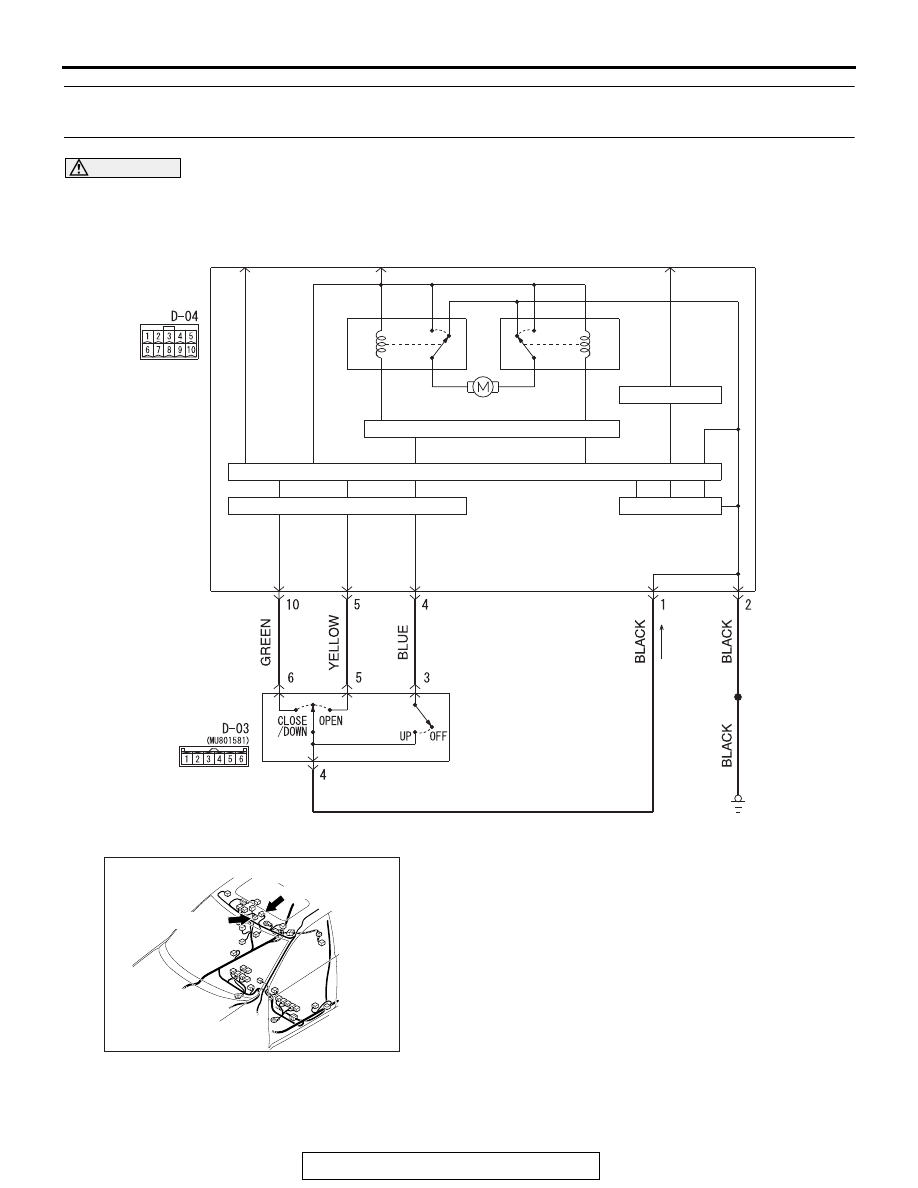

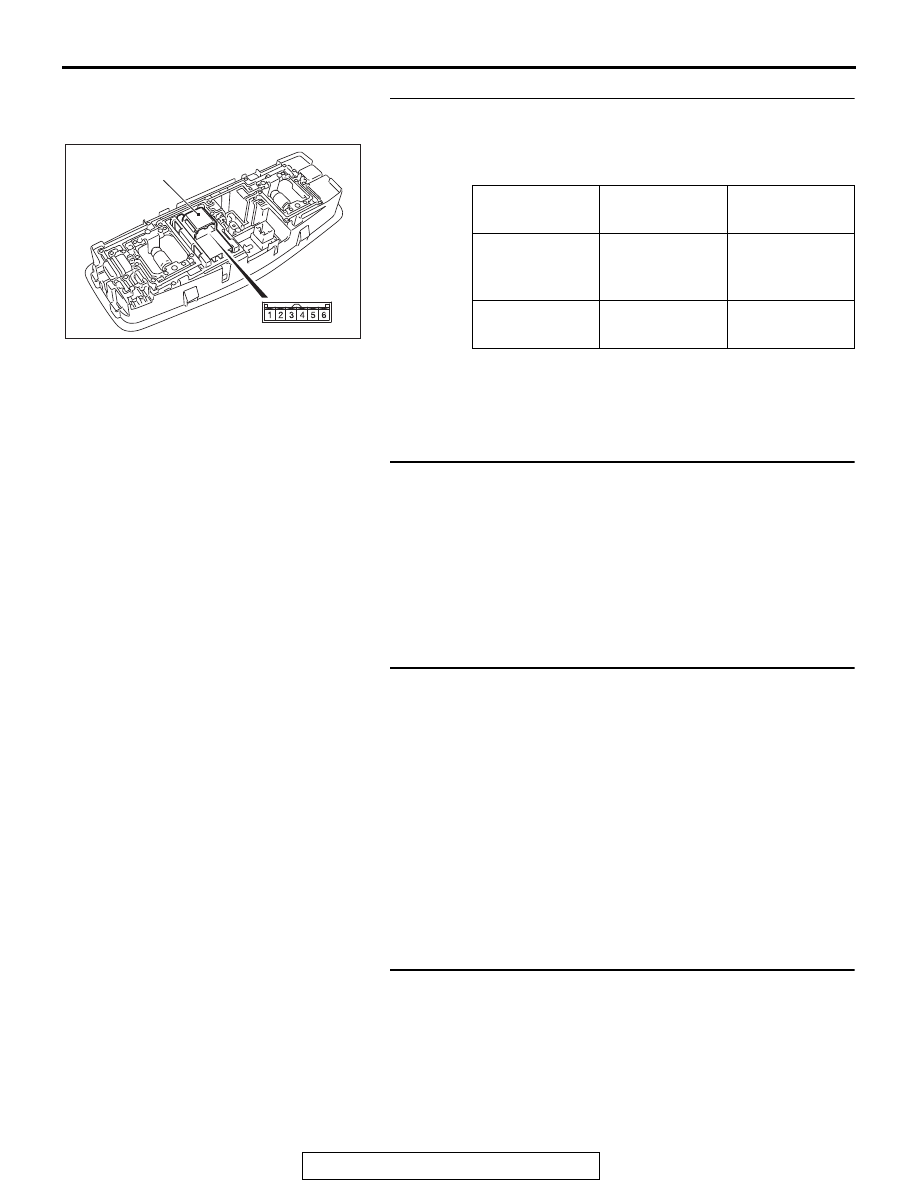

SUNROOF TSB Revision BODY 42A-195 INSPECTION PROCEDURE 2: The Sunroof Lid Glass does not Tilt-up (Tilt-down, Open and Close CAUTION Before replacing the ECU, ensure that the power . TECHNICAL DESCRIPTION (COMMENT) The sunroof switch or the sunroof motor assembly . TROUBLESHOOTING HINTS • The sunroof switch may be defective • The sunroof motor assembly may be defective • The wiring harness or connectors may have loose, corroded, or damaged terminals, or termi- AC703552 CPU SUNROOF INPUT CIRCUIT INPUT CIRCUIT DRIVE CIRCUIT SUNROOF MOTOR HALL SENSOR SUNROOF Sunroof Switch Circuit AC AC901079AS Connectors: D-03, D-04 D-03 (B) D-04 (GR) |
