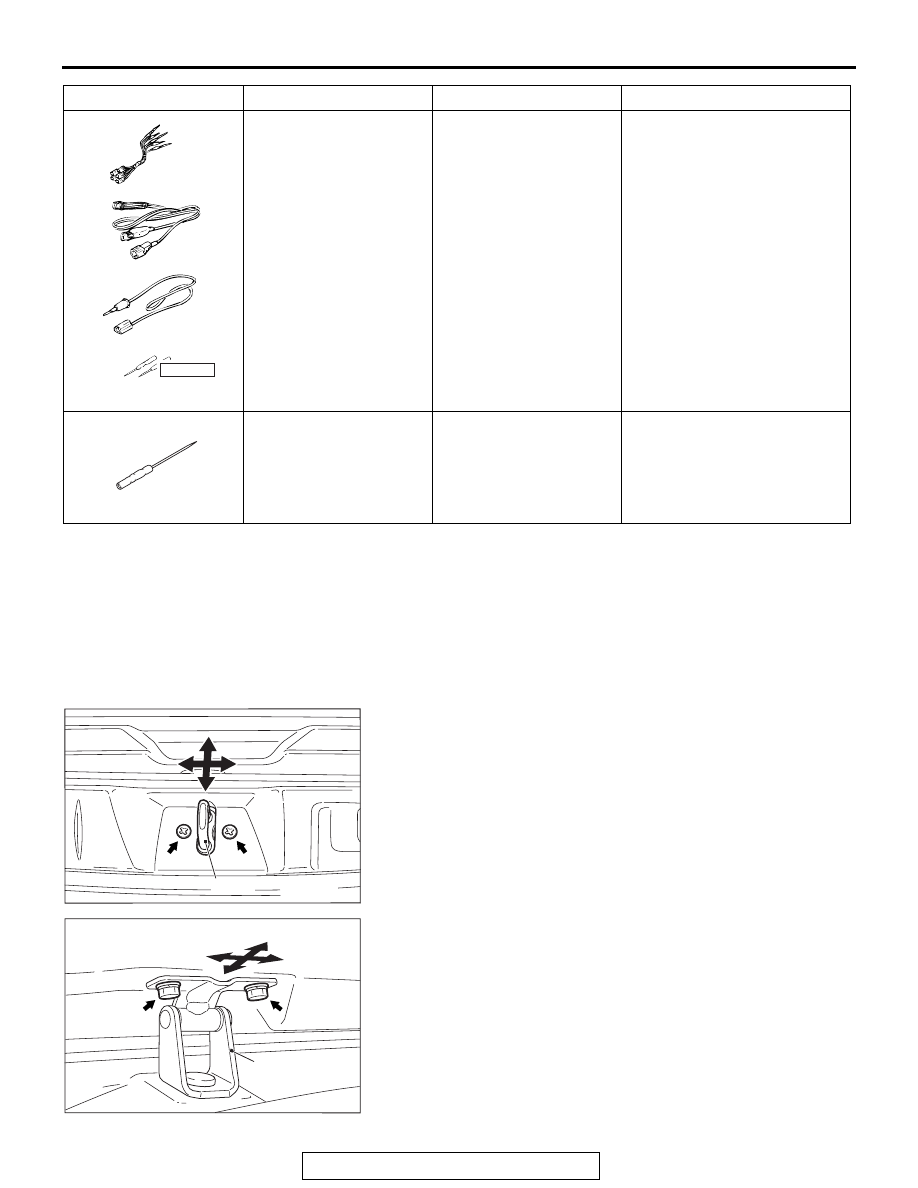

LIFTGATE

TSB Revision

BODY

42A-167

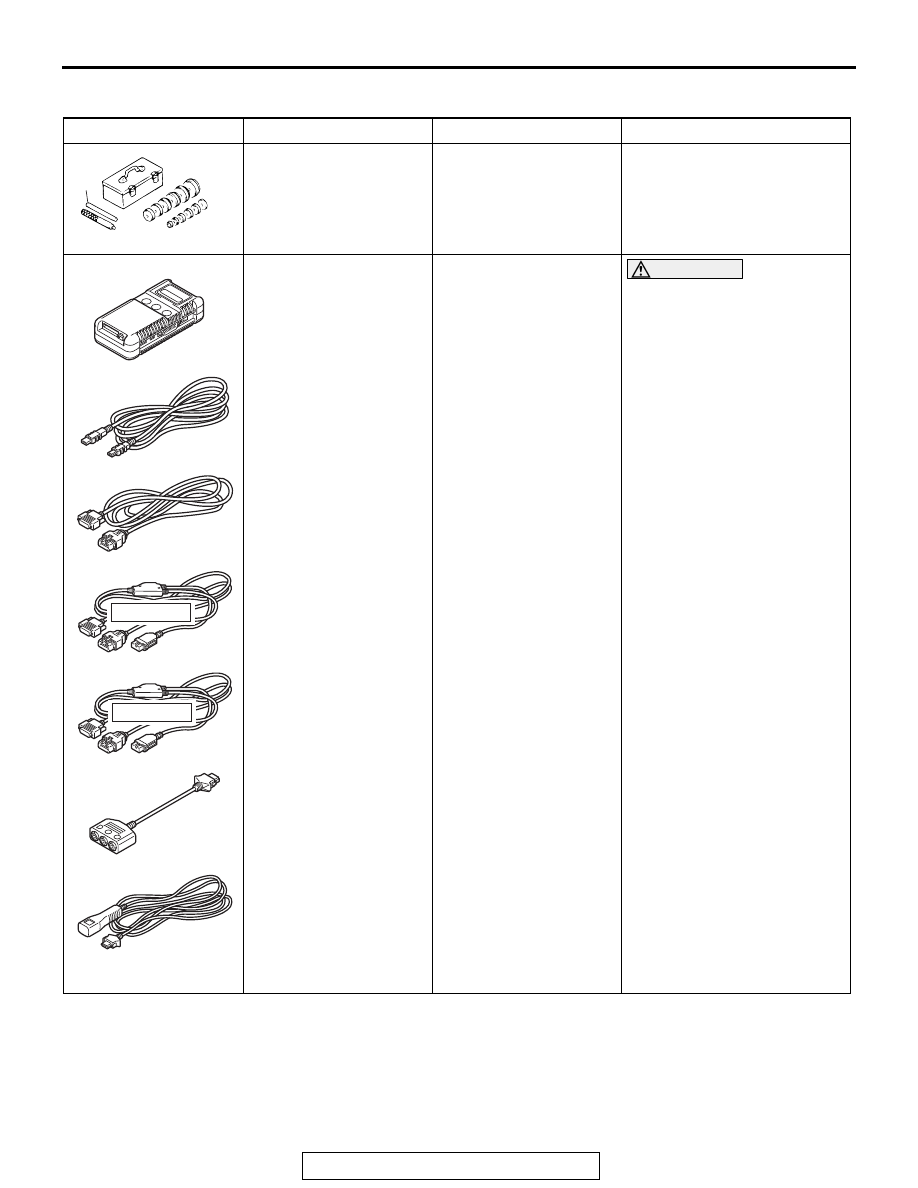

SPECIAL TOOL

M1424000600620

Tool

Tool number and name Supersession

Application

MB990925 Bearing and
oil seal installer set

a. MB990939 Remover

bar

MB990925-01 or
General service tool

Adjustment of door striker

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

Scan tool (M.U.T.-III sub
assembly)

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB cable
c. M.U.T.-III main

harness A (Vehicles
with CAN
communication
system)

d. M.U.T.-III main

harness B (Vehicles
without CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

For vehicles with CAN
communication, use
M.U.T.-III main harness A to
send simulated vehicle
speed. If you connect
M.U.T.-III main harness B
instead, the CAN
communication does not
function correctly.
Communication line check
(ECU check and service data)

MB990925AI

a

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

a

b

c

d

e

f

g

Do not use

LIFTGATE

TSB Revision

BODY

42A-168

ON-VEHICLE SERVICE

LIFTGATE ALIGNMENT

M1424000900535

Required Special Tool:

• MB990939: Remover Bar

LIFTGATE UPPER ALIGNMENT

• If the striker is not engaged with the latch properly, adjust by

loosening the striker mounting screws.

• If the clearance between the liftgate and the body is

uneven, loosen the liftgate-side liftgate hinge mounting
bolts to adjust it.

MB991223 Harness set

a. MB991219 Test

harness

b. MB991220 LED

harness

c. MB991221 LED

harness adapter

d. MB991222 Probe

General service tools

Measurement of terminal
voltage and resistance

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester

connection

MB992006 Extra fine
probe

−

Measurement of terminal
voltage and resistance

Tool

Tool number and name Supersession

Application

MB991223

a

d

c

b

Do not use

BD

MB992006

AB

AC703372AB

Striker

AC703373 AB

Liftgate hinge

LIFTGATE

TSB Revision

BODY

42A-169

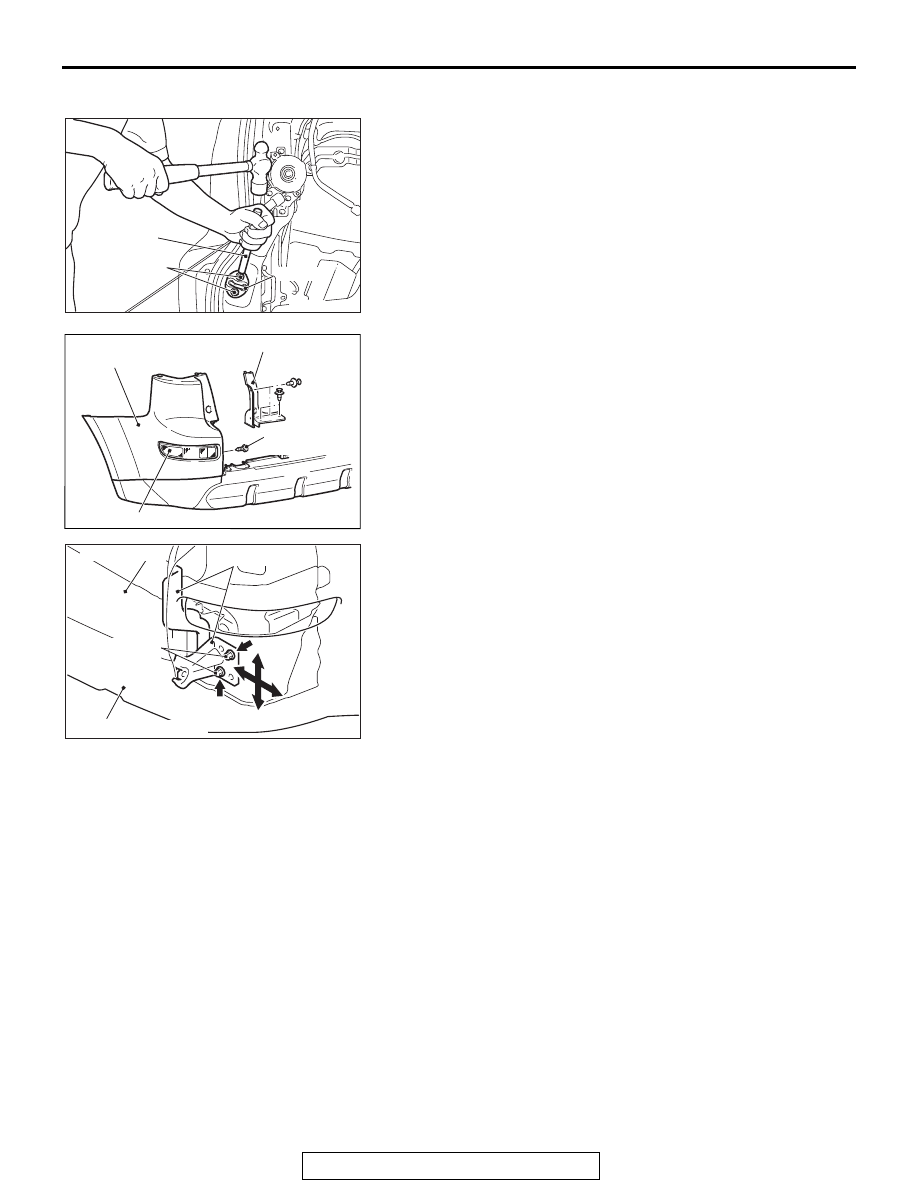

LIFTGATE LOWER ALIGNMENT

.

If the striker does not engage with the latch properly, remove
the quarter trim lower (Refer to GROUP 52A - Interior Trim

P.52A-10

). Replace the striker mounting screws with temporary

bolts, and use the special tool (remover bar MB990939) and a
hammer to tap the bolt head in the desired direction to adjust
the striker position.

If the clearances between the liftgate lower and the body (rear
bumper assembly) at left and right are uneven, adjust the lift-
gate lower as follows.
1.  Remove the rear bumper covers and reflectors located at

left and right sides of the rear bumper assembly.

2. Loosen the liftgate hinge mounting bolts as shown in the

illustration located at left and right sides of the body, and
slide the liftgate lower to adjust its position so that the
clearances between the liftgate lower and body (rear
bumper assembly) at left and right become even.

3.  Tighten the liftgate hinge mounting bolts to the specified

torque.

AC507069AC

MB990939

Striker

Temporary

bolts

AC613285

AC

Rear bumper cover

Rear bumper
assembly

Reflector

1.5 ± 0.2 N·m
13 ± 2 in-lb

AC613286AD

Liftgate hinge

Liftgate lower

Rear bumper assembly

20 ± 5 N·m

15 ± 3 ft-lb

LIFTGATE

TSB Revision

BODY

42A-170

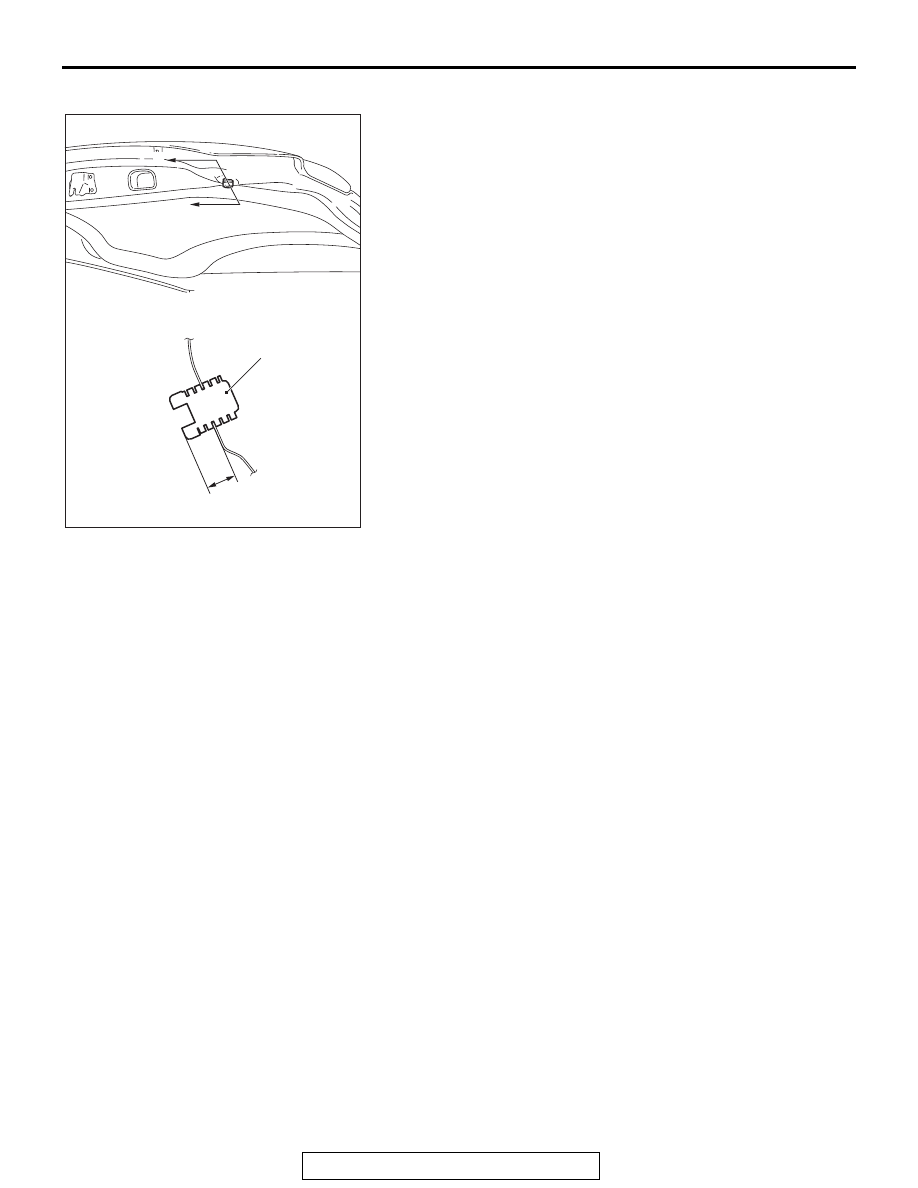

ADJUSTMENT OF LIFTGATE HEIGHT

M1424003500417

Rotate the damper by using the arrow mark on the damper as a
guide to adjust the liftgate height. The damper height is altered
by roughly 3 mm (0.12 inch) when the damper is rotated once.
NOTE: If a rattling noise is heard due to the vibration of the lift-
gate when the vehicle is being driven, adjust the damper height
until the damper is seated on the vehicle body. The damper
should be seated on the vehicle body regardless of a rattling
noise.

AC703376

Section A – A

AB

15 mm
(0.59 in)

A

A

Damper
