DOOR

TSB Revision

BODY

42A-59

STEP 13. Check the wiring harness between ETACS-ECU
connector C-311 (terminals No. 6 and 9) and rear door lock
actuator (RH) connector E-13 (terminals No. 6 and 4).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check intermediate connector D-36 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-36 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-311 (terminals No. 6 and 9) and rear door lock
actuator (RH) connector E-13 (terminals No. 6 and 4) in
good condition?
YES : Go to Step 24.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that all
the doors and the liftgate can be locked and unlocked
normally.

STEP 14. Check rear door lock actuator (LH) connector
E-27 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is rear door lock actuator (LH) connector E-27 in good

condition?
YES : Go to Step 15.
NO :  Repair or check the connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Verify that all

the doors and the liftgate can be locked and unlocked
normally.

DOOR

TSB Revision

BODY

42A-60

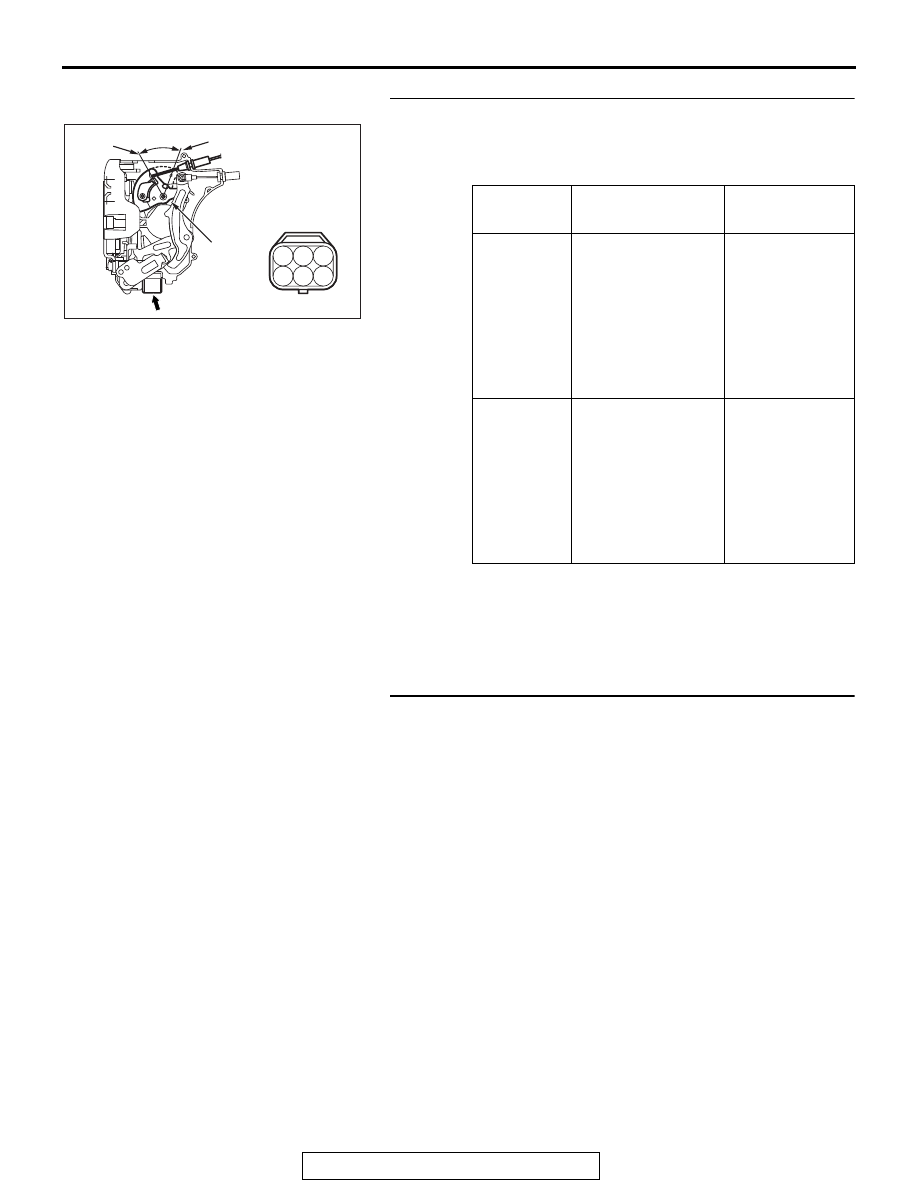

STEP 15. Check the rear door lock actuator (LH).
Remove the rear door lock actuator (LH). The illustration shows
when the door lock actuator is viewed from inside the door.
Refer to

P.42A-153

.

Q: Is the rear door lock actuator (LH) normal?

YES : Go to Step 16.
NO :  Replace the rear door lock actuator (LH). Verify that

all the doors and the liftgate can be locked and
unlocked normally.

STEP 16. Check ETACS-ECU connector C-311 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-311 in good condition?

YES : Go to Step 17.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that all the doors and the liftgate can

be locked and unlocked normally.

Lever
position

Battery
connection

Lever
operation

At the
"LOCK"
position

• Connect

terminal No.4 to
the negative
battery terminal.

• Connect

terminal No.6 to
the positive
battery terminal.

The lever moves
from the "LOCK"
position to the
"UNLOCK"
position.

At the
"UNLOCK"
position

• Connect

terminal No.6 to
the negative
battery terminal.

• Connect

terminal No.4 to
the positive
battery terminal.

The lever moves
from the
"UNLOCK"
position to the
"LOCK"
position.

4

2
5

3
6

1

AC702907

A

Lever

UNLOCK

LOCK

View A

AB

DOOR

TSB Revision

BODY

42A-61

STEP 17. Check the wiring harness between ETACS-ECU
connector C-311 (terminals No. 6 and 9) and rear door lock
actuator (LH) connector E-27 (terminals No. 6 and 4).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check intermediate connector D-21 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-21 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-311 (terminals No. 6 and 9) and rear door lock
actuator (LH) connector E-27 (terminals No. 6 and 4) in
good condition?
YES : Go to Step 24.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that all
the doors and the liftgate can be locked and unlocked
normally.

STEP 18. Check liftgate lock actuator connector F-11 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is liftgate lock actuator connector F-11 in good

condition?
YES : Go to Step 19.
NO :  Repair or check the connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Verify that all

the doors and the liftgate can be locked and unlocked
normally.

DOOR

TSB Revision

BODY

42A-62

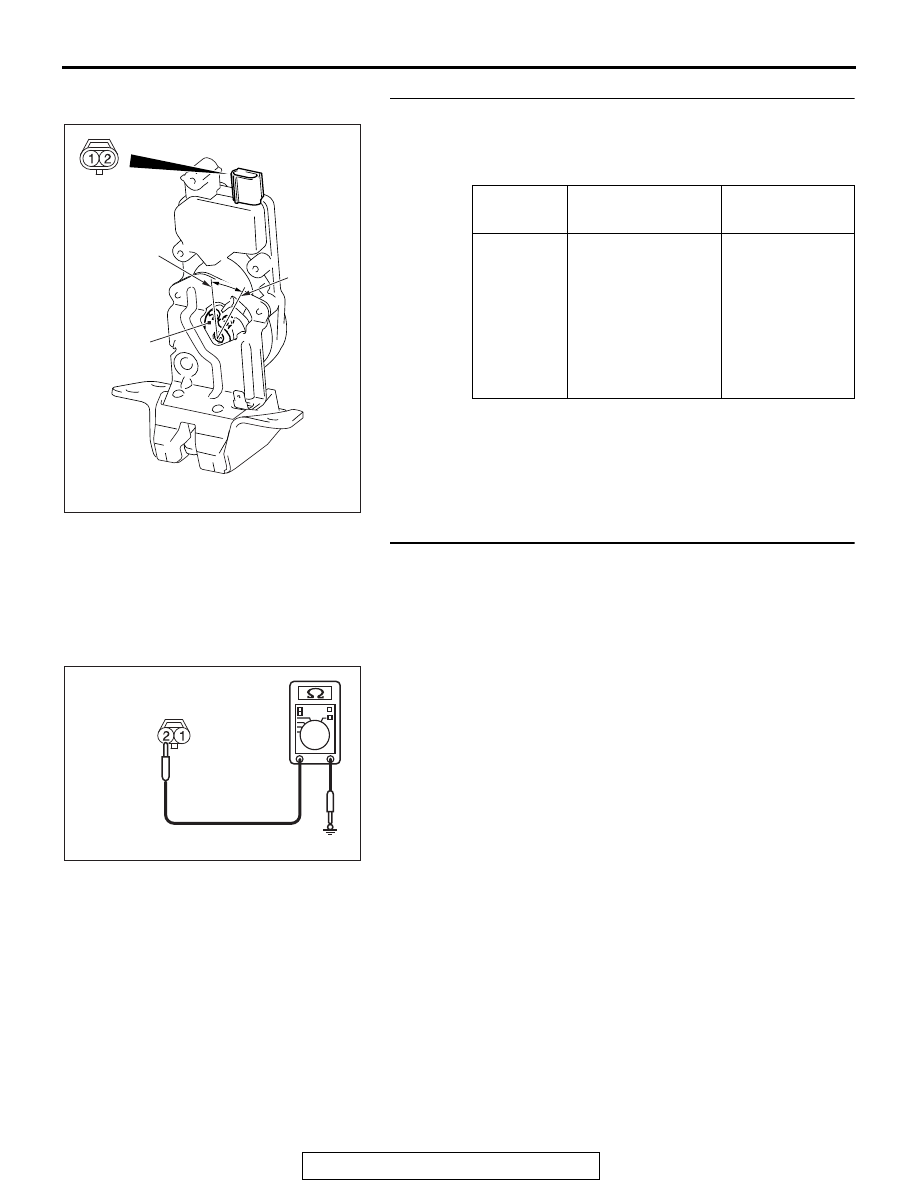

STEP 19. Check the liftgate lock actuator.
Remove the liftgate lock actuator. The illustration shows when
the liftgate lock actuator is viewed from inside the liftgate. Refer
to GROUP 42A, Liftgate Handle and Latch

P.42A-174

.

Q: Is the liftgate lock actuator normal?

YES : Go to Step 20.
NO :  Replace the liftgate lock actuator. Verify that all the

doors and the liftgate can be locked and unlocked
normally.

STEP 20. Check the ground circuit to the liftgate lock
actuator. Measure the resistance at liftgate lock actuator
connector F-11.
(1) Disconnect liftgate lock actuator connector F-11 and

measure the resistance on the wiring harness side of the
connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 22.
NO :  Go to Step 21.

Lever
position

Battery
connection

Lever operation

At the
"SET"
position

• Connect

terminal 2 to
negative battery
terminal.

• Connect

terminal 1 to
positive battery
terminal.

Lever moves
from "SET" to
"OPEN" position.

AC302760AG

Set

Lever

Open

AC702473

Connector F-11

AF

(harness side)
