DOOR
TSB Revision
BODY
42A-35
IGNITION SWITCH "LOCK (OFF)"
POSITION-LINKED DOOR UNLOCKING
FUNCTION
• When the ignition switch is turned to the " LOCK
(OFF)" position, all the doors will be unlocked
automatically, improving passengers' conve-
nience for getting out. Using a customization
function, the ignition switch " LOCK (OFF)" posi-
tion-linked door unlocking function can be
changed (Refer to
•
When the ignition switch is turned to the " LOCK
(OFF)" position, ETACS-ECU turns the unlock
relay output ON for 0.25 second to unlock all the
doors.
POWER WINDOWS
When the power window (main or sub) switch is
operated, the door windows will open or close. This
system has the following operations and features:
• A power window lock switch on the power win-
dow main switch prevents the door window glass
from opening/closing with the front passenger's
and rear power window sub switches.
• The power windows can be opened/closed for 30
seconds after the ignition switch is turned OFF
(timer expires if the front door LH or RH is
opened).
• The power window main switch contains a
one-touch switch that will automatically open and
close the driver's side door window only.
• With the safety mechanism, the power window
main switch detects the pinching of obstacle such
as a hand or a head when the driver's door win-
dow glass is raised. Then, the mechanism lowers
the driver's door window glass for approximately
150 mm (6.0 inches). The safety mechanism is
activated when the power window main switch is
operated by auto-closing operation (the status
when the hand is released from the switch knob
after auto-closing operation). The safety mecha-
nism operates as follows.
• At the manual-closing operation or the contin-
uous auto-closing operation (keep pulling up
the switch knob) of the power window switch,
the door window glass can be forcibly closed
without safety mechanism activation even
when the obstacle is detected to be pinched.
• To secure the safety when the power window
switch manual-closing or auto-closing opera-
tion is performed accidentally during the
safety mechanism activation, the power win-
dow switch manual-closing and auto-closing
operations are prohibited for 3 seconds after
the activation of safety mechanism due to the
obstacle pinching detection.
.

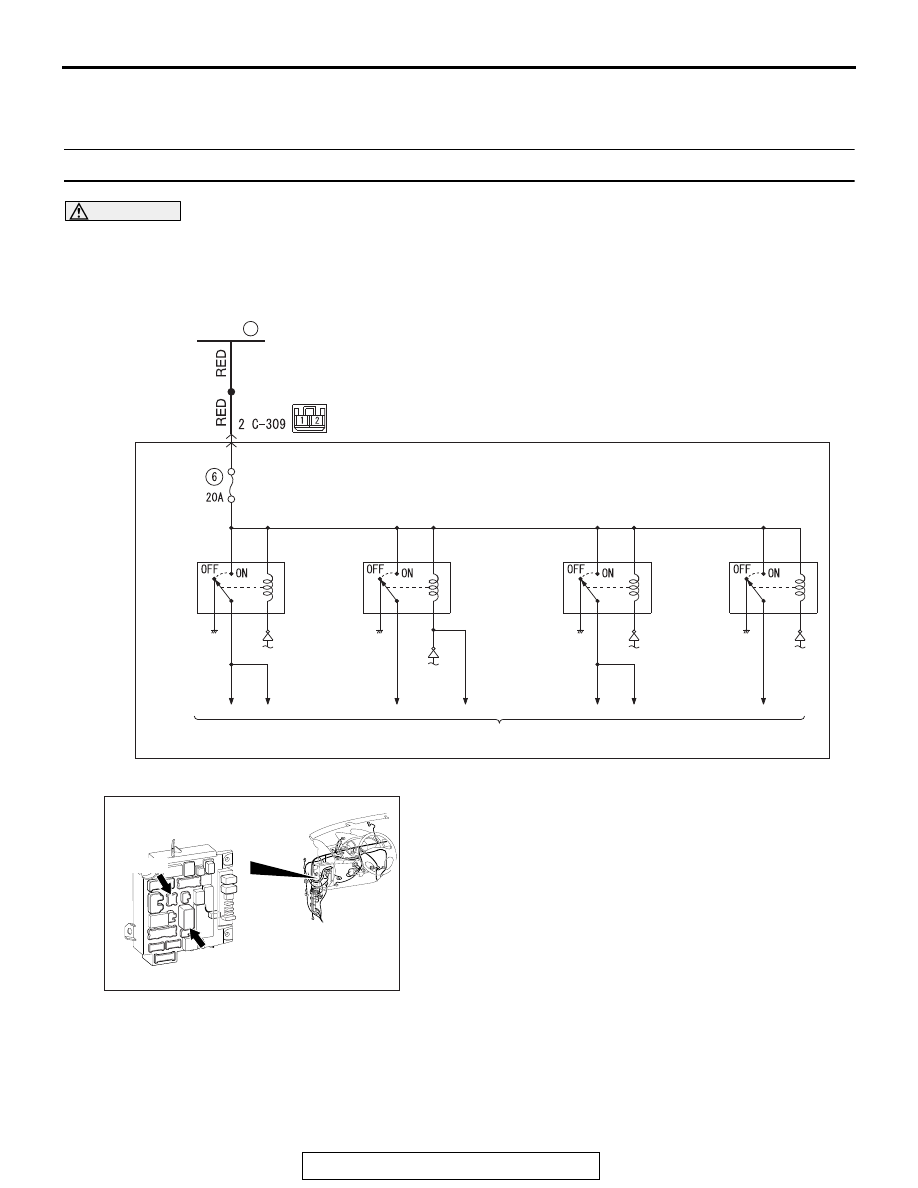

POWER WINDOW TIMER FUNCTION
Even after the ignition is switched off, the
ETACS-ECU keeps the power window relay acti-
vated for approximately 30 seconds, enabling raising
or lowering of the power windows by using the power
window switches (timer function). After approxi-
mately 30 seconds, the power window relay is deac-
tivated.
During this timer operation, if the driver’s or front
passenger’s door is opened, the power window relay
is deactivated from that moment.
AC900907AD
t
ON
OFF
ON
OFF
Ignition switch
"LOCK (OFF)"
Unlock relay output
t: 0.25 second
ZC600258
AC607043
ON
OFF
ON
OFF
t
AE
Ignition switch
(IG1)
ON
(Open)
ON
(Close)
t: 30 seconds
Power window
relay
Driver's or front
passenger's
door switch
