Mitsubishi Outlander GS45X. Manual - part 99

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-393

STEP 15. Check rear door speaker (RH) connector E-10 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is rear door speaker (RH) connector E-10 in good

condition?
YES : Go to Step 16.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

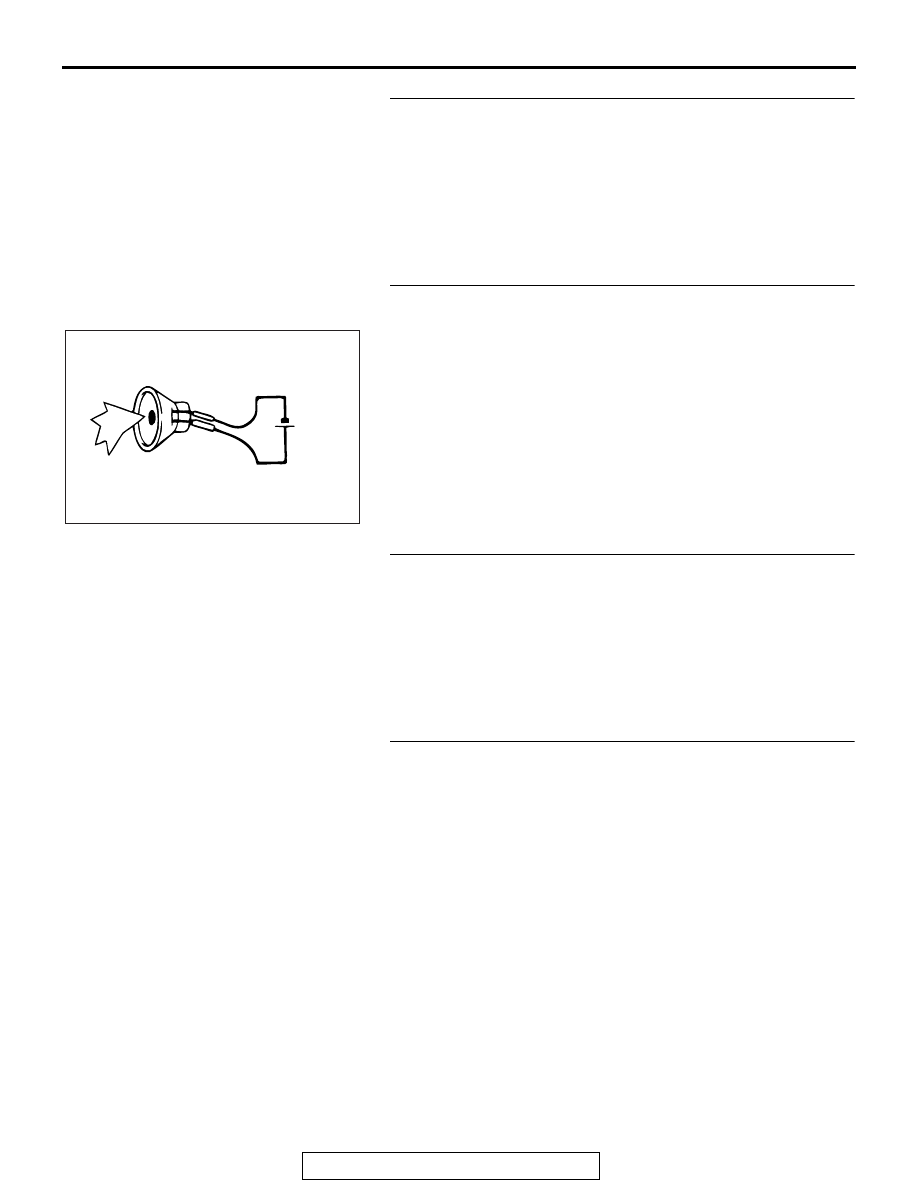

STEP 16. Check the rear door speaker (RH).
(1) Remove the rear door speaker (RH). Refer to

P.54A-692

.

(2) Check that the rear door speaker (RH) outputs the noise

when the voltage of five volts is applied to the rear door
speaker (RH) connector terminal.

Q: Does the rear door speaker (RH) output the noise?

YES : Go to Step 17.
NO :  Replace the rear door speaker (RH).

STEP 17. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is audio amplifier connector D-127 in good condition?

YES : Go to Step 18.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 18. Check the wiring harness between audio
amplifier connector D-127 (terminal 2, 8) and rear door
speaker (RH) connector E-10 (terminal 1, 2).
NOTE: Also check intermediate connector D-36 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-36 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between audio amplifier connector

D-127 (terminal 2, 8) and rear door speaker (RH)
connector E-10 (terminal 1, 2) in good condition?
YES : Check the trouble symptom, and go to Step 35.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC703723AB

5 volts

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-394

STEP 19. Check rear door speaker (LH) connector E-24 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is rear door speaker (LH) connector E-24 in good

condition?
YES : Go to Step 20.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

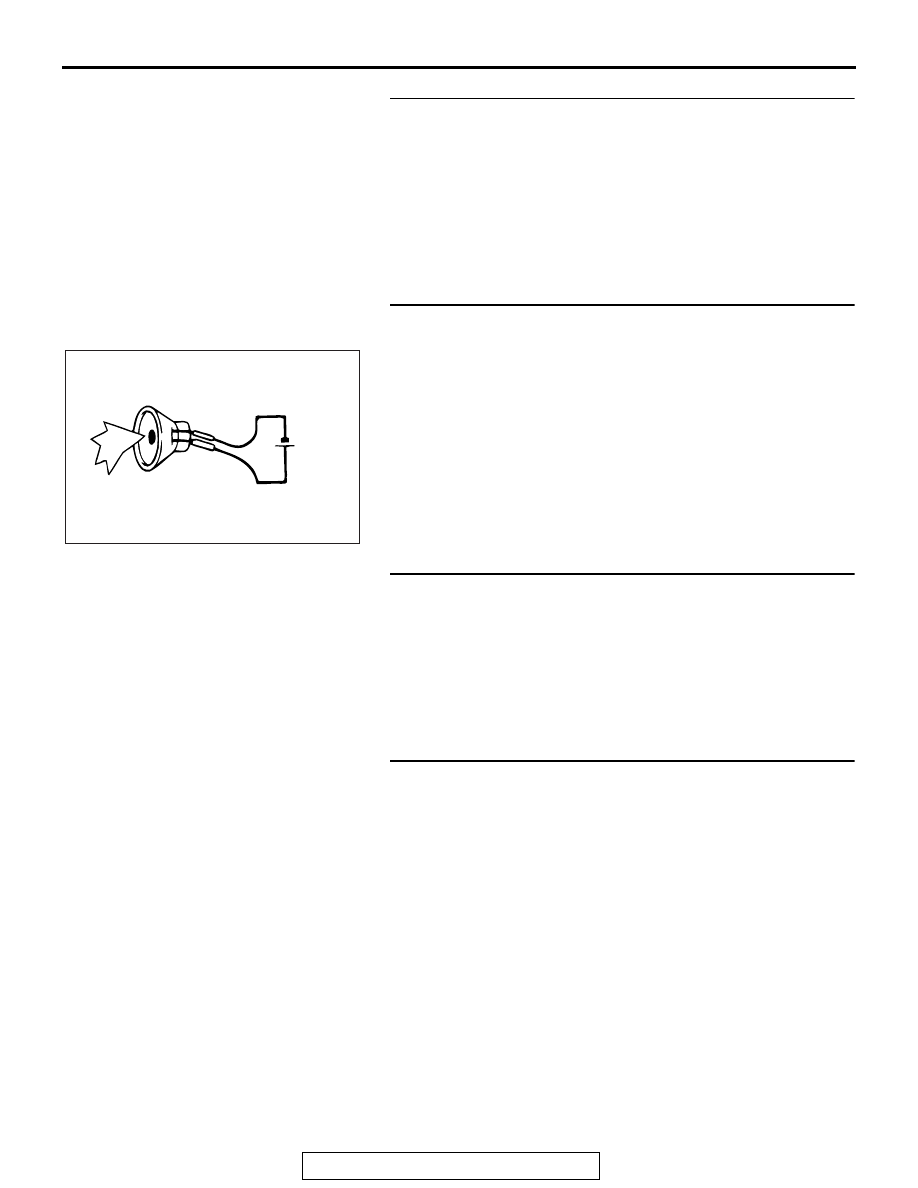

STEP 20. Check the rear door speaker (LH).
(1) Remove the rear door speaker (LH). Refer to

P.54A-692

.

(2) Check that the rear door speaker (LH) outputs the noise

when the voltage of five volts is applied to the rear door
speaker (LH) connector terminal.

Q: Does the rear door speaker (LH) output the noise?

YES : Go to Step 21.
NO :  Replace the rear door speaker (LH).

STEP 21. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is audio amplifier connector D-127 in good condition?

YES : Go to Step 22.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 22. Check the wiring harness between audio
amplifier connector D-127 (terminal 1, 7) and rear door
speaker (LH) connector E-24 (terminal 1, 2).
NOTE: Also check intermediate connector D-21 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-21 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between audio amplifier connector

D-127 (terminal 1, 7) and rear door speaker (LH)
connector E-24 (terminal 1, 2) in good condition?
YES : Check the trouble symptom, and go to Step 35.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC703723AB

5 volts

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-395

STEP 23. Check tweeter (RH) connector E-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is tweeter (RH) connector E-02 in good condition?

YES : Go to Step 24.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 24. Check the tweeter (RH).
(1) Remove the tweeter (RH). Refer to

P.54A-692

.

(2) Check that the tweeter (RH) outputs the noise when the

voltage of five volts is applied to the tweeter (RH) connector
terminal.

Q: Does the tweeter (RH) output the noise?

YES : Go to Step 25.
NO :  Replace the tweeter (RH).

STEP 25. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is audio amplifier connector D-127 in good condition?

YES : Go to Step 26.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 26. Check the wiring harness between audio
amplifier connector D-127 (terminal 5, 13) and tweeter (RH)
connector E-02 (terminal 2, 1).
NOTE: Also check intermediate connectors C-22 and C-113 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-22 or C-113
is damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between audio amplifier connector

D-127 (terminal 5, 13) and tweeter (RH) connector E-02
(terminal 2, 1) in good condition?
YES : Check the trouble symptom, and go to Step 35.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC703723AB

5 volts

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-396

STEP 27. Check tweeter (LH) connector E-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is tweeter (LH) connector E-14 in good condition?

YES : Go to Step 28.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 28. Check the tweeter (LH).
(1) Remove the tweeter (LH). Refer to

P.54A-692

.

(2) Check that the tweeter (LH) outputs the noise when five

volts are applied to the tweeter (LH) connector terminal.

Q: Does the tweeter (LH) output the noise?

YES : Go to Step 29.
NO :  Replace the tweeter (LH).

STEP 29. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is audio amplifier connector D-127 in good condition?

YES : Go to Step 30.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 30. Check the wiring harness between audio
amplifier connector D-127 (terminal 6, 14) and tweeter (LH)
connector E-14 (terminal 2, 1).
NOTE: Also check intermediate connectors C-22 and C-127 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-22 or C-127
is damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between audio amplifier connector

D-127 (terminal 6, 14) and tweeter (LH) connector E-14
(terminal 2, 1) in good condition?
YES : Check the trouble symptom, and go to Step 35.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC703723AB

5 volts
