HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-221

•

Before inspection using the scan tool MB991958, wipe off
the windshield clearly. Then check that there is no abnor-
mality on the windshield surface where the lighting control
sensor is mounted.

•

When covering the lighting control sensor receiver, be care-
ful not to touch the windshield surface (where the lighting
control sensor receiver is mounted). (The lighting control
sensor receiver has limited resistance to oil.)

BRACKET REPAIR OF HEADLIGHT ASSEMBLY

M1540104500113

CAUTION

• If damage is present to locations other than the repair-

able bracket, replace the assembly.

• Apply a tape to the area around the damaged bracket to

prevent damage.

• During repair work, be careful not to damage the repair

bracket installation bosses.

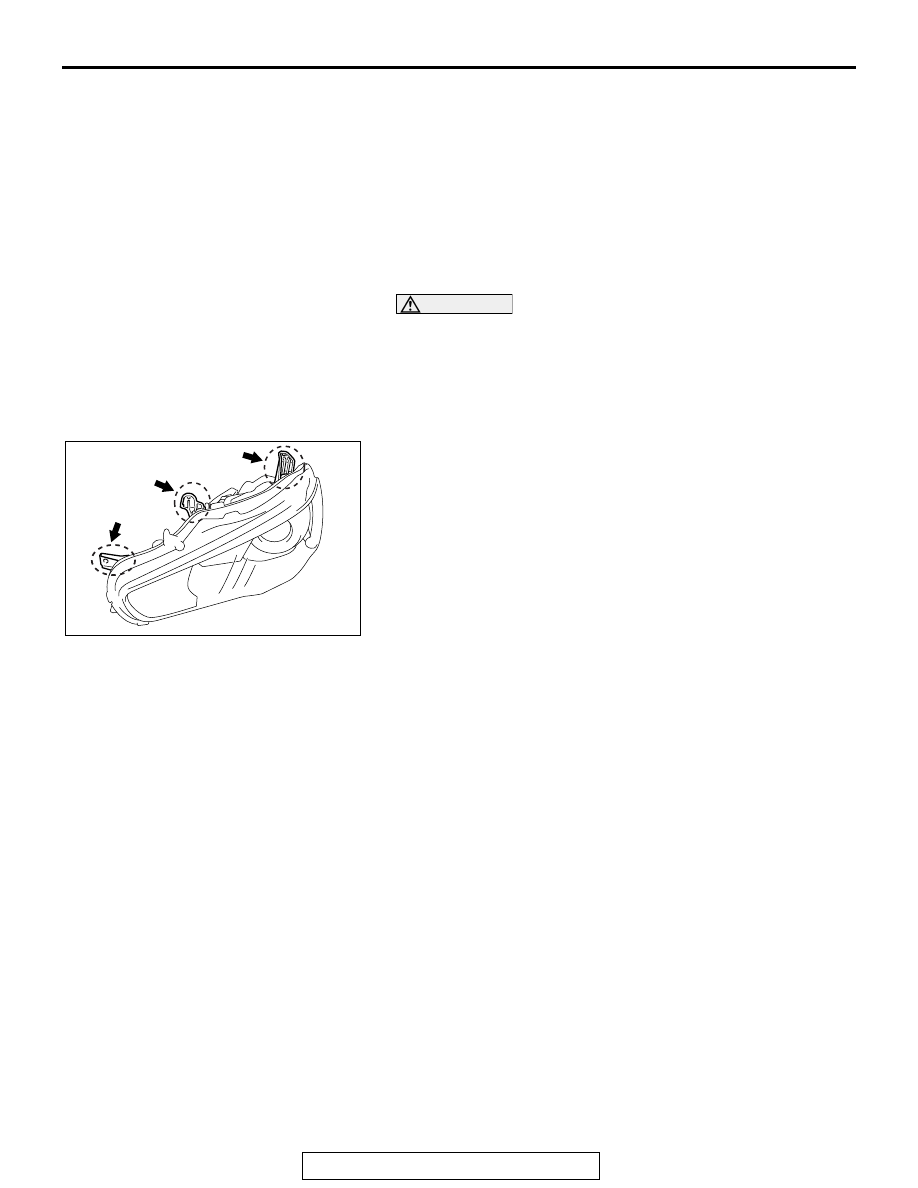

When brackets A, B and C shown in the figure are damaged, a
low-cost repair can be performed by mounting a repair bracket.

OPERATIONS BEFORE REPAIRING BRACKET

Remove the headlight assembly.

AC802176AB

Bracket C

Bracket A

Bracket B

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-222

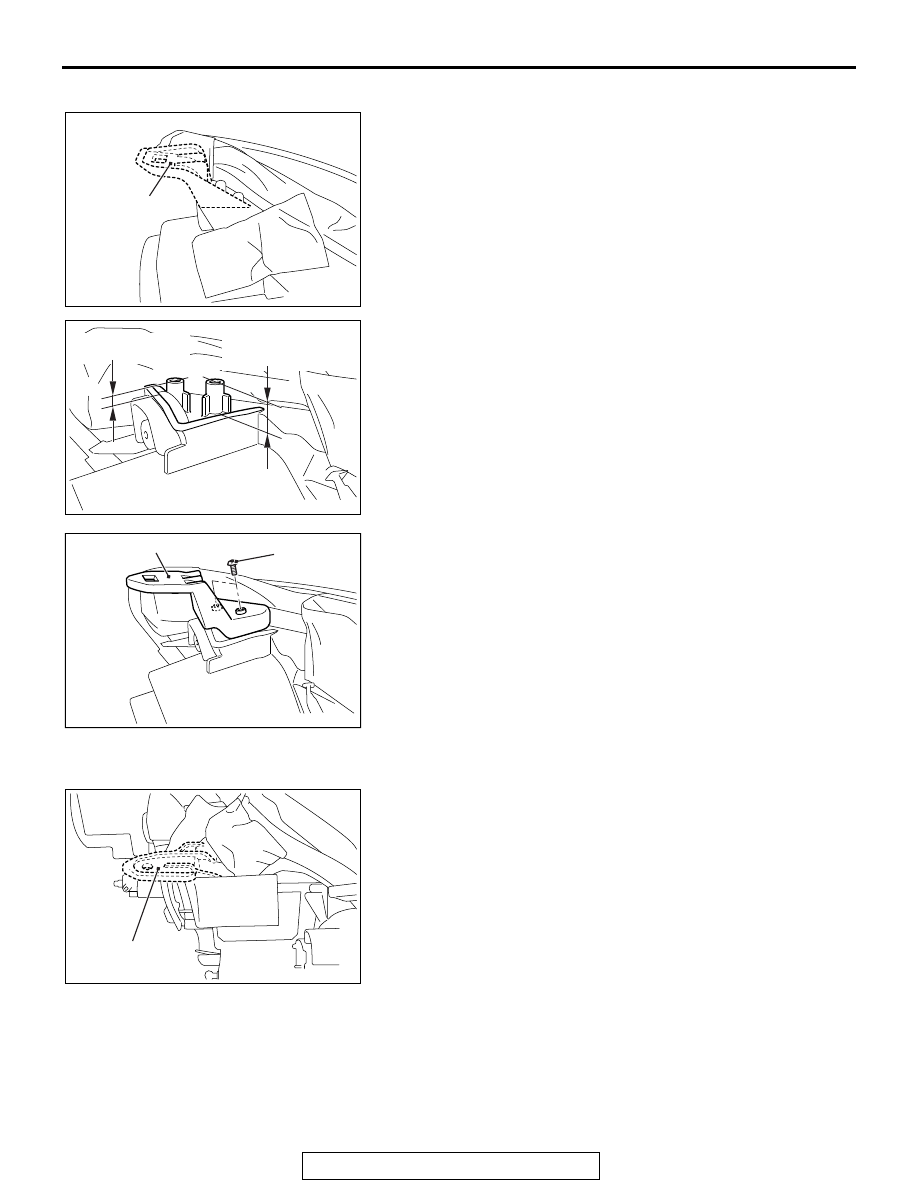

REPAIR PROCEDURE OF BRACKET A

1. Cut the damaged bracket A so that it has the larger

dimension than the dimension shown in the figure from the
mounting boss seating face.

2. Smoothen the bracket cut surface using the sandpaper.

3. Fix the repair bracket A to the headlight assembly using the

tapping screw.

REPAIR PROCEDURE OF BRACKET B

1. Cut off the damaged bracket B.

AC802177AB

Damage bracket A

;;;;

;;;;

AC802178AB

13.5 mm (0.53 inches)
or more

5.0 mm (0.2 inches)
or more

AC802179AB

Tapping
screw

Repair bracket A

AC802180AB

Damage bracket B

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-223

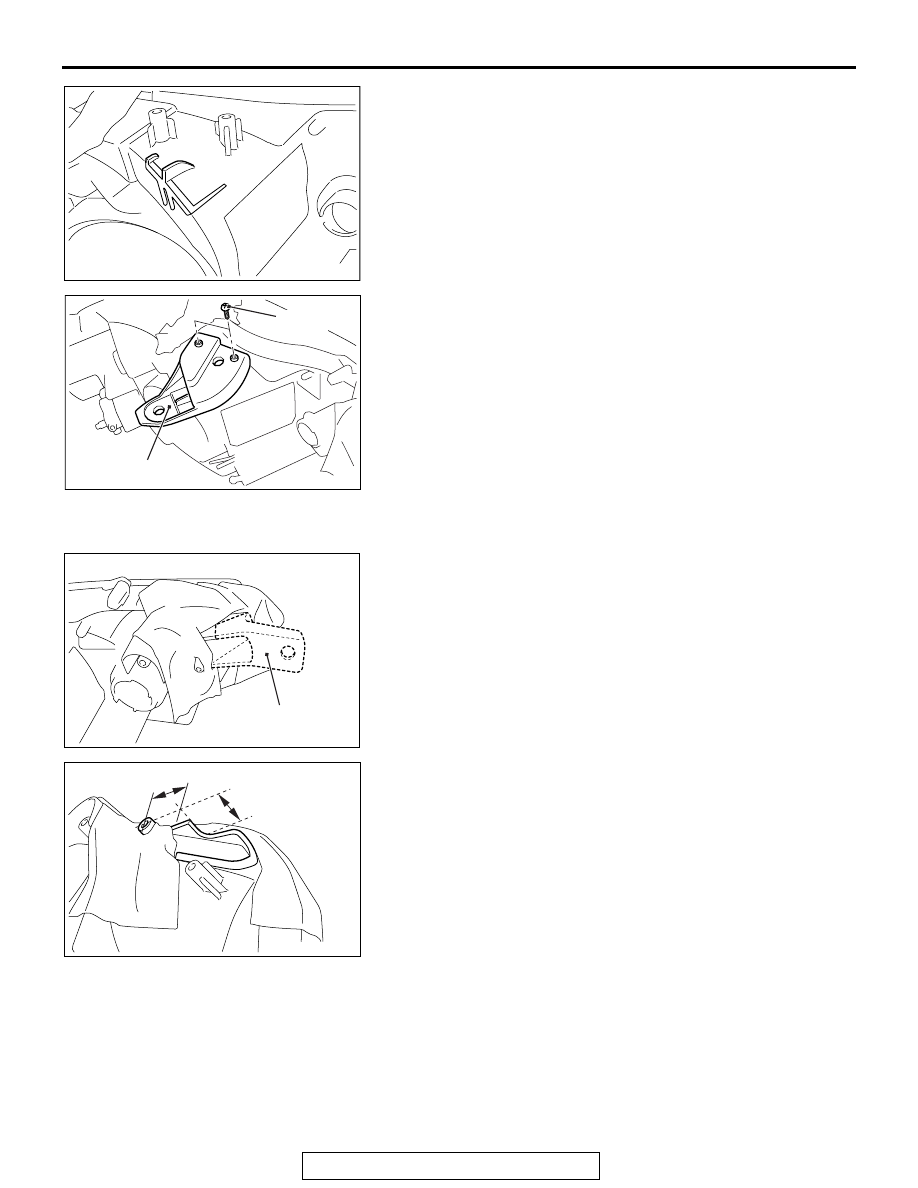

2. Remove the remaining bracket cut surface using the

sandpaper.

3. Fix the repair bracket B to the headlight assembly using the

tapping screw.

REPAIR PROCEDURE OF BRACKET C

1. Cut the damaged bracket C so that it has the dimension

shown in the figure.

2. Smoothen the bracket cut surface using the sandpaper.

;;;

;;

;

;;

;;

AC802181

AC802182 AB

Tapping
screw

Repair bracket B

AC802183AB

Damage bracket C

;;;

;;;

AC802184AB

42 mm (1.7 inches)
or more

12 mm (0.5 inches) or less

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-224

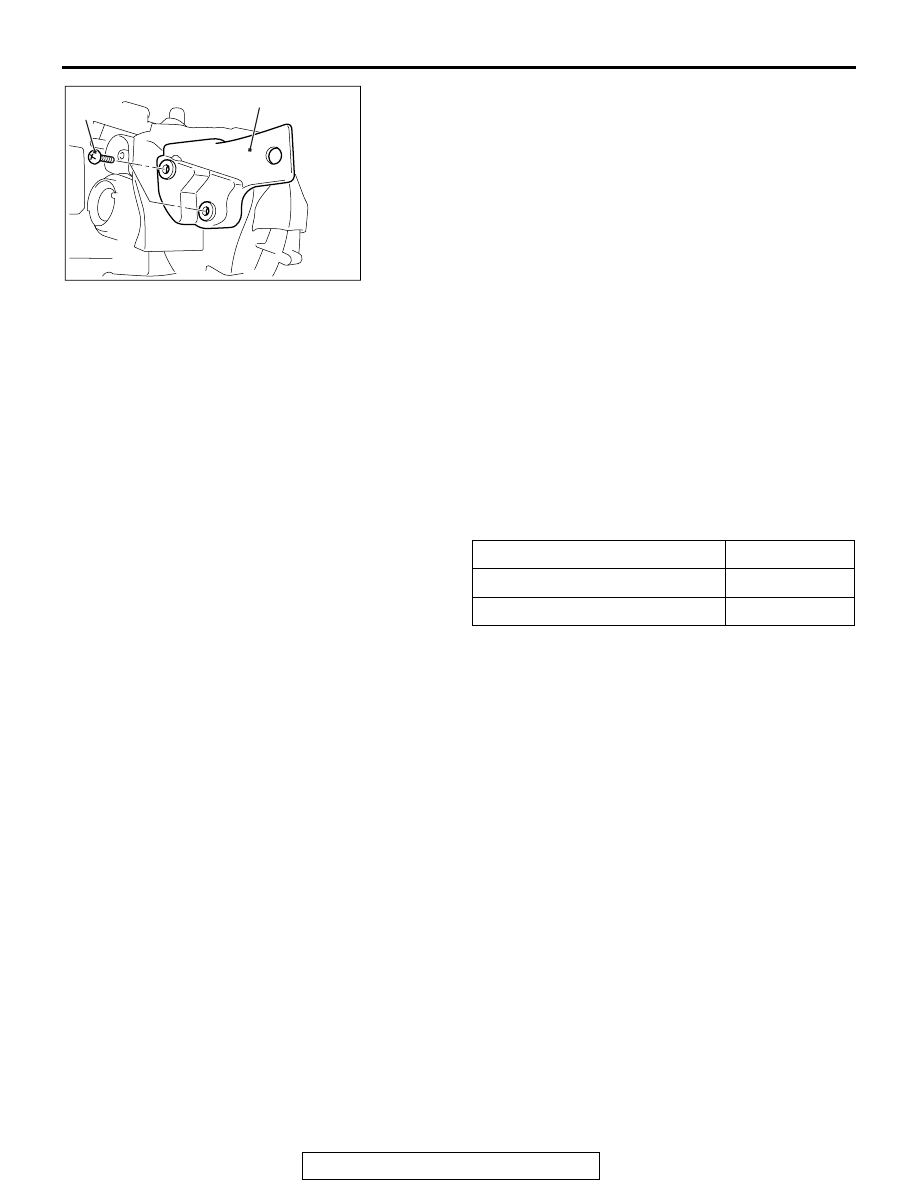

3. Fix the repair bracket C to the headlight assembly using the

tapping screw.

OPERATIONS AFTER REPAIRING BRACKET

1. Mount the headlight assembly to the vehicle.
2. Check that the headlight assembly does not vibrate during

driving.

3. Check whether each light built in the headlight assembly

and the headlight leveling system are properly operated.

4. Perform the headlight aiming adjustment and light intensity

measurement.

REPAIR BRACKET PART NUMBER

AC802185AB

Tapping
screw

Repair bracket C

Part name

Part number

Headlight (LH) bracket kit

8301B173

Headlight (RH) bracket kit

8301B174
