HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-157

STEP 3. Check headlight relay (LOW) connector A-28X for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is headlight relay (LOW) connector A-28X in good

condition?
YES : Go to Step 4.
NO :  Repair the damaged parts.

STEP 4. Check the battery power supply circuit to the
headlight relay (LOW). Measure the voltage at headlight
relay (LOW) connector A-28X.

CAUTION

The top and bottom of the headlight relay (LOW) are diffi-
cult to identify. Prior to inspection, confirm the triangle
mark on the relay box.
(1) Disconnect headlight relay (LOW) connector A-28X and

measure the voltage available at the relay box side of the
connector.

(2) Measure the voltage between terminal 2/4 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 5.
NO :  Go to Step 7.

STEP 5. Check ETACS-ECU connector C-312 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-312 in good condition?

YES : Go to Step 6.
NO :  Repair the damaged parts.

AC702831CL

Relay box side: A-28X

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-158

STEP 6. Check the wiring harness between headlight relay
(LOW) connector A-28X (terminal 1) and ETACS-ECU
connector C-312 (terminal 6).

• Check the ground wires for open circuit.

Q: Is the wiring harness between headlight relay (LOW)

connector A-28X (terminal 1) and ETACS-ECU
connector C-312 (terminal 6) in good condition?
YES (Vehicles without discharge headlight) : Go to Step

8.

YES (Vehicles with discharge headlight) : Go to Step 9.
NO  :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the low-beam headlights illuminate normally.

STEP 7. Check the wiring harness between headlight relay
(LOW) connector A-28X (terminal 2/4) and the fusible link
(36).

• Check the power supply line for open circuit.

Q: Is the wiring harness between headlight relay (LOW)

connector A-28X (terminal 2/4) and fusible link (36) in
good condition?
YES (Vehicles without discharge headlight) : Go to Step

8.

YES (Vehicles with discharge headlight) : Go to Step 9.
NO  :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the low-beam headlights illuminate normally.

STEP 8. Substitute a known good headlight relay (LOW),
and check the trouble symptom.
Q: Do the headlights (low-beam) illuminate in good

condition?
YES : Replace the headlight relay (LOW).
NO :  Replace the ETACS-ECU.

STEP 9. Check of headlight relay (LOW).
Refer to

P.54A-219

.

Q: Is the headlight relay (LOW) in good condition?

YES : Go to Step 10.
NO :  Replace the headlight relay (LOW). Verify that the

low-beam headlights illuminate normally.

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-159

STEP 10. Retest the system
Q: Do the headlights (low-beam) illuminate in good

condition?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the ETACS-ECU.

Inspection Procedure 2: None of headlights (high-beam) illuminates.

CAUTION

Whenever the ECU is replaced, ensure that the
power supply circuit, the ground circuit and the
communication circuit are normal.

AC702957

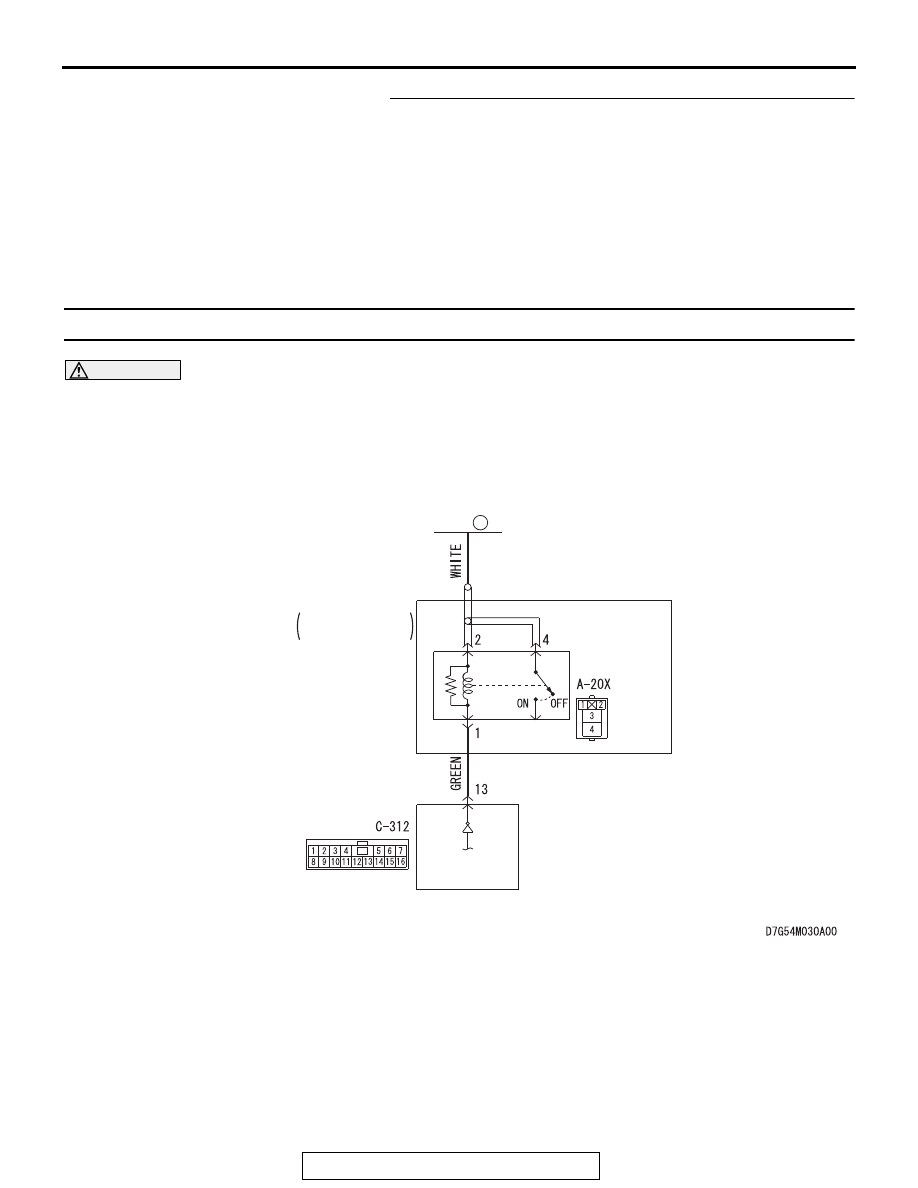

Headlight Relay (High-Beam) Circuit

ETACS-ECU

FUSIBLE
LINK

36

HEADLIGHT
RELAY (HIGH)

RELAY BOX
 ENGINE
 COMPARTMENT

AB

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-160

.

TECHNICAL DESCRIPTION (COMMENT)

If none of headlights (high-beam) illuminates, the
headlight switch input circuit, headlight relay (HIGH),
or ETACS-ECU may have a problem.

.

TROUBLESHOOTING HINTS

• Malfunction of column switch

• Malfunction of headlight relay (HIGH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS

Required Special Tools:

• MB992006: Extra fine probe

• MB991223: Harness set

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

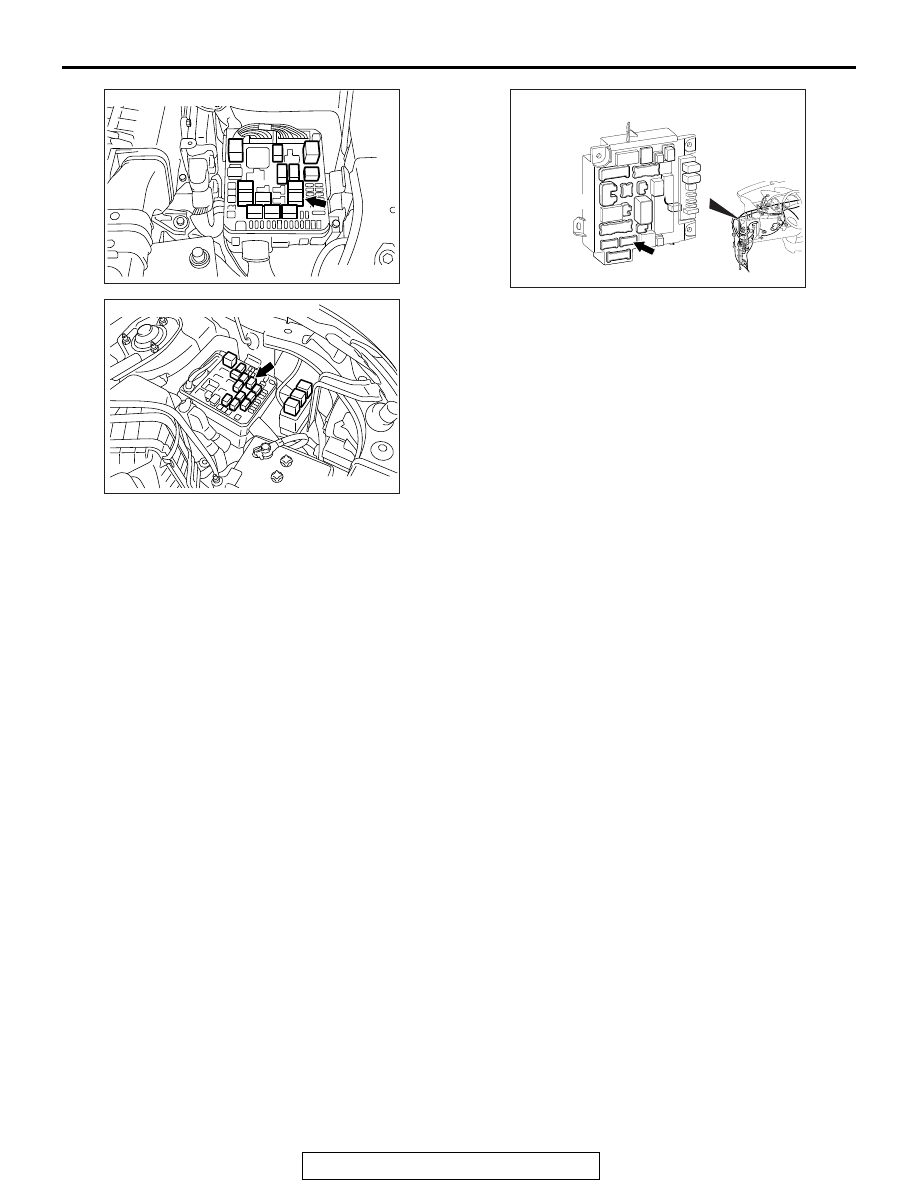

AC709504

AC

Connector: A-20X <2.4L Engine>

AC702950 AK

Connector: A-20X <3.0L Engine>

ACA02655AW

Connector: C-312
