Mitsubishi Outlander GS45X. Manual - part 28

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-109

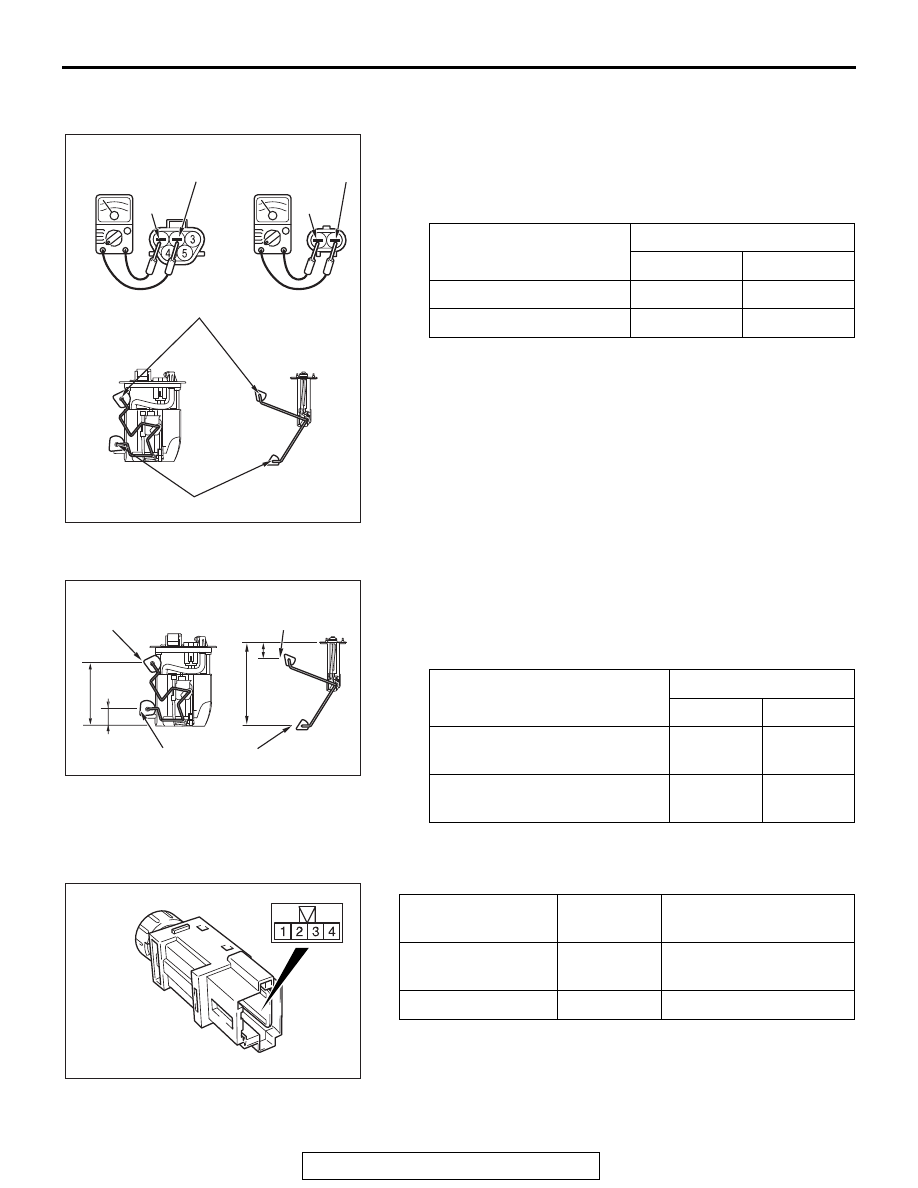

NOMINAL RESISTANCE OF THE FUEL LEVEL
SENSOR

When float of the fuel level sensor is in stopper positions F and
E, ensure that resistance between the fuel level sensor terminal
and ground terminal is within the standard value.

Standard value:

When the float is moved slowly between stopper positions "F"
and "E", ensure that the resistance is smoothly changing.

.

FUEL LEVEL SENSOR FLOAT HEIGHT

When float is moved to contact the float arm on the stopper,
ensure that stopper positions "F" (height A) and "E" (height B)
are within the standard value.

Standard value:

METER INFORMATION SWITCH CHECK

M1540202000119

Float position

Gauge resistance value (

Ω)

Main

Sub

Stopper position "F"

6.5

± 1.0

6.5

± 1.0

Stopper position "E"

44.7

± 1.0

75.3

± 1.0

AC702853AB

<Main>

<Sub>

Ground

Fuel level sensor

Stopper position “F”

Ground

Stopper position “E”

Fuel level sensor

Float position

Float height mm (in)

Main

Sub

Stopper position "F" (height A)

166.2 (6.5) 48.8

± 3.0

(1.9

± 0.1)

Stopper position "E" (height B) 38.8 (1.5)

238.0

± 3.0

(9.3

± 0.1)

AC702854AB

A

B

B

A

<Main>

<Sub>

Stopper position “E”

Stopper position “F”

Stopper position “F”

Switch position

Tester
connection

Specified condition

Pressed

1-4

Continuity exists (2 ohms
or less)

Released

1-4

Open circuit

AC505421AB

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-110

SERVICE REMINDER FUNCTION SET

M1540208200229

HOW TO SET BY OPERATING THE SCAN
TOOL MB991958

CAUTION

• If the combination meter needs to be

replaced, the current driving distance and
elapsed days must be entered into the meter
after the replacement in order to be used for
service reminder function. Therefore, read
"Integrated mileage for reminder," "Integrated
days for reminder," "Mileage until Extra
reminder," "Months until Extra reminder," and
"Current schedule" from the meter before the
replacement using the special function of the
scan tool MB991958, and note them. If "Inte-
grated mileage for reminder" or "Integrated
days for reminder" cannot be read from the
meter using the scan tool MB991958, use the
following method.

a. As for the driving distance for check warn-

ing, use the driving distance displayed on
the multi information display.

b. As for the elapsed days for check warning,

calculate the number of elapsed days from
the delivery date to the customer (service
reminder function start date) and current
date.

• After the service reminder function has

started, when the elapsed days for check
warning is reset for the vehicle whose battery
is removed for a long period (15 days or
more), calculate the elapsed days from the
delivery date to the customer (service
reminder function start date) and the current
date, and then input it.

Using the scan tool MB991958, the following service
reminder functions can be set. Before setting, check
the current status (schedule, driving distance and
elapsed days).

1. Reminder reset (Indicator off)
2. Next schedule reminder cancel
3. Extra reminder setting
4. Extra reminder cancel
5. Periodic reminder schedule set
6. Integrated value adjustment
7. Optional INT schedule setting

.

HOW TO OPERATE THE SCAN TOOL MB991958

CAUTION

Before setting, if the combination meter does not start
measuring the elapsed time, turn the ignition switch to the
ON position while pressing the meter information switch to
start a measurement.
1. Connect the scan tool MB991958 to the data link connector.
2. Start the M.U.T.-III system on the PC and turn the ignition

switch to the "ON" position.

3. Select "Meter" on the "System Select" screen, and press the

"OK" button.

4. Select "Special Function" on the next screen.

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-111

5. Select "Service Reminder" on the "Special function" screen.
6. Select the function to be executed from "Function List."

• 1 Reminder reset (Indicator off) (Refer to

P.54A-111

).

• 2 Next schedule reminder cancel (Refer to

P.54A-111

).

• 3 Extra reminder setting (Refer to

P.54A-112

).

• 4 Extra reminder cancel (Refer to

P.54A-112

).

• 5 Periodic reminder schedule set (Refer to

P.54A-113

).

• 6 Integrated value adjustment (Refer to

P.54A-113

).

• 7 Optional INT schedule setting (Refer to

P.54A-114

).

.

1. REMINDER RESET (INDICATOR OFF)

CAUTION

• Be careful not to execute "1 Reminder reset (Indicator

off)" again after erasing the service reminder warning
indicator which is currently output, because the next
warning period will be cancelled.

• If the next warning period is cancelled by mistake, the

cancelled warning period can be restored by executing
"5 Periodic reminder schedule set" to set a schedule
different from the current one once, and then returning
it to the previous schedule.

The service reminder warning indicator which is currently out-
put can be cancelled.
NOTE: In addition to the operation of the scan tool MB991958,
the service reminder warning indicator can be cancelled by
operating the meter information switch on the combination
meter. Refer to  .
1. On the "Service Reminder" screen, select "1 Reminder reset

(Indicator off)."
NOTE: The screen indicates that the warning period (Nos. 1
and 2 in the data list) is "0 mile." and "0 month."

2. Press the "OK" button.

3. The current warning indicator is cancelled, and the next

warning period is displayed.
NOTE: The screen indicates that the warning period (Nos. 1
and 2 in the data list) is "7,500 km" and "6 month."

.

2. NEXT SCHEDULE REMINDER CANCEL

CAUTION

If the next warning period is cancelled by mistake, the can-
celled warning period can be restored by executing "5
Periodic reminder schedule set" to set a schedule different
from the current one once, and then returning it to the pre-
vious schedule.
The next warning period is cancelled, and its following warning
period can be set.

AC602555

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 401430898

Meter

Special Function

Function List

Reminder reset (Indicator off)

Mileage until reminder

7500 mile

6 month

NAS 10

26 mile

Months until reminder

Current Schedule

Integrated mileage
for reminder

Mileage until Extra
reminder

Months until Extra
reminder

Next schedule reminder cancel

Extra reminder setting

Extra reminder cancel

Periodic reminder schedule set

Integrated value adjustment

Optional INT schedule setting

Click the name of item to execute, and press
the OK button.

Name

No.

1

2

1

2

3

4

5

4

5

7

8

6

7

Name

Value

No.

Service Reminder

Data List

AM

AC602558

0 mile

0 month

1

1

2

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A6

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Reminder reset
(Indicator off)

Press the OK button to execute.

AV

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602558

7500 mile

6 month

1

1

2

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A6

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Reminder reset
(Indicator off)

Check the result.

AW

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-112

1. On the "Service Reminder" screen, select "2 Next schedule

reminder cancel."
NOTE: The screen indicates that the warning period (Nos. 1
and 2 in the data list) is "1,000 mile" and "1 month."

2. Press the "OK" button.

3. The next warning period is cancelled, and its following

warning period is set.
NOTE: The screen indicates that the warning period (Nos. 1
and 2 in the data list) is changed to "8,500 km" and "7
month."

.

3. EXTRA REMINDER SETTING

In addition to the current warning period, the temporary service
reminder warning period can be set.

1. On the "Service Reminder" screen, select "3 Extra reminder

setting."
NOTE: The screen indicates that the temporary warning
period (Nos. 4 and 5 in the data list) has not been set.

2. Set the temporary warning period (distance or month) of the

"Set value."
NOTE: Either input of distance or month can execute the
setting.

3. Press the "OK" button.

4. The temporary warning period is set.

NOTE: The screen indicates that "2 month" has been added
to the temporary warning period (No. 5 in the data list). (The
distance of No. 4 in the data list has not been set).

.

4. EXTRA REMINDER CANCEL

The temporary service reminder warning period which has
been set can be cancelled.

AC602558

1000 mile

1 month

1

2

2

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A6

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Next schedule
reminder cancel

Press the OK button to execute.

AX

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602558

8500 mile

7 month

1

2

2

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A6

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Next schedule
reminder cancel

Check the result.

AY

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602556

-Input the value-

-Input the value-

Distance to setting point

Months to setting point

7500 mile

6 month

1

3

2

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A4

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Name

Value

Set value

Extra service
reminder setting

Input the value for the item that you want to
set up, and press the OK button.

AG

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602557

2

-Input the value-

Distance to setting point

Months to setting point

3

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A5

Meter

Selected

Item

Special Function

Service Reminder

Name

Value

0

1

2

3

Back

Space

Clear

Tab

6

5

4

7

8

9

Set value

Range: 0-254, Unit: month,

Extra service
reminder setting

Input the value for the item that you want to
set up, and press the OK button.

AE

AC602558

7500 mile

6 month

2 month

1

3

2

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A6

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Extra service
reminder setting

Check the result.

AO

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder
