COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-97

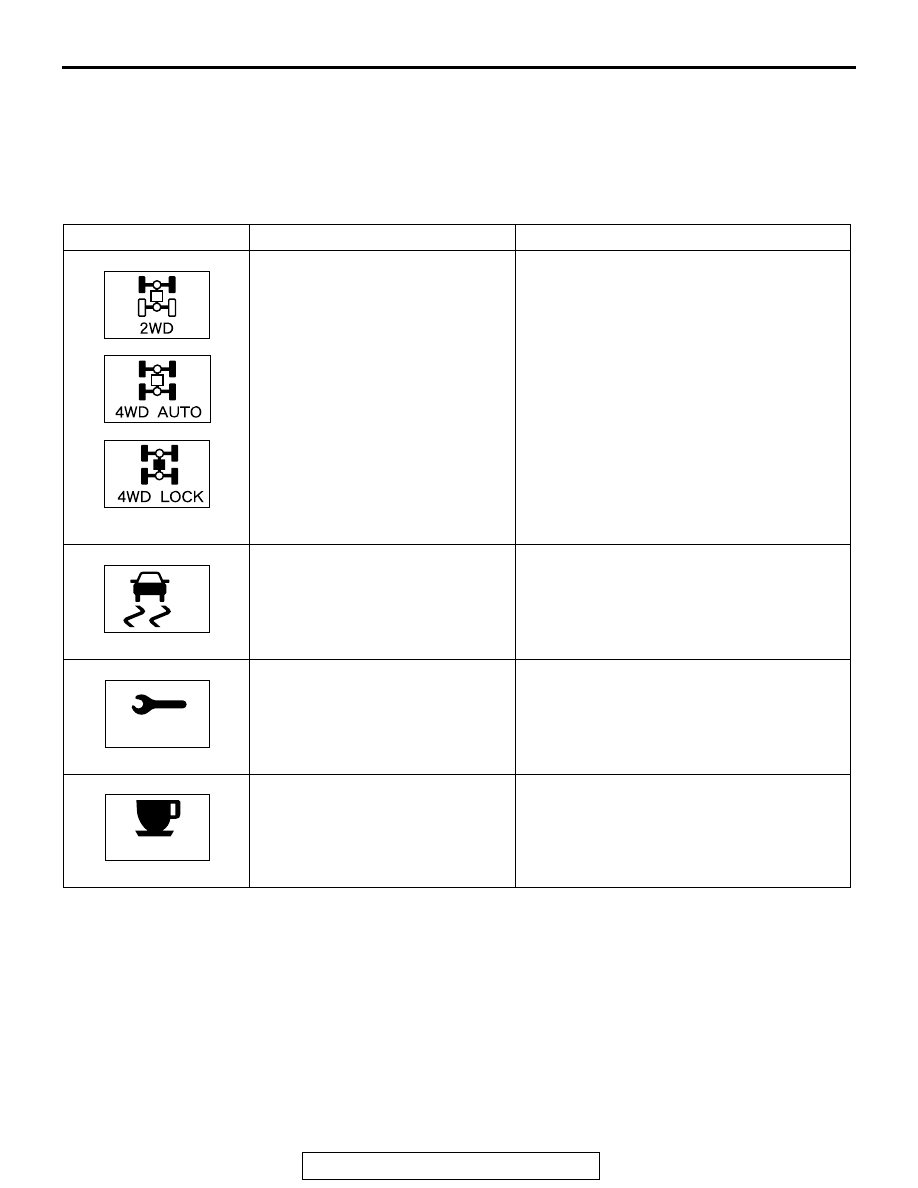

OTHER SCREENS

The screen displays the operation state of each sys-
tem, periodic checkup timing, or timing for taking a
rest during driving. If the screen display differs from
the actual system operation state or if the screen is
not displayed at the set timing, take measures
according to the action procedure.

Display contents

System operation state

Action procedure

Displays the screen in accordance
with operation state of the AWD
selector switch.

If the AWD selector switch position and
screen do not agree with each other, perform
the troubleshooting for the AWD. Refer to
GROUP 27C, Diagnosis

P.27C-11

Displayed when the ASC is in
operation.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, perform the troubleshooting for
the ASC. Refer to GROUP 35C, Symptom
Chart

P.35C-216

Displayed when the set period
elapses.

−

Displayed when the set time
elapses.

−

AC505707

AC505708

AC505709

AC507289

AC505710

PERIODIC
INSPECTION

AC509849

REST REMINDER

AC613245

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-98

CHECK PROCEDURE FOR EACH MULTI INFORMATION DISPLAY SCREEN
<VEHICLES WITH COLOR LIQUID CRYSTAL DISPLAY>

M1540201900625

CAUTION

When there are TV towers, substations, or broad-
casting stations which emit strong radio waves
in proximity, on rare occasions, a warning is dis-
played on the multi information screen for a few
seconds. This is caused by the reception of
strong radio waves, and there is no functional
problem.

WARNING SCREEN

When malfunctions occur to the vehicle, the following
warning screens are displayed. If these screens are
not displayed normally or if they continue to be dis-
played even after the factor is eliminated, take mea-
sures according to the action procedure.

Display content

Message

Factor

Action procedure

REMOVE KEY

Displayed with the
sounding of tone alarm
when the driver's door is
opened with the key
inserted in the ignition
switch key cylinder.

If the ignition key reminder
warning tone alarm is not being
sounded, perform the
troubleshooting for the ignition key
reminder warning tone alarm
(Refer to

P.54A-79

TURN OFF
LIGHTS

Displayed with the
sounding of tone alarm
when the driver's door is
opened with the ignition
switch at the LOCK
(OFF) or ACC position
and the lighting switch at
the tail or head position.

If the lighting monitor warning
tone alarm is not being sounded,
perform the troubleshooting for
the lighting monitor warning tone
alarm (Refer to

P.54A-79

ALARM
ACTIVATING

Displayed while the theft
alarm is in operation.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, carry
out the troubleshooting for the
theft alarm (Refer to

P.54A-849

AC809615

AC809612

AC505679

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-99

−

Displayed when the
following operations are
carried out with the
ignition switch at
positions other than the
LOCK (PUSH OFF)
position after the engine
is stopped.

• When the driver's

door is opened

• When the doors are

closed and locked

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the KOS (Refer to GROUP 42B,
Diagnostic trouble code chart

P.42B-35

KEY BATTERY
LOW

Displayed when the
KOS key battery is
running low.

KEY NOT
DETECTED

Displayed if carrying a
KOS key with different
ID code or the KOS key
is outside the operative
range.

KEY STILL IN
VEHICLE

Displayed when the
KOS key take-out
monitoring function or
KOS key confinement
prevention function is in
operation.

CHECK DOORS

Displayed when the
door ajar prevention
function is in operation.

KEYLESS
OPERATION
SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to KOS.

Display content

Message

Factor

Action procedure

AC900961

AC809614

AC809615

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-100

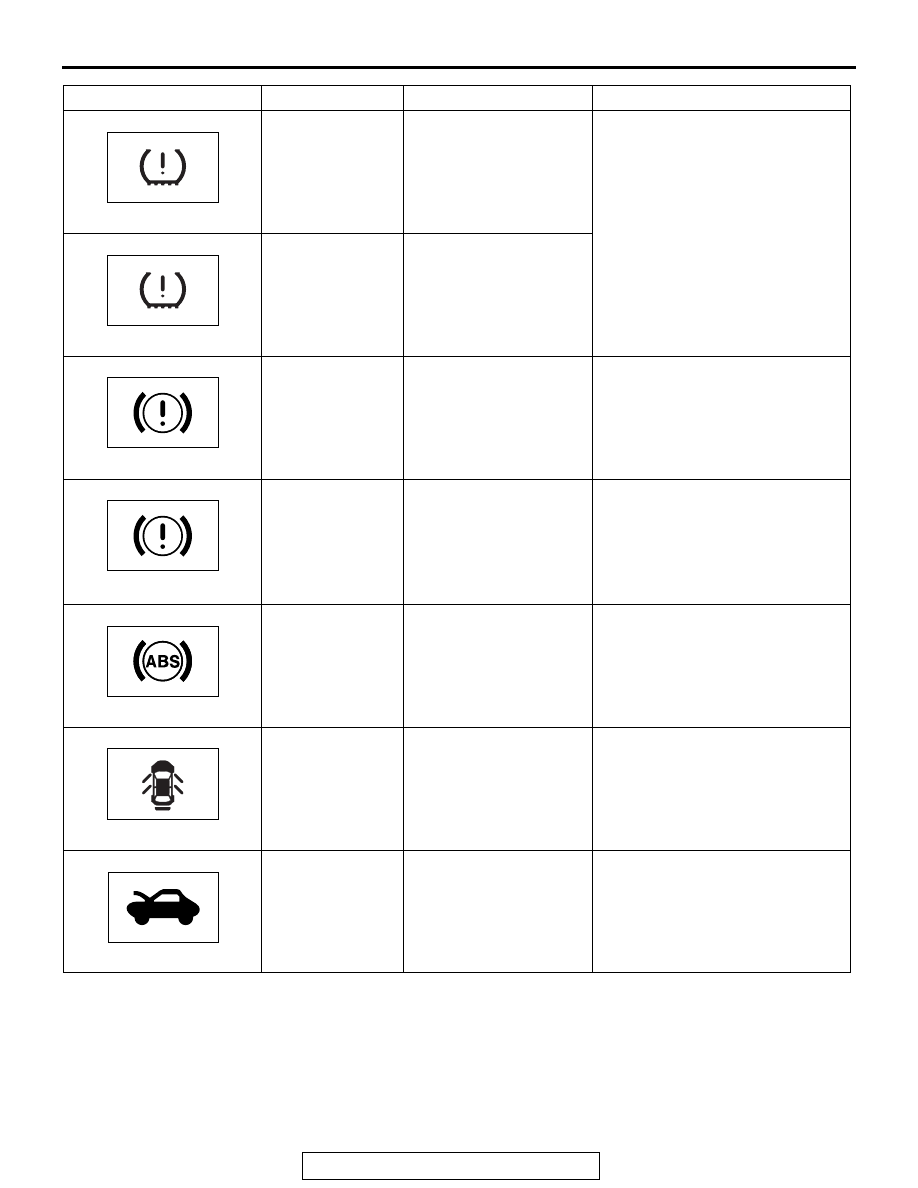

LOW TIRE
PRESSURE

Displayed when the tire
air pressure is an
abnormality. (except
spare tire)

If the warning screen is not
displayed normally or erased,
carry out the troubleshooting for
the TPMS (Refer to GROUP 42B,
Diagnosis

P.42B-35

TPMS SERVICE
REQUIRED

Displayed when the
TPMS is an abnormality.

BRAKE SYSTEM
SERVICE
REQUIRED

Displayed when the
brake fluid amount is
insufficient or a
malfunction occurs to
the brake device.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the brake fluid or brake device.
Refer to GROUP 35A, On-vehicle
service

P.35A-20

RELEASE
PARKING BRAKE

Displayed if vehicle is
driven with the parking
brake engaged.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the parking brake. Refer to
GROUP 36, On-vehicle service

P.36-10

ABS SERVICE
REQUIRED

Displayed when a
malfunction occurs to
the anti-lock braking
system (ABS).

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the ABS. Refer to GROUP 35B,
Symptom Chart

P.35B-149

−

If any of the doors or
liftgate is not closed
completely, the location
of the ajar door is
displayed with the
sounding of tone alarm.

If the door ajar warning tone alarm
does not sound, perform the
troubleshooting for the door ajar
warning tone alarm. Refer to

P.54A-79

CLOSE HOOD

Displayed when the
hood is open

If the warning screen is not
displayed normally, or if the
screen continues to be displayed,
check the hood latch switch input
signal. Refer to

P.54A-813

Display content

Message

Factor

Action procedure

AC809643

AC809617

AC809618

AC900962

AC809641
