STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the combination meter.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the engine control module.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the engine control module and the
combination meter (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-15

).

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the combination meter.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the combination meter.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the engine control module and the
combination meter (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-15

).

DTC U0141: ETACS CAN timeout

CAUTION

• If DTC U0141 is set, be sure to diagnose the

CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DIAGNOSTIC FUNCTION

If the signal from ETACS-ECU cannot be received,
the combination meter sets the DTC U0141.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

− 16 volts (data from

ETACS-ECU), power supply fuse (IOD fuse) is OK,
or odometer value is 80.5 km (50 miles) or more, and
the communication with ETACS-ECU cannot be
established for 2,500 ms or more, the combination
meter determines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The combination meter may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-54

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-31

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the ETACS
diagnostic trouble code.
Check if DTC is set to the ETACS-ECU.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU (Refer to

P.54A-732

).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/C
diagnostic trouble code.
Check if DTC U0141 is set to the A/C-ECU.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

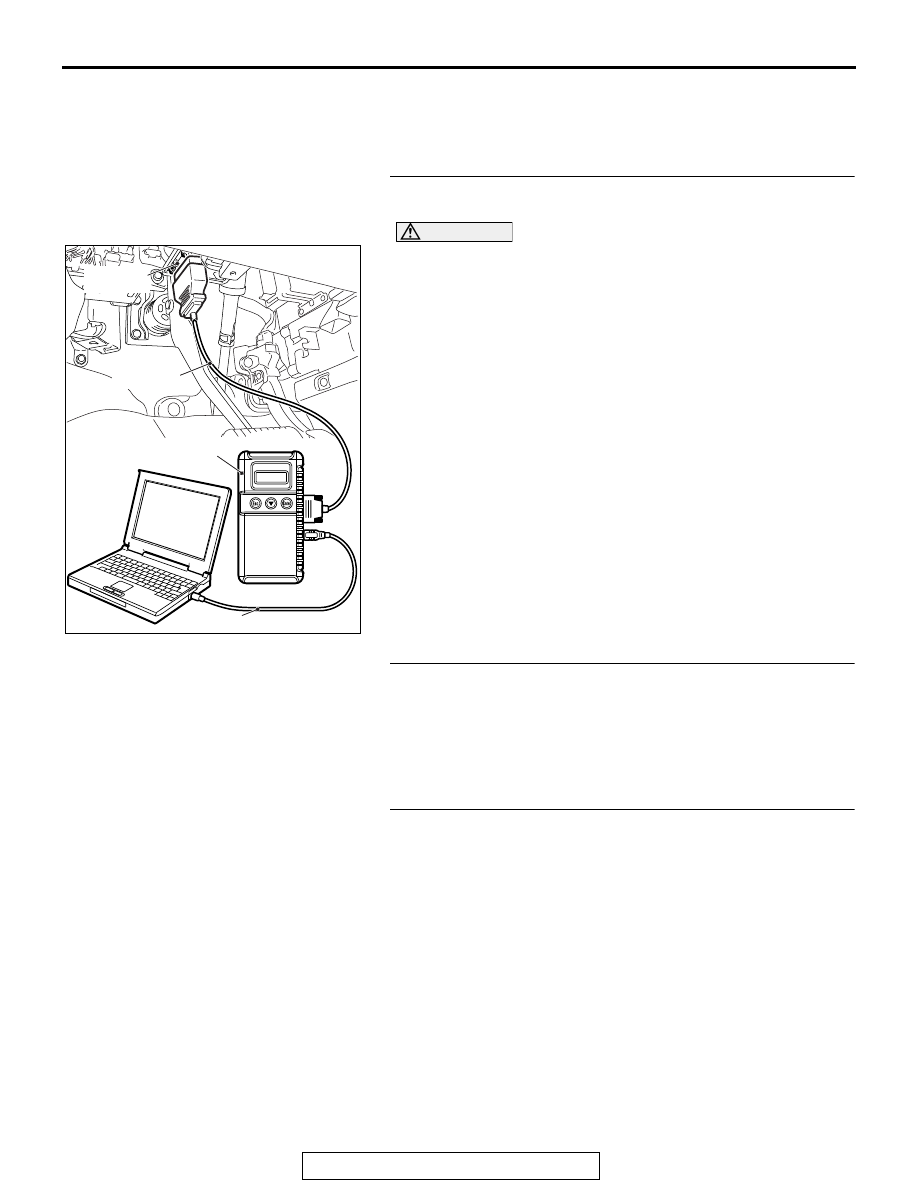

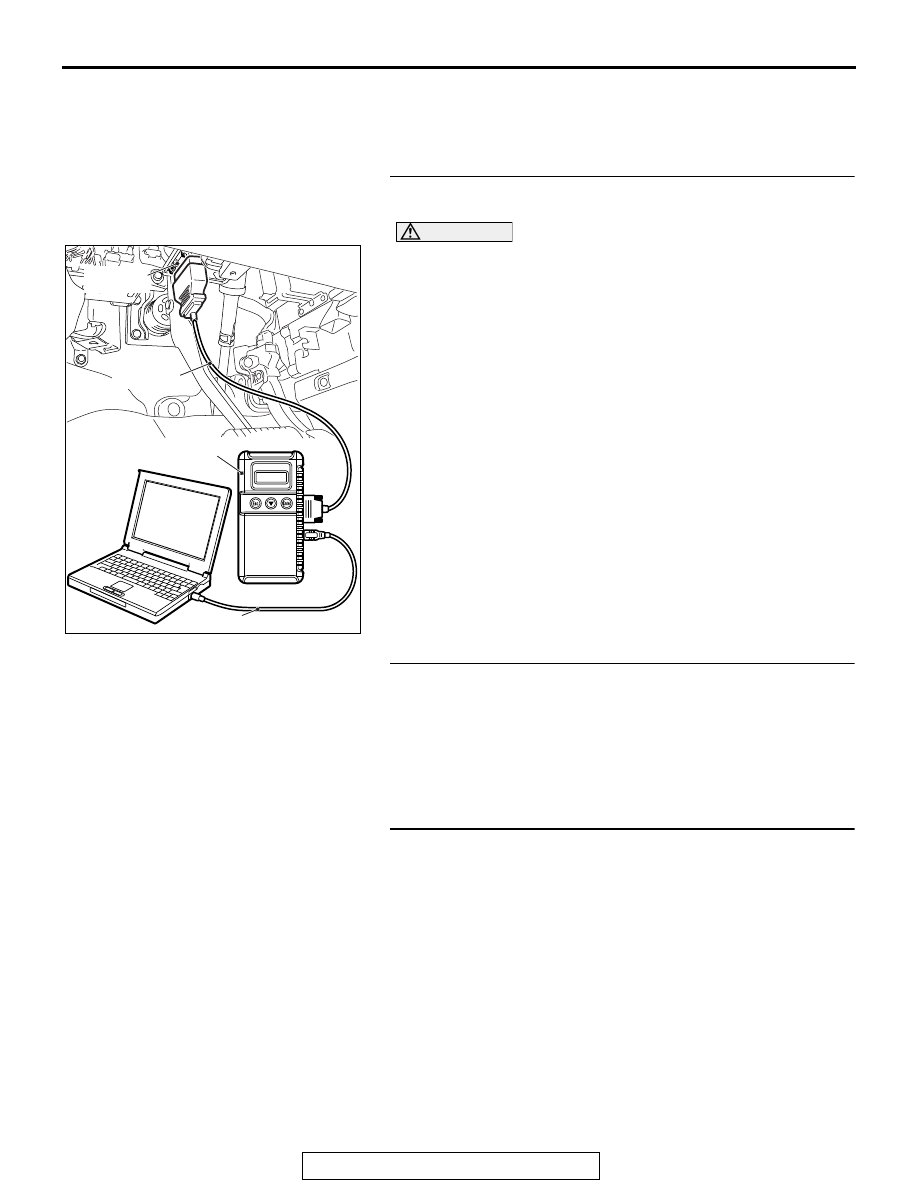

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-55

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the combination meter.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the ETACS-ECU and the combination
meter (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

).

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the combination meter.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the combination meter.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the ETACS-ECU and the combination
meter (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

).

DTC U0151: SRS-ECU CAN timeout

CAUTION

• If DTC U0151 is set, be sure to diagnose the

CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DIAGNOSTIC FUNCTION

If the signal from SRS-ECU cannot be received, the
combination meter sets DTC U0151.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

−16 volts (data from

ETACS-ECU), power supply fuse (IOD fuse) is OK,
or odometer value is 80.5 km (50 miles) or more, and
the communication with SRS-ECU cannot be estab-
lished for 2,500 ms or more, the combination meter
determines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The SRS-ECU may be defective

• The combination meter may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-56

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-31

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the SRS-ECU
diagnostic trouble code
Check again if the DTC is set to the SRS-ECU.
Q: Is the DTC set?

YES : Troubleshoot the SRS (Refer to GROUP 52B,

Troubleshooting

P.52B-31

).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/C-ECU
diagnostic trouble code.
Check if the DTC U0151 is set to the A/C-ECU.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB
