AIR CONDITIONER

CIRCUIT DIAGRAMS

90-80

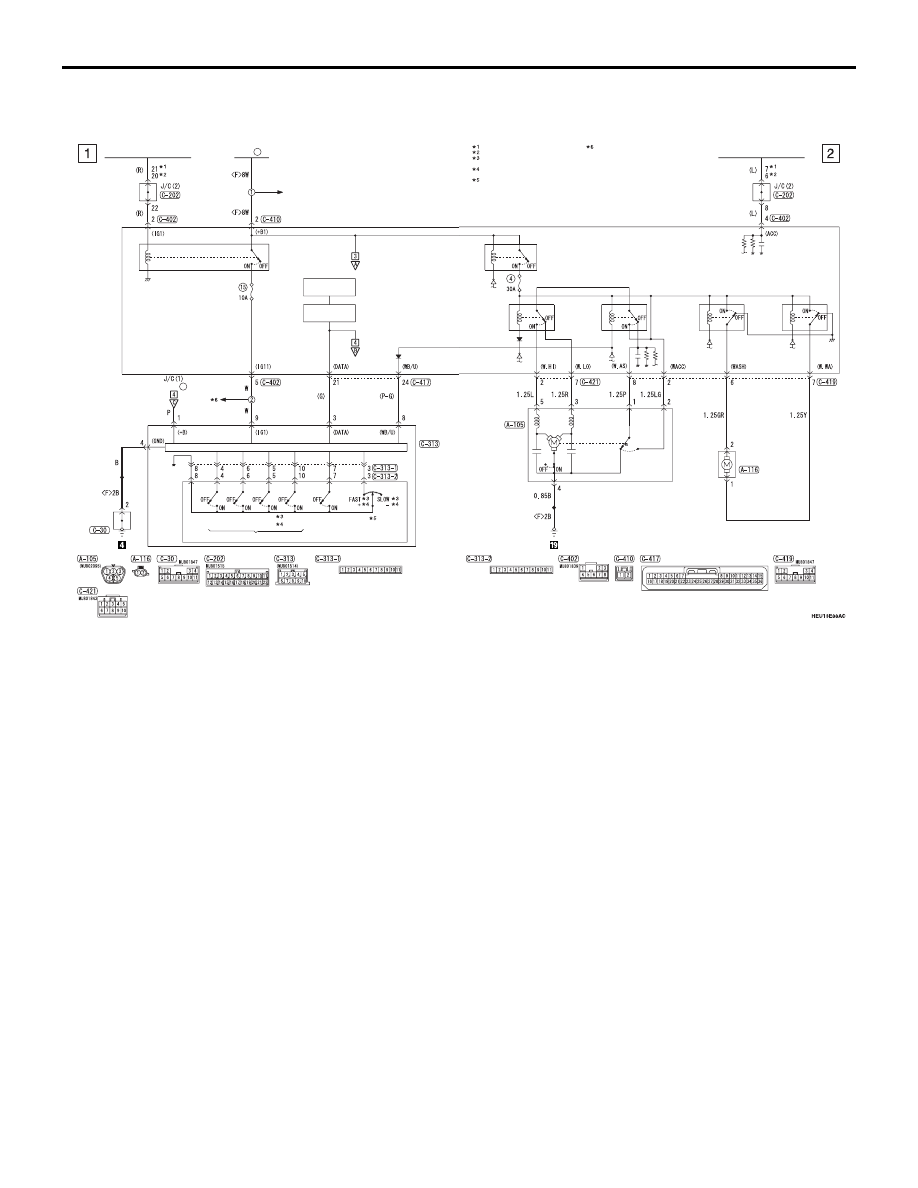

AIR CONDITIONER (CONTINUED)

HEATER
CONTROLLER
ASSEMBLY
(A/C-ECU)

NO CONNECTION

LOW SIDE
DRIVE
CIRCUIT

HIGH SIDE
DRIVE
CIRCUIT

RHEOSTAT

BUZZER

COMBINATION
METER

EARTH J/C
(DASH)

CPU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

(FUSE     )

(FUSE     )

18

19

·4WD SWITCH
·ASC OFF SWITCH
·DOWNLIGHT
·ELECTRIC TAILGATE SWITCH
·HAZARD INDICATOR ASSEMBLY
·HEADLAMP MANUAL
 LEVELLING SWITCH
·HEATED SEAT SWITCH
·METER INFORMATION SWITCH
·SONAR SWITCH

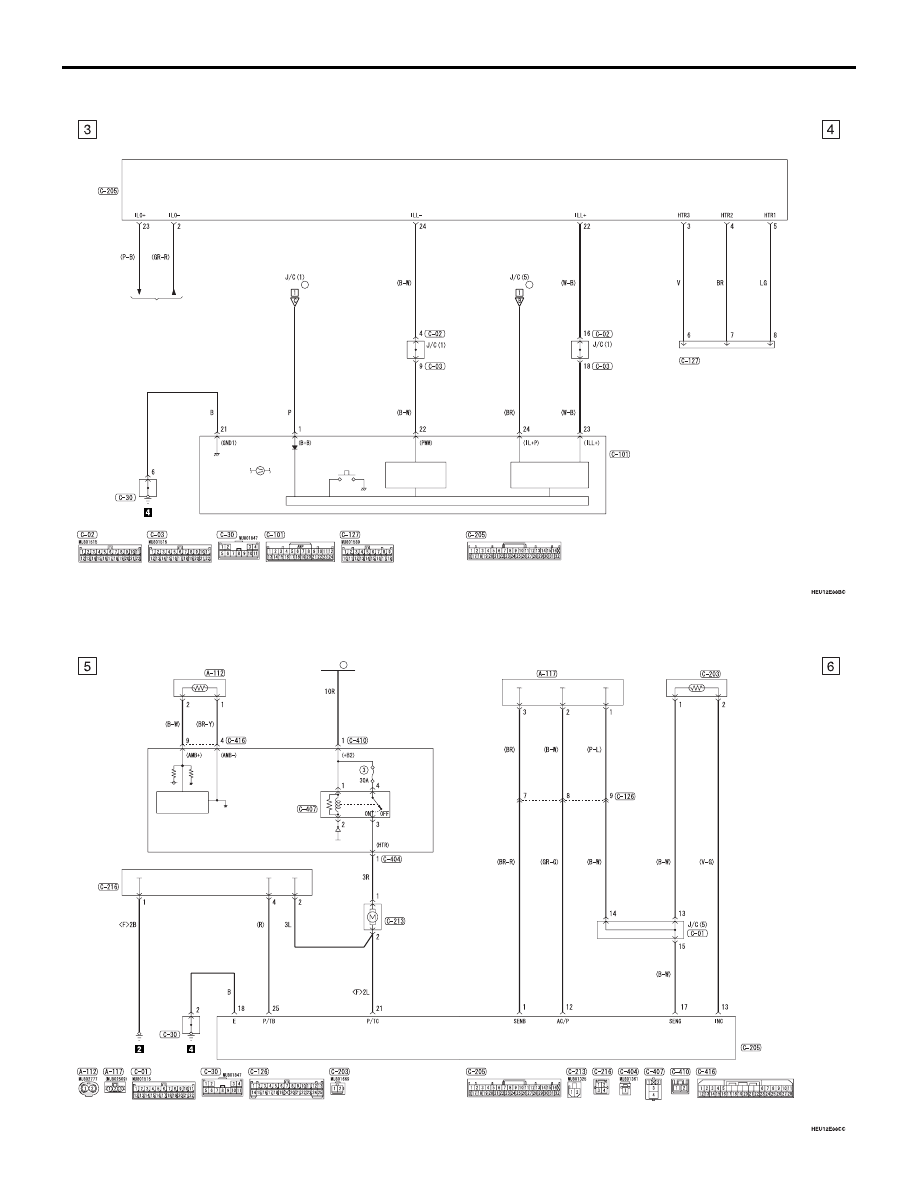

AIR CONDITIONER (CONTINUED)

AMBIENT
TEMPERATURE
SENSOR

ETACS-ECU

ANALOG
INTERFACE
CIRCUIT

BLOWER
RELAY

POWER
TRANSISTOR

BLOWER
MOTOR

HEATER
CONTROLLER
ASSEMBLY
(A/C-ECU)

A/C PRESSURE
SENSOR

INTERIOR
TEMPERATURE
SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

EARTH J/C
(DASH)

FUSIBLE
LINK

5

AIR CONDITIONER

CIRCUIT DIAGRAMS

90-81

AIR CONDITIONER (CONTINUED)

MODE SELECTION
DAMPER CONTROL MOTOR

AIR MIXING
DAMPER CONTROL MOTOR (LH)

AIR MIXING
DAMPER CONTROL MOTOR

OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTOR

FIN THERMO
SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

HEATER CONTROLLER
ASSEMBLY (A/C-ECU)

NOTE

: SINGLE-ZONE AUTO A/C
: DUAL-ZONE AUTO A/C

AIR MIXING
DAMPER CONTROL MOTOR (RH)

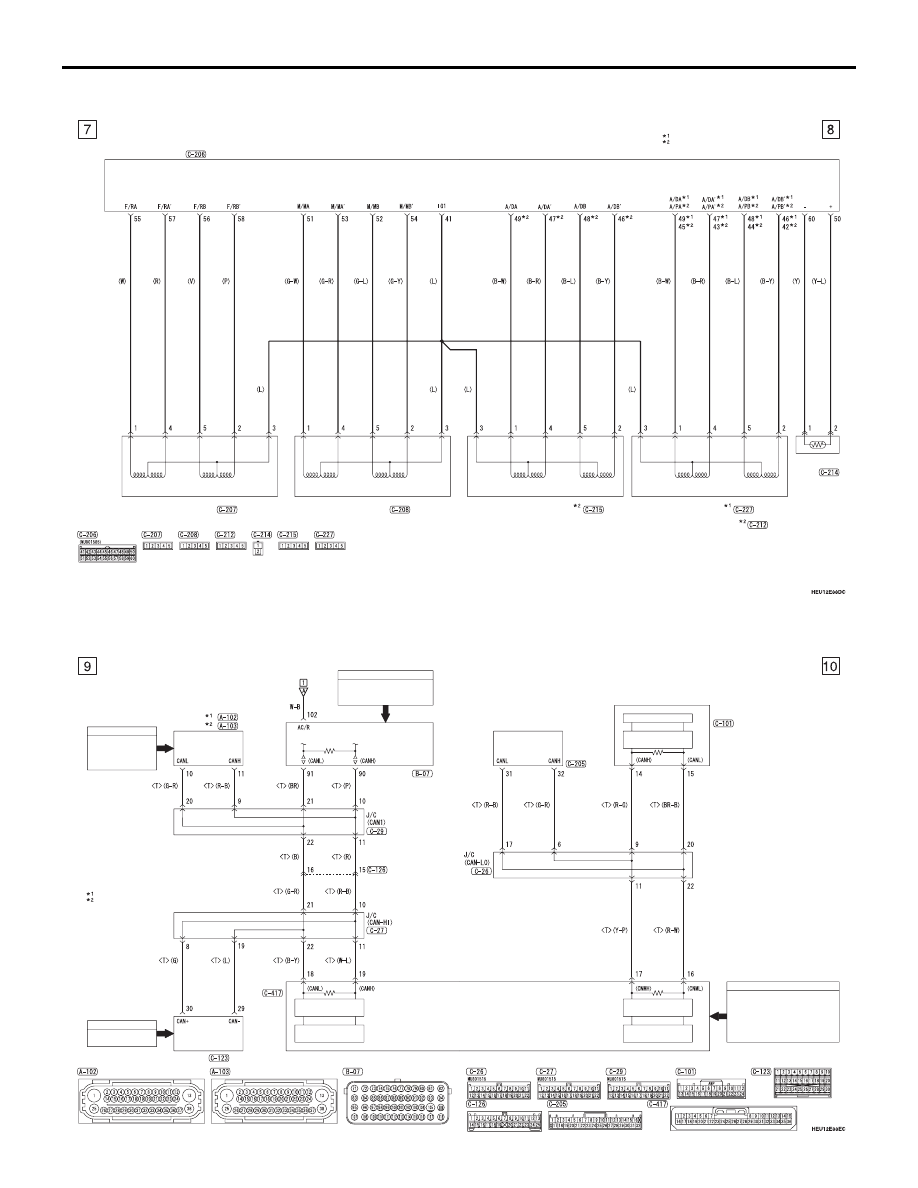

AIR CONDITIONER (CONTINUED)

INPUT SIGNAL

·CRANK ANGLE SENSOR
·ENGINE COOLANT
 TEMPERATURE SENSOR

A/C
COMPRESSOR
RELAY

ABS-ECU
ASC-ECU

ENGINE-
ECU

INPUT SIGNAL

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

CPU

CAN DRIVE
CIRCUIT

COMBINATION
METER

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

HEATER
CONTROLLER
ASSEMBLY
(A/C-ECU)

SRS-ECU

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

INPUT SIGNAL

IMPACT SENSOR

NOTE

: VEHICLES WITHOUT ASC
: VEHICLES WITH ASC

INPUT SIGNAL

·COLUMN SWITCH
 (LIGHTING SWITCH)
·LIGHTING CONTROL SENSOR
 <VEHICLES WITH AUTO LAMP
 AND RAIN SENSITIVE
 AUTO WIPER>

AIR CONDITIONER

CIRCUIT DIAGRAMS

90-82

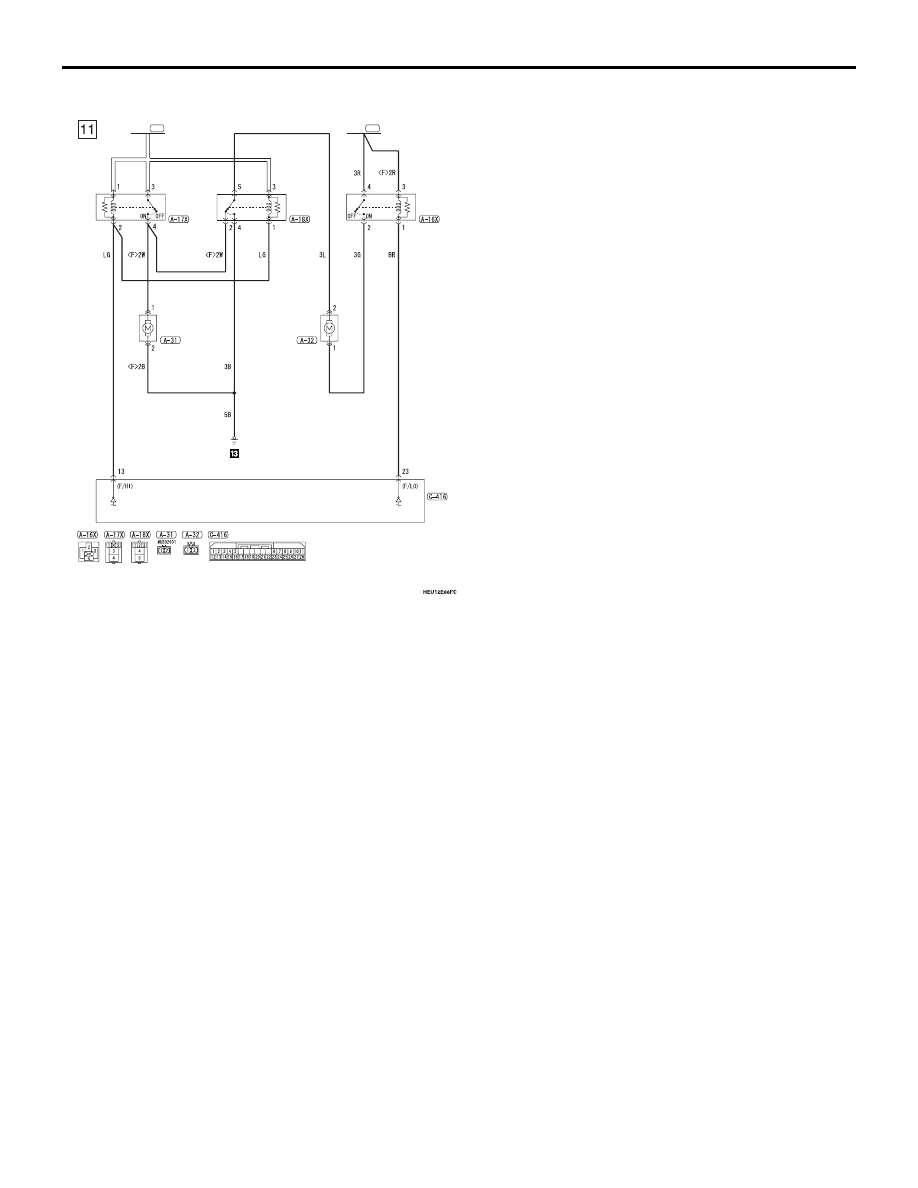

AIR CONDITIONER (CONTINUED)

RADIATOR
FAN
RELAY

FAN
CONTROL
RELAY

CONDENSER
FAN
RELAY

RADIATOR
FAN
MOTOR

CONDENSER
FAN
MOTOR

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

SBF3

FUSIBLE
LINK

SBF4

FUSIBLE
LINK

WINDSHIELD WIPER AND WASHER

CIRCUIT DIAGRAMS

90-83

WINDSHIELD WIPER AND WASHER

M1901006106034

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

IGNITION SWITCH (IG1)
OR OSS-ECU (IG1)

IGNITION SWITCH (ACC)
OR OSS-ECU (ACC)

IG1
RELAY

LIN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

COLUMN-ECU

EARTH
J/C (DASH)

(HI)

(LO)

(INT)

(MIST)

COLUMN
SWITCH

WINDSHIELD WIPER SWITCH

WINDSHIELD
WIPER MOTOR

ACC
RELAY 3

WINDSHIELD
WIPER
AUTOMATIC
STOP RELAY

WINDSHIELD
WASHER
RELAY

REAR
WINDOW
WASHER
RELAY

WASHER
MOTOR

CIRCUIT
BREAKER

WINDSHIELD
WIPER SPEED
SWITCHING
RELAY

ETACS-ECU

WINDSHIELD
WASHER
SWITCH

UPPER
SIDE

UPPER
SIDE

NOTE

:

(AUTO)

VEHICLES WITH KOS

:

:

:

VEHICLES WITH
RAIN SENSITIVE AUTO WIPER

:

VEHICLES WITHOUT
RAIN SENSITIVE AUTO WIPER

(     )

·WINDSHIELD INTERMITTENT WIPER
 INTERVAL ADJUSTING KNOB
 <VEHICLES WITHOUT RAIN SENSITIVE
 AUTO WIPER>
·WINDSHIELD RAIN SENSITIVE WIPER
 FUNCTION ADJUSTING KNOB
 <VEHICLES WITH RAIN SENSITIVE
 AUTO WIPER>

VEHICLES WITHOUT KOS

: ·ABS-ECU

·ASC-ECU
·COMBINATION METER
·CORNER SENSOR/BACK SENSOR-ECU
·CVT CONTROL RELAY
·EPS-ECU
·HAZARD INDICATOR ASSEMBLY
·HEATED SEAT RELAY
·HEATER CONTROLLER ASSEMBLY (A/C-ECU)
·KOS-ECU
·SELECTOR LEVER ASSEMBLY
·SONAR SWITCH
·STEERING WHEEL SENSOR
·SUNROOF MOTOR ASSEMBLY

(FUSE     )

18

RELAY BOX
(PASSENGER
COMPARTMENT)
FUSIBLE LINK
AND FUSE

FUSIBLE
LINK

2
