Mitsubishi Outlander (2013+). Manual - part 762

J/C

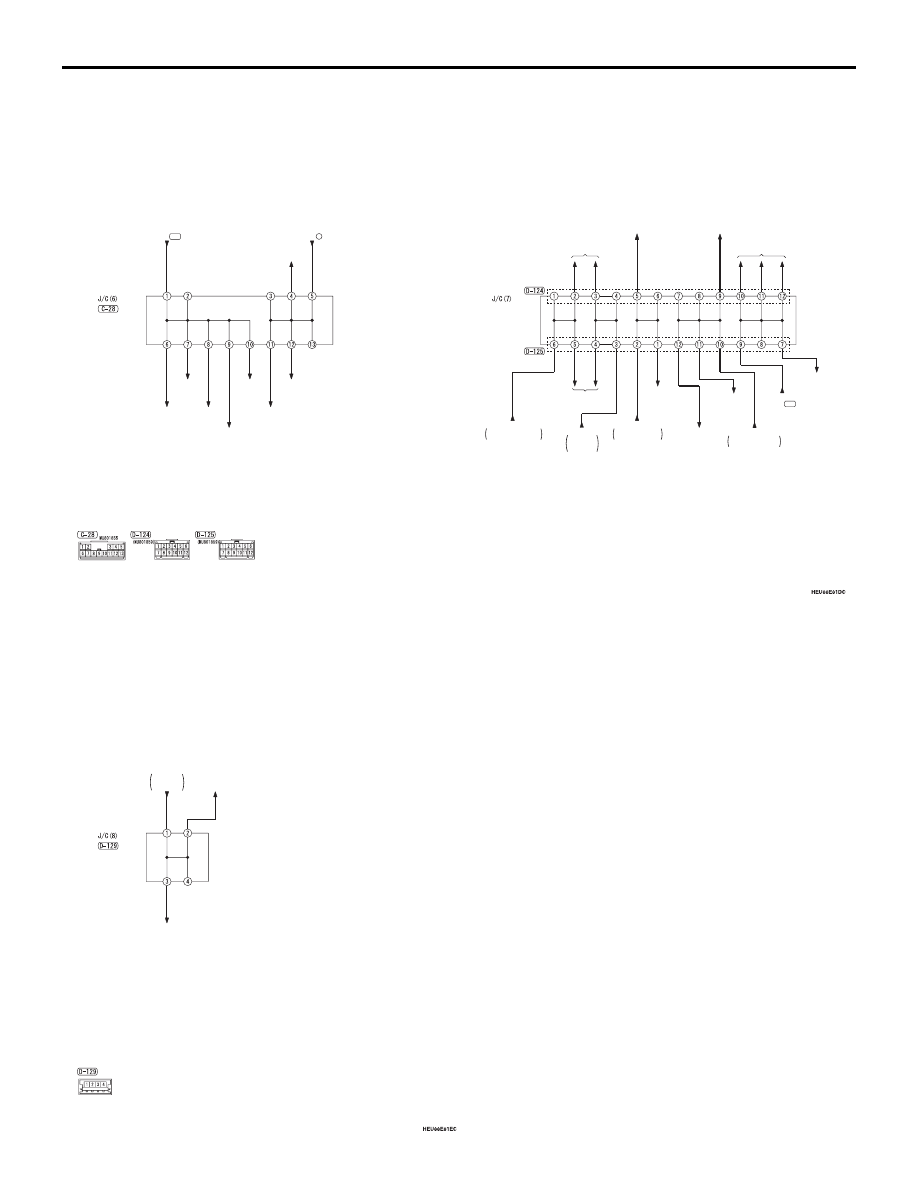

CIRCUIT DIAGRAMS

90-8

J/C (CONTINUED)

RELAY BOX

F13

(FUSE         )

RELAY BOX

BF2

(FUSE         )

ETACS-ECU
(FUSE     )

15

THROTTLE
VALVE
CONTROL
SERVO
RELAY

·INLET OIL FEEDER
 CONTROL VALVE
·NO.1 TO 4 INJECTOR
·OXYGEN SENSOR
 (FRONT)
·PURGE CONTROL
 SOLENOID VALVE

AIR FLOW
SENSOR

·ABS-ECU
·ASC-ECU

ENGINE-ECU

OXYGEN
SENSOR
(REAR)

CVT
CONTROL
RELAY

REAR
COMBINATION
LAMP (RH)

ETACS-ECU

SPARE CONNECTOR
(FOR SWITCH BOX)

SPARE CONNECTOR
(FOR SWITCH BOX)

REAR POWER
WINDOW SUB
SWITCH (LH)

HIGH-MOUNTED
STOP LAMP

REAR
COMBINATION
LAMP (LH)

TURN-SIGNAL LAMP
CONTROL CIRCUIT

REAR POWER
WINDOW SUB
SWITCH (RH)

REAR
COMBINATION
LAMP (RH)

AUDIO
AMPLIFIER

ETACS-ECU

TAIL LAMP
CONTROL
CIRCUIT

ETACS-ECU

POWER WINDOW
RELAY

ETACS-ECU

STOP LAMP
CONTROL CIRCOIT

EPS-ECU

J/C (CONTINUED)

ETACS-ECU

REAR
COMBINATION
LAMP (LH)

LICENCE
PLATE LAMP
(LH, RH)

TAIL LAMP
CONTROL
CIRCUIT

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-9

CENTRALIZED JUNCTION

M1901000304216

FUSIBLE LINK AND FUSE

ENGINE COMPARTMENT

No.

Power supply circuit Name

Rated
capacity (A)

Housing
colour

Load circuit

SBF1 Fusible link No.4 in

engine compartment

Fusible
link

−

−

−

SBF2

30

Pink

Starter

SBF3

30

Pink

Condenser fan motor, condenser fan
relay and fan control relay

SBF4

40

Green

Radiator fan motor and radiator fan
relay

SBF5

40

Green

ABS-ECU and ASC-ECU

SBF6

−

−

−

SBF7

30

Pink

ABS-ECU and ASC-ECU

BF1

Fuse

30

Green

Electric tailgate control unit

BF2

30

Green

Audio amplifier

BF3

30

Green

Fuse No.17 to 19 in passenger
compartment

BF4

Engine control relay

−

−

−

F1

Fusible link No.4 in
engine compartment

20

Yellow

CVT-ECU, primary pulley speed
sensor, secondary pulley speed
sensor

F2

15

Blue

Wiper deicer

F3

−

−

−

F4

10

Red

−

F5

15

Blue

Front fog lamp (LH, RH) and front fog
lamp relay

F6

10

Red

A/C compressor assembly and A/C
compressor relay

F7

20

Yellow

Headlamp washer motor and
headlamp washer relay

F8

20

Yellow

−

F9

10

Red

Horn and horn relay

F10

15

Blue

Engine-ECU

F11

7.5

Brown

Alternator

F12

7.5

Brown

Engine-ECU

F13

Engine control relay

20

Yellow

Air flow sensor, engine-ECU, inlet oil
feeder control valve, No.1 to 4
injector, oxygen sensor (front),
oxygen sensor (rear), purge control
solenoid valve and throttle valve
control servo relay

F14

15

Blue

Fuel pump and gauge unit (main)

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-10

F15

10

Red

No.1 to 4 ignition coil

F16

−

−

−

F17

Headlamp relay (HI)

10

Red

Headlamp assembly (LH)

F18

10

Red

Headlamp assembly (RH)

F19

Headlamp relay (LO)

20

Yellow

Headlamp assembly (LH) <Discharge
type>

F20

20

Yellow

Headlamp assembly (RH) <Discharge
type>

F21

10

Red

Headlamp assembly (LH, RH) and
headlamp manual levelling switch

F22

10

Red

Headlamp assembly (RH)

F23

−

−

−

1

Battery/Alternator

Fusible
link

140

−

Fusible link No.5/Fusible link No.2 to
4

2

Battery/Fusible link
No.1 in engine
compartment

80

−

ETACS-ECU, fuse No.1, 4, 8 to 16,
20, 25 and fusible link No.24 in
passenger compartment and
ETACS-ECU (ACC relay 3)

3

80

−

EPS-ECU

4

120

−

Fusible link No.SBF2 to SBF5, SBF7,
BF1 to BF3, F1, F2, F4 to F15 and
F17 to F22 in engine compartment,
engine control relay, headlamp (LO)
and headlamp relay (HI)

5

Fusible link No.1 in
engine
compartment/Alternat
or

80

−

Fusible link No.2, 3 and fuse No.5 to 7
and 21 to 23 in passenger
compartment and ETACS-ECU (ACC
relay 2, blower relay and rear window
defogger relay)

No.

Power supply circuit Name

Rated
capacity (A)

Housing
colour

Load circuit

ACB06030

AB

Front of
vehicle

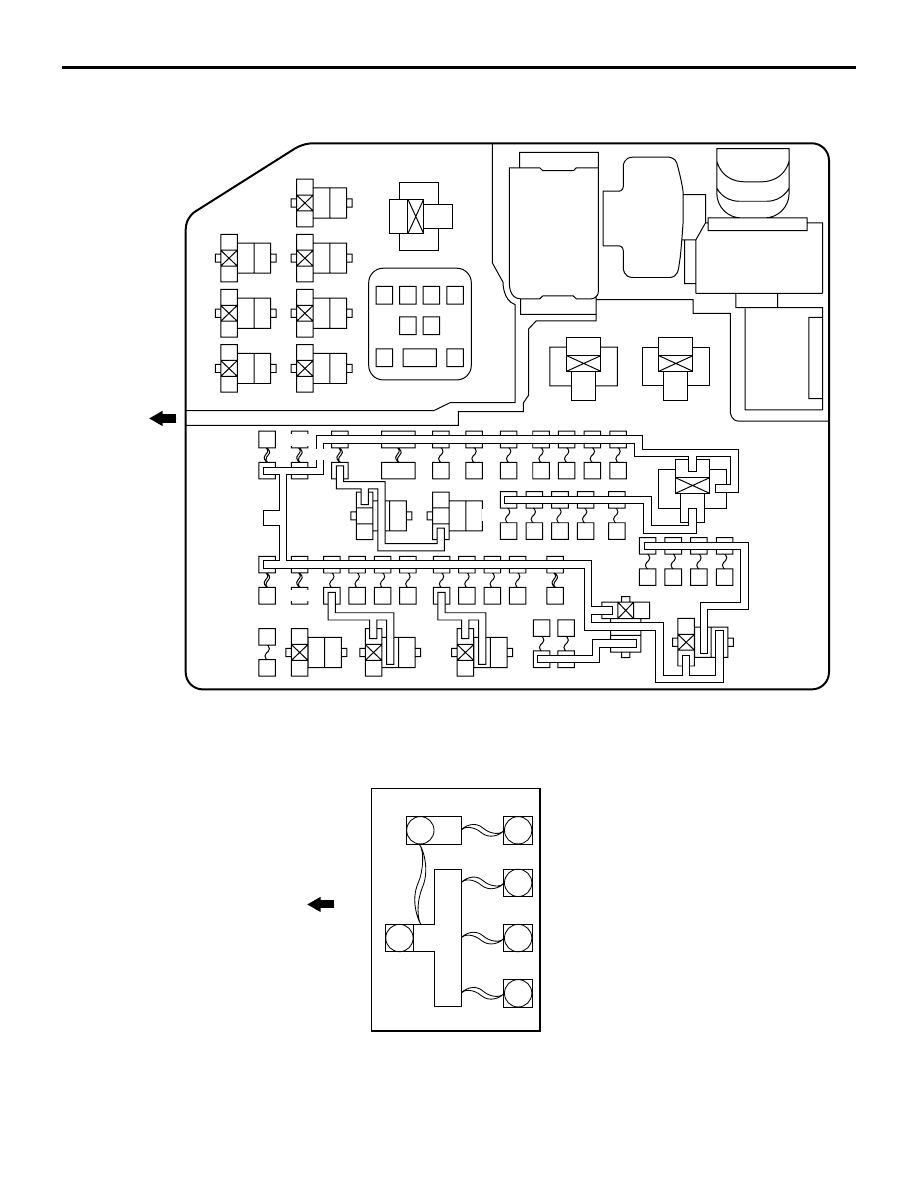

Relay box

SBF3

BF1 BF2

BF3

F1 F2

F3

F4

SBF1

SBF4

F15 F14 F13 BF4

F22 F21 F20 F19

SBF5

F5

F6

F7 F8

F9 F10 F11 F12 SBF7

F23

F18 F17

SBF2

F16

SBF6

AC506810AZ

Fusible link box connected directly to battery positive terminal

1

3

4

5

2

Front of vehicle

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-11

PASSENGER COMPARTMENT
