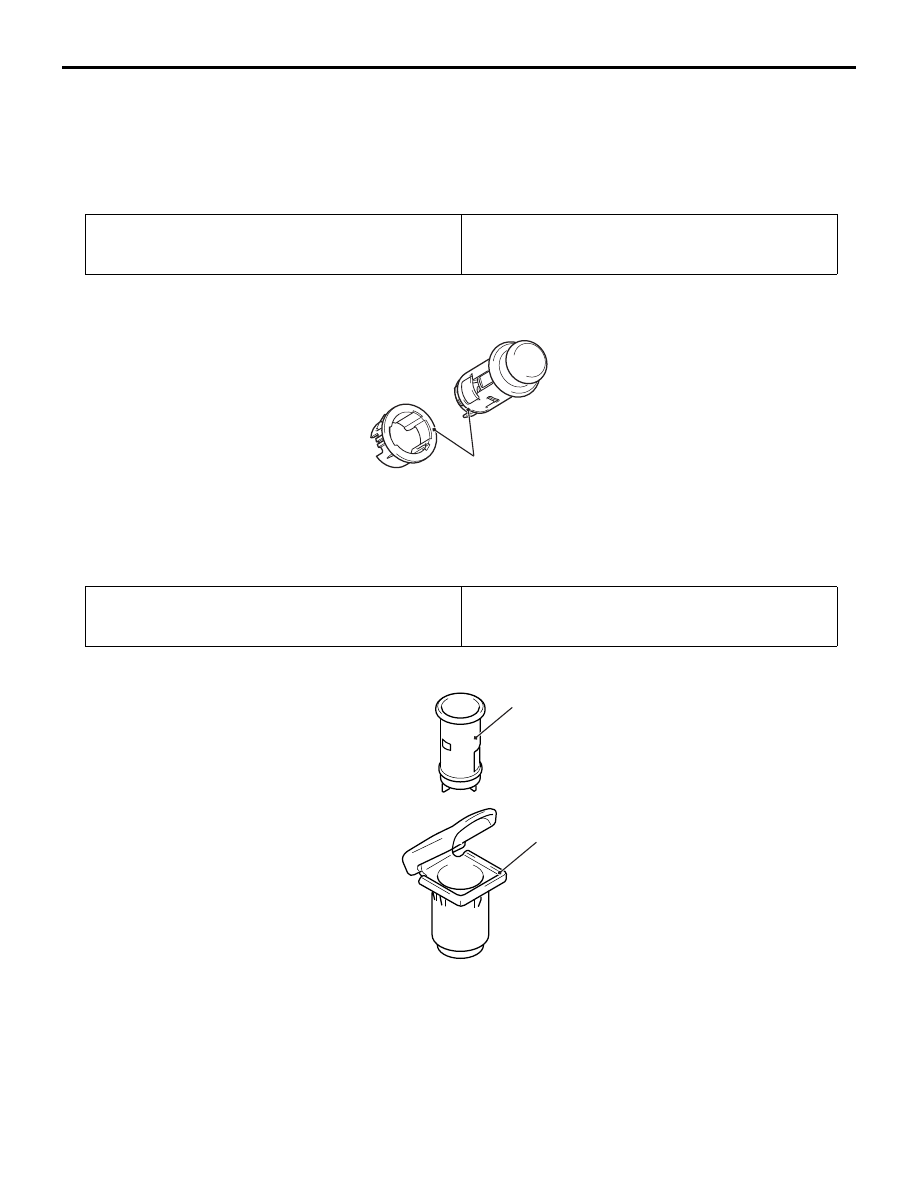

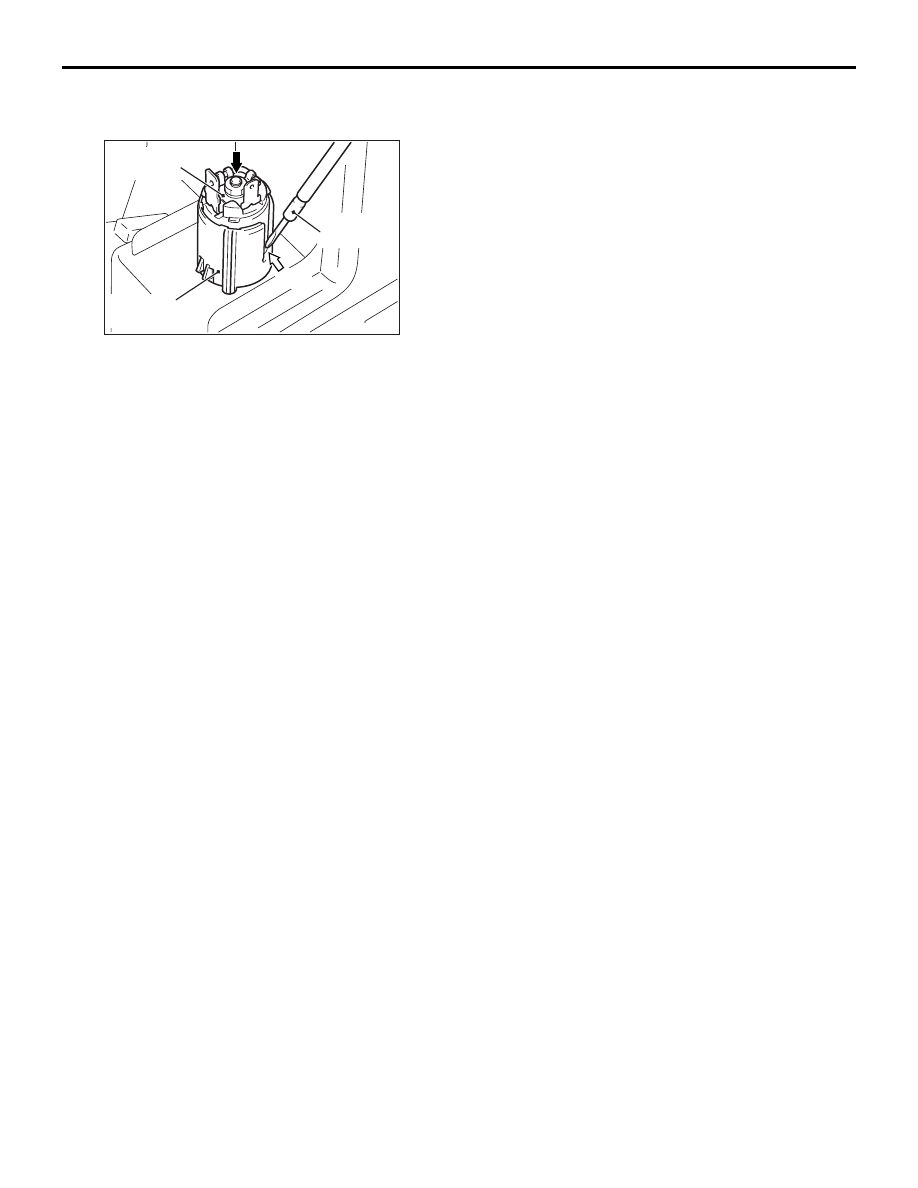

ACCESSORY SOCKET AND CIGARETTE LIGHTER
CHASSIS ELECTRICAL
54A-197
wiring harness-side connector.
(2) Turn the ignition switch to the "ACC" or "ON"
position.
(3) Check the voltage between the accessory socket
connector (ASK2 terminal) and body earth.
OK: System voltage
Q: Is the check result normal?
YES :
Go to Step 5.
NO :
Go to Step 4.
STEP 4. Check of short to power supply, short to
earth, and open circuit in ASK2 line between
accessory socket and ETACS-ECU connector.
Q: Is the check result normal?
YES :
Go to Step 5.
NO :
Repair the connector(s) or wiring harness.

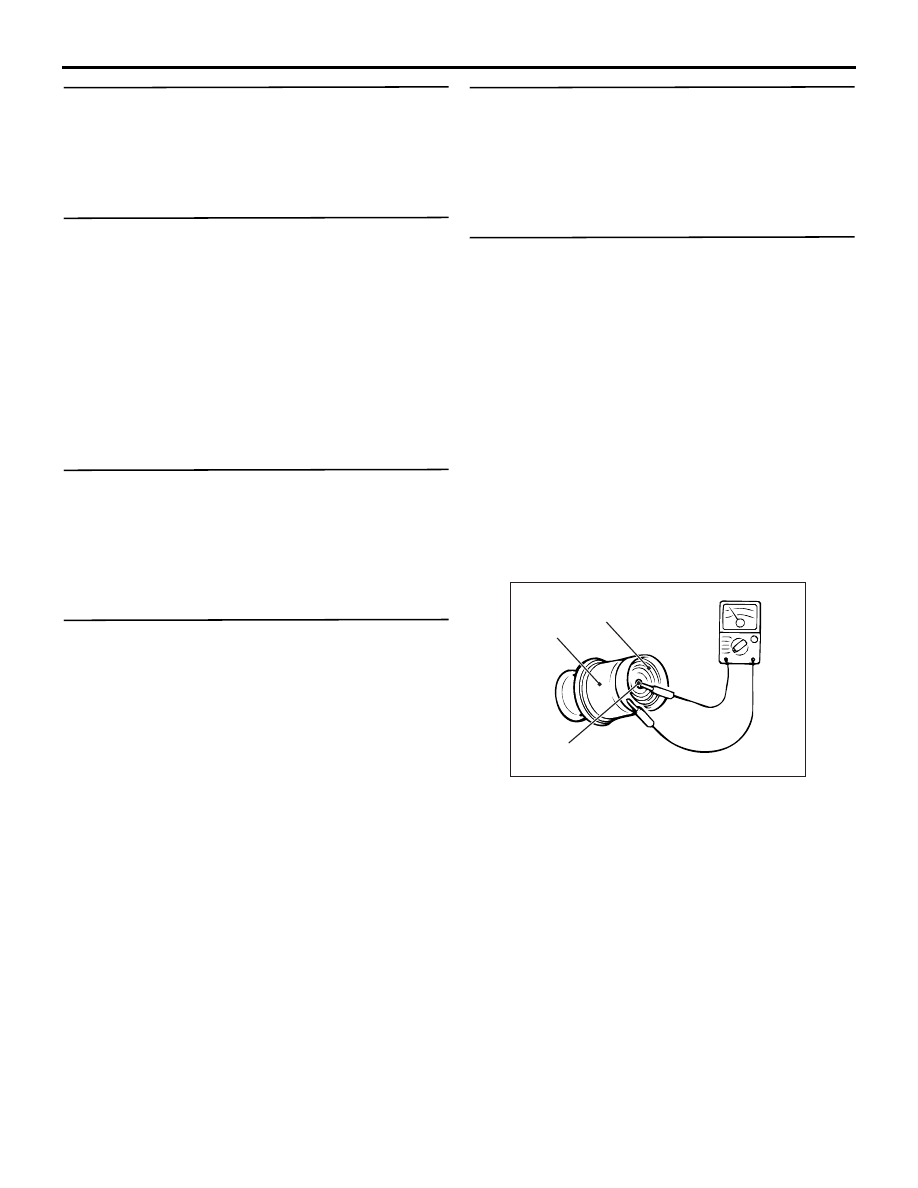

STEP 5. Resistance measurement at accessory
socket connector (earth terminal).
(1) Disconnect the connector, and measure the
resistance available at the wiring harness side of
the connector.
(2) Measure the resistance between the accessory
socket connector (earth terminal) and body earth.
OK: Continuity exists (2
Ω or less)
Q: Is the check result normal?
YES :
Go to Step 7.
NO :
Go to Step 6.
STEP 6. Check of open circuit in earth line
between accessory socket connector and body
earth.
Q: Is the check result normal?
YES :
Go to Step 7.
NO :
Repair the connector(s) or wiring harness.
STEP 7. Retest the system
Check if the accessory socket power is turned ON.
Q: Is the check result normal?
YES :
The trouble can be an intermittent
malfunction (Refer to GROUP 00
− How to
Use Troubleshooting/Inspection Service
Points
− How to Cope with Intermittent
Malfunction ).
NO :
Replace the accessory socket.
Inspection Procedure 2: The cigarette lighter does not work.
CAUTION
Before replacing the ECU, ensure that the power
supply circuit, the earth circuit and the communi-
cation circuit are normal.
OPERATION
When the ignition switch is in the ON or ACC posi-
tion, the cigarette lighter can be used.
COMMENTS ON TROUBLE SYMPTOM
If the cigarette lighter cannot be used even when the
ignition switch is in the ON or ACC position,
ETACS-ECU, cigarette lighter itself, or cigarette
lighter power supply circuit may have a problem.
PROBABLE CAUSES
• Malfunctions of cigarette lighter
• Malfunction of the ETACS-ECU
• Damaged harness wires and connectors
DIAGNOSIS PROCEDURE
STEP 1. M.U.T.-III other system diagnosis code
Check if the diagnosis code is set to the
ETACS-ECU.
Q: Is the check result normal?
YES :
Troubleshoot the ETACS-ECU. Refer to
ETACS-ECU
− Troubleshooting .
NO :
Go to Step 2.
STEP 2. M.U.T.-III other system data list
Check the input signal of ACC relay. (ETACS-ECU)
•
Item No.
Item name
Normal
condition
Item 288
ACC switch
ON
Turn the ignition switch to the ACC position.
OK: Normal condition is displayed.
Q: Is the check result normal?
YES :
Go to Step 3.
NO :
Refer to ETACS
− Input Signal Procedure 1
"The ignition switch (ACC) signal is not
received"
.
