OUTSIDE MIRROR

EXTERIOR

51-75

(2) Measure the resistance between door mirror

assembly (LH) connector (earth terminal) and
body earth.

OK: Continuity exists (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 10.

STEP 10. Check of open circuit in earth line
between the door mirror assembly (LH)
connector and body earth.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00 - How to Use Troubleshooting/Inspection
Service Points - How to Cope with
Intermittent Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 11. Measure the voltage at the door mirror
assembly (LH) connector.
(1) Turn the ignition switch to the ON position.
(2) Turn on the rear window defogger switch.
(3) Disconnect the connector, and measure at the

wiring harness side.

(4) Voltage between door mirror assembly (LH)

connector (power supply terminal) and body
earth.

OK: System voltage

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00 - How to Use Troubleshooting/Inspection
Service Points - How to Cope with
Intermittent Malfunction ).

NO :

Go to Step 12.

STEP 12. Check of open circuit DEFO-1&DEFO-2
line between door mirror assembly (LH)
connector and ETACS-ECU connector.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the connector(s) or wiring harness.

STEP 13. Retest the system.
Check that the heater element works normally.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00 - How to Use Troubleshooting/Inspection
Service Points - How to Cope with
Intermittent Malfunction ).

NO :

Replace the door mirror assembly (LH).

ON-VEHICLE SERVICE

CHECK THE VEHICLE
SPEED-DEPENDENT AUTOMATIC
UNFOLDING FUNCTION OF THE
OUTSIDE REAR-VIEW MIRRORS

M1511023300229

1. Check that the outside rear-view mirrors are

unfolded when you set simulated vehicle speed of
30 km/h or more by using the M.U.T.-III with the
mirrors folded.

2. If not, carry out the troubleshooting (Refer to

P.51-71

).

CHECK THE IGNITION-LIKED FOLD AND
UNFOLDING FUNCTION OF THE
OUTSIDE REAR-VIEW MIRRORS

M1511023400646

1. When the ignition switch is turned on with the

driver's door closed and the door mirrors folded,
the mirrors should be unfolded. When the ignition
switch is turned off and the driver's door is opened
with the mirrors unfolded, they should be folded.

2. If not, carry out the troubleshooting (Refer to

P.51-72

).

NOTE: The electric folding outside rear-view mirrors
are set to the vehicle speed-dependent unfolding as
default setting. Prior to this check, confirm whether
the ignition-linked function is enabled or not (Refer to
).

DOOR MIRROR KEYLESS ENTRY
FUNCTION OR KOS-LINKED FOLDING
AND UNFOLDING FUNCTION CHECK

M1511023500610

1. When you use the keyless entry system or the

KOS to unlock the doors with the mirrors folded,
they should be unfolded. When the keyless entry
system locks the doors with the mirrors unfolded,
they should be folded.

2. If not, carry out the troubleshooting (Refer to

P.51-73

).

NOTE: The electric folding outside rear-view mirrors
are set to the vehicle speed-dependent unfolding as
default setting. Prior to this check, confirm whether
the keyless entry system-linked function is enabled
or not (Refer to ).

OUTSIDE MIRROR

EXTERIOR

51-76

CHECK OF DOOR MIRROR TIMER
FUNCTION

M1511021700265

1. Turn the ignition switch to the "LOCK" (OFF)

position. Then check that the door mirrors can be
folded and unfolded for approximately 30
seconds.

2. If not, carry out the troubleshooting (Refer to

P.51-70

).

CUSTOMISATION FUNCTION

M1511027402310

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Auto fold mirror

Electric folding door
mirror automatic
unfolding function
<vehicles with
electric retractable
remote controlled
door mirrors>

Not Auto

No synchronised operation

Open Vehicle SPD

Vehicle speed-dependent operation

Open/Close by IG

Ignition switch linked operation

OPN/CLS Keyless

Keyless entry linked operation (initial
condition)

OUTSIDE MIRROR

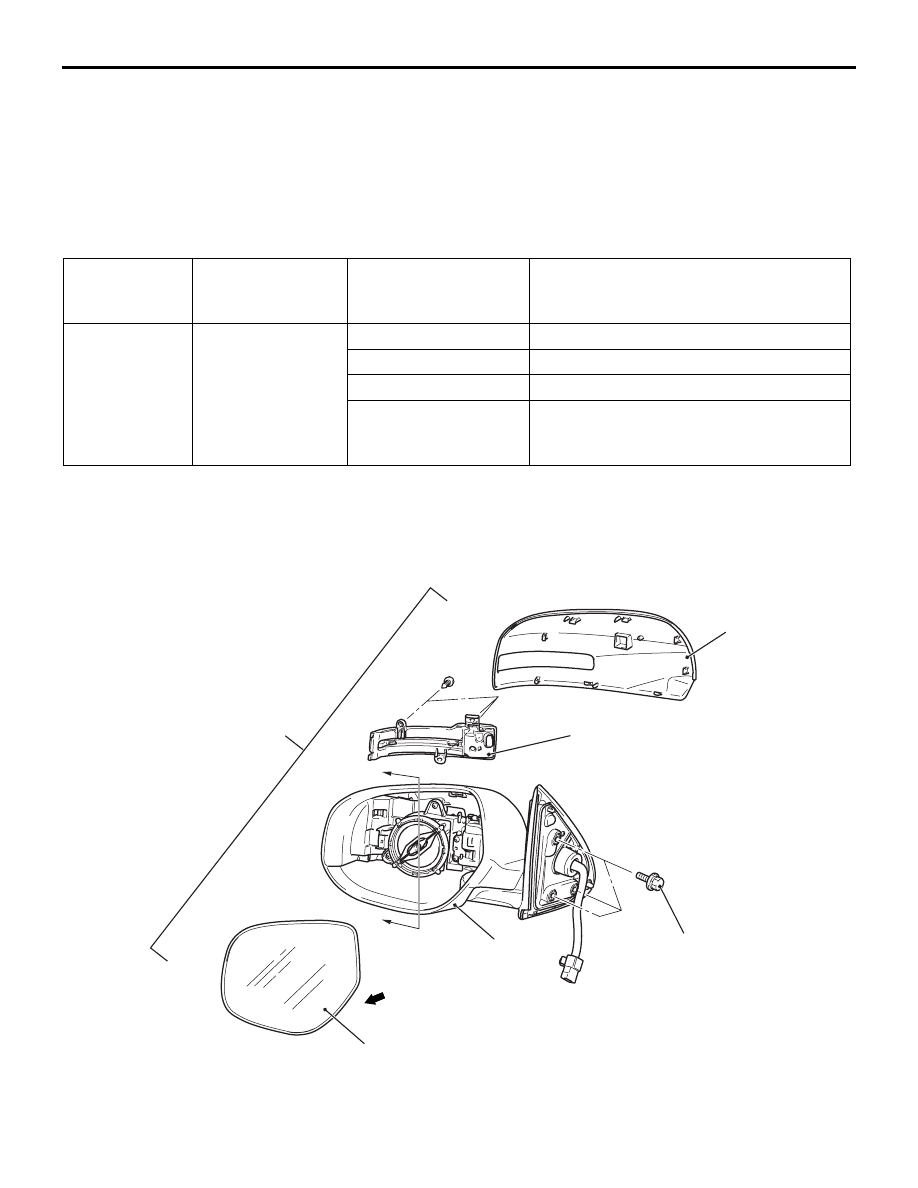

REMOVAL AND INSTALLATION

M1511006401497

ACB05790

3

AB

1

2

5.0± 1.0 N·m

4

A

B

B

5

ACC00144

View A

Section B – B

: Claw positions

AB

Claw

Claw

2

2

5

ACC00138

3

AB

Claw

Section B – B

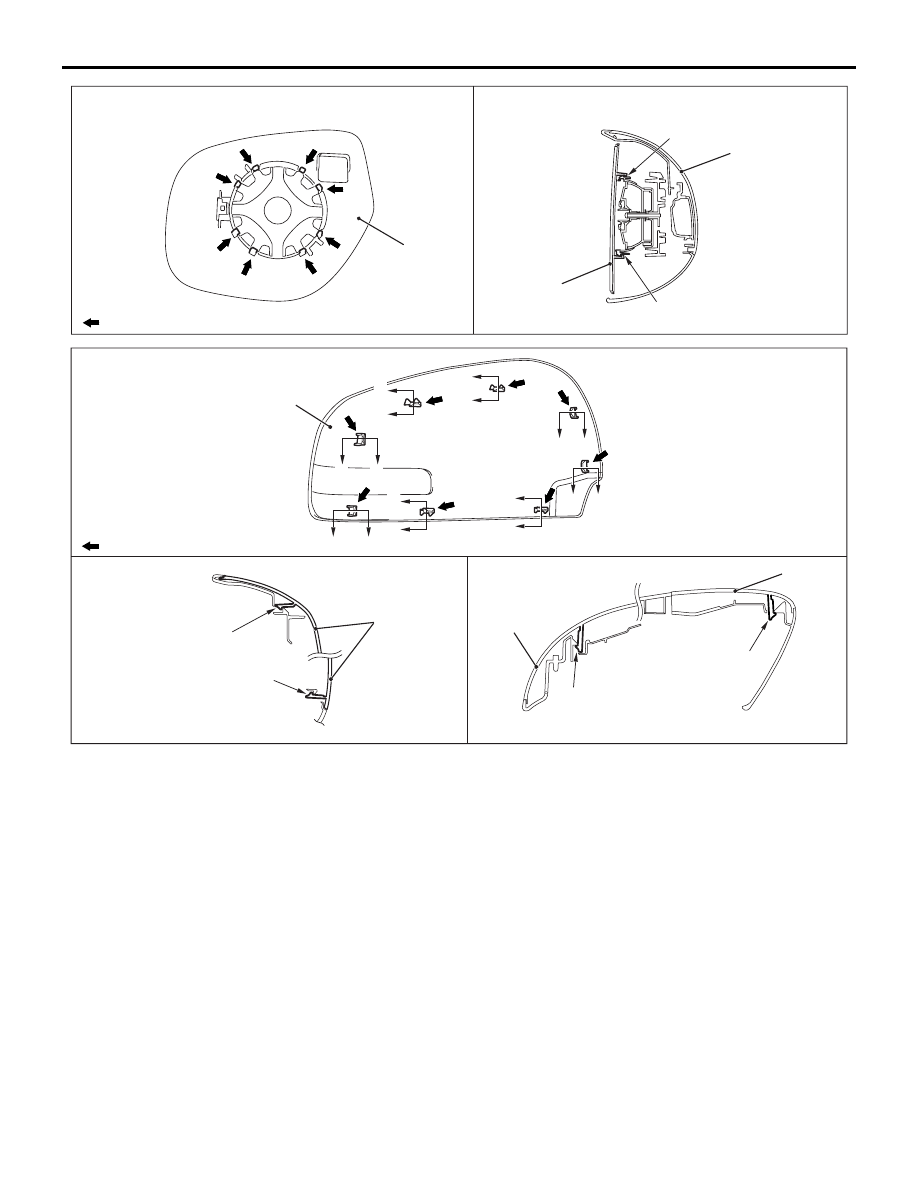

Door mirror outer cover claw positions

: Claw positions

C

C

C

C

B

B

B

C

C

C

C

Claw

Section C – C

Claw

Claw

3

3

3

B

B

B

B

B

Door mirror assembly removal
steps

Front door delta inner cover (Refer
to GROUP 52A, Door Trim )

Front door trim (Refer to GROUP
52A, Door Trim )

Door mirror connector connection

1.

Door mirror assembly

Door mirror housing removal
steps

<<

A

>>

2.

Mirror

3.

Door mirror outer cover

4.

Side turn-signal lamp assembly
<With side turn-signal lamp>

5.

Door mirror housing
Remote controlled mirror switch
removal steps

Remote controlled mirror switch
(Refer to GROUP 52A, Door Trim .)

OUTSIDE MIRROR

EXTERIOR

51-77

OUTSIDE MIRROR

EXTERIOR

51-78

REMOVAL SERVICE POINT

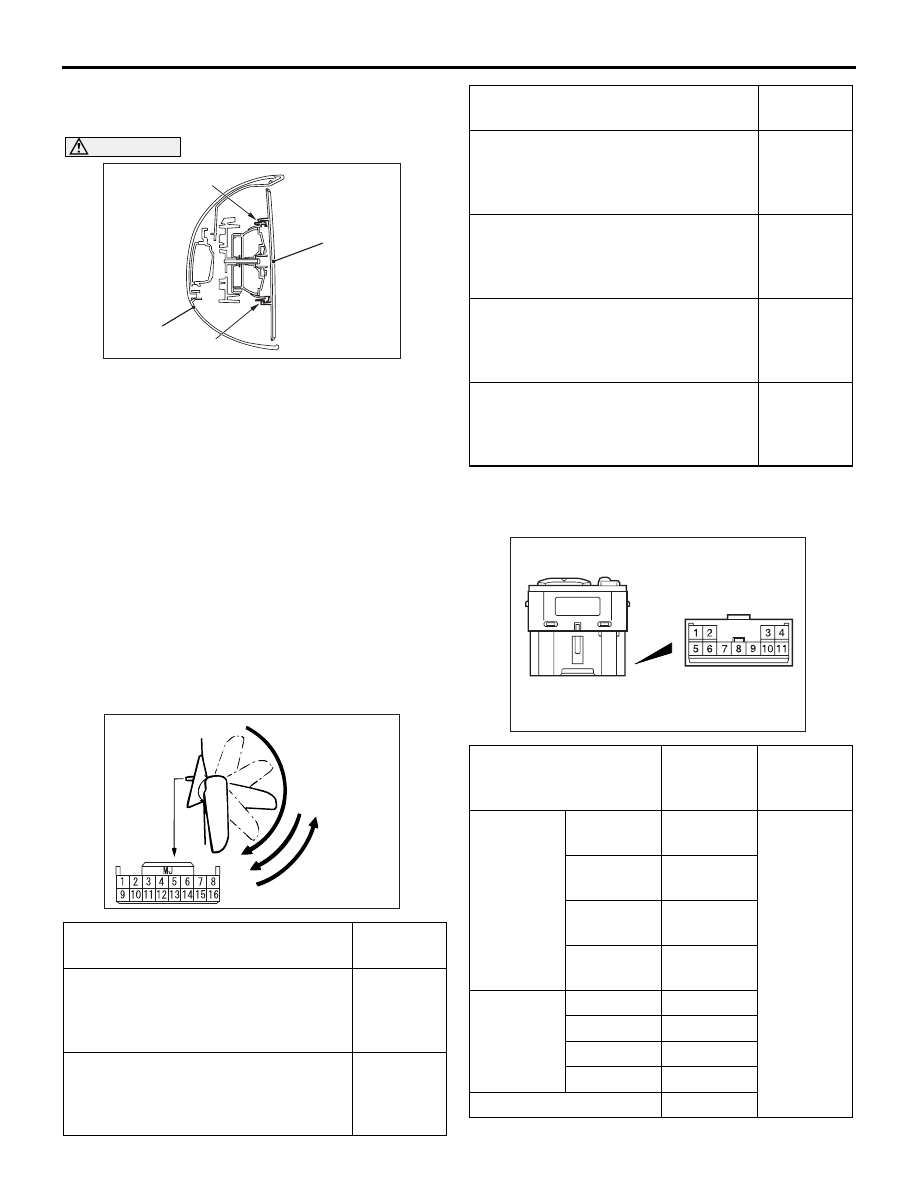

<<A>> MIRROR REMOVAL

ACB05788 AB

Claw

Claw

Mirror

Door
mirror
housing

CAUTION

The tab of the mirror is prone to breakage when
working in cold temperatures. Always use a hair
drier or the like to warm up the mirror tab and its
periphery to 20

°C or higher prior to works. When

the mirror is heated too quickly from its cold
state, it may be broken.
1. Disengage the tab behind the mirror from the door

mirror housing.

2. Disconnect the connectors of the heated mirror.

INSPECTION

M1511019103704

DOOR MIRROR ASSEMBLY OPERATION
CHECK

Remove the door trim, and then connect the battery
to the door mirror assembly connector to check that
the door mirror operates.

AC708423 AB

Return

Retract

Forward-folding

Battery connection

Operation
direction

• Connect terminal 12 to the negative

battery terminal.

• Connect terminal 5 to the positive

battery terminal.

Up

• Connect terminal 12 to the positive

battery terminal.

• Connect terminal 5 to the negative

battery terminal.

Down

• Connect terminal 13 to the negative

battery terminal.

• Connect terminal 12 to the positive

battery terminal.

Right

• Connect terminal 13 to the positive

battery terminal.

• Connect terminal 12 to the negative

battery terminal.

Left

• Connect terminal 11 to the positive

battery terminal.

• Connect terminal 4 to the negative

battery terminal.

Retract

• Connect terminal 11 to the negative

battery terminal.

• Connect terminal 4 to the positive

battery terminal.

Return

REMOTE CONTROLLED MIRROR
SWITCH CONTINUITY CHECK

AC005970

AC507009

Switch position

Tester
connectio
n

Specified
condition

Left side

Up

− 6, 9 −

11

Continuity
exists(2

Ω

or less)

Down

− 11, 6 −

9

Right

− 6, 9 −

10

Left

− 10, 6 −

9

Right side

Up

− 6, 3 − 9

Down

− 3, 6 − 9

Right

− 6, 2 − 9

Left

− 2, 6 − 9

Retract and return

− 4

Battery connection

Operation
direction
