UNDER COVER

EXTERIOR

51-19

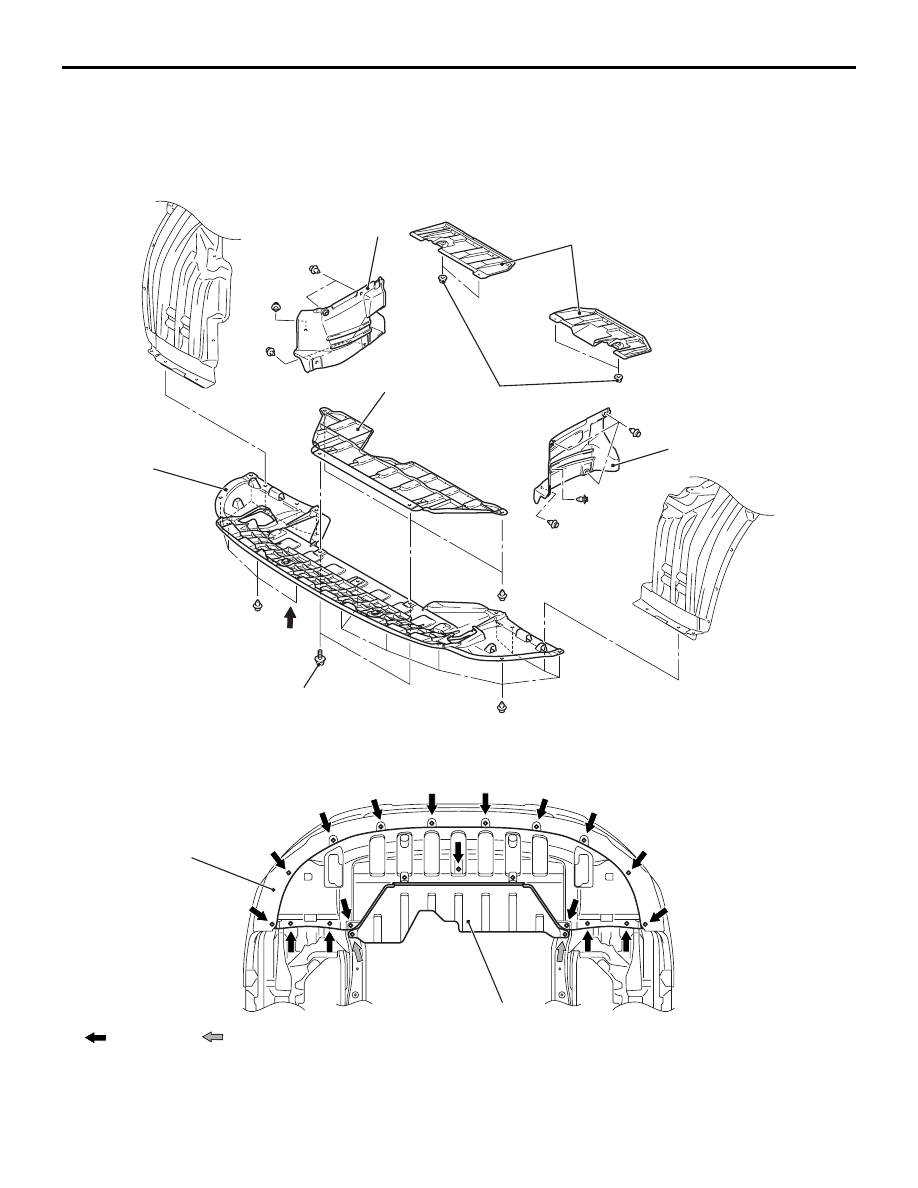

UNDER COVER

REMOVAL AND INSTALLATION

M1511019601286

ACB05521

1

3.5 ± 1.5 N·m

A

4

3

2

3

AB

3.5 ± 1.5 N·m

ACB05522AB

: Clip(a)

: Clip(b)

View A (Kinds of clips used)

1

2

Removal steps

1.

Engine room under cover front A

2.

Engine room under cover front B

3.

Engine room side cover

4.

Rear floor under cover

Removal steps (Continued)

ROOF RAIL

EXTERIOR

51-20

ROOF RAIL

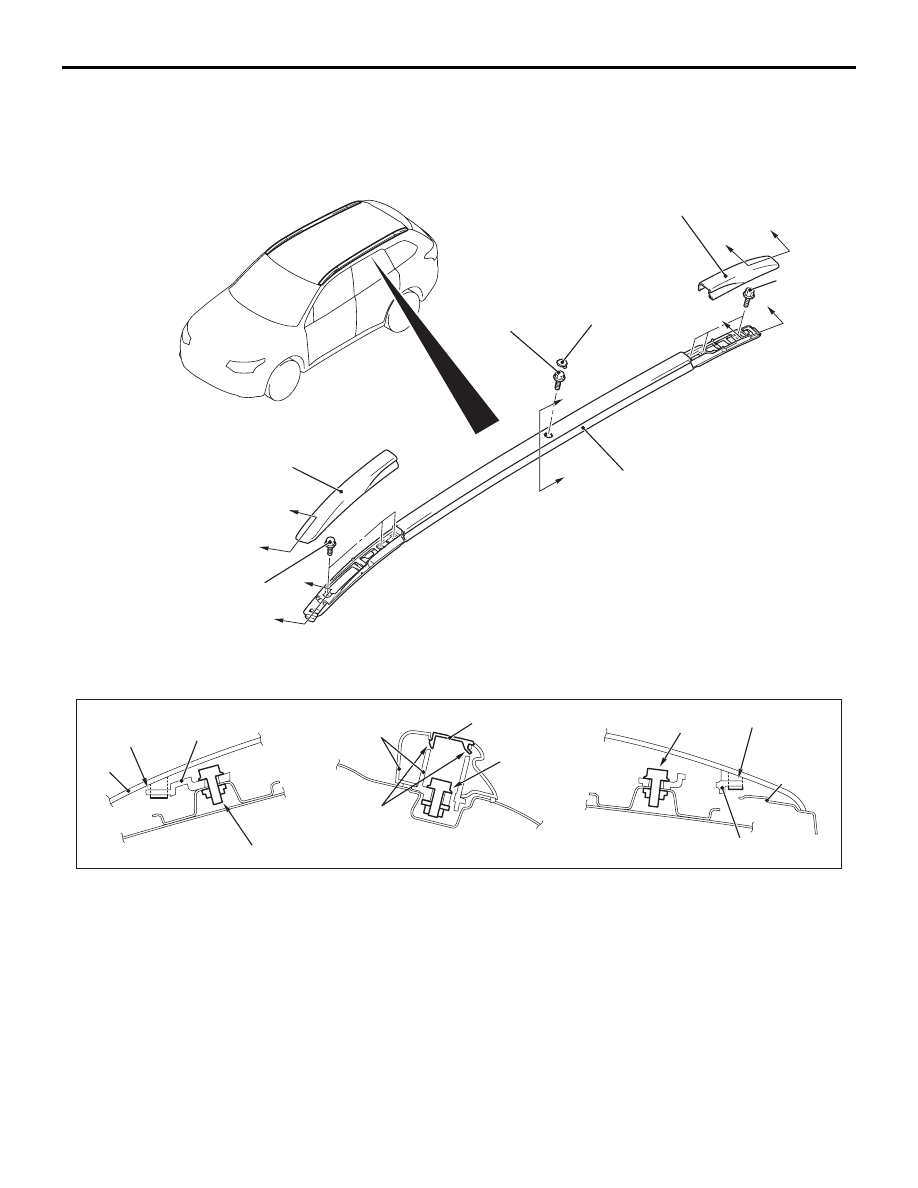

REMOVAL AND INSTALLATION

M1511016600701

ACB05438

1

4

2

3

A

A

C

C

10 ± 2 N·m

10 ± 2 N·m

10 ± 2 N·m

AB

A

A

C

C

B

B

ACB05439

4

1

2

4

4

3

AB

Section A – A

Claw

Bolt

Section B – B

Section C – C

Claw

Claw

Bolt

Bolt

Removal steps

1.

Front roof rail cover

2.

Centre roof rail cover

3.

Rear roof rail cover

4.

Roof rail

Removal steps (Continued)

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-21

WINDSHIELD WIPER AND WASHER

SERVICE SPECIFICATION

M1511000301533

Item

Standard value

Stop position of the windshield wiper arm/blade assembly mm

A:

φ 2 marking ± 5

LUBRICANT

M1511000400270

Item

Specified lubricant

Quantity

Wiper motor link rod

Contact joint between
link rod and wiper motor
link plate

Multipurpose grease SAE J310,
NLGI No.2 or equivalent

As required

SPECIAL TOOLS

M1511000603273

Tool

Number

Name

Use

MB992326

MB992326

Adjustment tool,
washer nozzle

Injection angle adjustment of the
washer nozzle

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-22

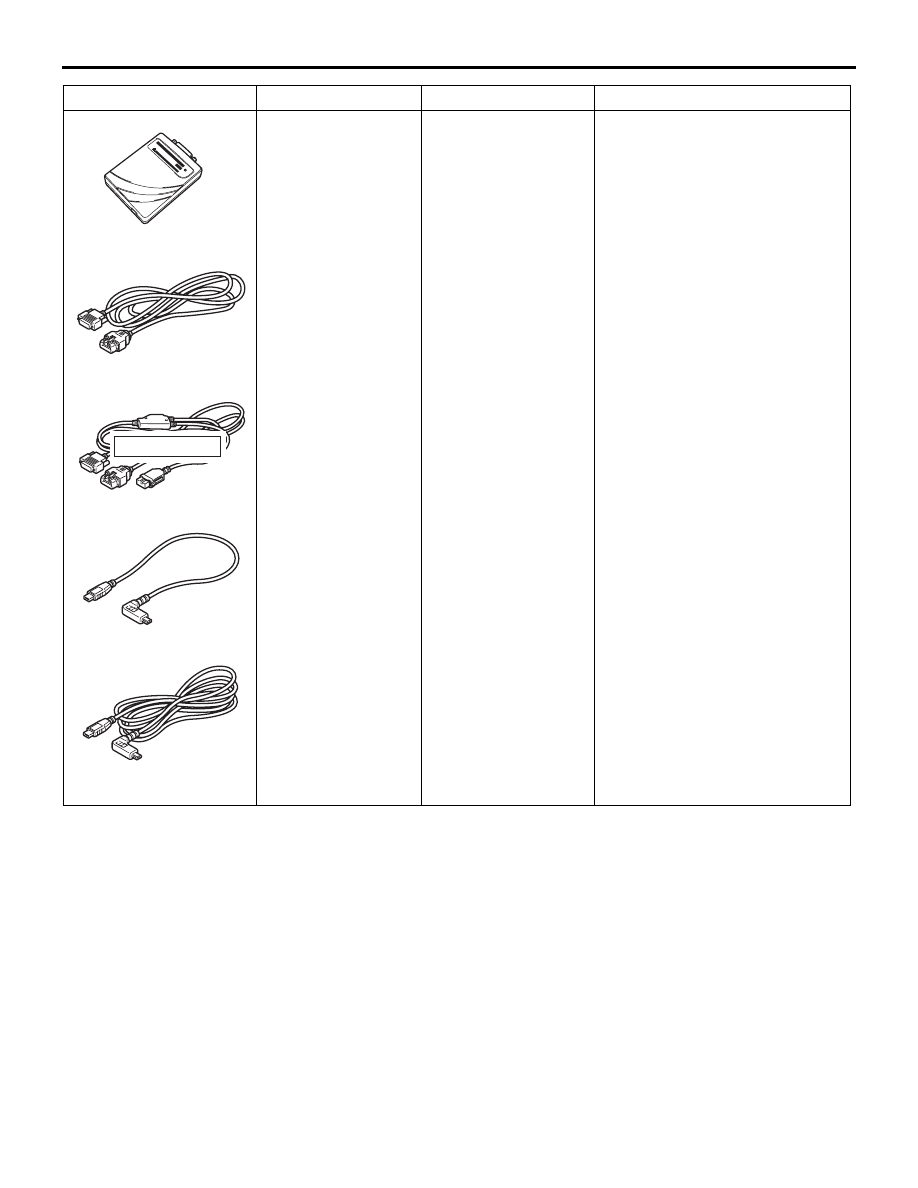

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite main

harness A (for
vehicles with CAN
communication)

c. V.C.I.-Lite main

harness B (for
vehicles without
CAN
communication)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

Tool

Number

Name

Use
