SUNROOF ASSEMBLY

BODY

42A-156

INSTALLATION SERVICE POINTS

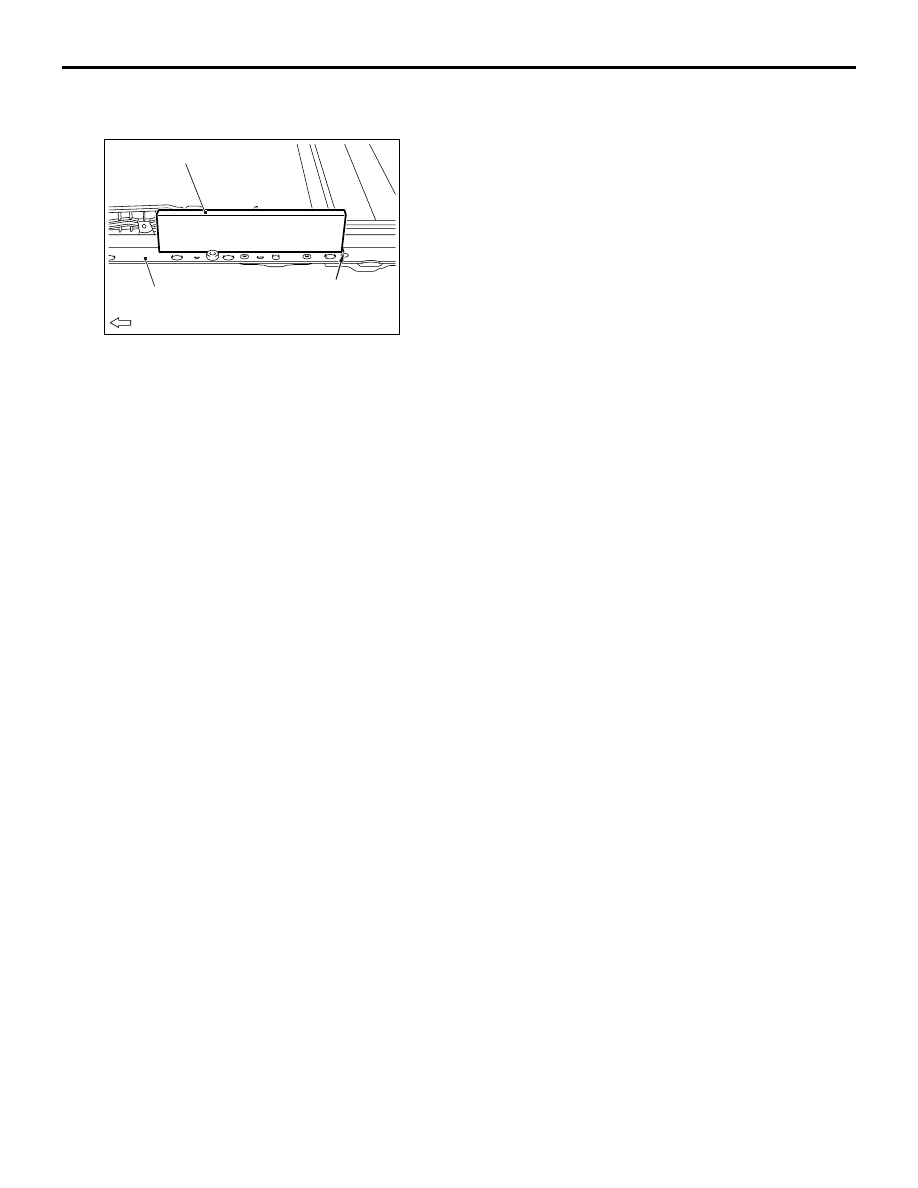

>>A<< SUNROOF PAD INSTALLATION

AC708962

AB

: Front of sunroof housing

Marking

Sunroof pad

Sunroof housing

Align the sunroof pad with the marking on the sun-
roof housing and install it.

LOOSE PANEL

BODY

42A-157

LOOSE PANEL

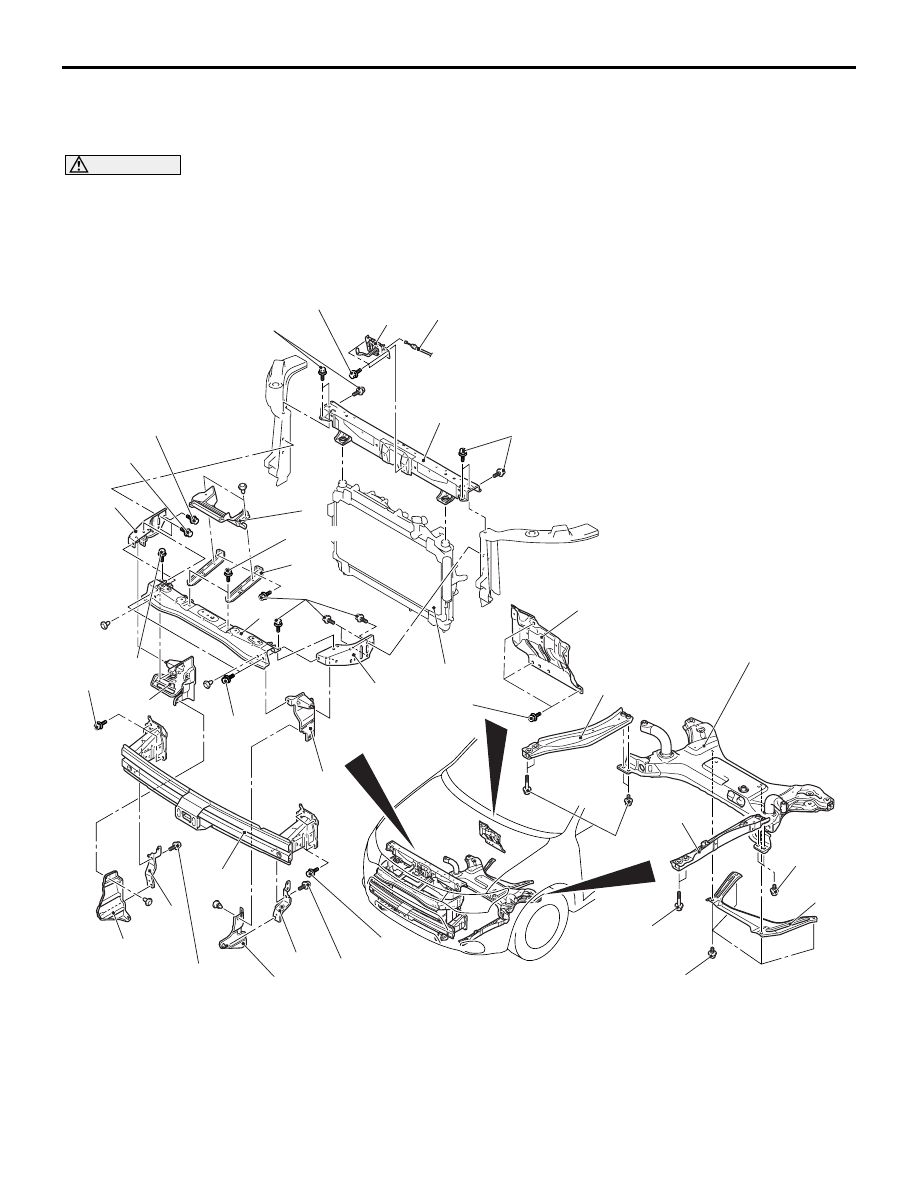

REMOVAL AND INSTALLATION

M1421003101402

CAUTION

• Disconnect the battery () terminal and wait for 60 seconds or more before starting work. Insulate

the disconnected (

) terminal by wrapping a tape.

• Handle the front impact sensor with sufficient caution, and do not drop the sensor or allow con-

tact with water, oil, or others. If a dent, crack, deformation and others are discovered, replace it
with a new one.

ACB05848AB

1

3

2

11

7

14

12

5.0 ± 2.0 N·m

12 ± 2 N·m

11

10

71 ± 10 N·m

7.0 ± 3.0 N·m

4

5

9

6

8

9.0 ± 1.0 N·m

9.0 ± 2.0 N·m

12 ± 2 N·m

7

6

20 ± 5 N·m

71 ± 10 N·m

9

5.0 ± 2.0 N·m

5.0 ± 2.0 N·m

5.0 ± 2.0 N·m

71 ± 10 N·m

14

5.0 ± 2.0 N·m

20 ± 5 N·m

Radiator

Front axle crossmenber

5.0 ± 2.0 N·m

5.0 ± 2.0 N·m

13

47 ± 11 N·m

ACC00054AB

16

15

15

17

18

18

16

19 ± 6 N·m

19 ± 6 N·m

19 ± 6 N·m

42 ± 8 N·m

42 ± 8 N·m

20 ± 5 N·m

20 ± 5 N·m

19 ± 6 N·m

41 ± 10 N·m

41 ± 10 N·m

41 ± 10 N·m

Front bumper reinforcement stay
removal steps

Radiator grille (Refer to GROUP 51

−

Radiator Grille .)

1. Latch cover
2. Front bumper reinforcement stay

Headlamp support panel upper
removal steps

Radiator grille (Refer to GROUP 51

−

Radiator Grille .)

1. Latch cover
2. Front bumper reinforcement stay
3. Hood lock release cable
4. Hood latch

Front impact sensor (Refer to
GROUP 52B

− Front Impact Sensor .)

Support upper insulator (Refer to
GROUP 14

− Radiator .)

>>B<<

5. Headlamp support panel upper

Airguide removal steps

Front bumper assembly (Refer to
GROUP 51

− Front Bumper

Assembly .)

6. Airguide upper
7. Airguide lower

Front bumper reinforcement A
removal steps

Radiator grille (Refer to GROUP 51

−

Radiator Grille .)

1. Latch cover
2. Front bumper reinforcement stay

Front bumper assembly (Refer to
GROUP 51

− Front Bumper

Assembly .)

6. Airguide lower
7. Airguide upper
8. Front bumper reinforcement A

LOOSE PANEL

BODY

42A-158

Front bumper side reinforcement
removal steps

Radiator grille (Refer to GROUP 51

−

Radiator Grille .)

1. Latch cover
2. Front bumper reinforcement stay

Front bumper assembly (Refer to
GROUP 51

− Front Bumper

Assembly .)

6. Airguide lower
7. Airguide upper
8. Front bumper reinforcement A
9. Front bumper side reinforcement

Front bumper reinforcement B
removal

Front bumper assembly (Refer to
GROUP 51

− Front Bumper

Assembly .)

>>A<<

10. Front bumper reinforcement B

Front bumper side reinforcement
lower removal

Engine room under cover front A
(Refer to GROUP 51

− Under Cover .)

11. Front bumper side reinforcement

lower
Dash panel heat protector removal

12. Dash panel heat protector

Front floor backbone brace
removal

13. Front floor backbone brace

Front end side panel removal

14. Front end side panel

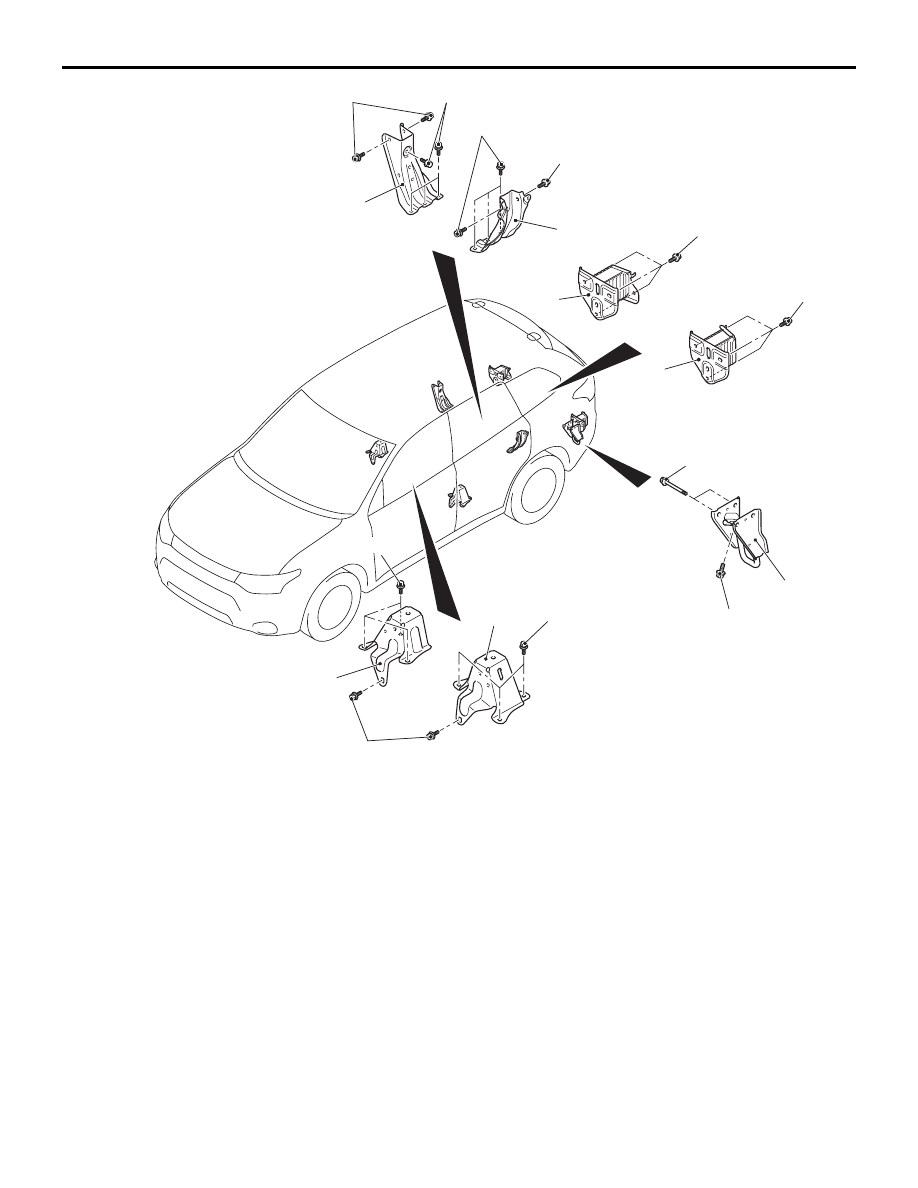

Body loose panel bracket removal

Second seat assembly (Refer to
GROUP 52A

− Second Seat .)

15. Body loose panel bracket

Rear wheelhouse inner panel brace
removal

Quarter trim, lower (Refer to GROUP
52A

− Interior Trim .)

16. Rear wheelhouse inner panel brace

Tie down hook rear removal

17. Tie down hook rear

Rear bumper reinforcement
removal

Rear bumper assembly (Refer to
GROUP 51

− Rear Bumper Assembly

.)

18. Rear bumper reinforcement

LOOSE PANEL

BODY

42A-159

INSTALLATION SERVICE POINTS

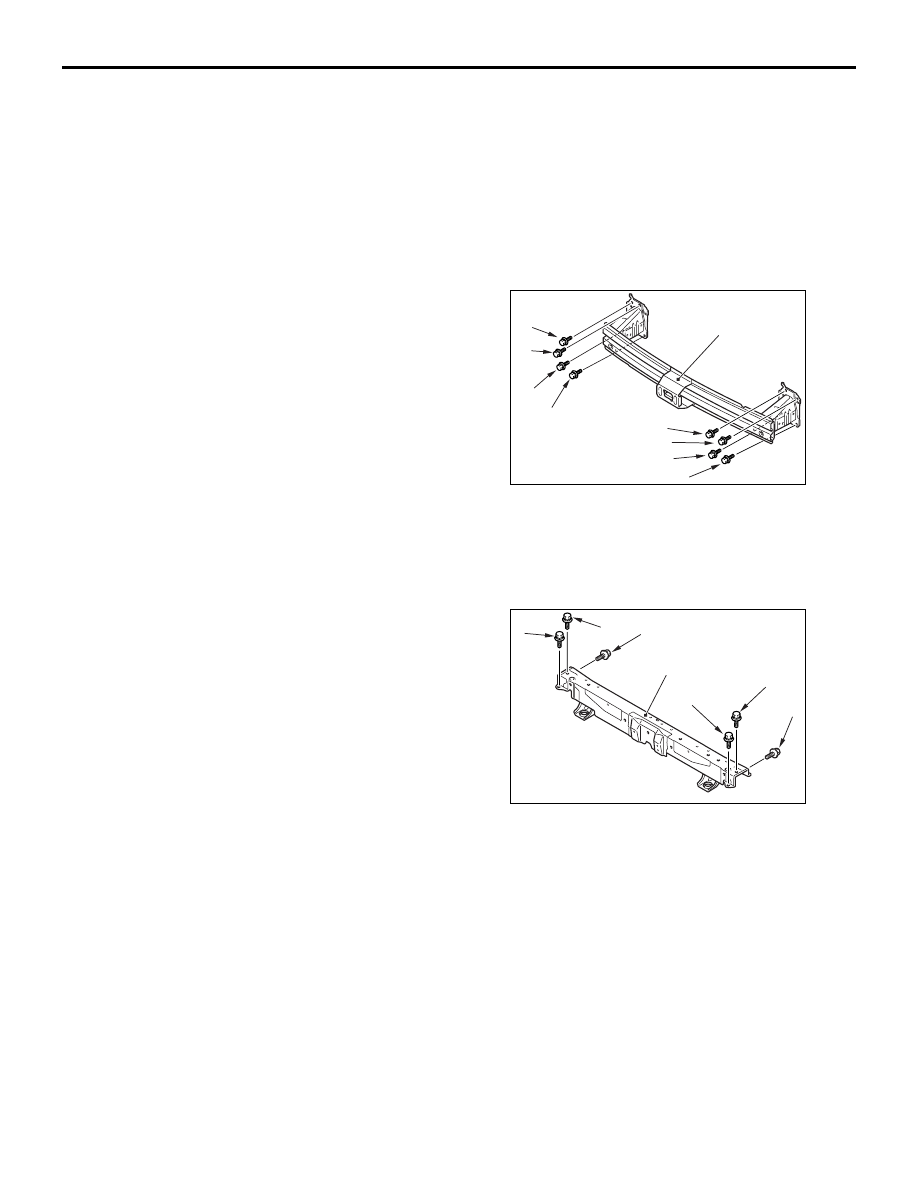

>>A<< FRONT BUMPER REINFORCE-
MENT B INSTALLATION

ACC00340

AB

1

4

2

3

5

6

7

Front bumper
reinforcement B

8

Tighten the front bumper reinforcement B bolts in the
numerical order to 20

± 5 N⋅m.

>>B<< HEADLAMP SUPPORT PANEL
UPPER INSTALLATION

ACC00339

AB

1

4

3

2

5

6

Headlamp support
panel upper

Tighten the headlamp support panel upper bolts in
the numerical order to 12

± 2 N⋅m.
