TRANSMISSION ASSEMBLY

CVT

23A-62

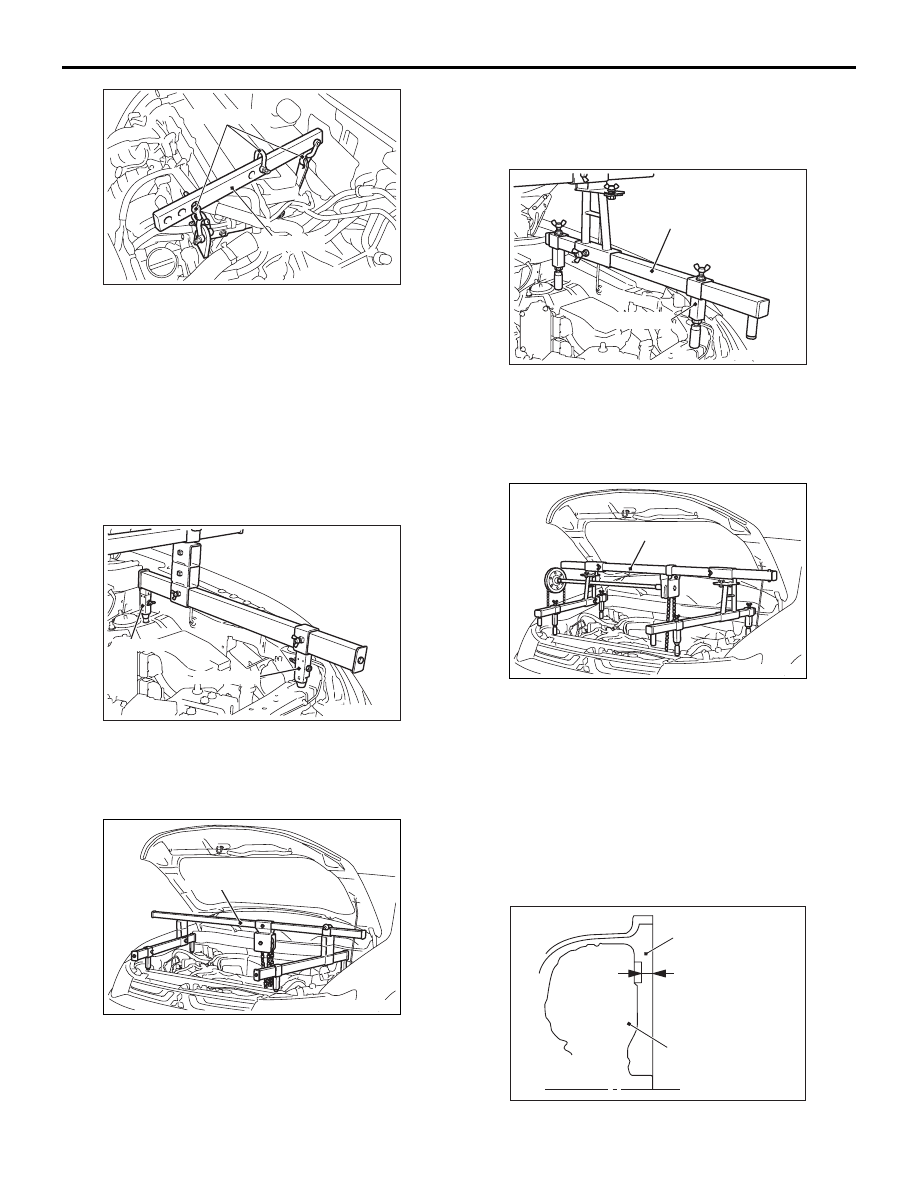

2. Assemble the engine hanger (special tool:

MB991527) with the chain of the engine hanger
balancer (special tool: MB991454).

3. <When engine hanger (Special tool: MB991928)

is used>
(1) Assemble the engine hanger (Special tool:

MB991928). (Set the components below to the
base hanger.)

• Slide bracket (HI)

•

ACB05401AB

MB991932

MB991932

Foot x 4 (standard) (MB991932)

(2) Set the feet of the special tool as shown in the

figure.

NOTE: Adjust the engine hanger balance by
sliding the slide bracket (HI).

ACB05402AB

MB991928

(3) Connect the engine hanger (Special tool:

MB991928) to the engine hanger (special tool:
MB991527).Remove the garage jack and then
remove the transmission assembly upper part
coupling bolts that have been loosened
previously.

4. <When engine hanger (Special tool: MB991895)

and engine hanger attachment (Special tool:
MB992906) are used>

ACB05400

MB991895

AB

MB992906

(1) Set the foot of special tool engine hanger

(MB991895) as shown in the figure.

NOTE: Slide the front foot of special tool
engine hanger attachment (Special tool:
MB992906) to balance the engine hanger.

ACB05403

MB991895

AB

(2) Connect the engine hanger (Special tool:

MB991895) to the engine hanger (special tool:
MB991527).Remove the garage jack and then
remove the transmission assembly upper part
coupling bolts that have been loosened
previously.

INSTALLATION SERVICE POINTS

>>A<< TRANSMISSION ASSEMBLY
INSTALLATION

AC209056AF

Approximately
13 mm

Converter housing

Torque converter

TRANSMISSION ASSEMBLY

CVT

23A-63

Fully push the torque converter into the transmission
side, and then assemble the transmission assembly
to the engine.

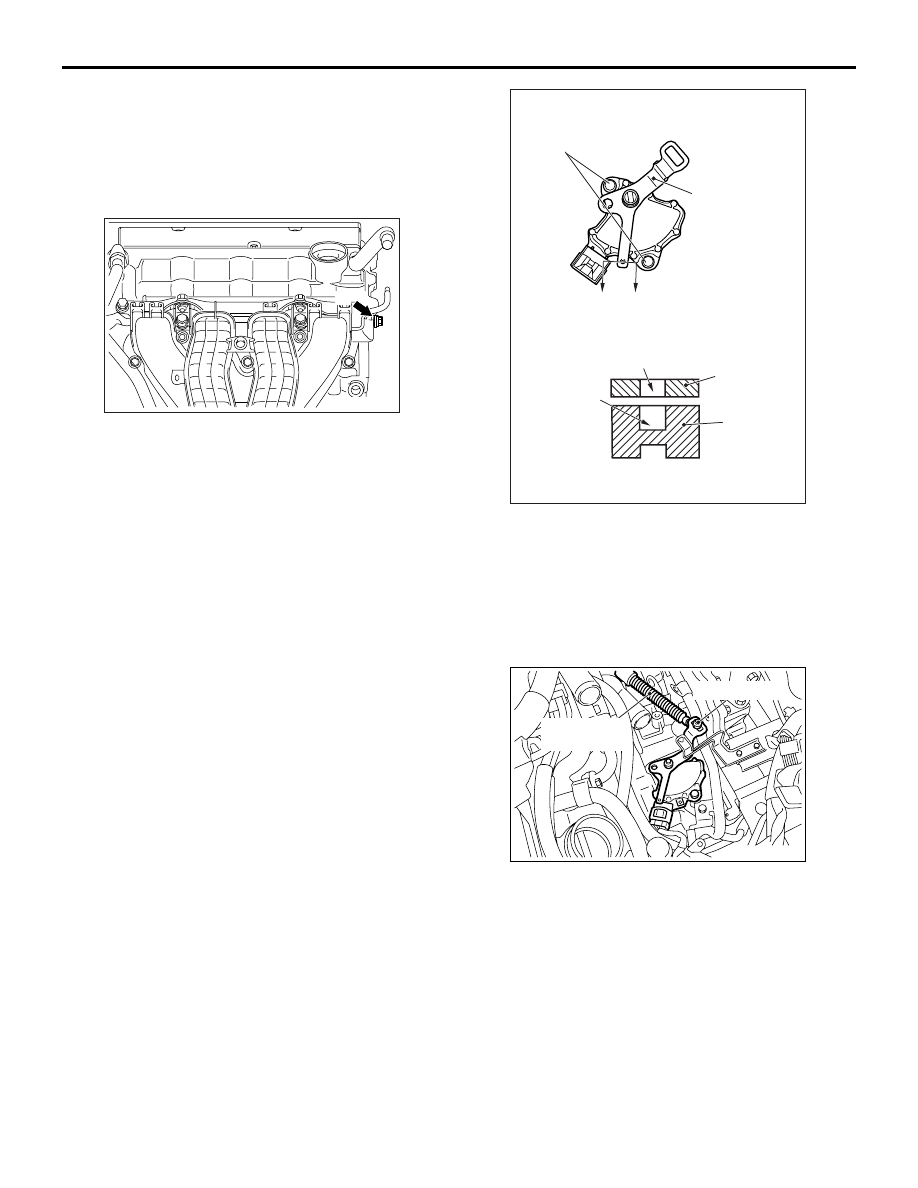

>>B<< INJECTOR PROTECTOR
MOUNTING BOLT INSTALLATION

AC905012AB

A

Tighten the injector protector mounting bolt (A in the
figure) to the specified torque.

Tightening torque: 20

± 2 N⋅m

>>C<< TRANSMISSION CONTROL
CABLE (TRANSMISSION SIDE)
INSTALLATION

1. Move the selector lever to the "N" range.

2. Move the manual control lever to Neutral position.

AC507417AE

Inhibitor
switch body

Section A - A

Manual
control lever

A

A

Inhibitor switch
mounting bolt

Manual
control lever

End hole

Flange hole

3. Align the hole at the end of the manual control

lever and the hole in the inhibitor switch body
flange (section A

− A).

NOTE: Insert a

φ

5 mm bar into the aligned holes

in the inhibitor switch body flange and on the tip of
the manual control lever to position the inhibitor
switch body.

AC506483

AB

Transmission
control cable

Adjusting nut

4. Use the adjusting nut to tighten the transmission

control cable to the specified torque.

Tightening torque: 9.5

± 3.5 N⋅m

5. Make sure that the transmission side ranges that

are corresponding to the selector lever position
operate and function without fail.

TRANSFER ASSEMBLY <4WD>

CVT

23A-64

TRANSFER ASSEMBLY <4WD>

REMOVAL AND INSTALLATION

M1231211000367

Pre-removal and post-installation operation
• Engine room under cover removal and installation (Refer

to GROUP 51

− Under Cover .)

• CVT fluid draining and refilling (Refer to

P.23A-48

.)

• Transfer oil draining and refilling (Refer to

P.23A-50

.)

• Front exhaust pipe removal and installation (Refer to

GROUP 15

−Front Exhaust Pipe Muffler .)

• Propeller shaft removal and installation (Refer to GROUP

25

−Propeller Shaft .)

• Drive shaft <RH> removal and installation (Refer to

GROUP 26

−Drive Shaft Assembly .)

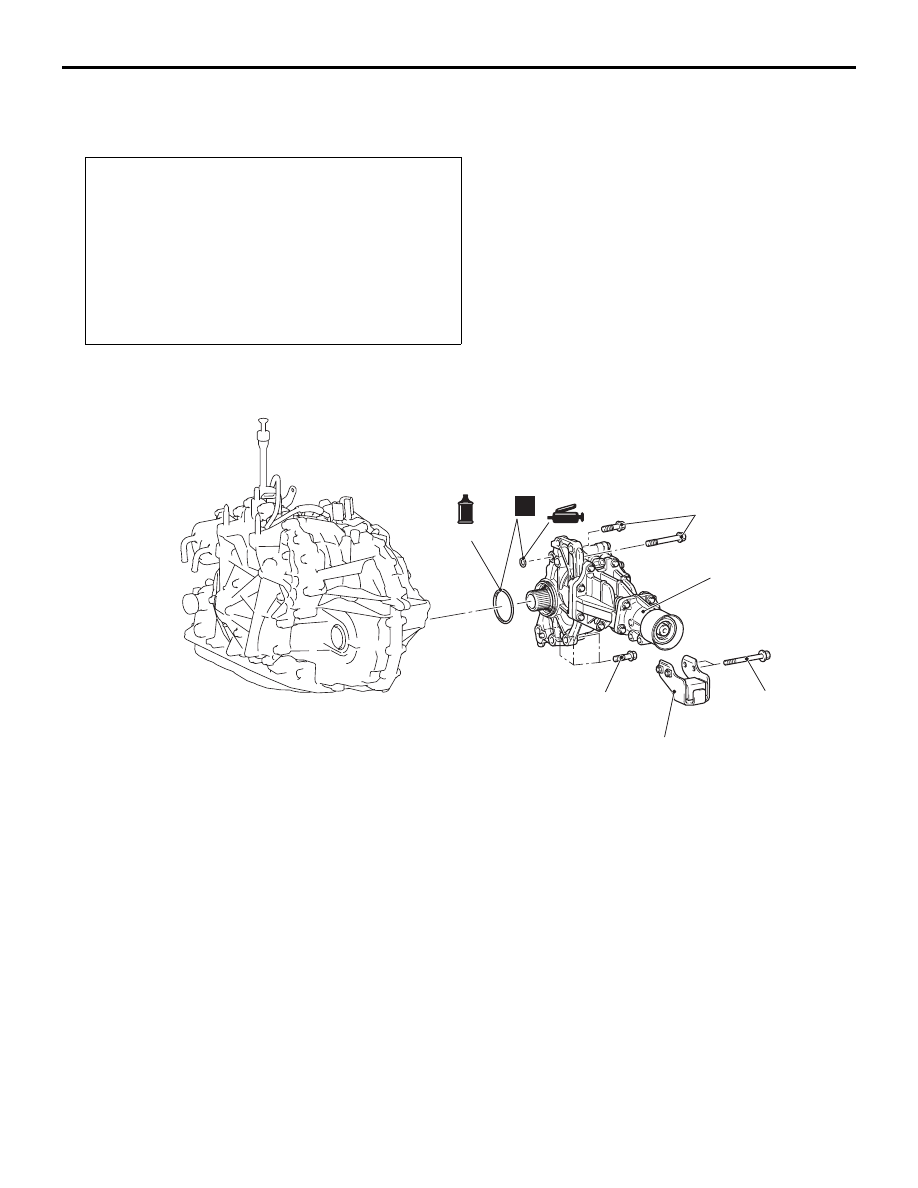

ACB04865AB

1

2

3

45 ± 6 N·m

69 ± 9 N·m

69 ± 9 N·m

N

(CVT fluid)

Removal steps

1.

Dynamic damper

<<

A

>>

2.

Transfer assembly

3.

O-ring

REMOVAL SERVICE POINT

<<A>> TRANSFER ASSEMBLY REMOVAL

Move the engine and transmission assembly toward
the front of the vehicle to make a gap between the
engine/transmission assembly and the crossmem-
ber. Pull out the transfer assembly through this gap.

CVT-ECU

CVT

23A-65

CVT-ECU

REMOVAL AND INSTALLATION

M1231211400310

CAUTION

To store the change gear ratio status of the CVT assembly in the CVT-ECU memory, drive the vehicle
at 3 km/h or faster after replacing the CVT-ECU.

Pre-removal and post-installation operation
• Bottom cover assembly removal and installation (driver’s

side) (Refer to GROUP 52A

− Instrument Panel Assembly

.)

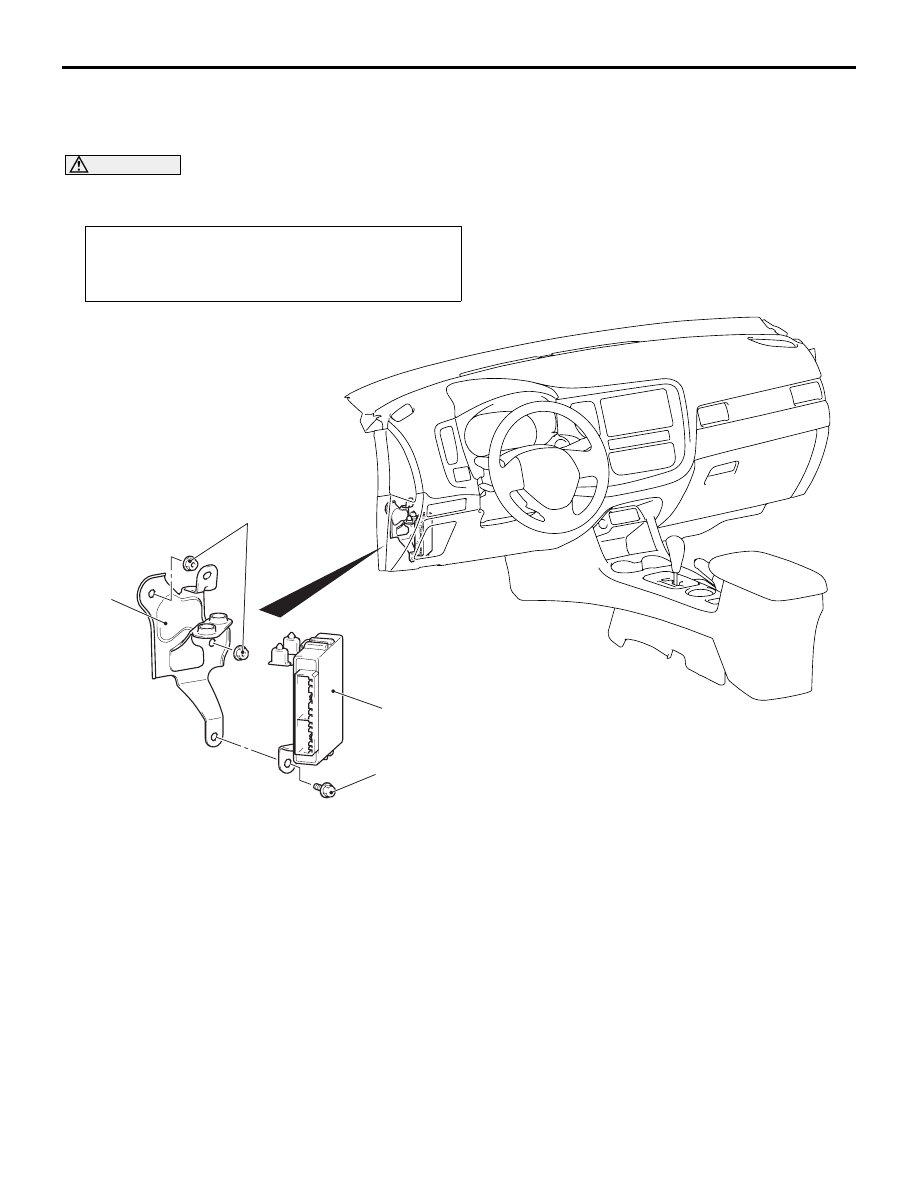

ACB05822AB

2

13 ± 2 N·m

13 ± 2 N·m

1

Removal steps

1.

CVT-ECU

2.

CVT-ECU bracket
