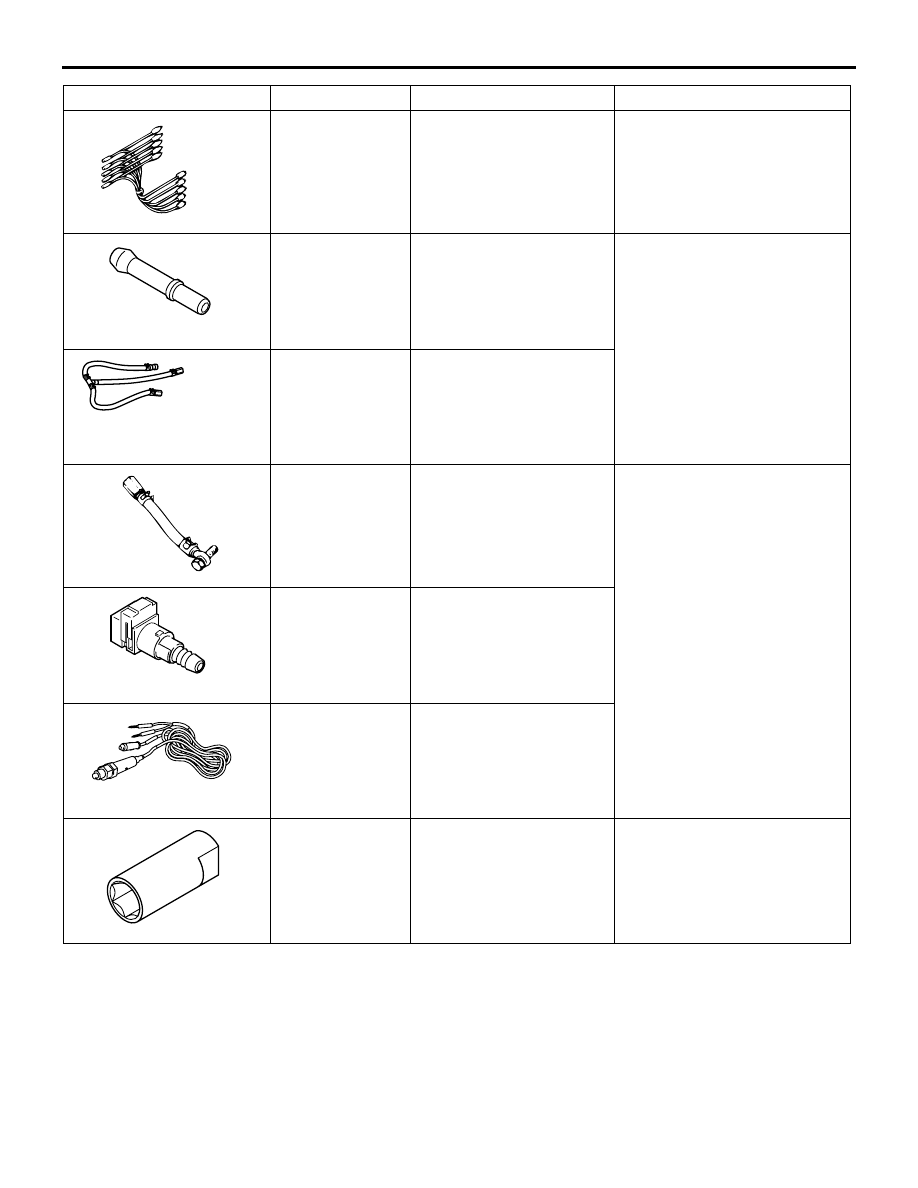

SPECIAL TOOLS

MULTIPOINT FUEL INJECTION (MPI)

13A-13

MB991658

Test harness

• Measurement of voltage

during troubleshooting

• Inspection using an

oscilloscope

• Oxygen sensor check

MB992001

MB992001

Hose adaptor

• Measure fuel pressure

• Check the spray condition

of injectors

MB992076

MB992076

Injector test set

MD998709

Adapter hose

Measure fuel pressure

MB992049

MB992049

Quick connector

MB991981

MB991981

Fuel pressure gauge set

MB992042

MB992042

Engine coolant
temperature sensor
wrench

Removal and installation of the
engine coolant temperature
sensor.

Tool

Number

Name

Use

MB992184

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-14

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1131150002616

Refer to GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points

− Contents of Trouble-

shooting .

DIAGNOSIS FUNCTION

M1131155504935

ENGINE WARNING LAMP (CHECK
ENGINE LAMP)

AKC00024AB

Engine warning lamp
(check engine lamp)

When the abnormal condition occurs with respect to
the items of Multipoint Fuel Injection (MPI) system
shown in the table, the engine warning lamp will illu-
minate or flash. When the lamp remains illuminated
after the engine start, or when the lamp is illuminated
while the engine is running, check the diagnosis
code output. There are two methods for checking the
indicator lamp burn out: When the ignition switch is in
"ON" position, the indicator lamp is illuminated, and
then extinguished few seconds later. When the igni-
tion switch is in "ON" position and the engine starts,
the indicator lamp is extinguished.

NOTE: When the CVT-ECU detects malfunctions
related to the CVT, the engine warning lamp is also
illuminated.

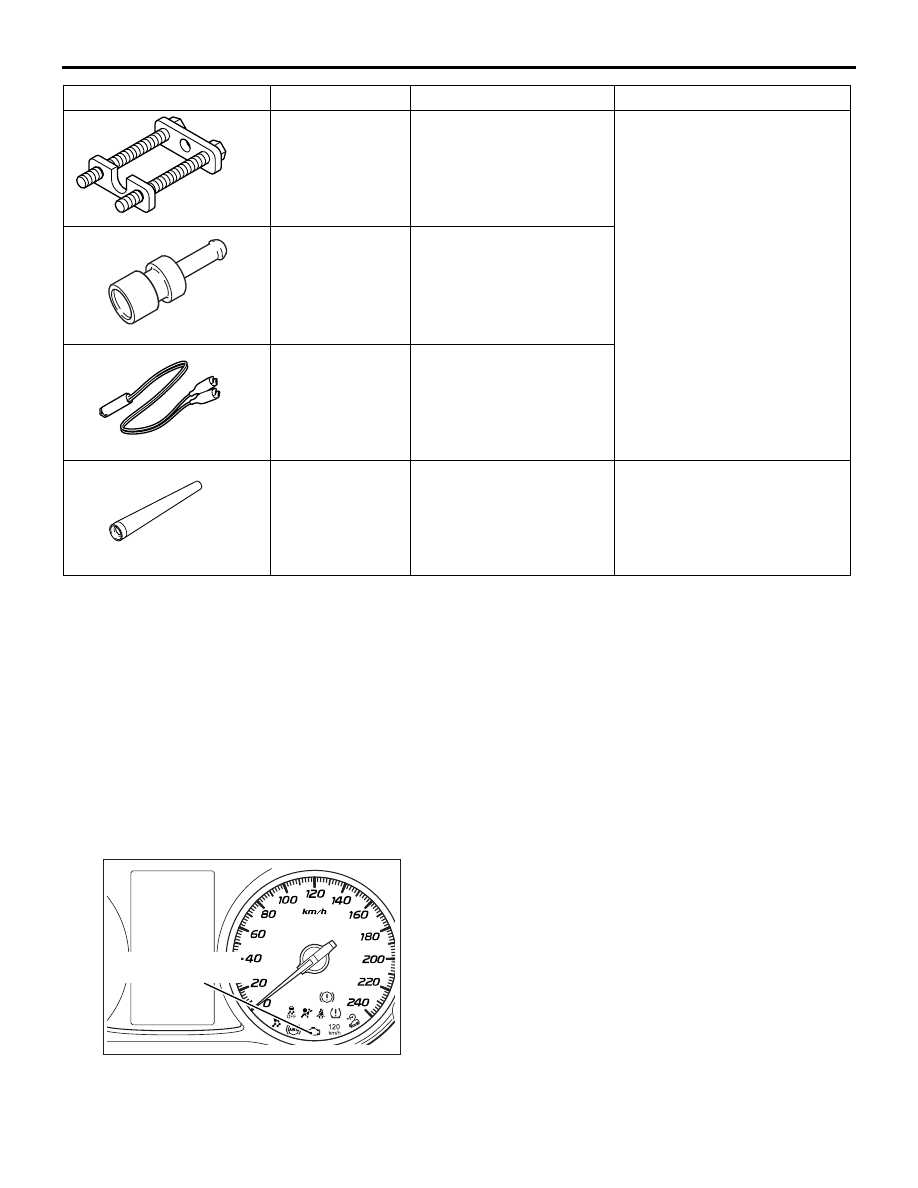

MB992184

Injector holder

Check the spray condition of
injectors

MB992088

MB992088

Injector test nipple

MB991607

MB991607

Injector test harness

B992106

MB992106

O-ring installer

Installation of O-ring on fuel
injector injection nozzle side

Tool

Number

Name

Use

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-15

ENGINE WARNING LAMP INSPECTION ITEMS

CAUTION

The engine warning lamp continuously illuminates when the engine-ECU malfunctions.

P0010

Inlet oil feeder control valve system

P0031

Oxygen sensor (front) heater circuit low input

P0032

Oxygen sensor (front) heater circuit high input

P0037

Oxygen sensor (rear) heater circuit low input

P0038

Oxygen sensor (rear) heater circuit high input

P0068

*1

Trustful check air flow sensor

P0102

*1

Air flow sensor circuit low input

P0103

*1

Air flow sensor circuit high input

P0107

Manifold absolute pressure sensor circuit low input

P0108

Manifold absolute pressure sensor circuit high input

P0112

*1

Intake air temperature sensor circuit low input

P0113

*1

Intake air temperature sensor circuit high input

P0117

*1

Engine coolant temperature sensor circuit low input

P0118

*1

Engine coolant temperature sensor circuit high input

P0121

*1

Trustful check throttle position sensor (main)

P0122

*1

Throttle position sensor (main) circuit low input

P0123

*1

Throttle position sensor (main) circuit high input

P0125

Insufficient coolant temperature for closed loop fuel control

P0131

Oxygen sensor (front) circuit low voltage

P0132

Oxygen sensor (front) circuit high voltage

P0133

Oxygen sensor (front) circuit slow response

P0134

Oxygen sensor (front) circuit no activity detected

P0137

Oxygen sensor (rear) circuit low voltage

P0138

Oxygen sensor (rear) circuit high voltage

P0171

Abnormal fuel system (lean)

P0172

Abnormal fuel system (rich)

P0221

*1

Trustful check throttle position sensor (sub)

P0222

*1

Throttle position sensor (sub) circuit low input

P0223

*1

Throttle position sensor (sub) circuit high input

P0261

No. 1 injector circuit low input

P0262

No. 1 injector circuit high input

P0264

No. 2 injector circuit low input

P0265

No. 2 injector circuit high input

P0267

No. 3 injector circuit low input

P0268

No. 3 injector circuit high input

P0270

No. 4 injector circuit low input

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-16

P0271

No. 4 injector circuit high input

P0300

*2

Random/multiple cylinder misfire detected

P0301

*2

No. 1 cylinder misfire detected

P0302

*2

No. 2 cylinder misfire detected

P0303

*2

No. 3 cylinder misfire detected

P0304

*2

No. 4 cylinder misfire detected

P0335

*1

Crank angle sensor system

P0340

*1

Inlet camshaft position sensor system

P0421

Catalyst malfunction

P0458

Purge control solenoid valve circuit low input

P0459

Purge control solenoid valve circuit high input

P0602

*1

Variant coding system

P0606

*1

Engine-ECU main processor malfunction

P060B

*1

A/D converter

P060D

*1

Trustful check accelerator pedal position sensor

P061A

*1

Torque monitoring

P061C

*1

Trustful check engine speed

P062F

*1

EEPROM malfunction

P0630

*1

Chassis number not programmed

P0638

*1

Throttle valve control servo circuit range/performance problem

P0642

*1

Throttle position sensor power supply

P0657

*1

Throttle valve control servo relay circuit malfunction

P1238

*1

Air flow sensor trustful for torque monitoring

P1590

*1

CVT-ECU to engine-ECU communication error in torque reduction request

P1603

*1

Battery backup circuit malfunction

P2100

*1

Throttle valve control servo circuit (open)

P2101

*1

Throttle valve control servo magneto malfunction

P2122

*1

Accelerator pedal position sensor (main) circuit low input

P2123

*1

Accelerator pedal position sensor (main) circuit high input

P2127

*1

Accelerator pedal position sensor (sub) circuit low input

P2128

*1

Accelerator pedal position sensor (sub) circuit high input

P2135

*1

Throttle position sensor (main and sub) range/performance problem

P2138

*1

Accelerator pedal position sensor (main and sub) range/performance problem

P2228

*1

Barometric pressure sensor circuit low input

P2229

*1

Barometric pressure sensor circuit high input

P2252

Oxygen sensor offset circuit low voltage
