Mitsubishi Outlander (2013+). Manual - part 233





VEHICLE IDENTIFICATION

GENERAL

00-14

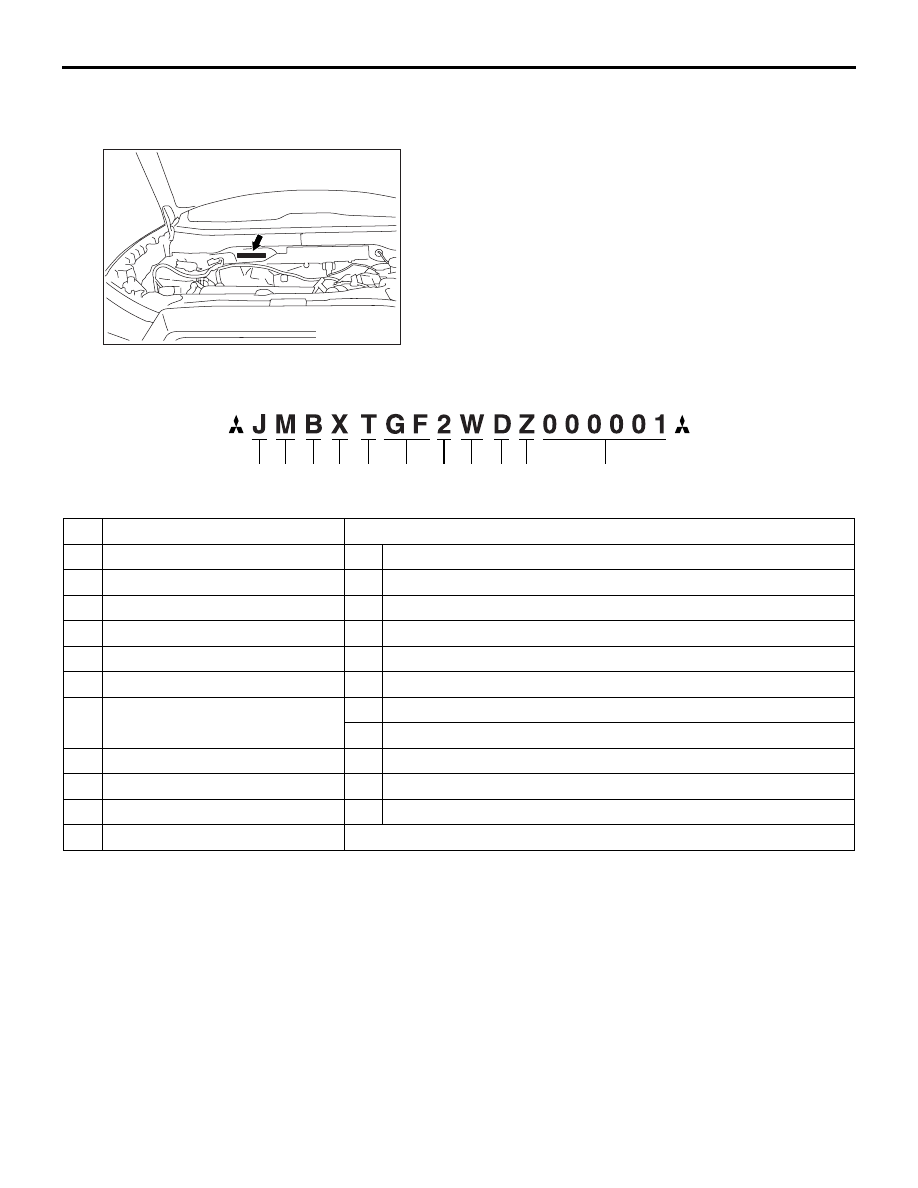

VEHICLE IDENTIFICATION NUMBER
(CHASSIS NUMBER)

M1001005602730

AC905326AB

The vehicle identification number (chassis number)
is stamped or scratched on the toeboard inside the
engine compartment.

CODE CHART

ACB04342

1

2

3 4

5

6

7

8

9 10

11

No. Item

Content

1

Country

J

Japan

2

Make

M

Mitsubishi Motors Corporation

3

Destination

B

Vehicles for Europe, left handle drive

4

Body style

X

4-door with tailgate

5

Transmission type

T

CVT

6

Development order

GF

OUTLANDER

7

Engine type

2

2.0L MPI (4B11)

3

2.4L MPI (4B12)

8

Vehicle type

W

Station wagon

9

Model year

D

2013 year

10

Plant

Z

Okazaki

11

Serial number

000001 to 999999

VEHICLE IDENTIFICATION

GENERAL

00-15

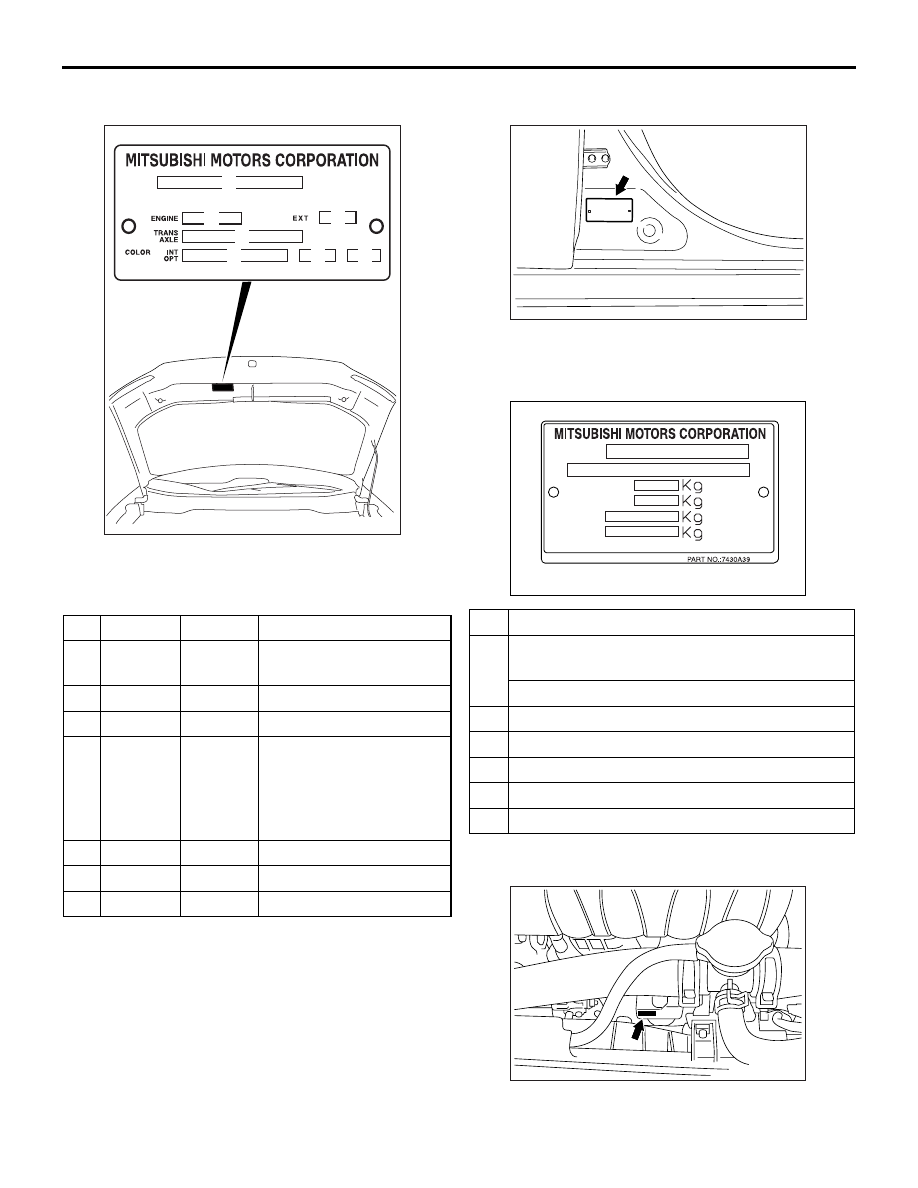

VEHICLE INFORMATION CODE PLATE

M1001005403308

AC905471

AC905413

AC700309

MODEL

1

2

4

5

6

7

3

AB

The vehicle information code plate is riveted to the
back of the hood.

CODE CHART

No. Item

Example Content

1

MODEL

GF2WXT
HHZL6Z

GF2W: Vehicle model
THHZL6Z: Model series

2

ENGINE

4B11

Engine model

3

EXT

A31A

Exterior code

4

TRANS
AXLE

W1CJA
6466

W1CJA: Transmission
model
6466: Rear differential
final gear ratio (a decimal
point is omitted)

5

COLOUR A31

Body colour code

6

INT

12X

Interior code

7

OPT

Z34

Equipment code

MANUFACTURER PLATE

M1001017600678

AC708655AC

The manufacturer plate is riveted onto the underside
of the centre pillar on the right side.

CODE CHART

AC701126

1

2
3
4
5

AB

6

No. Content

1

WVTA No. (Whole vehicle type approval
number) <Vehicles for Europe>

None <Vehicles for Russia>

2

Chassis No. (Vehicle identification number)

3

Gross vehicle weight

4

Gross combination weight

5

Gross axle weight front

6

Gross axle weight rear

ENGINE MODEL STAMPING

M1001005701165

AC507578

The engine model is stamped on the cylinder block.
These engine model numbers are as shown as fol-
lows.

Engine model

Engine displacement

4B11

1,998 mL

4B12

2,360 mL

GENERAL DATA AND SPECIFICATIONS

GENERAL

00-16

The engine serial number is stamped near the
engine model number.

Engine number

AA0201 to YY9999

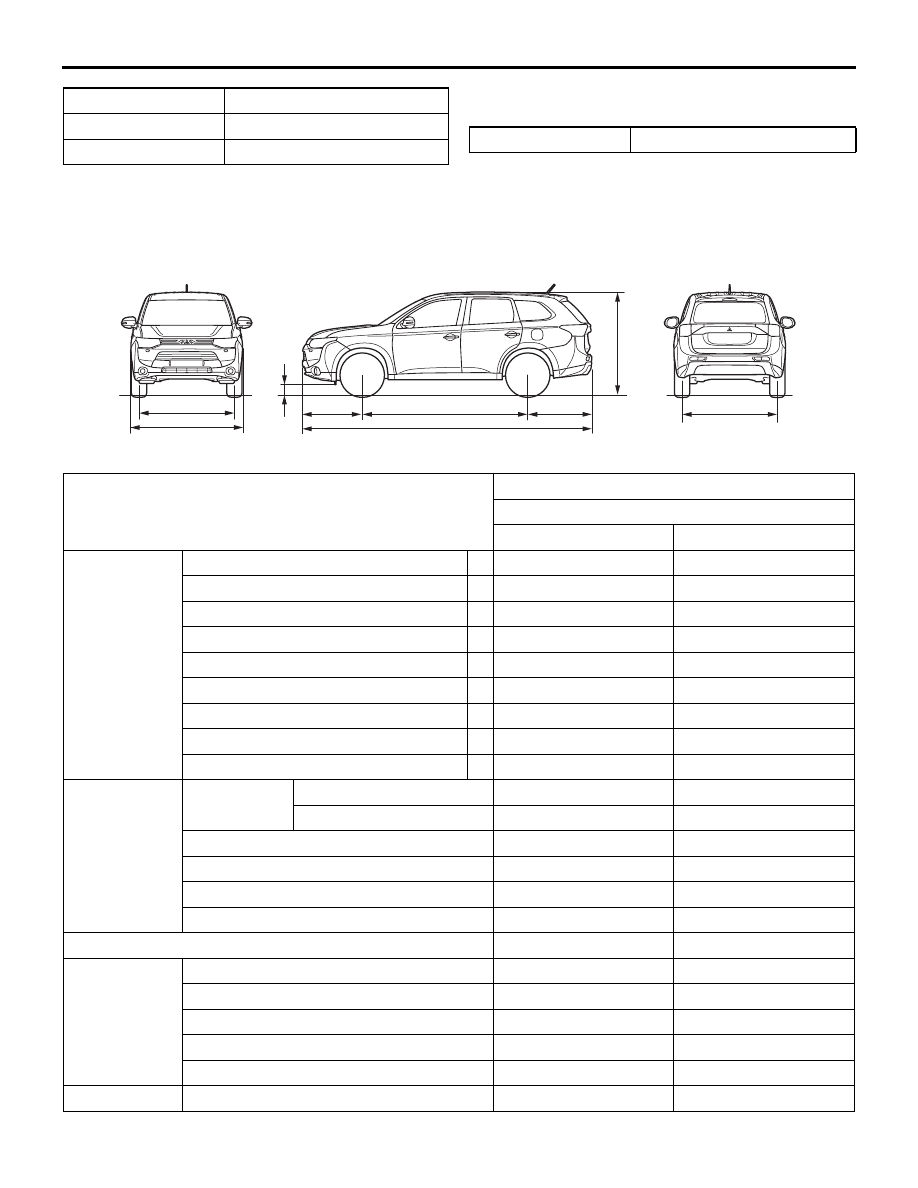

GENERAL DATA AND SPECIFICATIONS

M1001000906954

ACB04339AB

1
2

3

4

5

6

7

8

9

<2000>

Item

INTENSE

GF2W

XTSHL6Z

XTSHZL6Z

Vehicle
dimension mm

Front track

1

1,540

1,540

Overall width

2

1,800

1,800

Front overhang

3

955

955

Wheelbase

4

2,670

2,670

Rear overhang

5

1,030

1,030

Overall length

6

4,655

4,655

Ground clearance (unladen)

7

215

215

Overall height (unladen)

8

1,680

1,680

Rear track

9

1,540

1,540

Vehicle weight
kg

Kerb weight

Without full optional parts 1,415

1,480

With full optional parts

1,484

1,559

Gross vehicle weight

1,985

1,985

Gross axle weight rating-front

1,150

1,150

Gross axle weight rating-rear

1,250

1,250

Gross combination weight

3,665

3,665

Seating capacity

5

5

Engine

Model No.

4B11

4B11

Type

DOHC MIVEC

DOHC MIVEC

Total displacement mL

1,998

1,998

Max. output <EEC> kW/rpm

107/6,000

107/6,000

Max. torque <EEC> N

⋅m/rpm

196/4,200

196/4,200

Fuel system

Fuel supply system

MPI

MPI

GENERAL DATA AND SPECIFICATIONS

GENERAL

00-17

<2400>

Item

INSTYLE

GF3W

XTHHZL6Z

Vehicle
dimension mm

Front track

1

1,540

Overall width

2

1,800

Front overhang

3

955

Wheelbase

4

2,670

Rear overhang

5

1,030

Overall length

6

4,655

Ground clearance (unladen)

7

215

Overall height (unladen)

8

1,680

Rear track

9

1,680

Vehicle weight
kg

Kerb weight

Without full optional parts 1,495

With full optional parts

1,569

Gross vehicle weight

2,210

Gross axle weight rating-front

1,150

Gross axle weight rating-rear

1,250

Gross combination weight

3,890

Seating capacity

5

Engine

Model No.

4B12

Type

DOHC MIVEC

Total displacement mL

2,360

Max. output <EEC> kW/rpm

123/6,000

Max. torque <EEC> N

⋅m/rpm

222/4,100

Fuel system

Fuel supply system

MPI

Transmission

Model code

W1CJA

Type

Electronic control 4WD, INVECS-III CVT with
sport mode

Turning radius
m

Body

5.73

Wheel

5.3

Transmission

Model code

F1CJA

W1CJA

Type

Front wheel drive 2WD,
INVECS-III CVT with
sport mode

Electronic control 4WD,
INVECS-III CVT with
sport mode

Turning radius
m

Body

5.73

5.73

Wheel

5.3

5.3

Item

INTENSE

GF2W

XTSHL6Z

XTSHZL6Z
