TECHNICAL FEATURES

GENERAL

00-6

SPACIOUS CABIN

M2000000400456

COMFORT

ACC00826

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

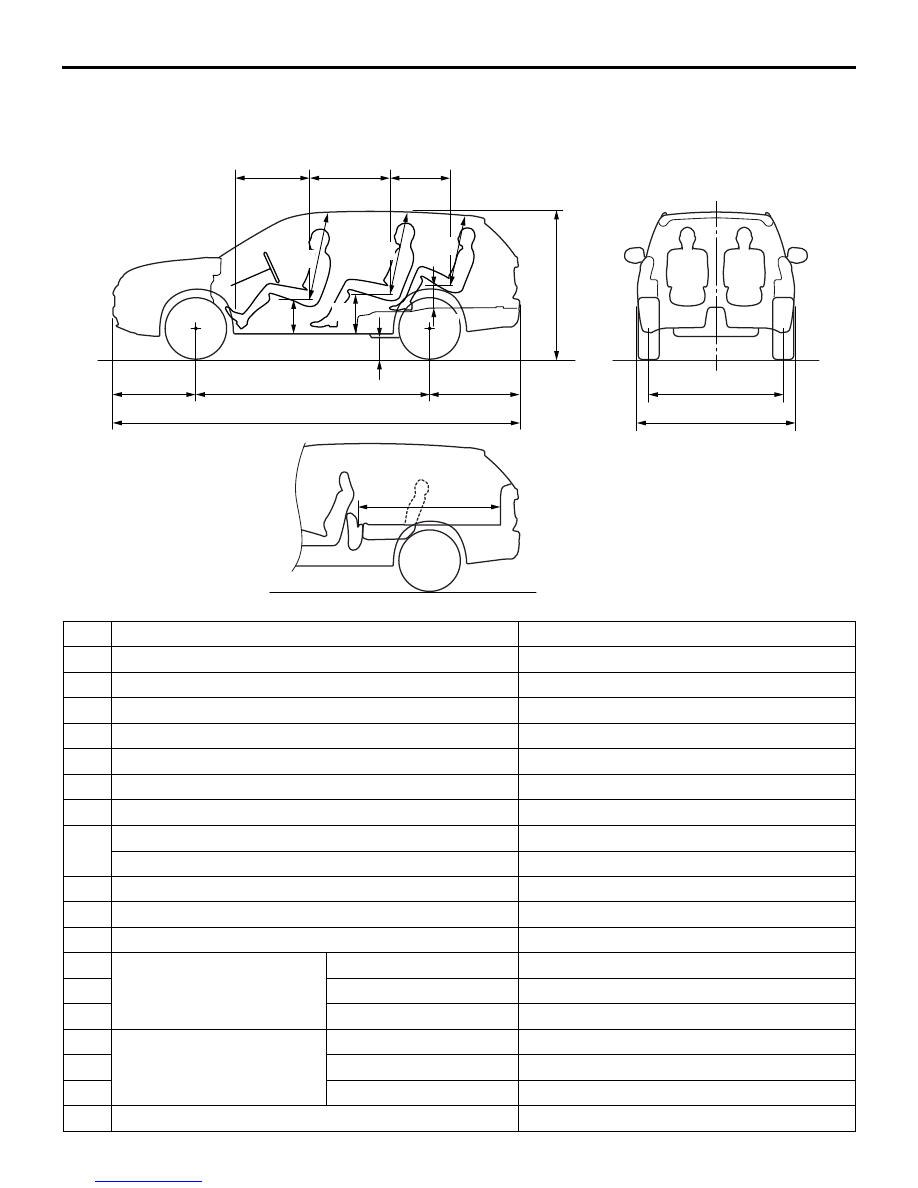

AB

No.

Item

Dimension mm

1

Overall length

4,655

2

Front overhang

955

3

Wheelbase

2,670

4

Rear overhang

1,030

5

Overall height (unladen)

1,680

6

Ground clearance (unladen)

215

7

Overall width

1,800

8

Front track

1,540

Rear track

1,540

9

Front leg space

870

10

Rear leg space

875

11

Third leg space

655

12

Head room

Front seat

921

13

Second seat

871

14

Third seat

805

15

Hip-point height

Front seat

346

16

Second seat

395

17

Third seat

225

18

Cargo room length

1,685

Downloaded from

www.Manualslib.com



manuals search engine



TECHNICAL FEATURES

GENERAL

00-7

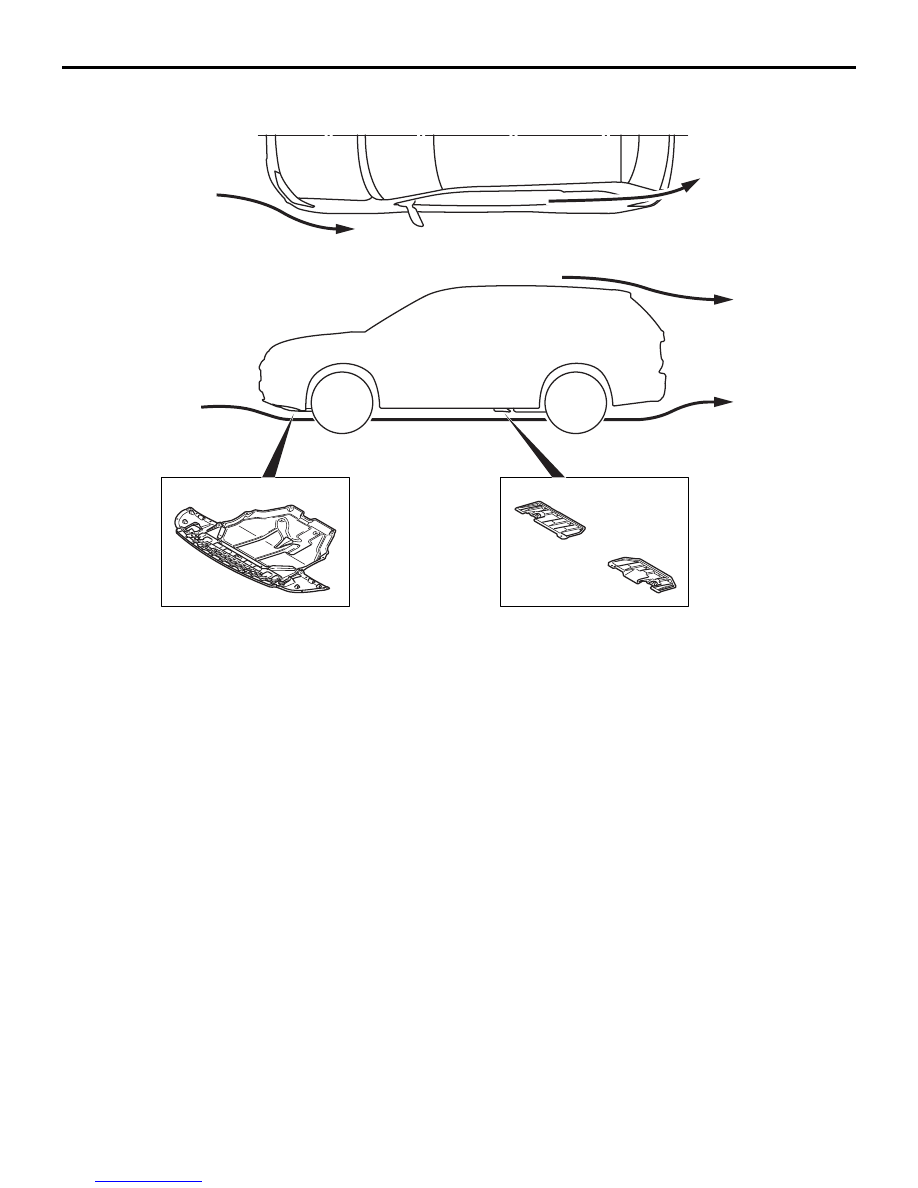

AERODYNAMICS

• NEW OUTLANDER achieved a drag coefficient

of C

D

=0.33, 7-percent reduction as compared to

the current model, the cutting-edge computer
simulation technology and with the numerous
wind tunnel experiments. Optimized body form of
bumper side, roof, C pillar, and effective aerody-
namic items such as air dams, under covers, rear
spoiler also reduce aerodynamic drag and lift
force.

• These aerodynamic treatments contribute fuel

economy, low Co

2

 emission and the high speed

stability.

1. Optimized bumper makes the side flow very

smooth.

2. Tapered body shape makes the wake stable and

small.

3. Stream-lined roof shape is even more optimized.
4. Air resistance is reduced by optimally arranged

aerodynamic items such as air dams, under cov-
ers. These items reduce front and rear lift force,
too.

ACTIVE SAFETY

M2000031001606

The following safety equipment/systems are used:

• ABS (Anti-skid Braking System) with EBD (Elec-

tronic Brake-force Distribution)

(Refer to GROUP 35B

− Anti-skid Braking System

P.35B-2

.)

• ASC (Active Stability Control system)

(Refer to GROUP 35C

− Active Stability Control sys-

tem

P.35C-2

.)

• HSA ( Hill Start Assist system)

[Refer to GROUP 35C

− Hill Start Assist (HSA) sys-

tem

P.35C-9

.]

• ESS (Emergency Stop Signal system)

[Refer to GROUP 35C

− ESS FUNCTION

P.35C-9

.]

• Security alarm

(Refer to GROUP 54A

− Security Alarm

P.54A-59

.)

• ACC (Adaptive Cruise Control system)

(Refer to GROUP 17

− Adaptive Cruise Control sys-

tem

P.17-8

.)

• FCM (Forward Collision Mitigation)

(Refer to GROUP 35C

− Forward Collision Mitigation

P.35C-24

.)

• LDW (Lane Departure Warning system)

(Refer to GROUP 54A

− Lane Departure Warning

system

P.54A-64

.)

ACC00050

1

2

3

4

4

Rear under cover

Front under cover <4N1>

AC

Downloaded from

www.Manualslib.com



manuals search engine



TECHNICAL FEATURES

GENERAL

00-8

PASSIVE SAFETY

M2000032001654

The following safety equipment/systems are used:

• RISE Body (Reinforced Impact Safety Evolution

body)

• Driver's and front passenger's SRS (Supplemen-

tal Restraint System) air bag

• Curtain air bag and Side-airbag

• Driver's knee air bags

• Front seat belt retractor with pre-tensioner and

force-limiter function.

• Three-point rear seat belt with ELR/ALR (child

seat fixing mechanism)

• Immobilizer function

COMFORTABLE EQUIPMENTS

M2000026000986

STEERING SYSTEM WITH TILT AND TEL-
ESCOPIC MECHANISMS

The tilt and telescopic mechanisms allow the driver
to adjust the steering wheel position precisely
depending on his/her wish and body size.

ELECTRIC TAIL GATE

Tail gate is adopted mechanism which opened and
closed automatically by electric according to the
switch operation. The open movement automatically
by Tail Gate Open Switch. Tail gate is adopted cus-
tomize function which manually opening or automati-
cally opening by OPEN SWITCH can be selected.
(Refer to GROUP 42A

− Electric Tail Gate

P.42A-17

)

KEYLESS OPERATION SYSTEM (KOS)

The door entry function has been employed, that
enables the driver to lock or unlock all the doors
(including tailgate) without taking the key out from
his/her pocket or bag by operating the lock/unlock
switches on the front door <Driver's side> or tailgate
whenever the driver carries the keyless operation
key with him/her. [Refer to GROUP 42B

− Keyless

Operation System (KOS)

P.42B-2

]

ONE-TOUCH START SYSTEM (OSS)

For vehicles equipped with the keyless operation
system (KOS), the push-type engine start switch has
been employed. [Refer to GROUP 42B

− One-touch

Start System (OSS)

P.42B-18

]

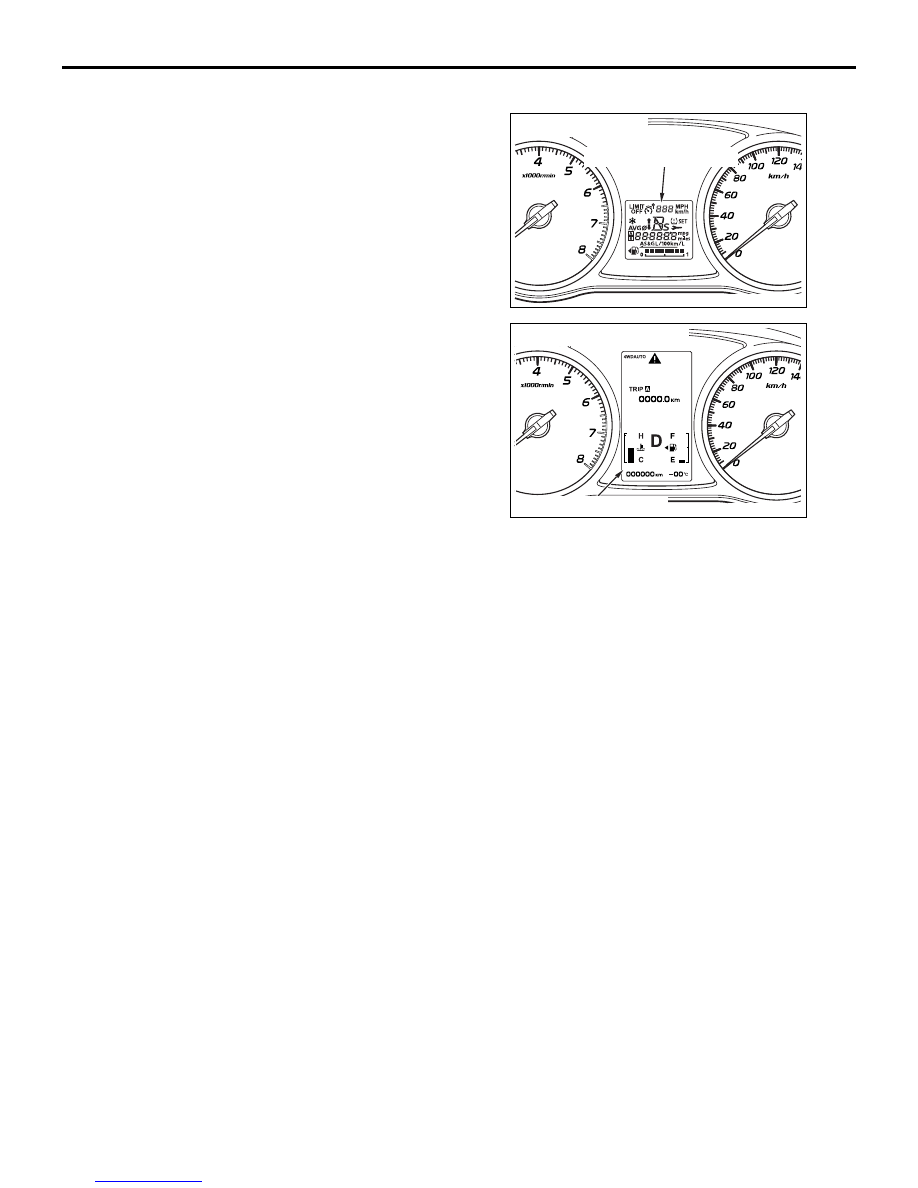

MULTI-INFORMATION DISPLAY

The multi-information display can display the follow-
ing items: various warnings, odometer and trip meter,
illumination control, service reminder information,
engine coolant temperature, remaining fuel amount,
selector lever position, average and instantaneous
fuel consumption, possible cruising distance, aver-
age vehicle speed, and others. Displayed contents
can be switched by operating the multi-information
meter switch. Also, the displayed language or unit on
the multi-information display can be changed from
the function setting screen. (Refer to GROUP 54A

−

Combination Meter

P.54A-22

)

AUDIO AND NAVIGATION SYSTEM

A NEW GENERATION WIDE 2-DIN CD

• A "Wide 2-DIN" size system has been

adopted.

• Gloss black paint and silver decorations offer

premium image.

• Supports USB/iPod control functions

NEWLY DEVELOPED DISPLAY AUDIO

• Gloss black paint and silver decorations offer

premium image.

• Features 6.1 inch QVGA (Quarter Video

Graphics Array) full-colour display and touch
screen.

• Supports USB/iPod control functions

• Rear view camera image with reference lines

NEWLY DEVELOPED NAVIGATION

− MITSUBISHI

MULTI COMMUNICATION SYSTEM (MMCS)

ACC00056

<Standard meter>

Multi-information display

AB

ACC00057

<High contrast meter>

Multi-information display

AB

Downloaded from

www.Manualslib.com



manuals search engine



VEHICLE IDENTIFICATION

GENERAL

00-9

• SD card is used as data storage instead of

HDD.

• High-definition display [VGA (Video Graphics

Array) instead of QVGA (Quarter Video
Graphics Array)]

• Dual display function such as navigation and

AV (Audio Visual)/Vehicle information, etc.

• Supports USB/i-Pod control functions and SD

audio files

A/C SYSTEM

There are two modes for the air conditioner system;
full auto A/C and newly developed dual zone A/C.

The "dual zone A/C" mode allows separate stratifica-
tion control selections for the right and left outlets,
depending on individual passenger's wishes (Refer
to GROUP 55

− Heater, Air Conditioner and Ventila-

tion

P.55-2

).

ENVIRONMENTAL PROTECTION

M2000027000945

Mitsubishi Motors Corporation has given careful con-
sideration to protection of natural resources and the
environment. Environmentally friendly features are
shown below.

VEHICLE IDENTIFICATION

MODELS

M2000001101514

VEHICLES FOR EUROPE

<2000>

Classification

Parts Name

Features

Adoption of easy
recycling material

Bumper, Radiator grille, Instrument panel,
Interior door trims

Adoption of thermoplastic resin

Expansion of recycled
material

Bumper, Radiator grille, Instrument panel,
Interior door trims

Re-use of material discarded in plant

Sound absorbing materials in dash panel
and headlining, Oil level gauge

Re-use of discarded material in other
industry

Reduction of
hazardous substances

Fuel tank, Radiator, Heater core, Balance
weight for wheel, Glass ceramics print,
Electrode position paint, bearing metal,
valve sheet

Adoption of lead free material

Discharge headlamp, combination meter,
Navigation system

Adoption of mercury free material

Model code

Seating
capacity

Engine model

Transmission model

Fuel supply
system

GF7W

XNSXL6

5-persons

4J11 (1,998 mL)
SOHC MIVEC petrol
engine, Auto Stop & Go
(AS&G) <Clear Tec
AS&G>

F5MBB (Front wheel
drive 2WD, 5M/T)

MPI

XTXXL6

7-persons

F1CJA (Front wheel
drive 2WD, INVECS-III
CVT with sport mode)

XTHXL6

5-persons

XTHXZL6

W1CJA (Electronic
control 4WD, INVECS-III
CVT with sport mode)

XTXXZL6

7-persons
