MAIN BODY

BODY

42A-3

MAIN BODY

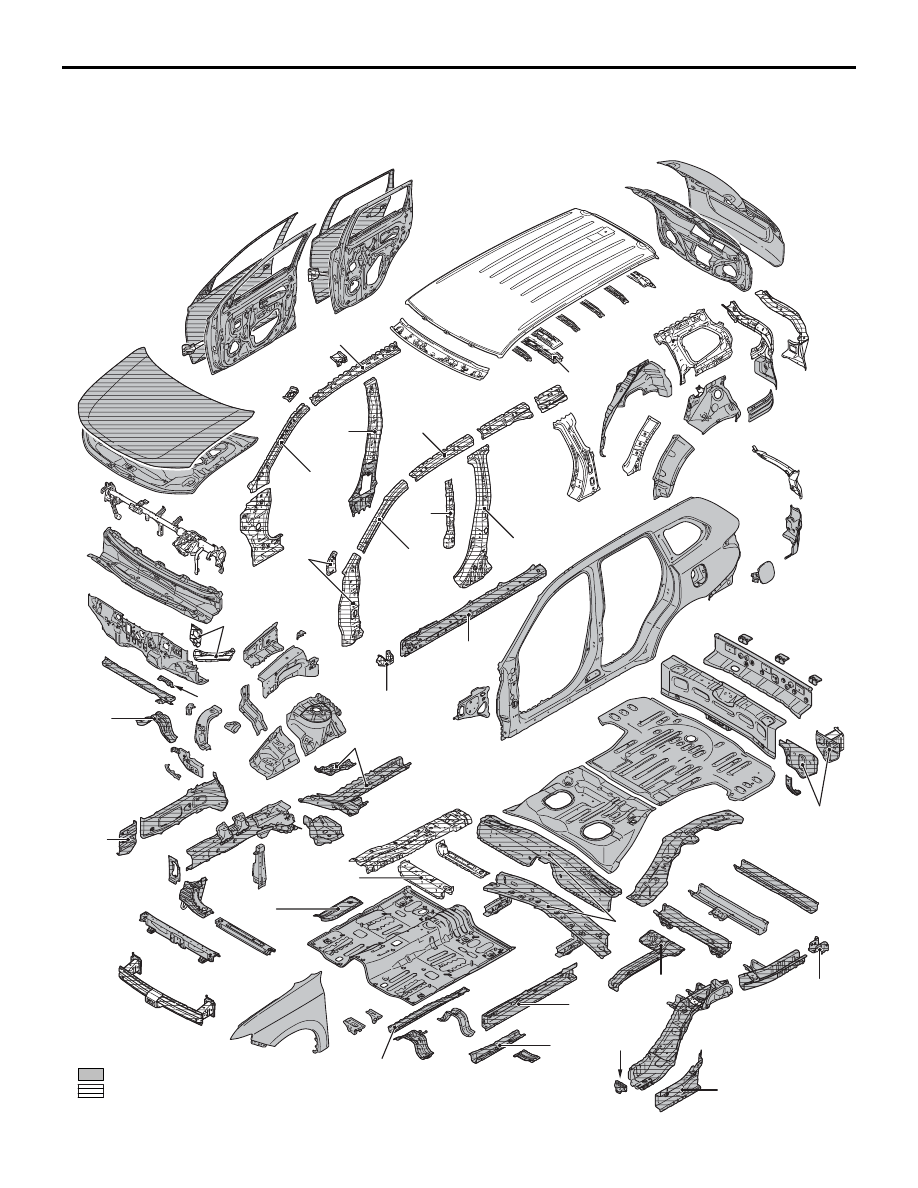

BODY PANELLING

M2420002001554

ABC00060

 : Anti-corrosion steel panels
 : High-tensile steel panels (*: Indicates 590MPa-high-tensile steel panels.)

(**: Indicates 980MPa-ultra-high-tensile steel panels.)

NOTE:

**

**

**

*

*

*

*

*

*

*

*

*

*

*

*

*

AC

*

*

*

*

*

*

*

*

*

**

**

MAIN BODY

BODY

42A-4

• RISE (Reinforced Impact Safety Evolution) has

been adopted for the main body in order to
improve all-round impact safety at high level.

• The applications of anti-corrosion steel plates

have been expanded to the hood, doors, inner
panel of the tailgate and reinforcements to
improve the anti-corrosive properties of the main
body.

• Some high-tensile steel panels in 590 MPa-class

and 980 MPa-class have been adopted to
improve the rigidity and weight reduction of the
panel.

• The sealer application area has been extended to

the entire flange folded edge of the doors, hood,
and tailgate, and the panel joints at the bottom of
the front floor and the rear floor, in order to
improve rust resistance.

BODY SHELL

M2420003001320

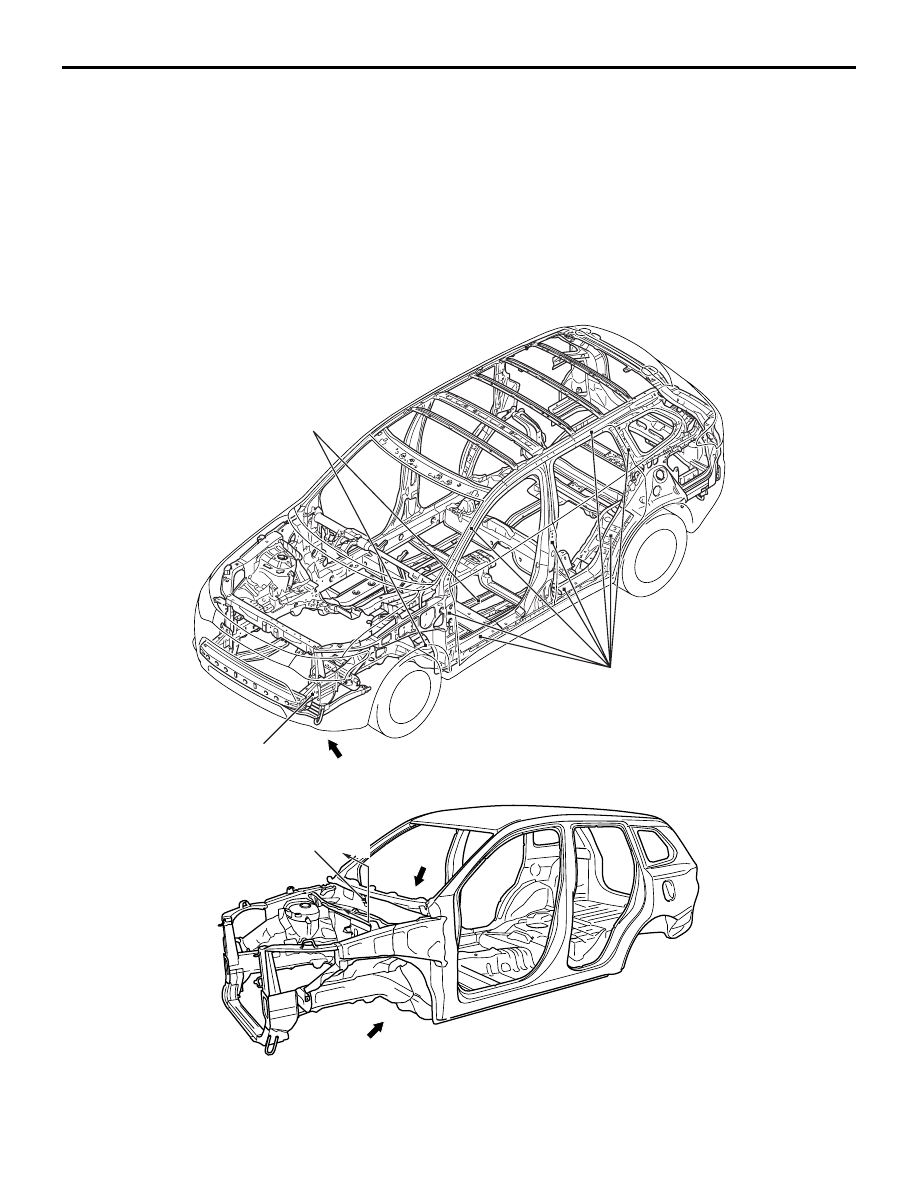

IMPACT SAFETY BODY RISE (REIN-
FORCED IMPACT SAFETY EVOLUTION)

ABB00849AB

A

1

2

3

ABC00042AB

D

4

B

C

MAIN BODY

BODY

42A-5

The front and rear structures to absorb high energy,
and the highly tough cabin structure are adopted to
reduce the risk of passenger injuries at front-, rear-,
and side-impact collisions, secure the space for life
protection, and facilitate rescuing passengers. These
structures also have the following features:

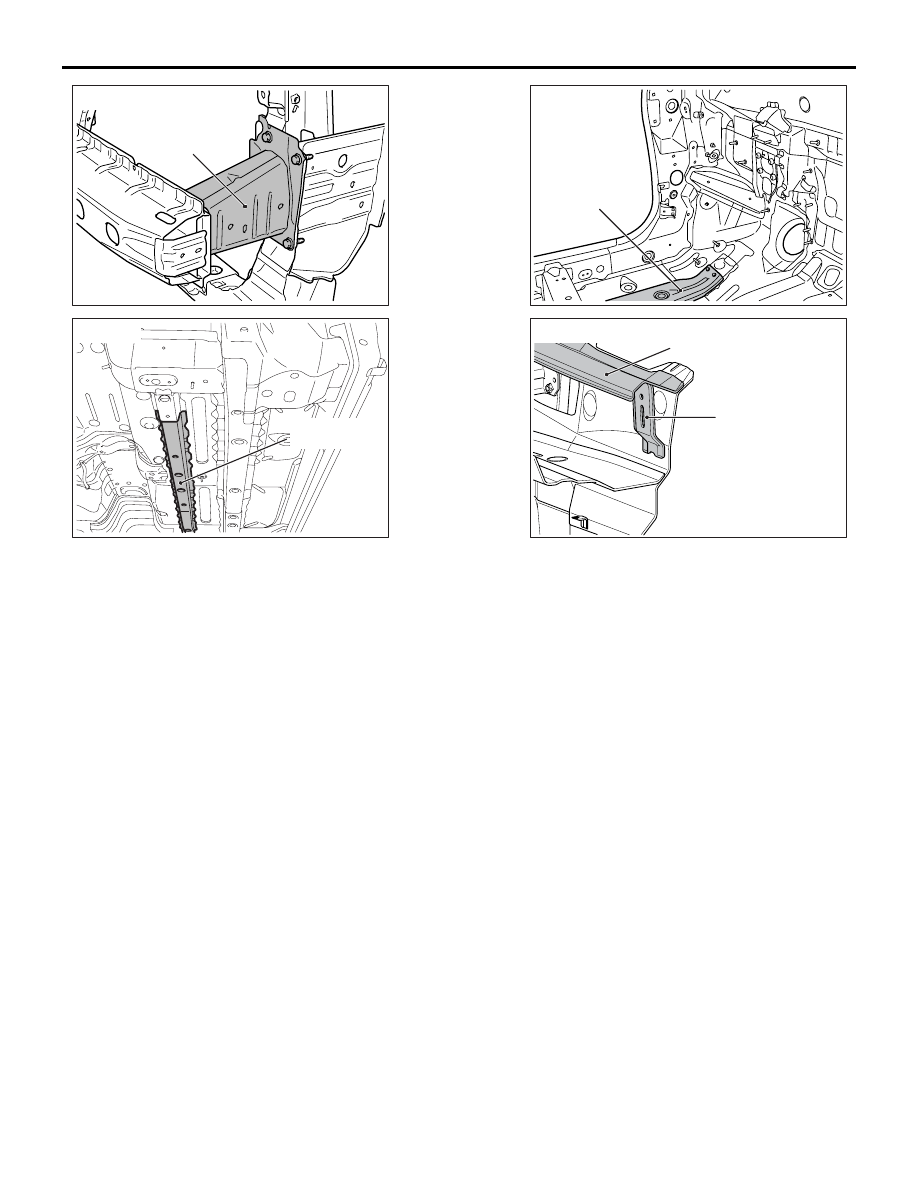

1. The crush box structure has been adopted to the

front end of the front sidemember to improve the
characteristics at a minor frontal collision.

2. The ring structure of the side structure reinforce-

ment has been adopted to improve the collision
characteristics and the rigidity of the whole vehi-
cle.

3. A front floor sidemember is located in and under

the front floor to improve frontal collision safety.

4. The padding structure of the cowl top is designed

to have a crushable structure in order to effi-
ciently absorb energy upon impact, thus improv-
ing the pedestrian protection capability.

ABC00043AB

4

Section D - D

1

View A

3

View B

3

View C

Crush box

Front floor
sidemember

Cowl top
outer panel

Cowl top stay

Front floor
sidemember

MAIN BODY

BODY

42A-6

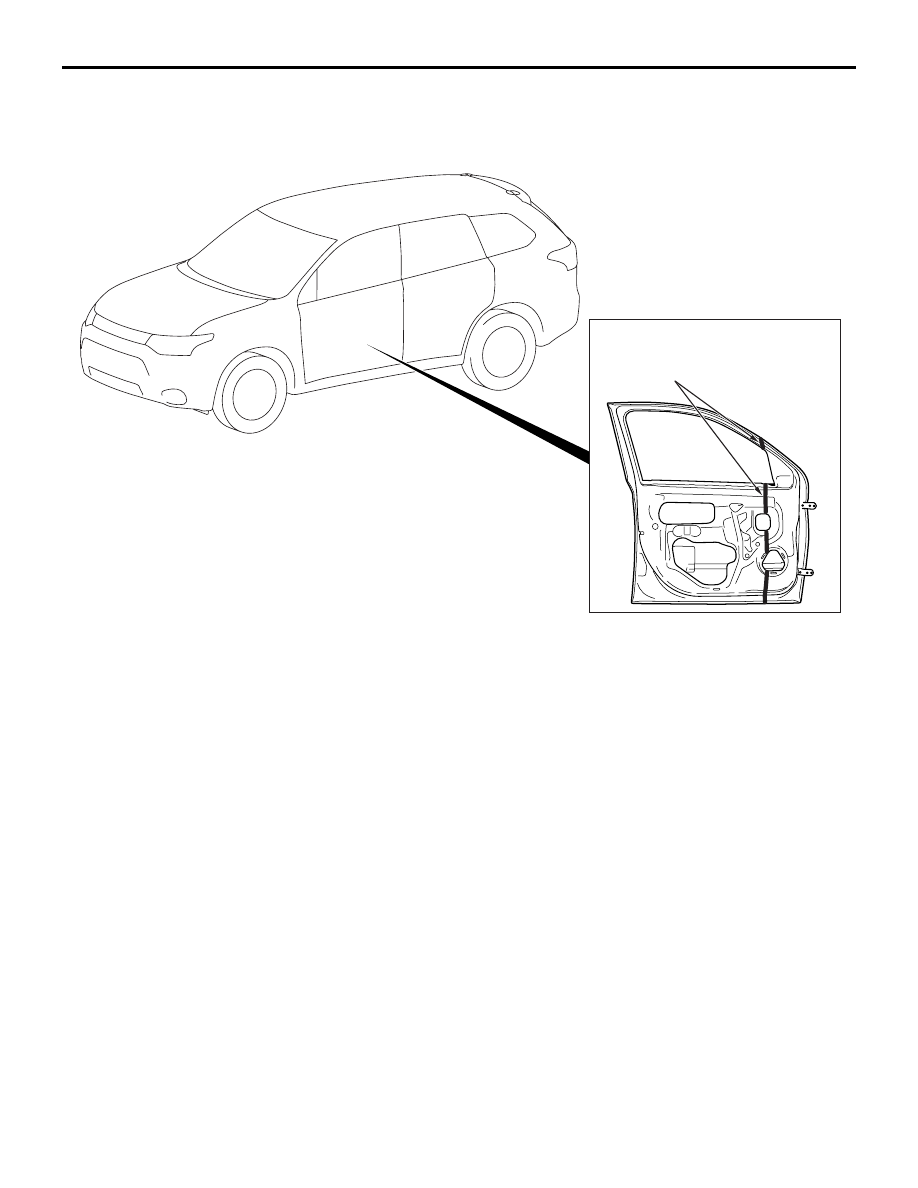

STEEL PLATE WITH UNEVEN THICK-
NESS

The uneven thickness steel panels* (in uneven thick-
ness integrated structure) have been adopted for the
parts shown in the figure to improve safety upon
impact and reduce weight.

NOTE: *: A steel sheet of varying thickness that is
welded into one steel sheet.

ABB00850AB

Front door inner panel

Thickness is thicker on the forward
part of the vehicle from this line.
