ELECTRONICALLY CONTROLLED 4WD

REAR AXLE

27-15

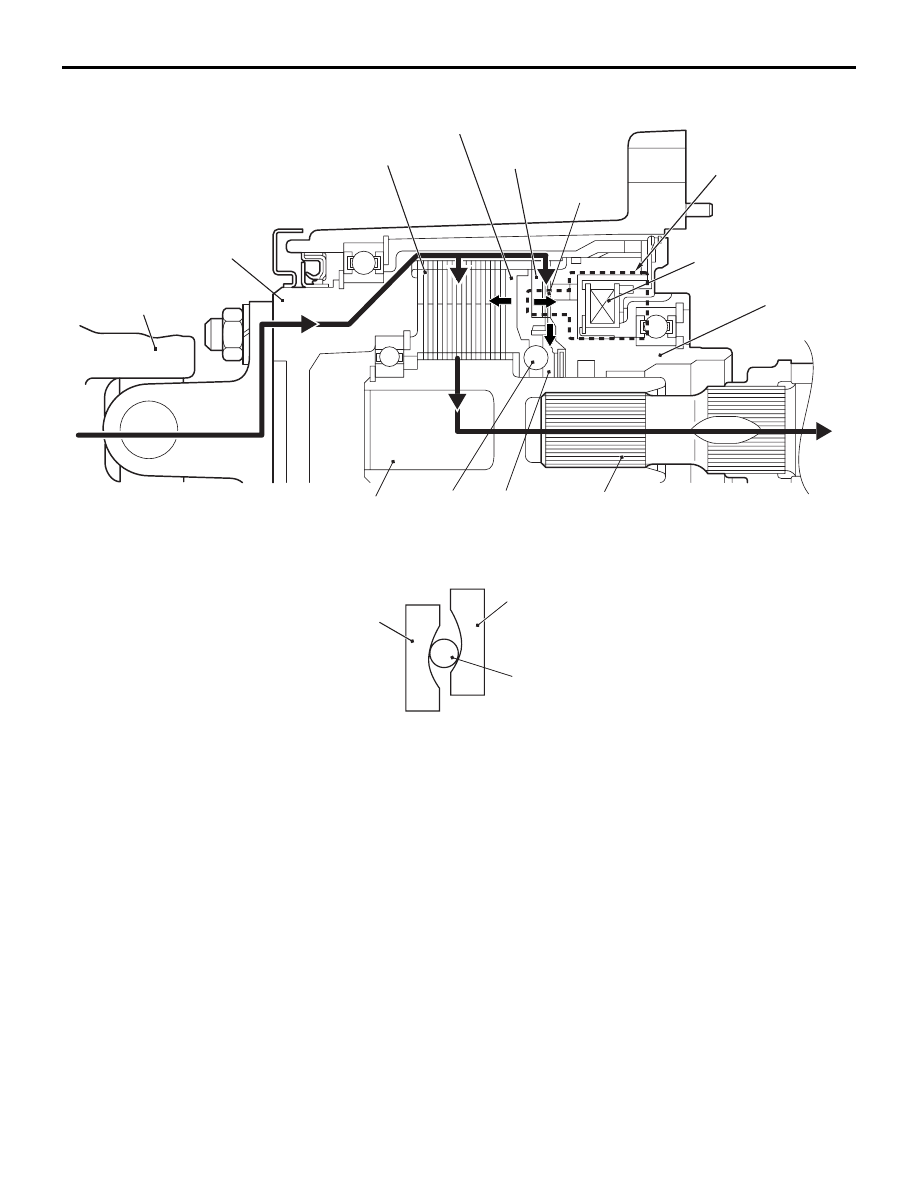

Coupling operates (4WD: Magnetic coil energized.)

• The drive force from the transfer is transmitted to

the front housing connected to the propeller
shaft. The drive force is also transferred to the
pilot clutch and the outer side of the main clutch
assembled to the front housing. When the mag-
netic coil is energized, the magnetic field is gen-
erated among the rear housing, pilot clutch, and
armature. The magnetic field induces the pilot
clutch and armature to engage the pilot clutch.
When the pilot clutch is engaged, the drive force
is transferred to the pilot cam. When there is a
difference in rotation speed between the front and
rear wheels (i.e. rotation speed of the propeller
shaft is different from that of the drive pinion), the
rotation speed of the pilot cam applied with the

drive force and that of the main cam not applied
with the drive force become different. The ball
slides along the curved space between the pilot
cam and main cam by the rotational speed differ-
ence and pushes the pilot cam and main cam.
Then, the main clutch is pushed toward the main
cam to engage. When the main clutch is
engaged, the drive force is transferred to the rear
wheels via the shaft and the drive pinion of the
rear differential.

• By controlling the current applied to the magnetic

coil, the amount of the drive force transferred to
the rear wheels can be controlled within the
range of 0 to 100%.

AC505106AD

Main clutch

Pilot clutch

Armature

Pilot cam

Main cam

Magnet coil

Front housing

Rear housing

Shaft

   Drive pinion
(Rear differential)

Propeller shaft

Ball

Magnetic field

AC507947

AD

Main cam

Ball

Pilot cam

31-1

GROUP 31

WHEEL AND TYRE

CONTENTS

GENERAL INFORMATION . . . . . . . .

31-2

GENERAL INFORMATION

WHEEL AND TYRE

31-2

GENERAL INFORMATION

M2310000102022

The wheels and tyres of the following specifications
have been established.

SPECIFICATIONS

Road wheel and tyre

<2000>

<2400>

NOTE: PCD indicates the pitch circle diameter of the wheel installation holes.

Spare wheel and tyre

NOTE: PCD indicates the pitch circle diameter of the wheel installation holes.

Item

Standard

Option <4WD>

Wheel

Type

Steel type

Aluminium type

Aluminium type

Size

16

× 6.5JJ

16

× 6.5J

18

× 7J

Amount of wheel offset mm

38

38

38

PCD mm

114.3

114.3

114.3

Tyre

Size

215/70R16 100H

215/70R16 100H

225/55R18 98H

Item

Standard

Option

Wheel

Type

Aluminium type

Aluminium type

Size

16

× 6.5J

18

× 7J

Amount of wheel offset mm

38

38

PCD mm

114.3

114.3

Tyre

Size

215/70R16 100H

225/55R18 98H

Item

Standard

Option

Wheel

Type

Steel type

Aluminium type

Size

16

× 6.5JJ

18

× 7J

Amount of wheel offset mm

38

38

PCD mm

114.3

114.3

Tyre

Size

215/70R16 100H

225/55R18 98H

32-1

GROUP 32

POWER PLANT

MOUNT

CONTENTS

GENERAL INFORMATION . . . . . . . .

32-2
