CRUISE CONTROL SYSTEM

ENGINE AND EMISSION CONTROL

17-6

4. When the SET

− switch is operated while driving

at the vehicle speed of low speed limit
(approximately 40 km/h) or slower, the constant
speed driving is not performed.

DECELERATION FUNCTION

1. When the SET

− switch is pressed and held for

approximately 0.5 second or longer during the
constant speed driving, the vehicle is decelerated
by using engine braking while the switch is
pressed.

2. After that the SET

− switch is released, the vehicle

speed of that time is newly stored, and then the
constant speed driving is performed at that speed.

3. In addition, when the SET

− switch is pressed for

less than approximately 0.5 second, the vehicle
speed is decreased by approximately 1.6 km/h
from the constant speed driving speed. The
decelerated speed is newly stored, and then the
constant speed driving is performed at that speed.

4. When the SET

− switch is pressed and held, and

the vehicle speed is decelerated to low speed limit
(approximately 40 km/h) , the low speed limit will
be maintained.

RESUME FUNCTION

1. During the constant speed driving, press the

CANCEL switch, or depress the brake pedal to
cancel the constant speed driving.

2. Afterward, when the RES + switch is pressed

while driving at a vehicle speed of low speed limit
(approximately 40 km/h) or more, a constant
speed driving is performed at the vehicle speed
stored when the constant speed driving was
cancelled.

ACCELERATION FUNCTION

1. During the constant speed driving, when the RES

+ switch is pressed and held for approximately 0.5
seconds or longer, the vehicle is accelerated with
the specified acceleration while the switch is
pressed.

2. After that the RES + switch is released, the

vehicle speed of that time is newly stored, and
then the constant speed driving is performed at
that speed.

3. In addition when the RES + switch is pressed for

less than approximately 0.5 second, the vehicle
speed is increased by approximately 1.6 km/h
from the constant speed driving speed. The
accelerated vehicle speed is newly stored, and
then the constant speed driving is performed at
that speed.

CANCEL FUNCTION

When any of the following conditions are satisfied,
the constant speed driving will be cancelled.

• The cruise control system is stopped by the

pressing the cruise control ON/OFF switch.

• The CANCEL switch is pressed.

• The brake pedal is depressed.

• The selector lever is shifted to the "N" position.

• The vehicle speed becomes low speed limit

(approximately 40 km/h) or less.

• The vehicle speed is decreased by 15 km/h or

more from the setting vehicle speed.

• An abnormality occurs in the vehicle speed sig-

nal.

• The ASC is operated.

• An abnormality occurs in CVT-ECU.

• An abnormality occurs in the CAN communica-

tion.

LAST STATUS MEMORY FUNCTION

The system stores cruise control ON/OFF status of
the cruise control when the ignition switch is turned
off. Then, when the ignition switch is turned on the
next time, the system will resume the stored status.

FAIL-SAFE FUNCTION

When one of the following conditions is met, the
cruise control system function will be suspended until
the system returns to normal condition. Also, when
one of the following conditions is met, a constant
speed driving is cancelled immediately.

• An abnormality occurs in the cruise control

switch.

• An abnormality occurs in the stop lamp signal.

When one of the following conditions is met, unless
the vehicle is stopped to turn the ignition switch to
the "LOCK" (OFF) position, the cruise control system
function will be suspended even if the system returns
to the normal state. Also, one of the following condi-
tions is met, a constant speed driving is cancelled
immediately.

• Engine-ECU abnormality.

• An abnormality occurs in the vehicle speed sig-

nal.

• Throttle position sensor abnormality.

• Accelerator pedal position sensor abnormality.

DIAGNOSIS FUNCTION

To ease the system inspection, the diagnosis code
inspection, data list inspection is available by
M.U.T.-III.

NOTE: For the diagnosis code items and input check
code items, refer to the Workshop Manual.

EMISSION CONTROL<MPI>

ENGINE AND EMISSION CONTROL

17-7

EMISSION CONTROL<MPI>

GENERAL INFORMATION

M2171000101756

The emission control is basically the same as the
4B1 engine mounted on the ASX.

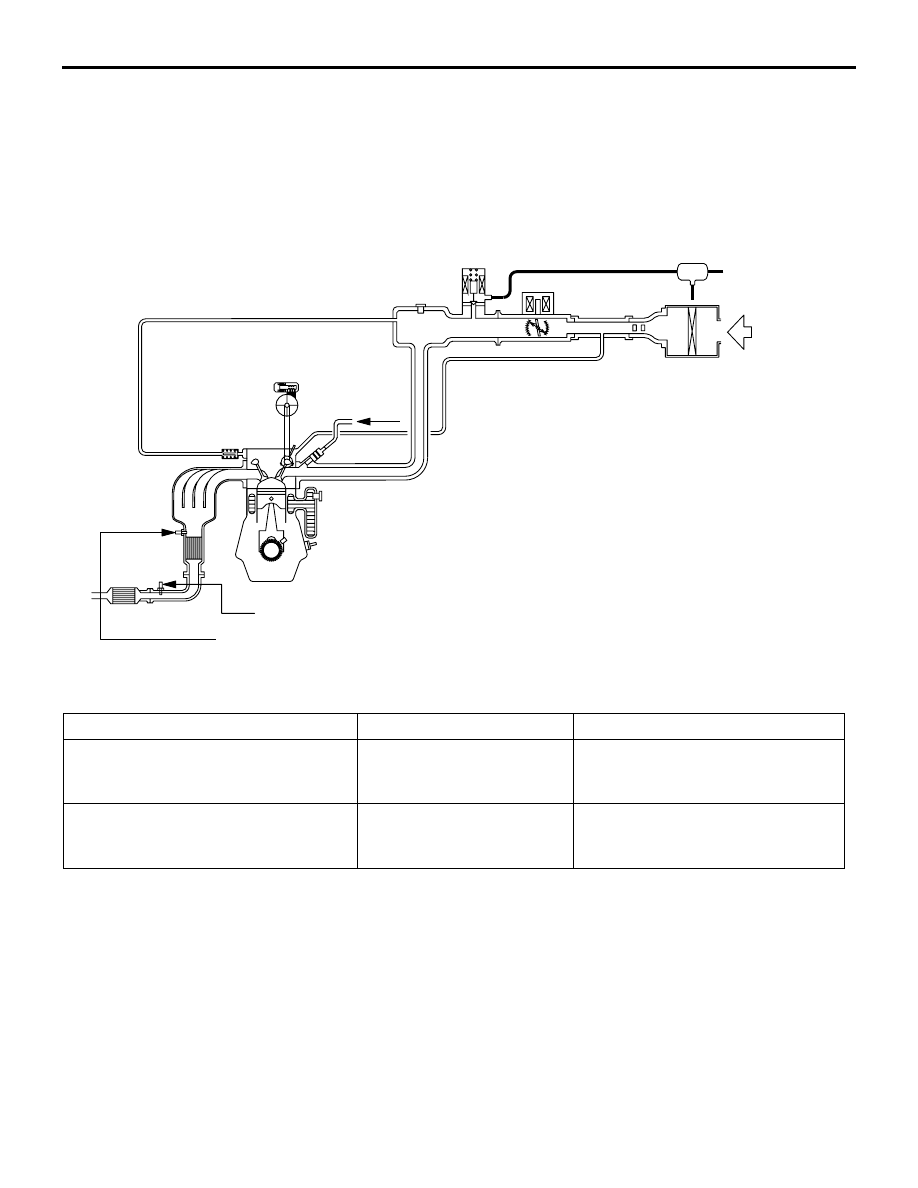

SYSTEM CONFIGURATION DIAGRAM

Exhaust gas cleaning devices list

AKB00864

Purge control
solenoid valve

Canister

Air

From
fuel pump

Positive
crankcase
ventilation
valve

Oxygen sensor (front)

Oxygen sensor (rear)

Catalytic
converter

AB

Air cleaner

Catalytic
converter

System

Objective / Function

Composition parts

Crankcase ventilation system

HC decrease
Re-combustion of blow-by
gas.

Positive crankcase ventilation
(PCV) valve

Evaporative emission control system

HC decrease
Re-combustion of blow-by
gas.

• Canister

• Purge control solenoid valve

EMISSION CONTROL<MPI>

ENGINE AND EMISSION CONTROL

17-8

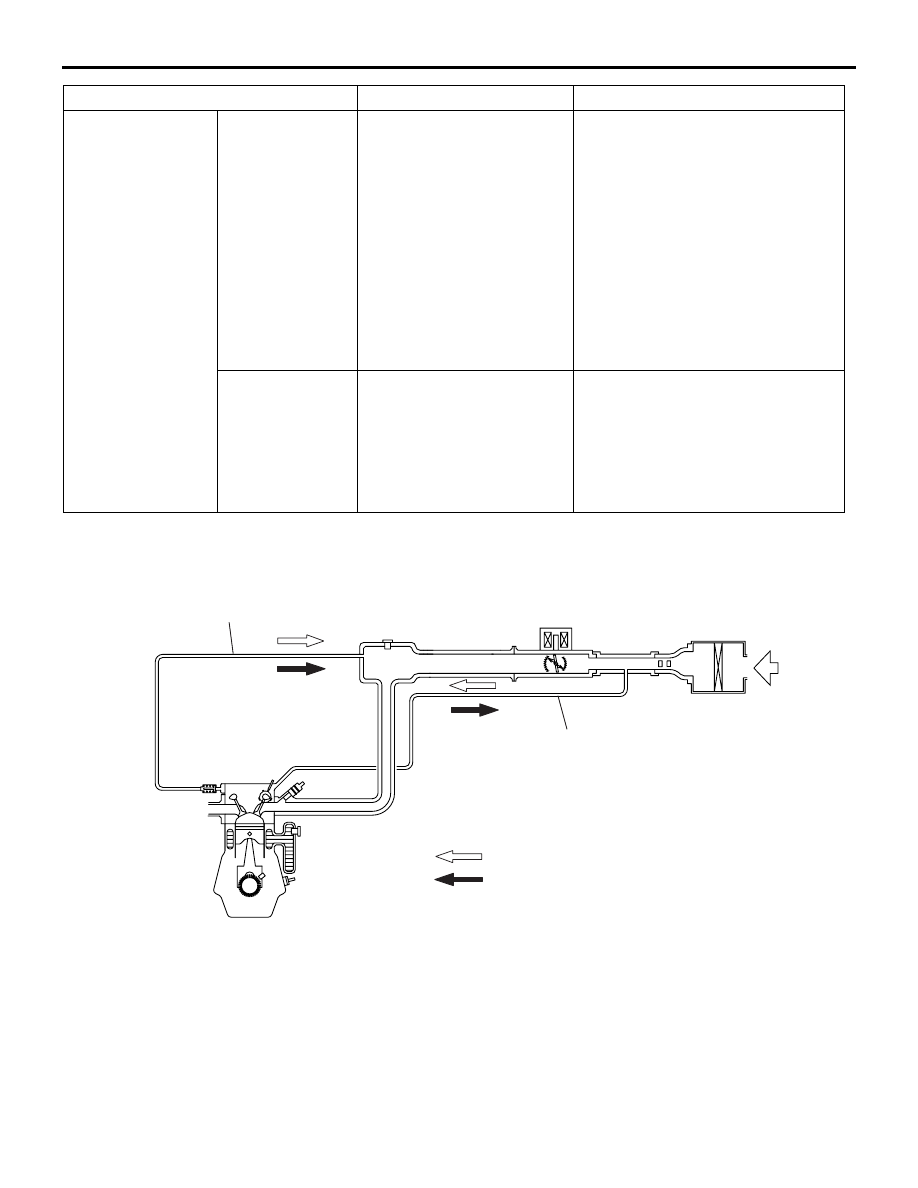

CRANKCASE VENTILATION SYSTEM

M2171000400583

A blow-by gas reduction device prevents blow-by
gas from being expelled into the atmosphere and is
of closed type. A positive crankcase ventilation
(PCV) valve is provided in the ventilation hose from
the rocker cover to the inlet manifold. During low load

driving, clean air is supplied to the crankcase by the
air intake hose via the breather hose and rocker

Emission reduction
systems

Air-fuel ratio
feedback control

Decrease of CO, HC and
NOx
Controls air-fuel ratio of
air-fuel mixture to become
theoretical air-fuel ratio
(about 14.7), which is when
the 3-way catalytic
converter's cleaning
performance is best. It also
controls optimum fuel
supply based on coolant
temperature, driving
conditions etc.

• Engine-ECU

• Air flow sensor

• Injector

• Oxygen sensor

• Crank angle sensor etc.

Catalytic
converter

Decrease of CO, HC and
NOx
It facilitates oxidation of CO
and HC and reduction of
NOx so that all 3 component
gases are cleaned
simultaneously.

Monolith catalyst

System

Objective / Function

Composition parts

AKB00825AB

Positive
crankcase
ventilation
valve

Ventilation hose

Breather hose

Air inlet

Flow of blow-by gas and clean air (low load area)

Flow of blow-by gas and clean air (high load area)

EMISSION CONTROL<MPI>

ENGINE AND EMISSION CONTROL

17-9

cover, and it mixes with the blow-by gas in the crank-
case. The blow-by gas in the crankcase is induced to
the inlet manifold through the rocker cover and PCV
valve. During high load driving, blow-by gas in the
crankcase is induced to the inlet manifold through
the rocker cover and PCV valve and at the same
time also via the air intake hose and throttle body
due to negative pressure in the air cleaner.

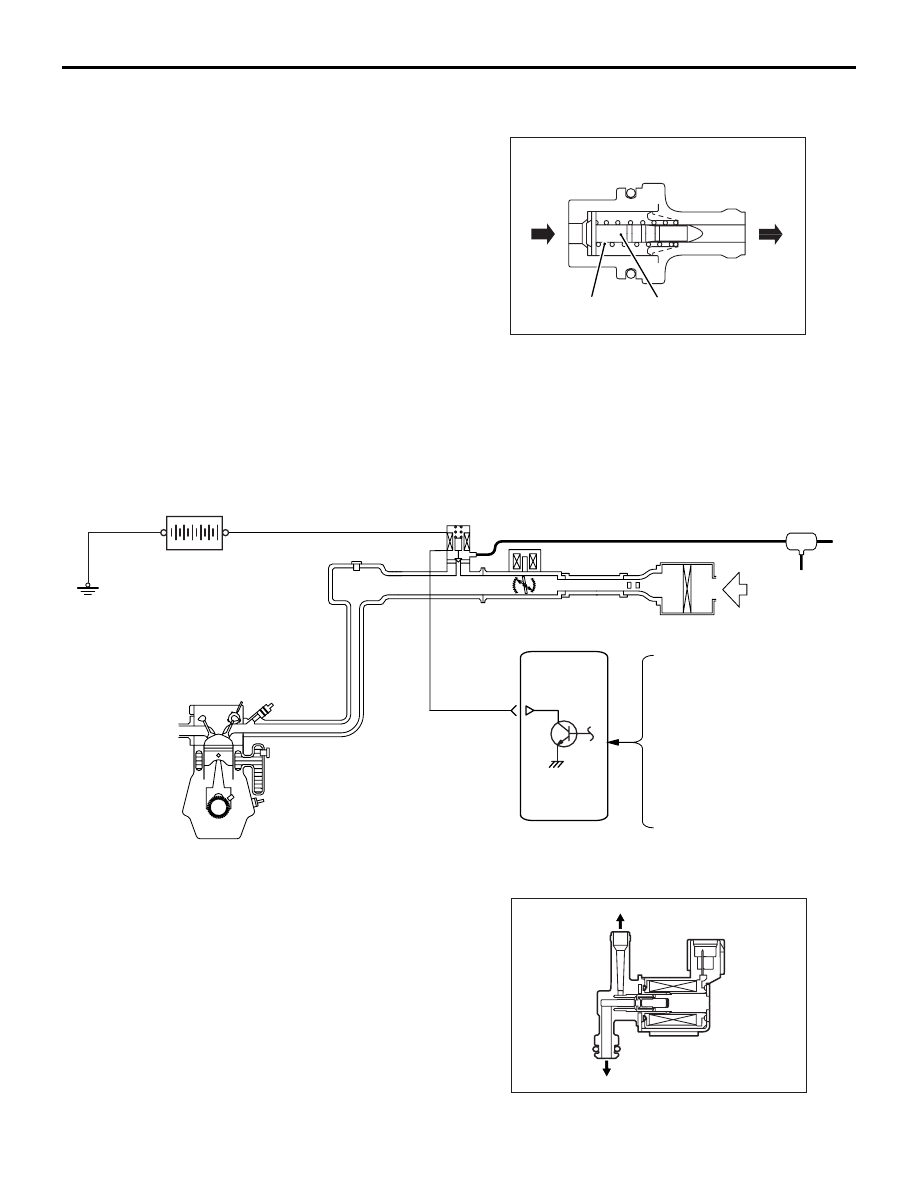

POSITIVE CRANKCASE VENTILATION
(PCV) VALVE

PCV valve lifts the plunger according to negative
pressure at the inlet manifold to create appropriate
ventilation for the crankcase.

EVAPORATIVE EMISSION CONTROL SYSTEM

M2171000200590

HC (hydrocarbon) generated in the fuel tank are
adsorbed by the active carbon in the canister and
stored. HC stored in the canister is introduced to the
inlet manifold when engine is in operation where it is
mixed with intake air and combusted. Engine-ECU
introduces optimum HC amount according to driving
conditions and so performs duty control on the purge
control solenoid valve. Also, the purge control sole-
noid valve is closed during deceleration or immedi-
ately after engine start to restrict change in air-fuel
ratio and prevent engine from stalling.

PURGE CONTROL SOLENOID VALVE

AK602324 AF

Plunger

From
rocker
cover

To inlet
manifold

Spring

AKB00826AB

Engine-ECU

Air flow sensor

Intake air temperature sensor

Manifold absolute
pressure sensor

Engine coolant
temperature sensor

Crank angle sensor

Throttle position sensor

Battery

Purge control
solenoid valve

Canister

AK602742AF

A

B

To canister

To inlet manifold
