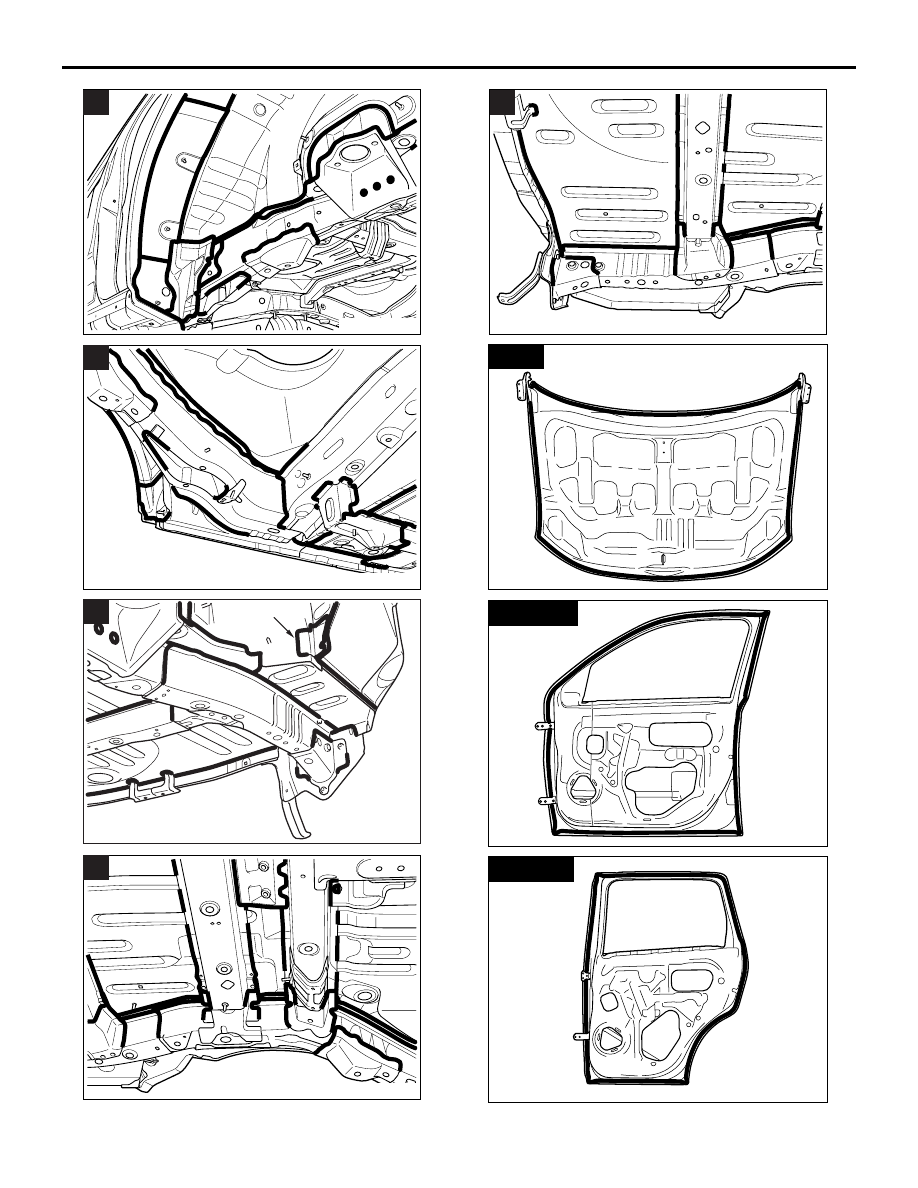

BODY SEALING LOCATIONS

CORROSION PROTECTION

4-5

ABC00027AB

13

ABC00028AB

14

ABC00031AB

15

Left side only

ABC00029AB

16

ABC00030AB

17

ABB00684AB

Hood

ABB00682AB

Front door

ABB00683AB

Rear door

UNDERCOAT APPLICATION LOCATIONS

CORROSION PROTECTION

4-6

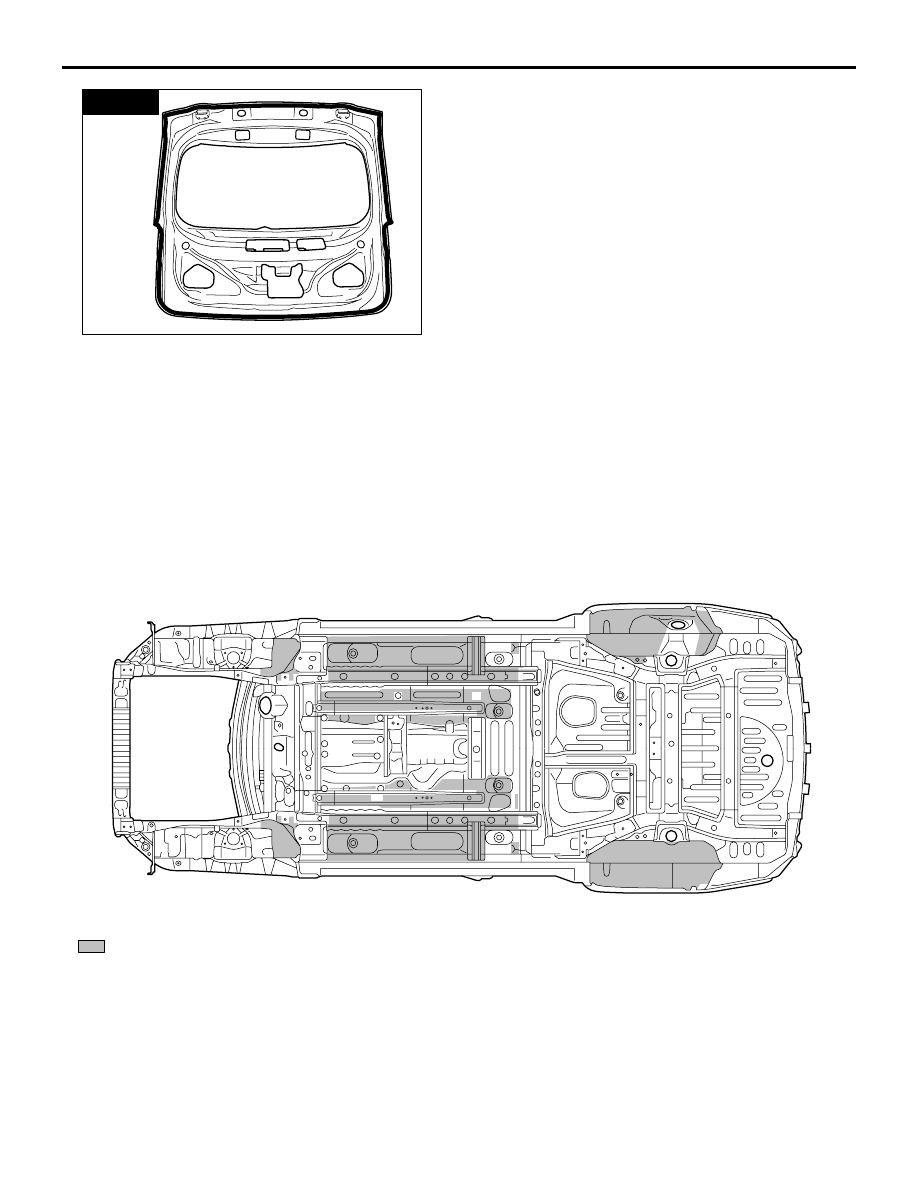

UNDERCOAT APPLICATION LOCATIONS

M4040003001610

• The under parts of the body is undercoated for

anti-corrosive, anti-rust, anti-chipping, and
anti-vibration performance.

• After correcting the body, restore as shown in the

instructions of the figure, if necessary.

• To avoid splashing of undercoat material during

the coating, protect component installation holes
with masking tape.

ABB00685

Tail gate

AB

ABB00757

 : Undercoat (film thickness is at least 0.8 mm)

NOTE:

AB

5-1

GROUP 5

SYNTHETIC-RESIN

PARTS

CONTENTS

LOCATION OF SYNTHETIC-RESIN PARTS



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2

LOCATION OF SYNTHETIC-RESIN PARTS

SYNTHETIC-RESIN PARTS

5-2

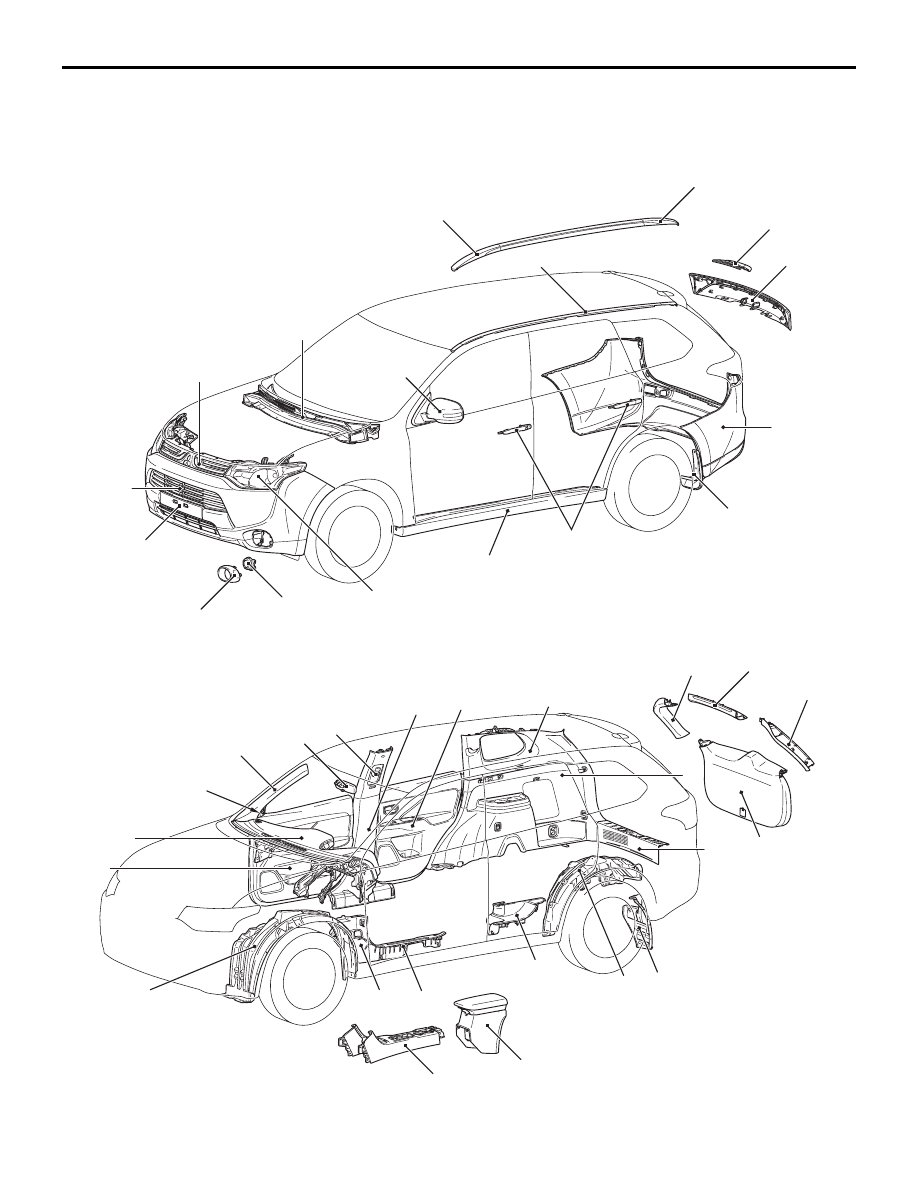

LOCATION OF SYNTHETIC-RESIN PARTS

M4050001002102

The location and material of each of the principal
synthetic-resin parts are shown below.

ABC00037

1, 4

2

3

5

6

7

8

10

23

24

25

26

27

28

29

35

40

AB

ABC00038

9

11

12

13

14

15

16

17

17

18

19

21

22

20

31

32

33

36

37

30

34

38

39
