SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-237

COMMENTS ON TROUBLE SYMPTOM
If all the turn-signal lamps do not illuminate, the
ignition switch (IG1), the turn-signal lamp switch
input circuit or the ETACS-ECU may be defective.

POSSIBLE CAUSES

•

Malfunction of the column switch

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check that the hazard warning lamps
operate.

Check that the hazard warning lamps illuminate
normally.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 2.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

BATTERY

ETACS-ECU

RELAY
BOX

· FRONT TURN SIGNAL
  LAMP (LH)
· SIDE TURN SIGNAL
  LAMP (LH)

REAR COMBINATION
LAMP (RH)

COMBINATION
METER

· FRONT TURN SIGNAL
  LAMP (RH)
· SIDE TURN SIGNAL
  LAMP (RH)

TURN-SIGNAL
LAMP RELAY: LH

TURN-SIGNAL
LAMP RELAY: RH

· REAR COMBINATION
  LAMP (LH)

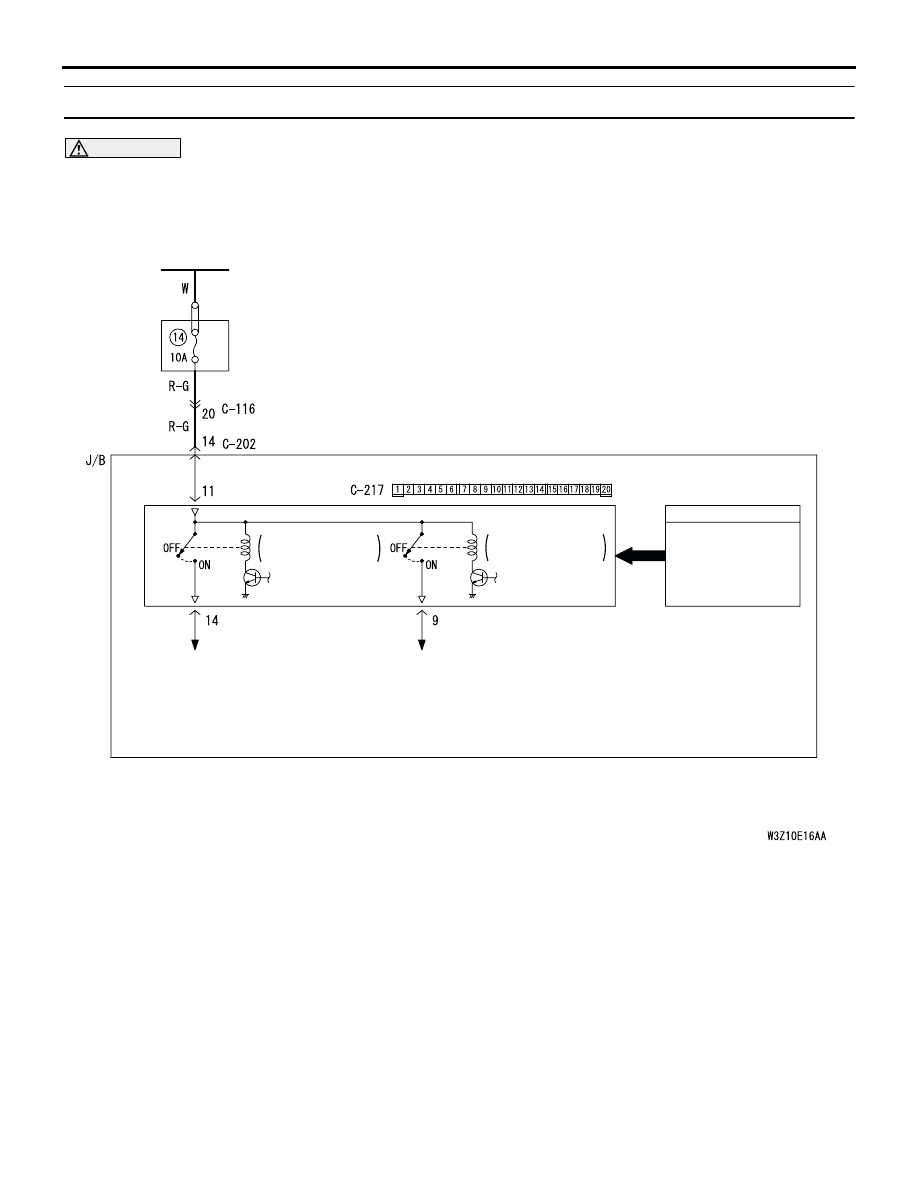

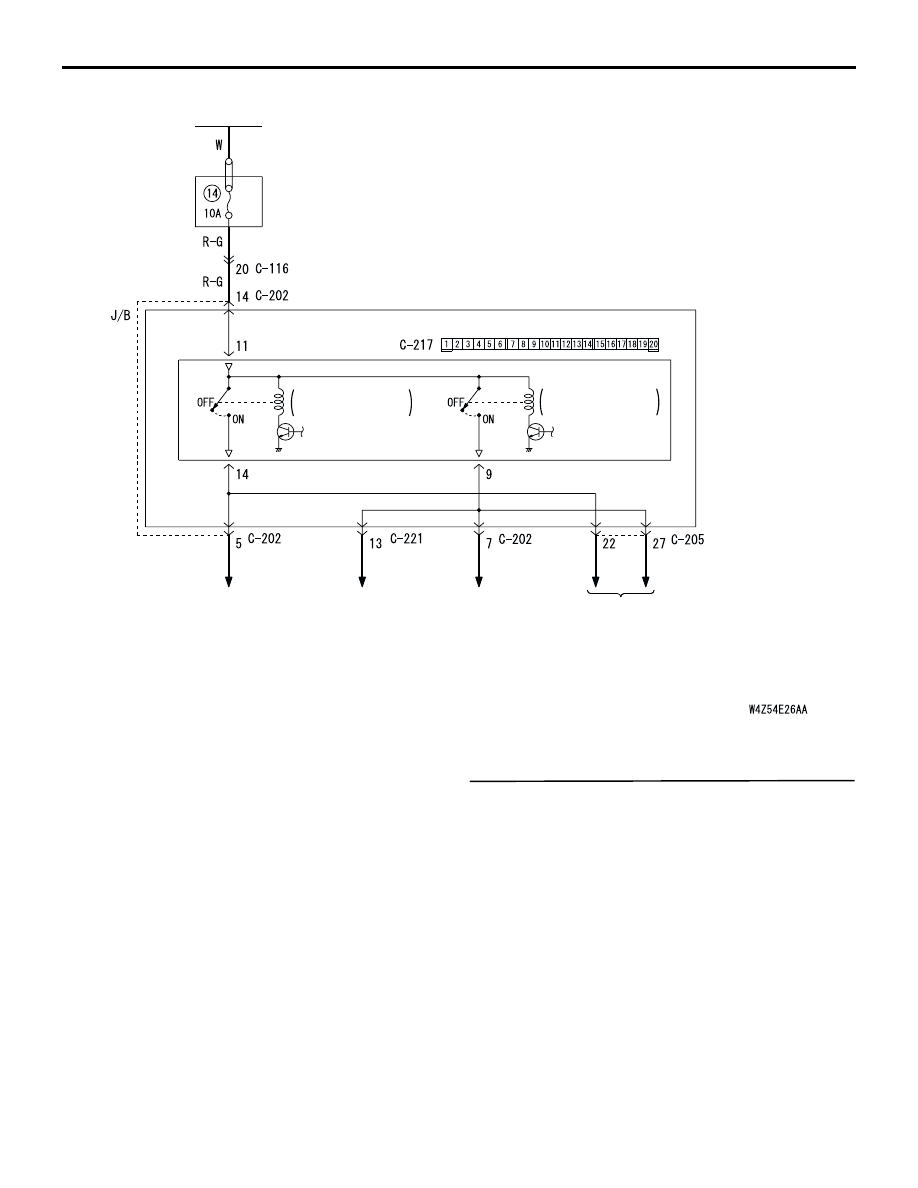

Turn-Signal Lamp Power Supply Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-238

Step 2. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

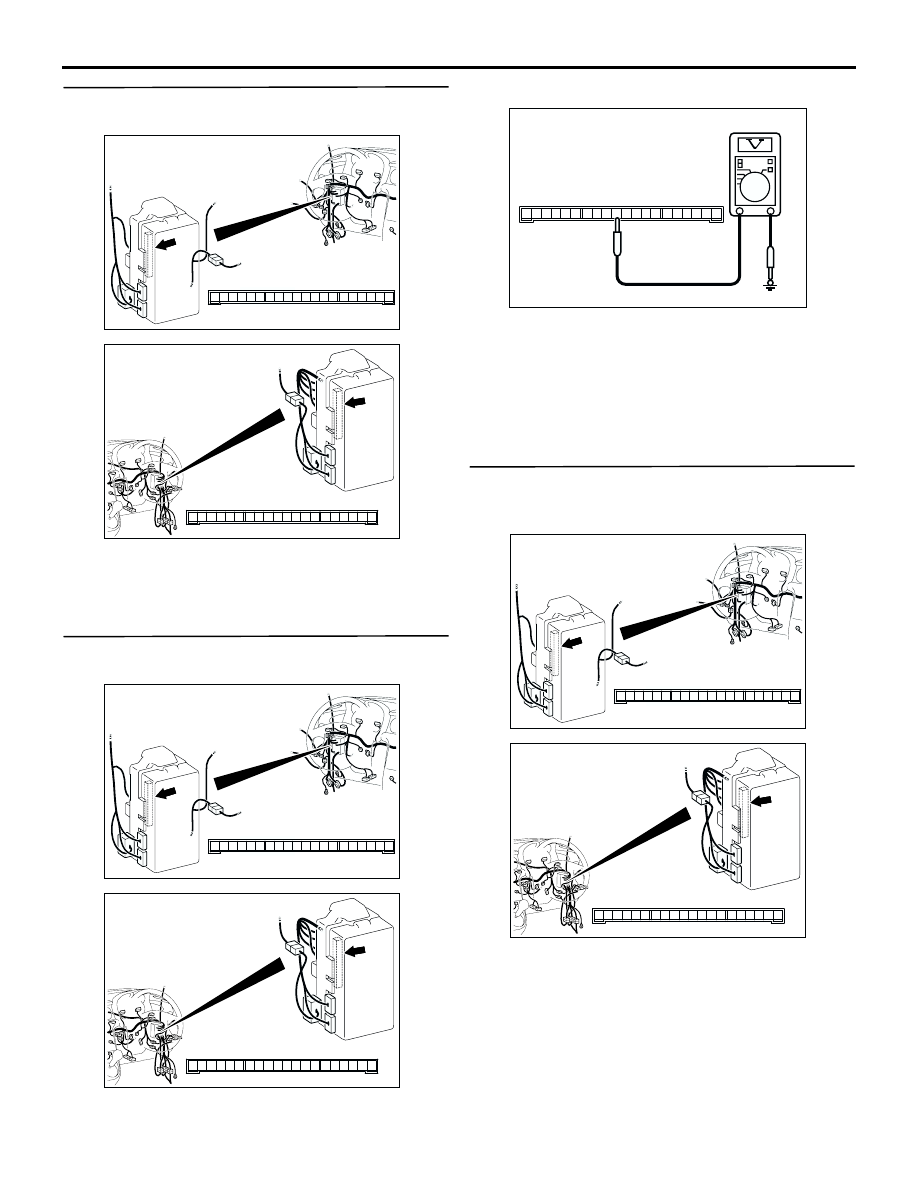

Step 3. Measure the voltage at the C-217
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Voltage between C-217 ETACS-ECU connector

terminal No.11 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between C-217
ETACS-ECU connector terminal No.11 and the
battery.

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC301541AU

Connector C-217
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-239

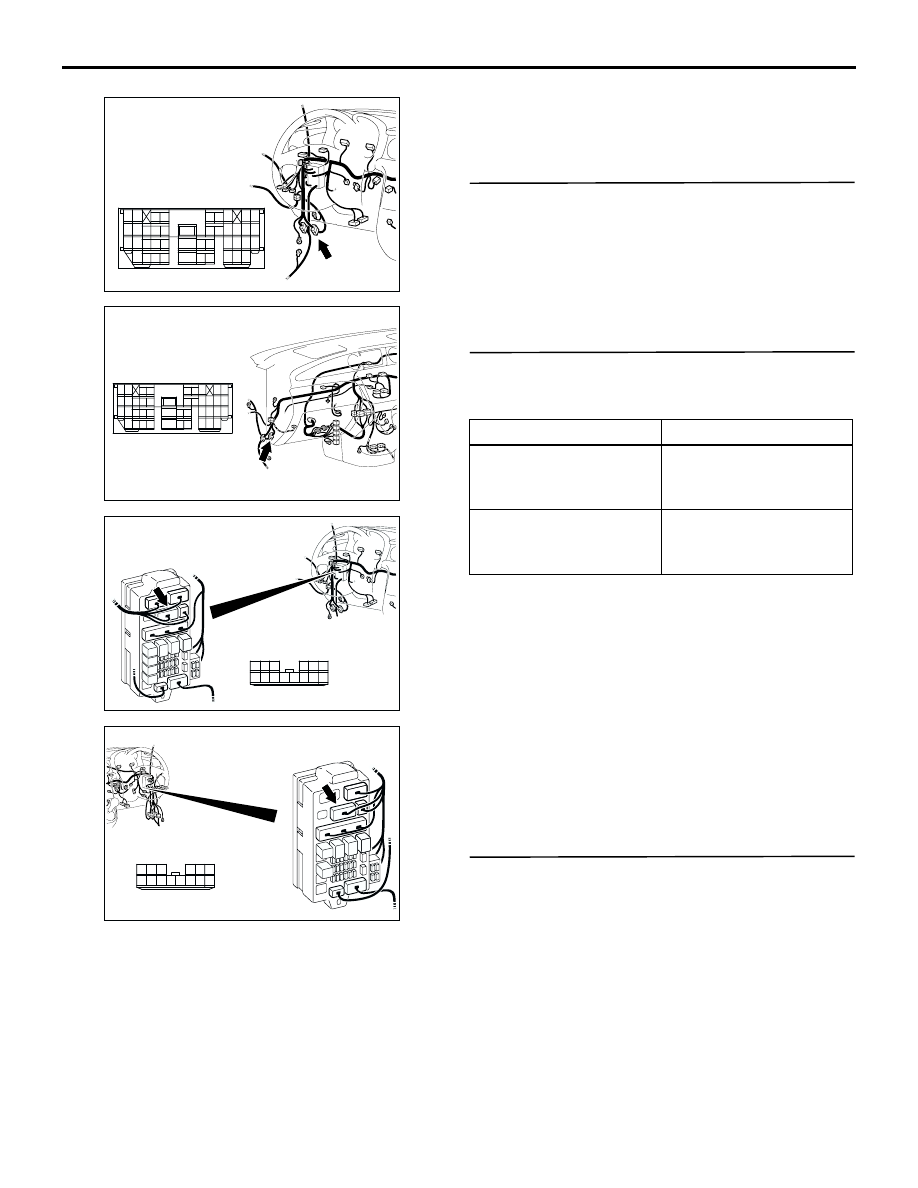

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-116 and junction block
connector C-202, and repair if necessary.

•

Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 5. Retest the system.

Check that the turn-signal lamps illuminate normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

Step 6. Pulse check

Check the input signals below, which are related to
the turn-signal lamp illumination.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

7.

The turn-signal lamp switch (RH) signal is not
received. :

Refer to inspection procedure N-5 "The

column switch (lighting and turn-signal lamp
switch) signal is not received

P.54B-319

."

The turn-signal lamp switch (LH) signal is not
received. :

Refer to inspection procedure N-5 "The

column switch (lighting and turn-signal lamp
switch) signal is not received

P.54B-319

."

Step 7. Retest the system.

Check that the turn-signal lamps illuminate.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

AC308716

AL

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

Connector: C-116

<LHD>

AC308735

AK

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

C-116

C-116

Connectors; C-116
<RHD>

AC308720

Connector: C-202

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Harness side

AI

Junction block (Front view)

<LHD>

AC308772

Connector: C-202

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Harness side

AH

Junction block (Front view)

<RHD>

System switch

Check condition

Turn-signal lamp switch
(RH)

When the turn-signal
lamp switch (RH) is
turned from off to on

Turn-signal lamp switch
(LH)

When the turn-signal
lamp switch (LH) is
turned from off to on

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-240

INSPECTION PROCEDURE K-2: The hazard warning lamps do not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
If the hazard warning lamps do not illuminate, the
hazard warning lamp input signal circuit or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

•

Malfunction of the hazard warning lamp switch

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

BATTERY

· COMBINATION METER

ETACS-ECU

HAZARD
WARNING
LAMP SWITCH

RELAY
BOX

TURN-SIGNAL
LAMP RELAY: LH

TURN-SIGNAL
LAMP RELAY: RH

INPUT SIGNAL

· FRONT TURN SIGNAL
  LAMP (LH)

· SIDE TURN SIGNAL
  LAMP (LH)

· REAR COMBINATION
  LAMP (LH)

· COMBINATION METER
· FRONT TURN SIGNAL
  LAMP (RH)

· SIDE TURN SIGNAL
  LAMP (RH)

· REAR COMBINATION
  LAMP (RH)

Hazard Warning Lamp Circuit
