SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-137

POWER WINDOW
SUB SWITCH
(FRONT: LH)

POWER
WINDOW MOTOR

POWER
WINDOW MAIN
SWITCH

(FRONT: RH)

POWER
WINDOW MOTOR
(FRONT: LH)

HALL IC

CPU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

HALL IC

HALL IC

HALL IC

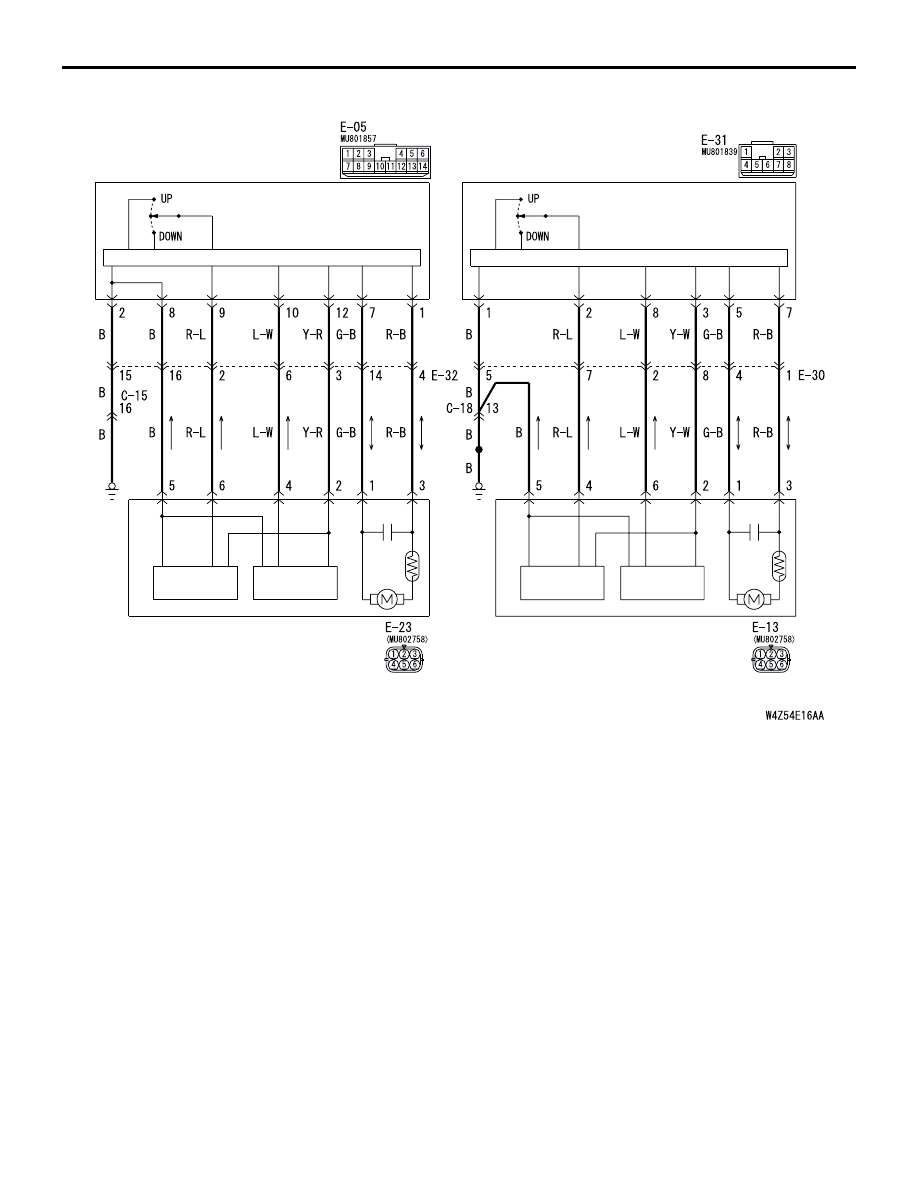

Power Window (front) Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-138

COMMENTS ON TROUBLE SYMPTOM
The revolution detection sensor, which is
incorporated in the power window motor, may be
defective.

POSSIBLE CAUSES

•

Malfunction of the power window motor

DIAGNOSIS PROCEDURE

Step 1. Check the power window operating
current.

Check that the power window operating current is
normal (Refer to GROUP 42

−

 Door

−

 On-vehicle

Service

P.42-27

).

Q: Is the check result normal?

YES :

Adjust the door window glass (Refer to

GROUP 42

−

 Door

−

 On-vehicle service

P.42-26

), and then go to Step 2.

NO :

Replace the defective power window motor
assembly which operating current are
abnormal.

POWER WINDOW
SUB SWITCH

POWER
WINDOW MOTOR

(REAR: RH)

POWER WINDOW
SUB SWITCH
(REAR: LH)

(REAR: LH)

POWER
WINDOW MOTOR
(REAR: RH)

HALL IC

HALL IC

HALL IC

HALL IC

CPU

CPU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

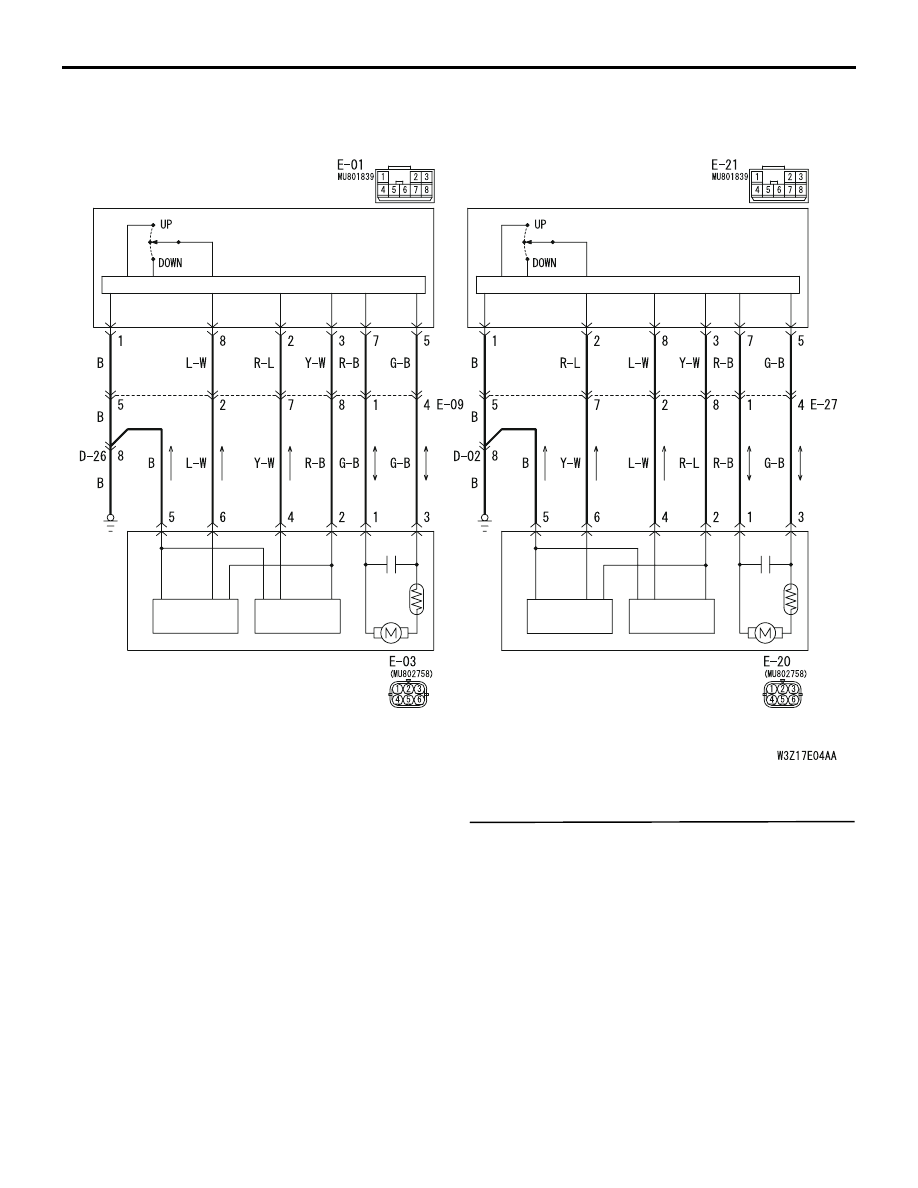

Power Window (rear) Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-139

Step 2. Confirm the power window learning
function.

Check that the power window switch has learned the
fully closed position of the windows (Refer to
GROUP 42

−

 Door

P.42-32

).

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Make the power window switch learn the
fully closed position of the windows (Refer
to GROUP 42

−

 Door

P.42-32

).

Step 3. Determine a trouble spot.

Q: Which door does the power window anti-trap

function fail on?

Driver's door :

Go to Step 4.

Front passenger's door :

Go to Step 7.

Rear right door :

Go to Step 13.

Rear left door :

Go to Step 19.

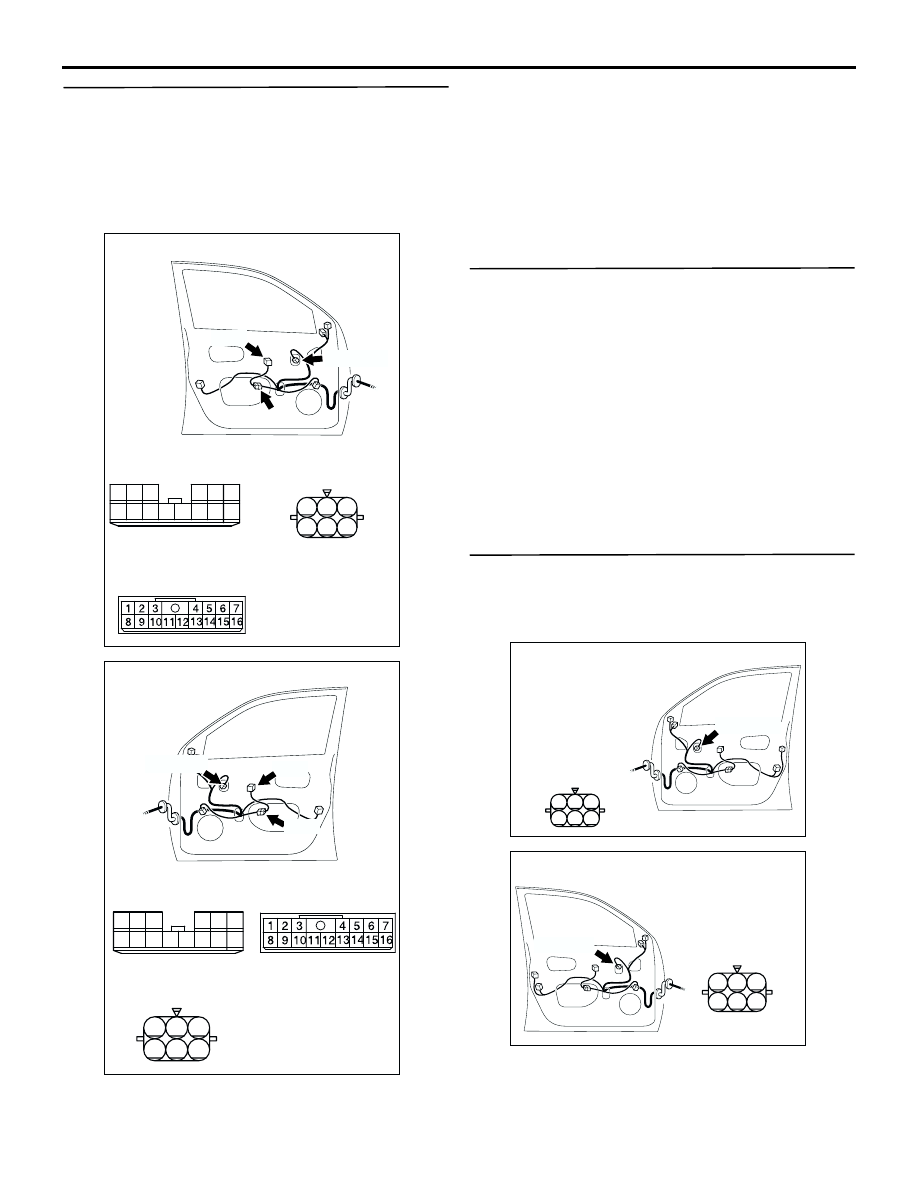

Step 4. Connector check: E-05 power window
main switch connector and E-13 power window
motor (front LH) connector <L.H. drive vehicles>
or E-23 power window motor (front LH)
connector <R.H. drive vehicles>

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

AC308792

Connectors: E-05, E-13
<LHD>

E-05

Harness side

E-13

Harness side

E-05

E-13(GR)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AB

4

6 5

3 2 1

AC308798

Connectors: E-05, E-23
<RHD>

E-05

Harness side

E-23

Harness side

E-05

E-23(GR)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AD

4

6 5

3 2 1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-140

Step 5. Check the wiring harness from E-05
power window main switch connector terminal
Nos. 8, 9, 10 and 12 to E-13 power window motor
(front LH) connector terminal Nos. 5, 4, 6 and 2
<L.H. drive vehicles> or E-23 power window
motor (front RH) connector terminal Nos. 5, 6, 4
and 2 <R.H. drive vehicles>.

NOTE: Prior to the wiring harness inspection, check
intermediate connector E-12 <L.H. drive vehicles> or
E-32 <R.H. drive vehicles>, and repair if necessary.

•

Check the input and output lines to the revolution
detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Retest the system.

After the power window main switch is replaced,
check that the driver's power window anti-trap
function works.
(1) Replace the power window main switch.
(2) Check that the driver's power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the power window motor assembly
(front LH).

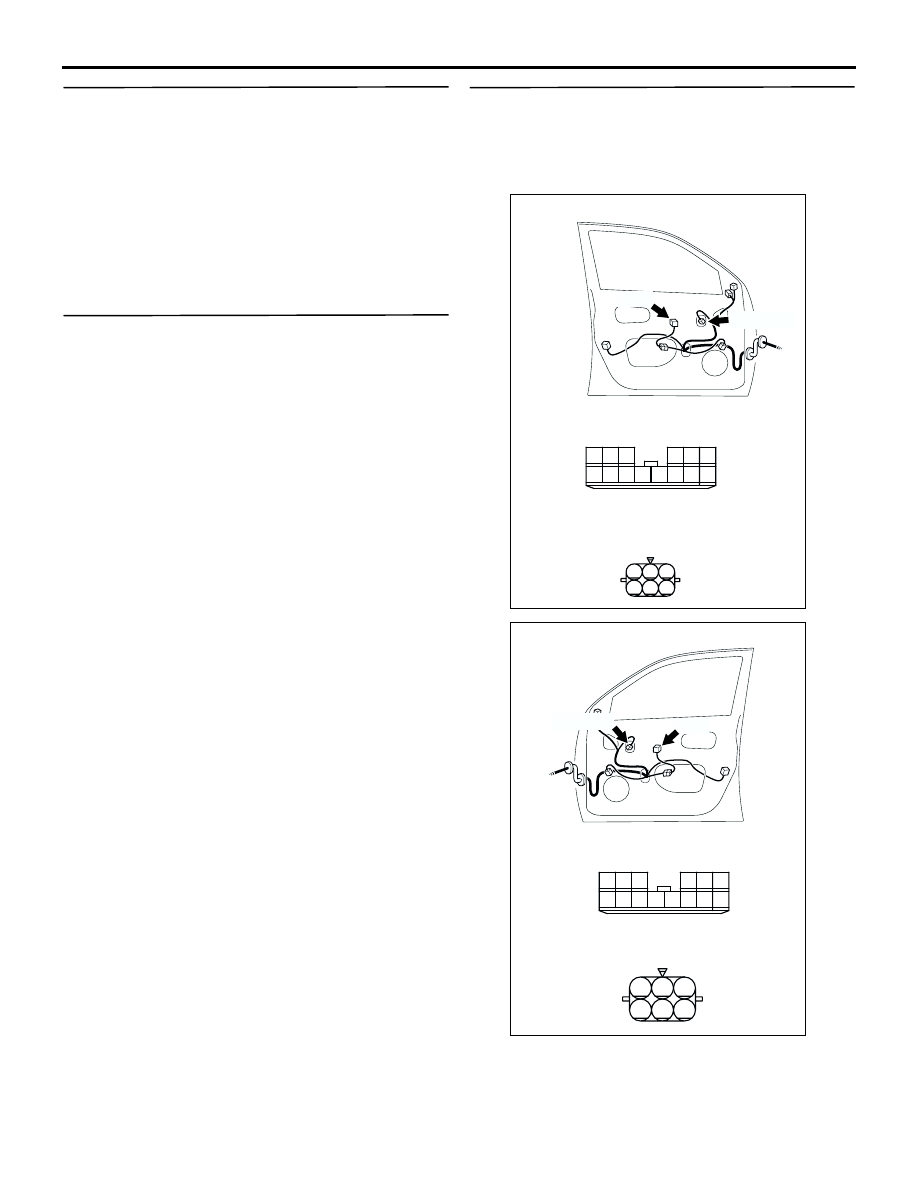

Step 7. Connector check: E-23 power window
motor (front RH) connector <L.H. drive vehicles>
or E-13 power window motor (front LH)
connector <R.H. drive vehicles>

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

AC308792

Connectors: E-05, E-12, E-13
<LHD>

E-05

Harness side

E-13

Harness side

E-05

E-13(GR)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AD

4

6 5

3 2 1

E-12

E-12

AC308798

Connectors: E-05, E-23, E-32
<RHD>

E-05

Harness side

E-23

Harness side

E-05

E-23(GR)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AE

4

6 5

3 2 1

E-32

E-32

AC308793

Connector: E-23
<LHD>

AG

Harness side

E-23(GR)

4

6 5

3 2 1

AC308805

Connector: E-13
<RHD>

AG

Harness side

E-13(GR)

4

6 5

3 2 1
