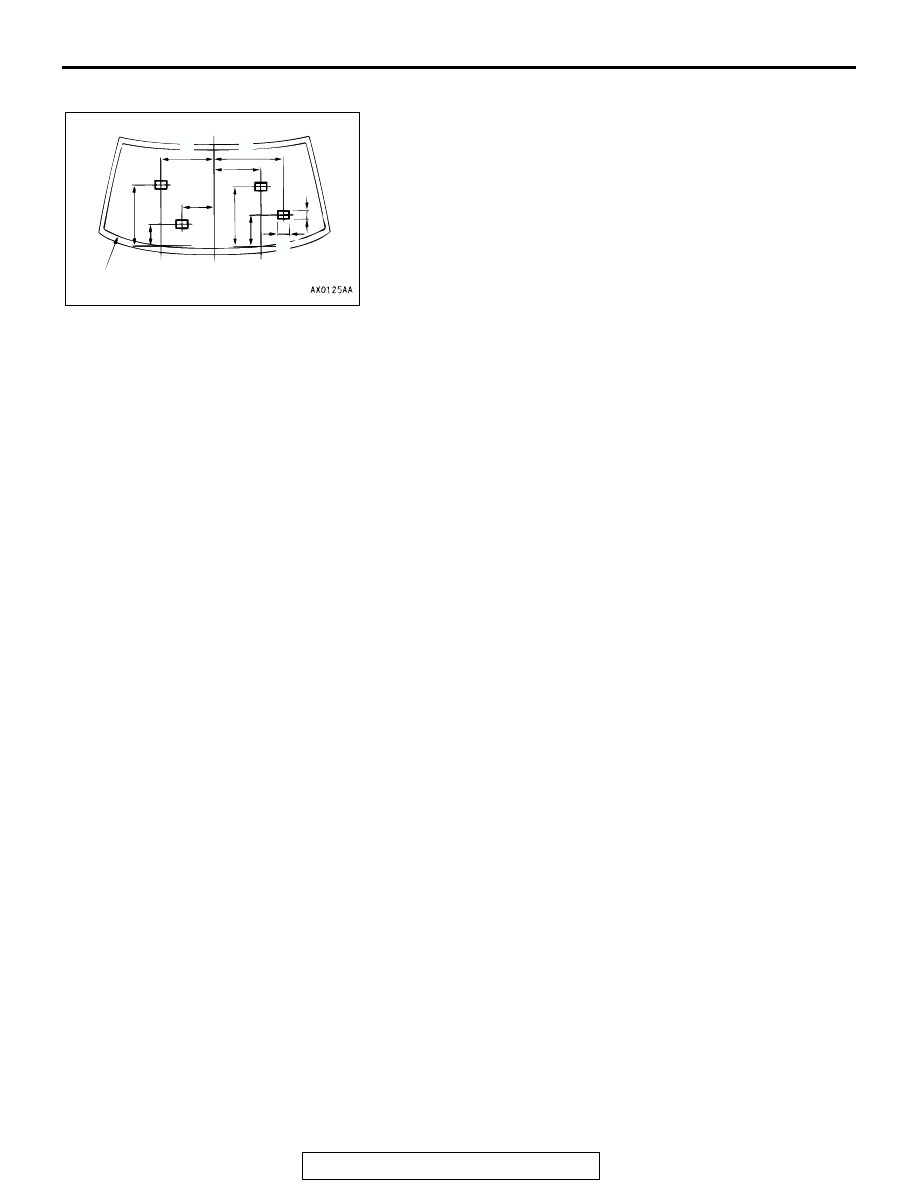

WINDSHIELD WASHER FLUID EJECTION CHECK

Adjust the ejection angle by moving a ball in the nozzle.
A: 325 mm (12.8 inches)
B: 385 mm (15.2 inches)
C: 140 mm (5.5 inches)
D: 195 mm (7.7 inches)
E: 430 mm (17.0 inches)
F: 290 mm (11.4 inches)
G: 375 mm (14.8 inches)
H: 195 mm (7.7 inches)
  I: 70 mm (2.8 inches)
 J: 50 mm (2.0 inches)

REAR WIPER AND WASHER

GENERAL DESCRIPTION

M1511000100268

OPERATION
Low-speed wiper operation

• When the rear wiper switch is placed in the "ON"

position with the ignition switch in the "ACC" or
"ON" position, wiper operate continuously at low
speed.

Auto wiper stop operation

• When the rear wiper switch is placed in the "OFF"

position, the cam contacts of wiper motor causes
current to flow through the auto wiper stop circuit,
allowing the wiper blades to cycle before they
reach to the stop positions.

Intermittent wiper operation

• When the rear wiper switch is placed in the

"INTERMITTENT" position with the ignition
switch in the "ACC" or "ON" position, the rear
intermittent wiper relay contacts to close and
open repeatedly.

• When the contacts are closed, the wiper motor is

energized.

• When the rear wiper motor is energized, the rear

intermittent wiper relay contacts open; however,
the cam contacts keep the rear wiper motor ener-
gized until the wiper blades return to their stop
position.

Washer-wiper operation

• When the rear washer switch is turned "ACC" or

"ON" position, current flows through multi-pur-
pose fuse number 8 remote-controlled mirror
switch, remote-control mirror, remote-controlled
mirror switch, and ground, causing the mirror to
move.

AC003896

CERAMIC END LINE

RH

LH

I

J

E

A

B

C

D

F

H

G

AB

CENTER LINE

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-20

REAR WIPER AND WASHER

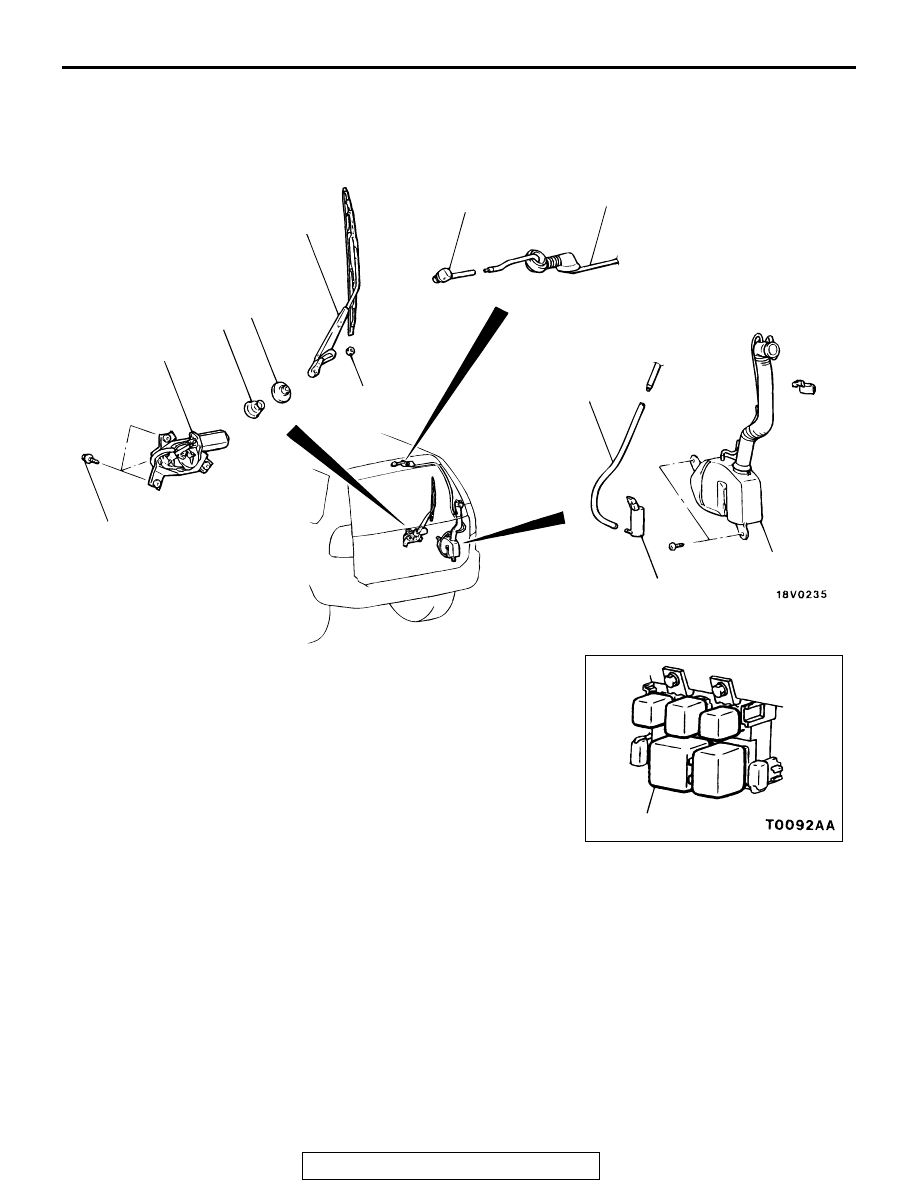

REMOVAL AND INSTALLATION

M1511008800090

AC003898

7.5 N·m
66 in-lb

4.9 N·m
43 in-lb

3

4

5

2

7

6

6

9

8

1

AB

1. REAR INTERMITTENT WIPER

RELAY

REAR WIPER MOTOR ASSEMBLY

REMOVAL STEPS

>>B<<

2. REAR WIPER ARM AND BLADE

ASSEMBLY

>>A<<

3. GROMMET
• LIFTGATE GARNISH (REFER TO

P.51-6

.)

4. GROMMET
5. REAR WIPER MOTOR ASSEMBLY

REAR WASHER HOSE REMOVAL

STEPS
• QUARTER TRIM, LOWER <RH>

(REFER TO GROUP 52A, TRIMS

P.52A-41

.)

6. REAR WASHER HOSE
7. WASHER NOZZLE
REAR WASHER TANK ASSEMBLY

AND REAR WASHER MOTOR

REMOVAL STEPS
• QUARTER TRIM, LOWER <RH>

(REFER TO GROUP 52A, TRIMS

P.52A-41

.)

• WASHER FLUID DRAINING

6. REAR WASHER HOSE

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-21

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 37A, Steering Wheel
and Shaft

P.37A-25

.

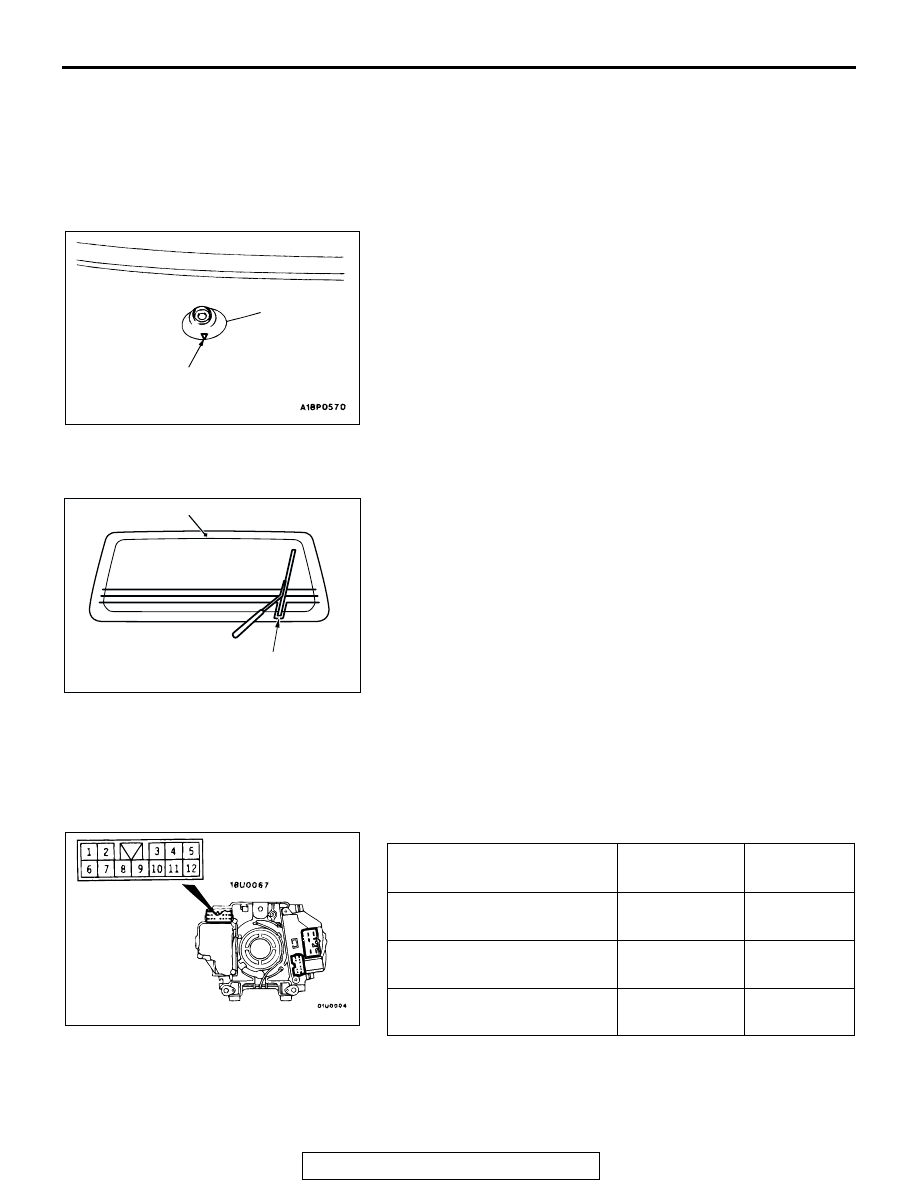

INSTALLATION SERVICE POINTS

.

>>A<<GROMMET INSTALLATION
Install the grommet so that the arrow points downwards.

.

>>B<<REAR WIPER ARM AND BLADE ASSEMBLY
INSTALLATION
Install the wiper blade so that the tip stops at the standard posi-
tion (standard value), and also so that the lower section of the
wiper blade enters the middle of the defogger pattern.

Standard value : 70

± 5 mm (2.8 ± 0.2 inches)

INSPECTION

M1511008600212

REAR WIPER AND WASHER SWITCH CHECK

Follow the table below to check the rear wiper and washer
switch for continuity.

8. REAR WASHER TANK
9. REAR WASHER MOTOR

REAR WASHER TANK ASSEMBLY

AND REAR WASHER MOTOR

REMOVAL STEPS (Continued)

AC003911

GROMMET

ARROW

AB

Y0124AA

AC003912

CERAMIC SECTION

DEFOGGER PATTERN

AB

SWITCH POSITION

TERMINAL
CONNECTION

SPECIFIED
CONDITION

Windshield intermittent wiper
switch ON

3

− 10

Less than 2
ohms

Rear wiper switch ON

4

− 10

Less than 2
ohms

Rear washer switch ON

2

− 10

Less than 2
ohms

AC003910

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-22

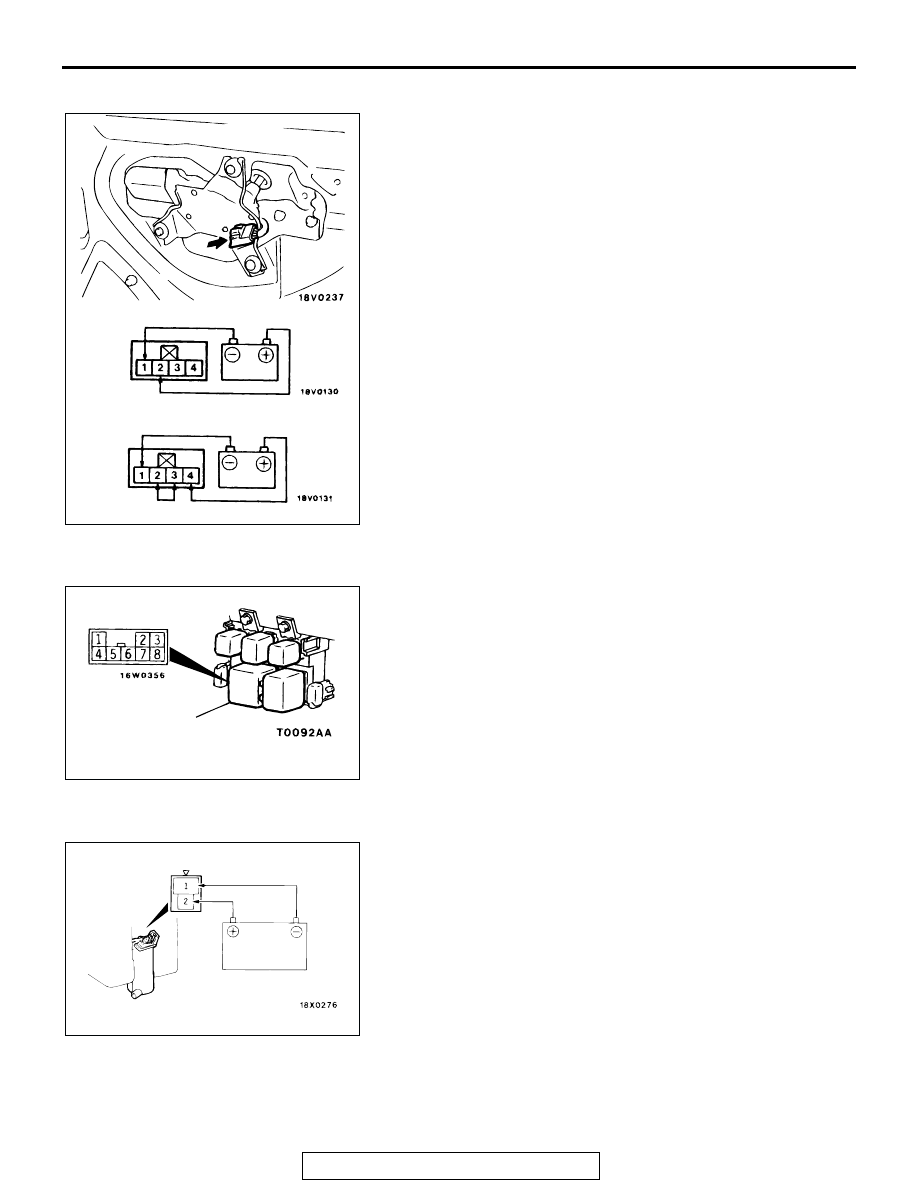

REAR WIPER MOTOR CHECK

Check the wiper motor after first disconnecting the wiring har-
ness connector, and with the wiper motor remaining installed to
the body.

.

WIPER MOTOR OPERATION
Connect a battery to the wiper motor as shown in the illustra-
tion and inspect the motor operation.

.

WIPER MOTOR AT STOP POSITION OPERATION
1. Run the wiper motor, disconnect the battery, and stop the

motor.

2. Reconnect the battery as shown in the illustration, and

confirm that after the motor starts turning it stops at the
automatic stop position.

REAR INTERMITTENT WIPER RELAY CHECK

1. Check that there is continuity between terminals (1) and (2).
2. Connect terminals (4), (5) to the battery (+) terminal.
3. Check that there is battery voltage at terminal (2) for

intermittent periods of eight seconds when terminal (7) is
connected to the battery (-) terminal.

REAR WASHER MOTOR CHECK

1. With the washer motor installed to the washer tank, fill the

washer tank with water.

2. When the battery is connected as shown in the figure, check

that the washer squirts out strongly.

AC003913

OPERATION CHECK

STOP POSITION CHECK

AB

AC003915

REAR INTERMITTENT
WIPER RELAY
