ON-VEHICLE SERVICE
TSB Revision
INTERIOR
52A-33
PROCESSES FOR ADJUSTING THE COMPASS
VARIANCE
M1524012000053
Under certain circumstances, as during a long distance
cross-country trip, it will be necessary to adjust for compass
variance.
Compass variance is the difference between earth's
magnetic north and true geographic north. If not adjusted to
account for compass variance, your compass could give
false readings.

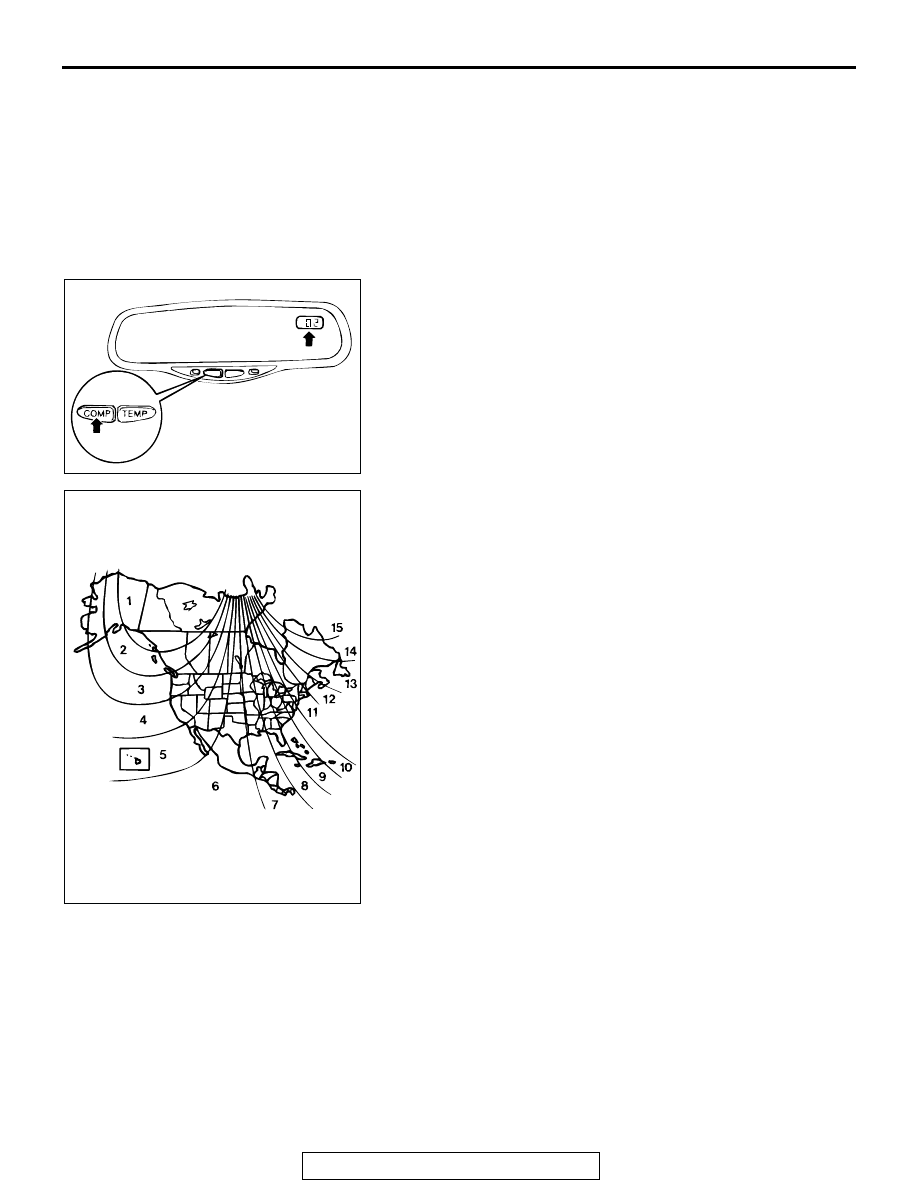

1. Press the "COMP" button for more than 3 seconds. The
current zone number will appear in the display.
2. Find your current location and variance zone number on the
map given on the left.
3. Press the "COMP" button until the new zone number
appears in the display.
After you stop pressing the button in, the display will show a
compass direction within a few seconds.
NOTE: Do not install the ski rack, antenna, etc. Which are
attached to the vehicle by means of a magnet. They affect
the operation of the compass.
NOTE: If the compass deviates from the correct indication
soon after repeated adjustment, have the compass checked
at an authorized Mitsubishi dealer.
NOTE: The compass may not indicate the correct compass
point in the places shown below:
• Tunnels
• Areas along he railroad
• Underpass
• Transforming station
• Area with many office buildings
• Area over the subway
• Up or down a steep hill
The compass returns to the correct compass point when the
vehicle moves to an area where the geomagnetism in stabi-
lized.
