MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-469

.

CIRCUIT OPERATION

• The camshaft position sensor power is supplied

from the MFI relay (terminal No. 1), and the
ground is provided on the vehicle body.

• A 5-volt voltage is applied on the camshaft posi-

tion sensor output terminal (terminal No. 2) from
the PCM (terminal No. 56). The camshaft position
sensor generates a pulse signal when the output
terminal is opened and grounded.

.

TECHNICAL DESCRIPTION

• The camshaft position sensor functions to detect

the top dead center position of the number 1 cyl-
inder and to convert that data to pulse signals
that are input to the PCM.

• When the engine is running, the camshaft posi-

tion sensor outputs a pulse signal.

• The PCM checks whether pulse signal is input

while the engine is cranking.

.

DESCRIPTIONS OF MONITOR METHODS

• Camshaft position sensor signal does not

change.

• Camshaft position sensor signal is not normal

pattern.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

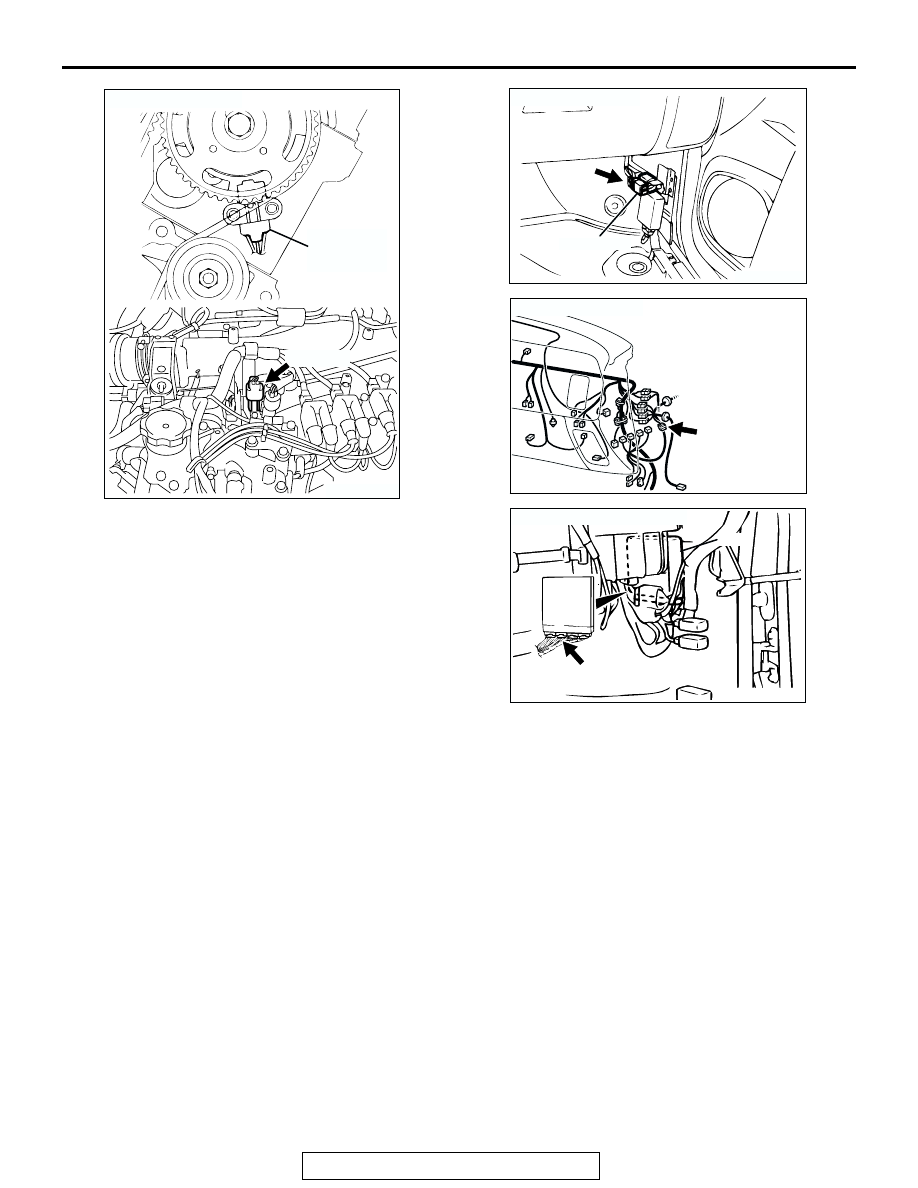

AK200487

CAMSHAFT
POSITION
SENSOR

AB

CONNECTOR: A-42

A-42(GR)

AK201000

MFI RELAY

CONNECTOR: C-59

AB

C-59

AK103911AB

CONNECTOR: C-14

C-14

AK103738AC

CONNECTOR: C-90

PCM

C-90(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-470

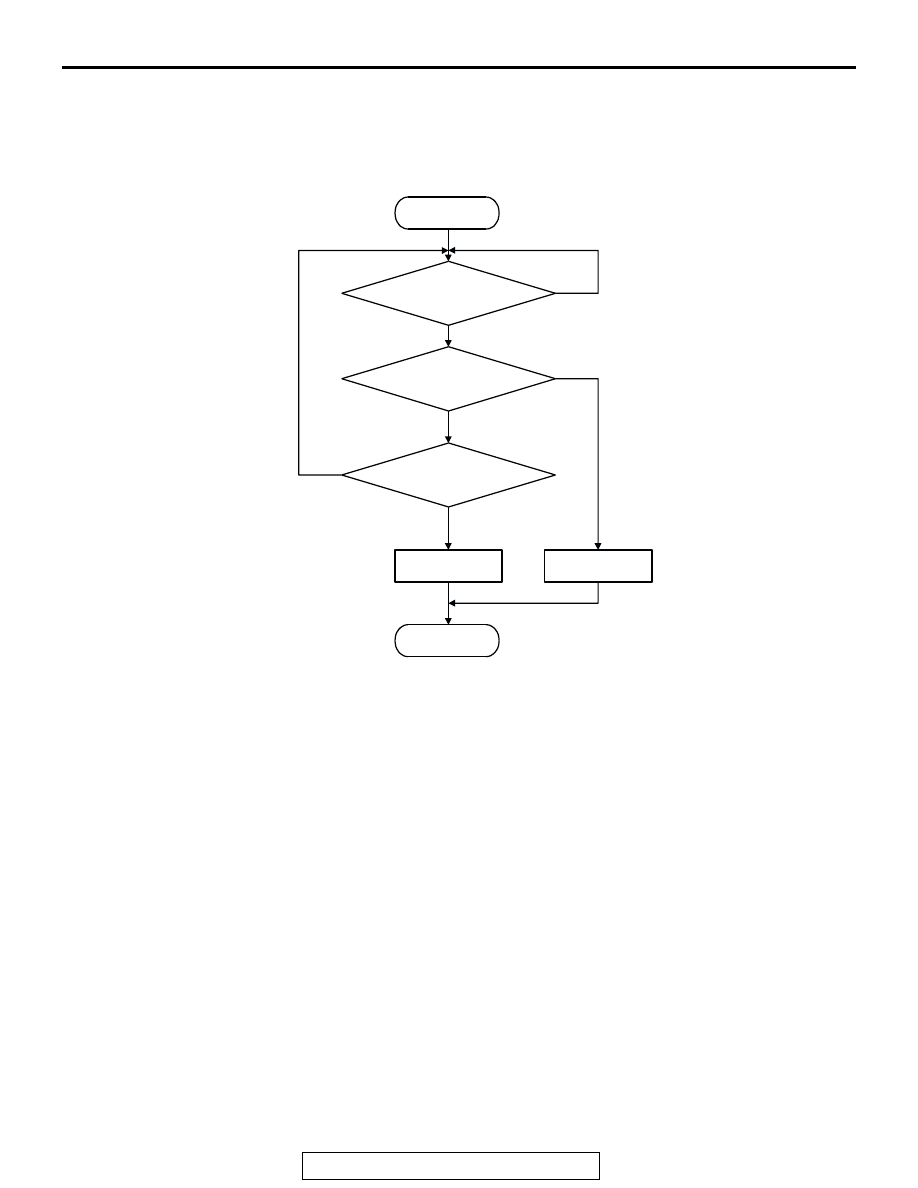

DTC SET CONDITIONS <Range/Performance problem - alignment>

Logic Flow Chart

.

Check Conditions

• Engine speed is higher than 50 r/min.

Judgment Criteria

• Camshaft position sensor output voltage has not

changed (no pulse signal is input) for 2 seconds.

.

START

END

YES

NO

NO

YES

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 2secs

EXPECTED STATE

OF THE SENSOR

MONITORING
CONDITIONS?

YES

NO

AK301447

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-471

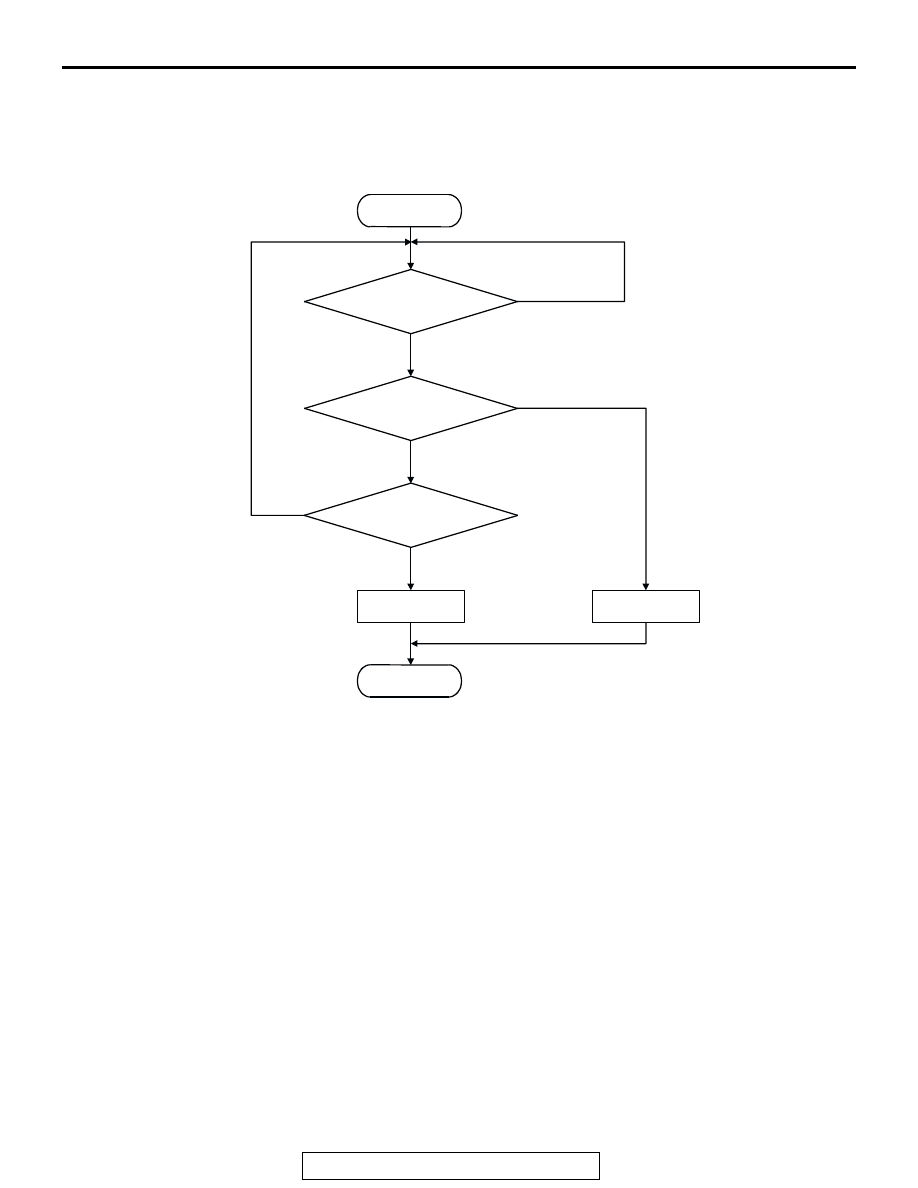

DTC SET CONDITIONS <Circuit - continuity>

Logic Flow Chart

.

Check Conditions

• Engine speed is higher than 50 r/min.

Judgment Criteria

• Normal signal pattern has not been input for cyl-

inder identification from the crankshaft position
sensor signal and camshaft position sensor sig-
nal for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Camshaft position sensor failed.

• Camshaft position sensing cylinder.

• Open or shorted camshaft position sensor circuit,

harness damage or connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tool:

• MB991348: Test Harness Set

START

END

NO

NO

YES

YES

MALFUNCTION

GOOD

OUTPUT SIGNAL

CHANGES

CONTINUOUS

FAILURE FOR 2secs

MONITORING

CONDITIONS?

YES

NO

AK301448

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-472

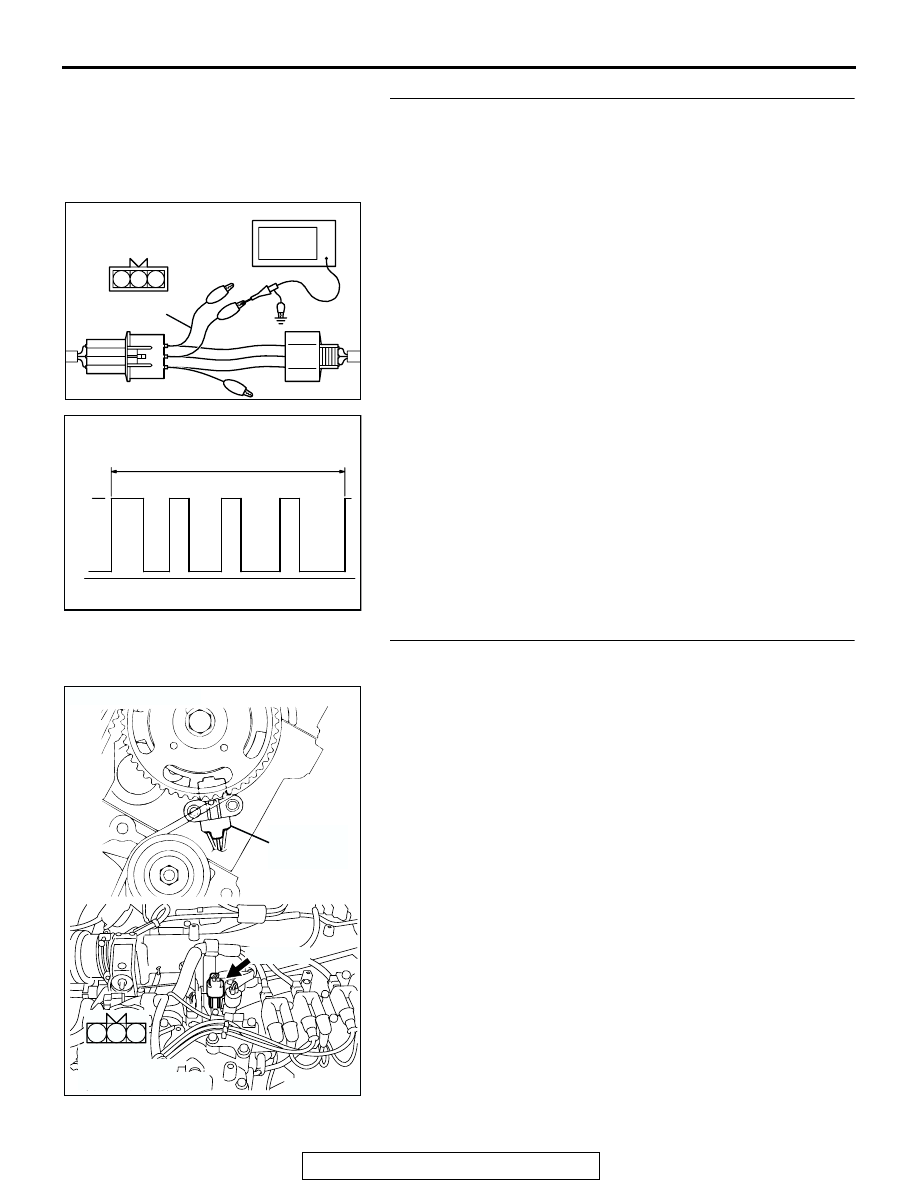

STEP 1. Using the oscilloscope, check the camshaft
position sensor.
(1) Disconnect the camshaft position sensor connector A-42,

and connect test harness special tool (MB991348) in
between. (All terminals should be connected.)

(2) Connect the oscilloscope probe to the camshaft position

sensor side connector terminal No. 2.
NOTE: When measuring with the PCM side connector, con-
nect an oscilloscope probe to terminal No. 56.

(3) Start the engine and run at idle.

(4) Check the waveform.

• The waveform should show a pattern similar to the illus-

tration.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the waveform normal?

YES : Go to Step 2.
NO :  Go to Step 4.

STEP 2. Check connector A-42 at camshaft position
sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 18.

AK102978AB

1 2 3

OSCILLOSCOPE

MB991348

CAMSHAFT POSITION
SENSOR INTERMEDIATE
CONNECTOR

AKX01420AB

2 ENGINE REVOLUTIONS

NORMAL WAVEFORM

5V

AK200488

1

2

3

AB

CONNECTOR: A-42

A-42(GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

CAMSHAFT
POSITION
SENSOR
