JUNCTION BLOCK
TSB Revision

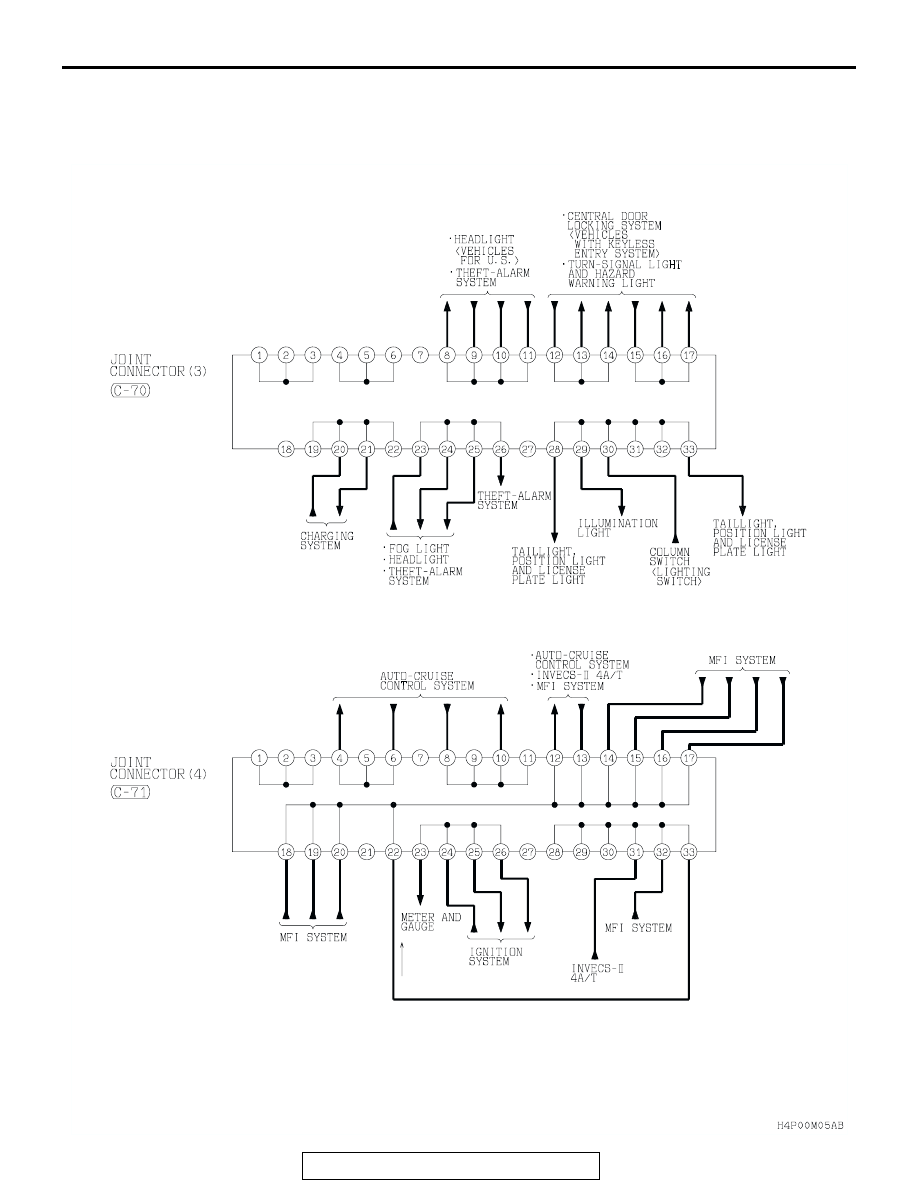

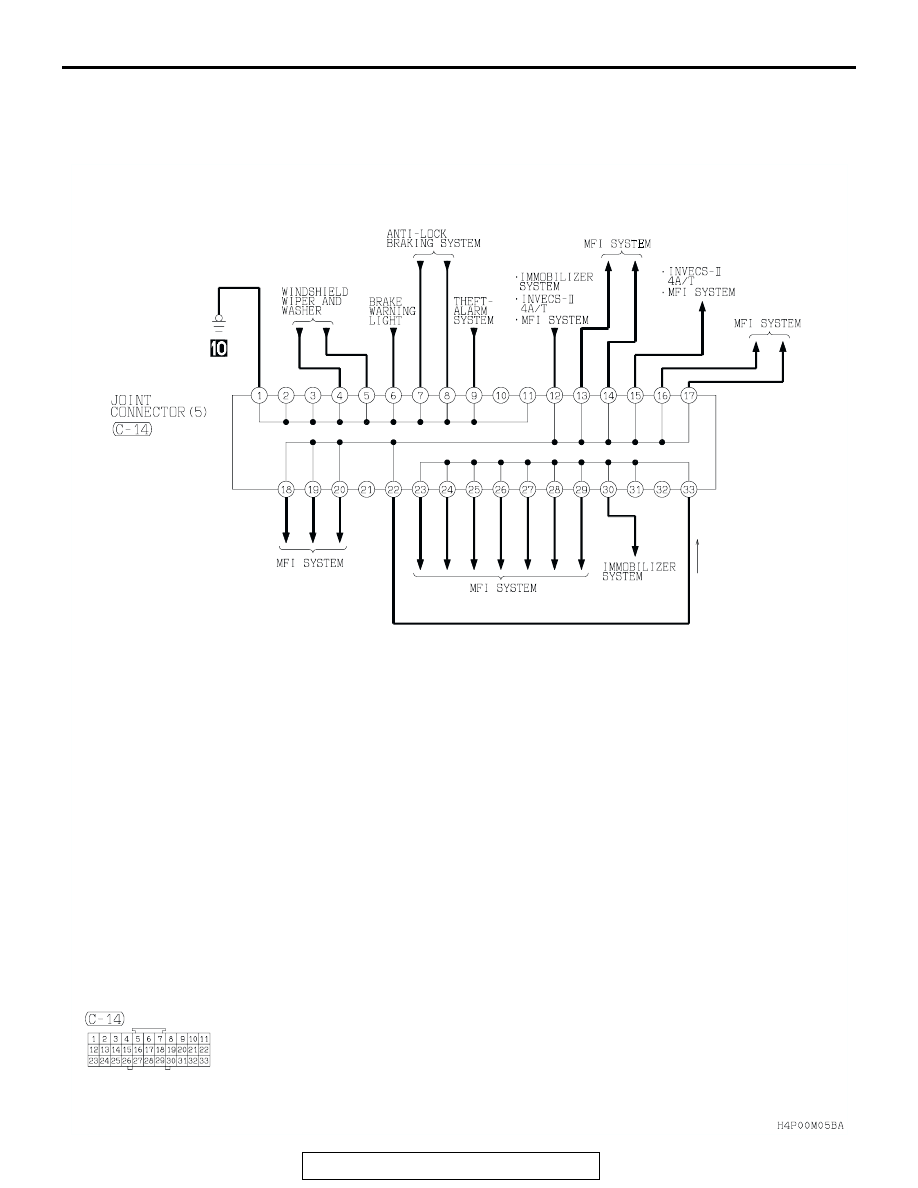

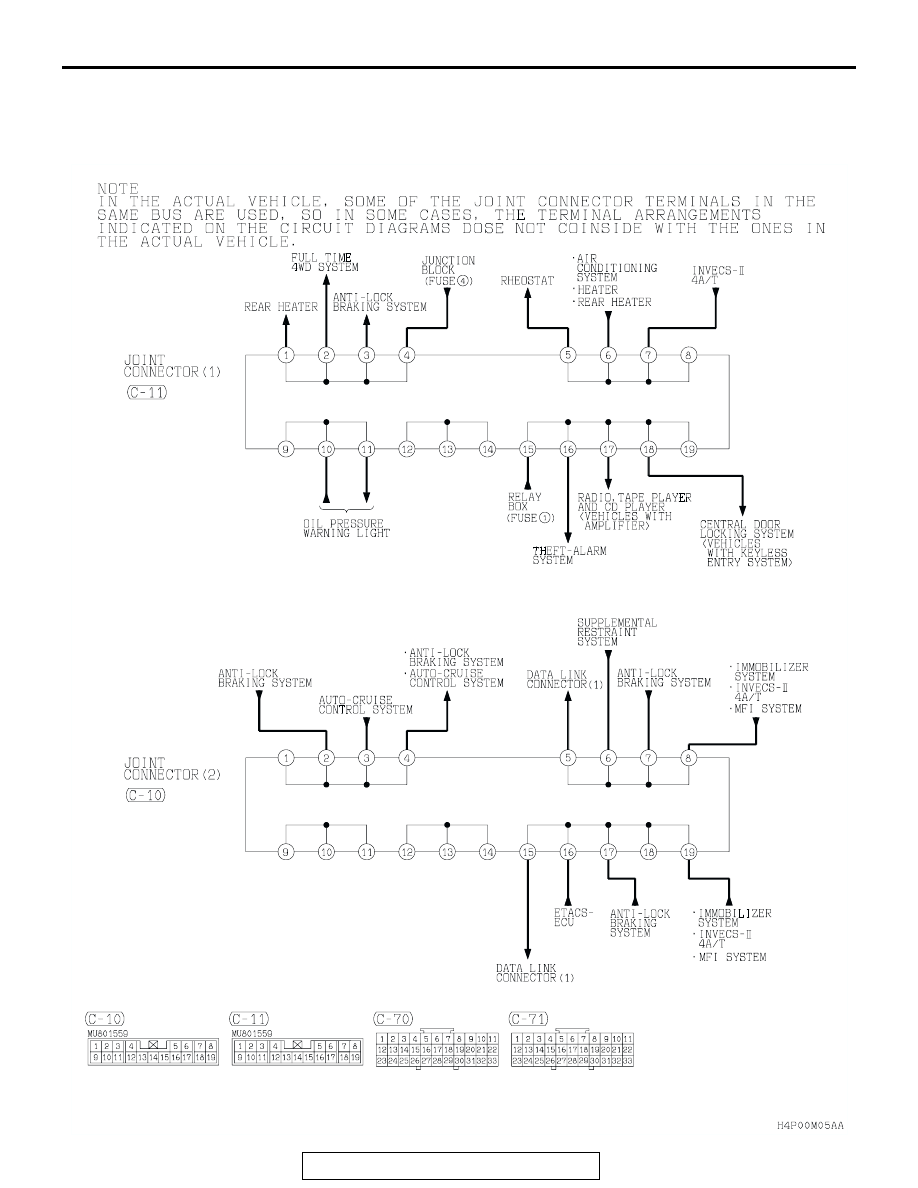

CIRCUIT DIAGRAMS
90-11
AC005023
AC005023AC

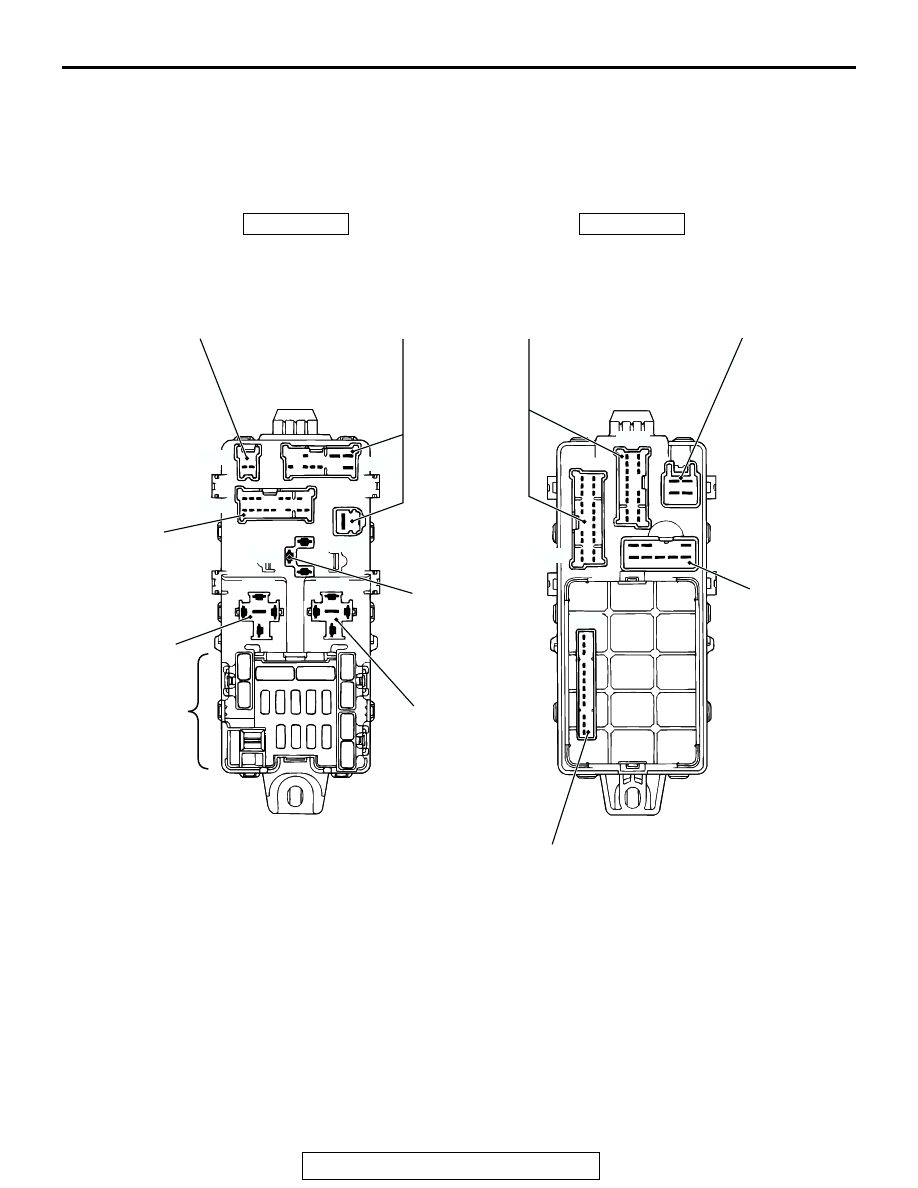

FRONT SIDE
REAR SIDE
TO ROOF
WIRING HARNESS
TO FRONT
WIRING HARNESS
TO BODY
WIRING HARNESS
TO FRONT
WIRING HARNESS
TO BODY
WIRING
HARNESS
NO
CONNECTION
FUSES
NO
CONNECTION
TURN-SIGNAL
AND HAZARD
WARNING
FLASHER UNIT
ETACS-ECU
TO BODY
WIRING
HARNESS
D-09
D-08
D-07
D-06
D-05
D-04
D-03
D-02
D-01
D-11
D-13
D-14
