Mitsubishi Montero Sport (2004+). Manual - part 6

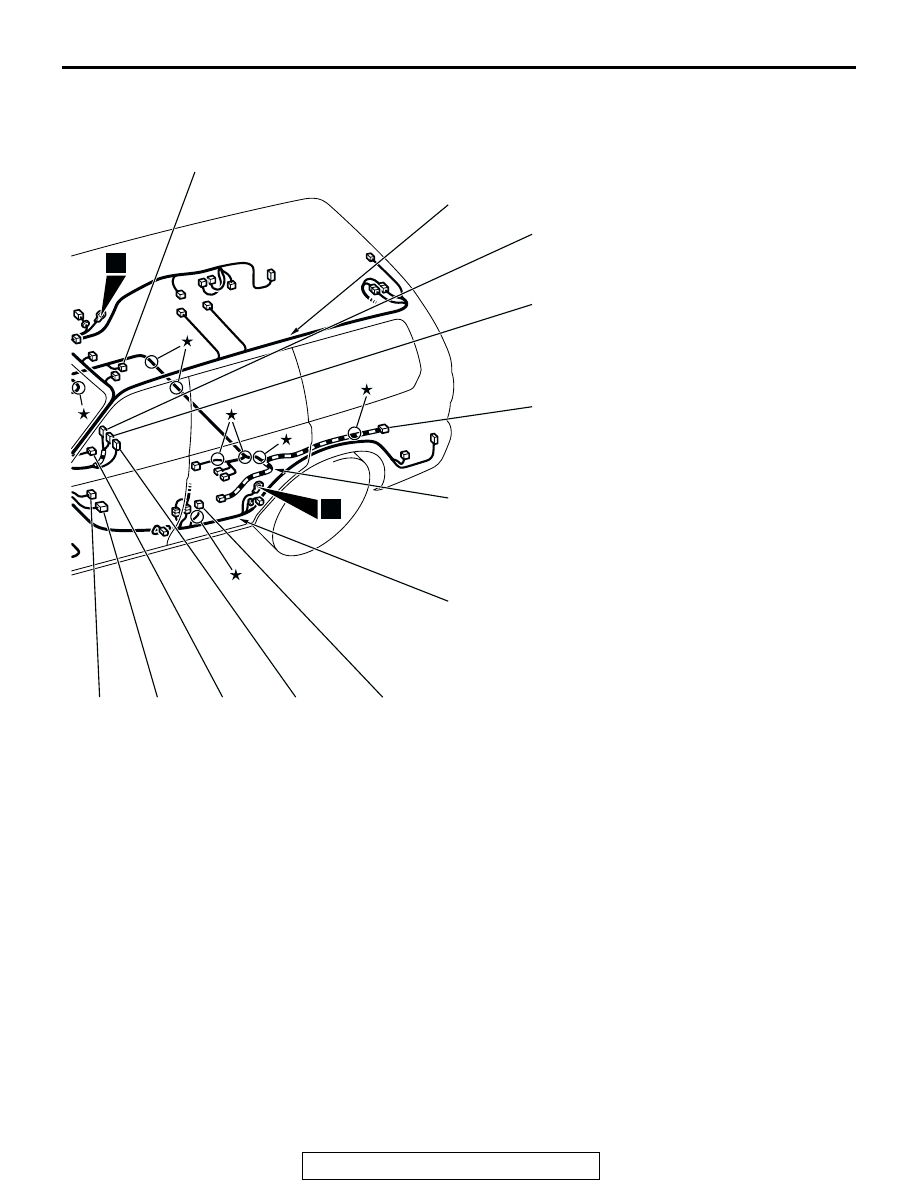

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-21

AC002482AD

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

E-39

E-38

E-36

E-63

E-61

E-34

E-37

E-52

E-35

6

8

ROOF
WIRING
HARNESS

FRAME
WIRING
HARNESS

FLOOR
WIRING
HARNESS

E-45

(20-B)

BODY WIRING HARNESS AND
FRAME WIRING HARNESS
COMBINATION

E-46

(2)

FRONT DOOR SWITCH (RH)

E-47

(4-GR)

RIGHT BANK HEATED OXYGEN
SENSOR (REAR)

E-48

(4-B)

LEFT BANK HEATED OXYGEN
SENSOR (REAR)

E-52

(3-B)

FRONT SEAT ASSEMBLY (LH)

E-54

(9)

HEATED SEAT SWITCH

E-55

(3-B)

FRONT SEAT ASSEMBLY (RH)

E-57

(1)

ACCESSORY SOCKET (1)

E-58

(1-B)

ACCESSORY SOCKET (1)

E-59

(7)

ROOF WIRING HARNESS AND
INSIDE REAR VIEW MIRROR
WIRING HARNESS COMBINATION

E-60

(7)

INSIDE REAR VIEW MIRROR
ASSEMBLY

E-61

(2-R)

SEAT BELT PRETENSIONER

E-62

(2-R)

BODY WIRING HARNESS AND
FLOOR WIRING HARNESS
COMBINATION

E-63

(2-B)

EVAPORATIVE VENTILATION
SOLENOID

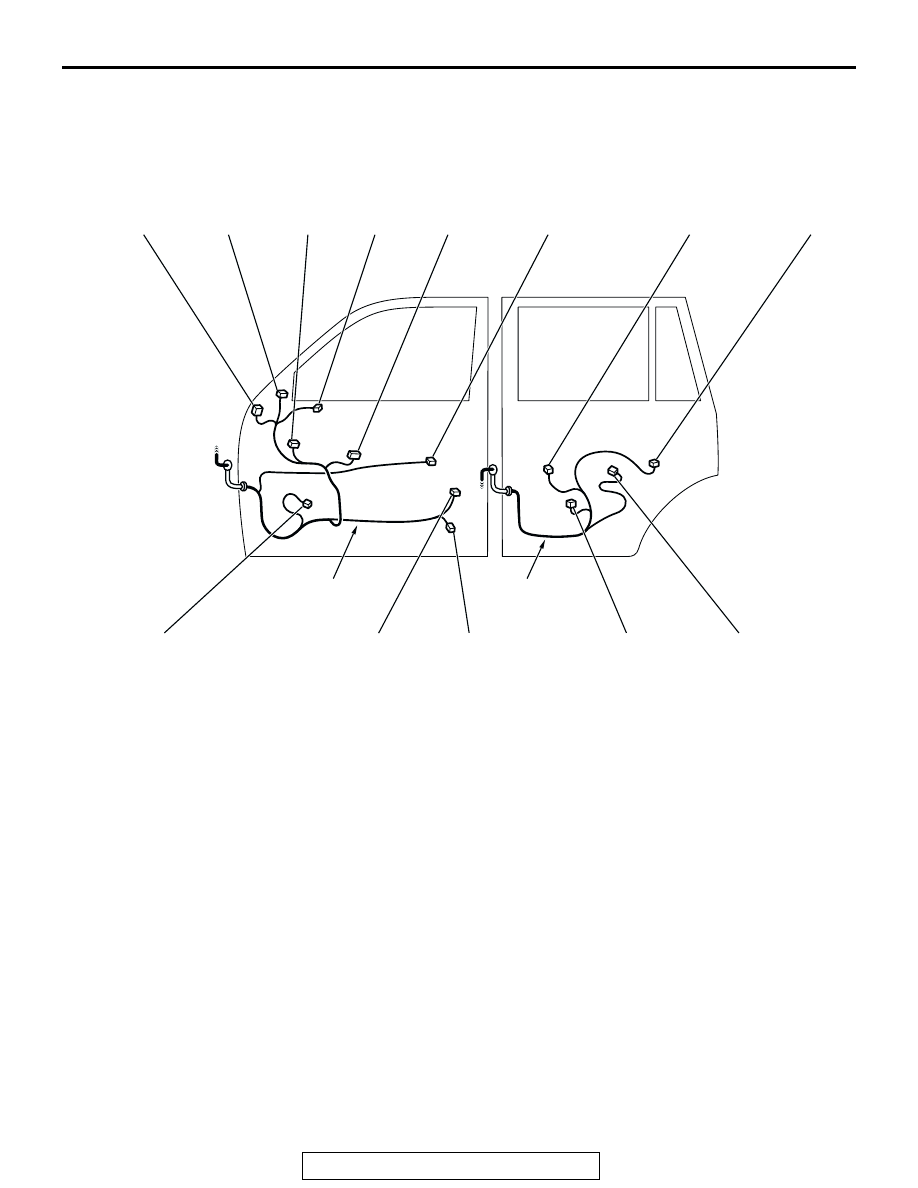

DOOR

TSB Revision

CONFIGURATION DIAGRAMS

80A-22

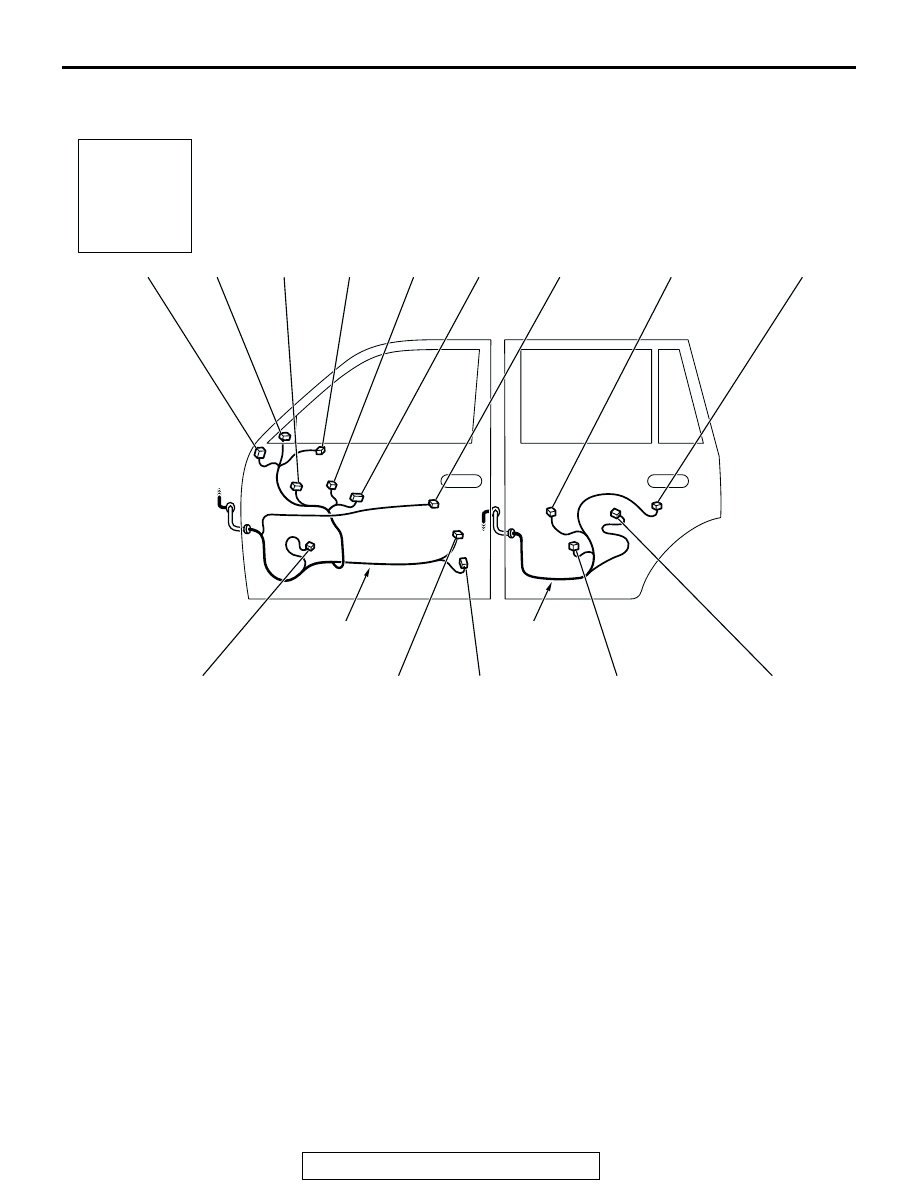

DOOR

M1801001400400

AC002483

Connector
symbol

F

F-26

<DRIVER'S SIDE>

AC

F-01

F-02

F-03

F-04

F-05

F-06

F-07

F-09

F-10

F-08

F-11

F-12

F-13

FRONT DOOR
WIRING
HARNESS (LH)

REAR DOOR
WIRING
HARNESS (LH)

F-01

(3)

REMOTE CONTROLLED MIRROR
(LH) <WITHOUT MIRROR HEATER>

F-02

(2)

POWER WINDOW MOTOR (FRONT:
LH)

F-03

(2)

TWEETER (LH)

F-04

(9)

REMOTE CONTROLLED MIRROR
SWITCH

F-05

(14)

POWER WINDOW MAIN SWITCH

F-06

(3)

DOOR LOCK KEY CYLINDER
SWITCH (LH)

F-07

(8)

POWER WINDOW SUB SWITCH
(REAR: LH)

F-08

(2)

POWER WINDOW MOTOR (REAR:
LH)

F-09

(5)

DOOR LOCK ACTUATOR (REAR:
LH)

F-10

(2-B)

REAR DOOR SPEAKER (LH)

F-11

(2)

DOOR LIGHT (LH)

F-12

(6-B)

DOOR LOCK ACTUATOR (FRONT:
LH)

F-13

(2-B)

FRONT DOOR SPEAKER (LH)

F-14

(3)

REMOTE CONTROLLED MIRROR
(RH) <WITHOUT MIRROR HEATER>

F-15

(2)

POWER WINDOW MOTOR (FRONT:
RH)

DOOR

TSB Revision

CONFIGURATION DIAGRAMS

80A-23

AC002484

FRONT DOOR
WIRING
HARNESS (RH)

REAR DOOR
WIRING
HARNESS (RH)

AC

<PASSENGER'S SIDE>

F-27

F-14

F-15

F-16

F-17

F-18

F-19

F-21

F-22

F-20

F-23

F-24

F-25

F-16

(2)

TWEETER (RH)

F-17

(8)

POWER WINDOW SUB SWITCH
(FRONT: RH)

F-18

(3)

DOOR LOCK KEY CYLINDER
SWITCH (RH)

F-19

(8)

POWER WINDOW SUB SWITCH
(REAR: RH)

F-20

(2)

POWER WINDOW MOTOR (REAR:
RH)

F-21

(5)

DOOR LOCK ACTUATOR (REAR:
RH)

F-22

(2-B)

REAR DOOR SPEAKER (RH)

F-23

(2)

DOOR LIGHT (RH)

F-24

(6-B)

DOOR LOCK ACTUATOR (FRONT:
RH)

F-25

(2-B)

FRONT DOOR SPEAKER (RH)

F-26

(7)

REMOTE CONTROLLED MIRROR
(LH) <WITH MIRROR HEATER>

F-27

(7)

REMOTE CONTROLLED MIRROR
(RH) <WITH MIRROR HEATER>

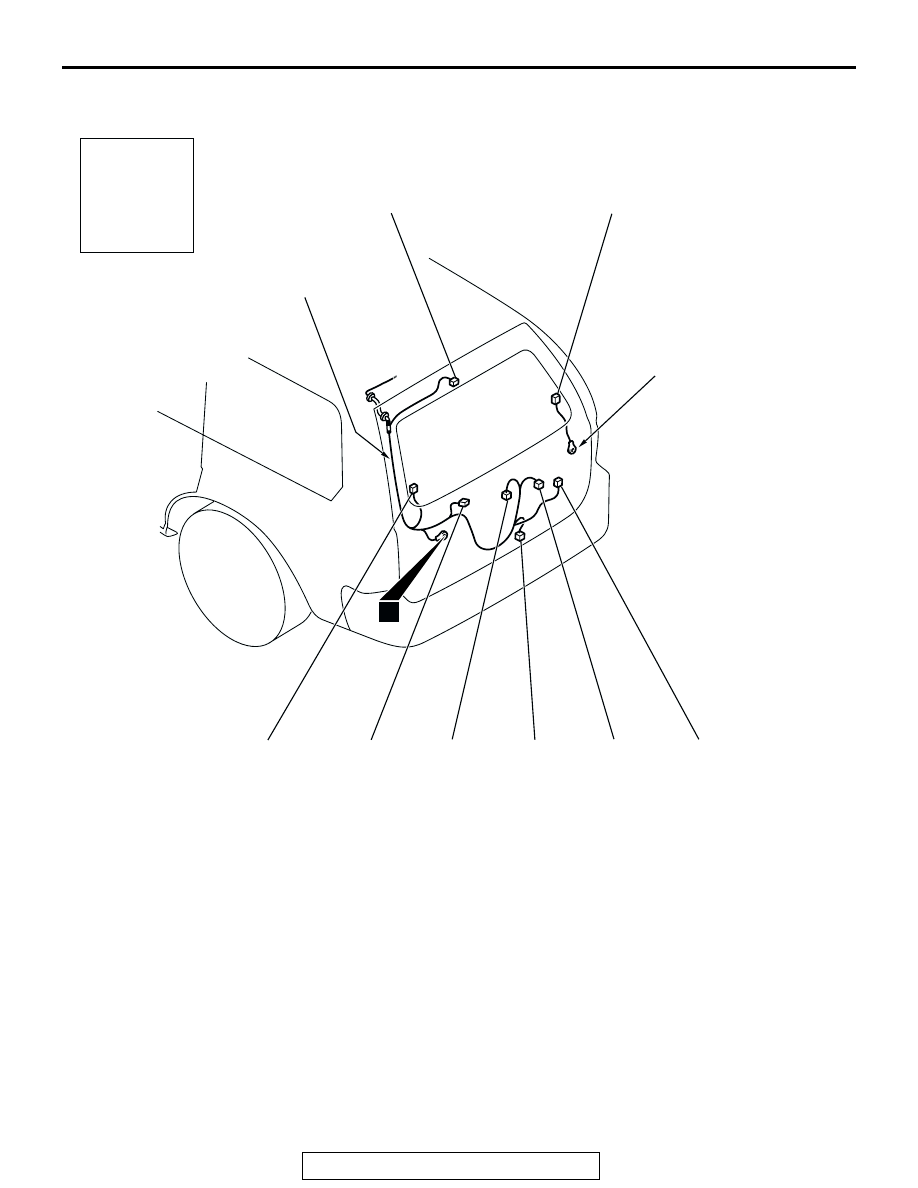

LIFTGATE

TSB Revision

CONFIGURATION DIAGRAMS

80A-24

LIFTGATE

M1801001900148

AC002485

Connector
symbol

G

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

AD

DEFOGGER
GROUND

G-01

G-02

G-04

G-08

G-03

G-05

G-06

G-07

7

LIFTGATE
WIRING
HARNESS

G-01

(2)

HIGH-MOUNTED STOPLIGHT

G-02

(1-B)

DEFOGGER (

−)

G-03

(1-B)

LIFTGATE SWITCH

G-04

(5)

DOOR LOCK ACTUATOR
(LIFTGATE)

G-05

(4)

REAR WIPER MOTOR

G-06

(2)

LICENSE PLATE LIGHT

G-07

(1-B)

DEFOGGER (+)

G-08

(3)

LIFTGATE LOCK KEY CYLINDER
SWITCH <WITH KEYLESS ENTRY
SYSTEM>
