TRANSFER-ECU

TSB Revision

AUTOMATIC TRANSMISSION

23A-571

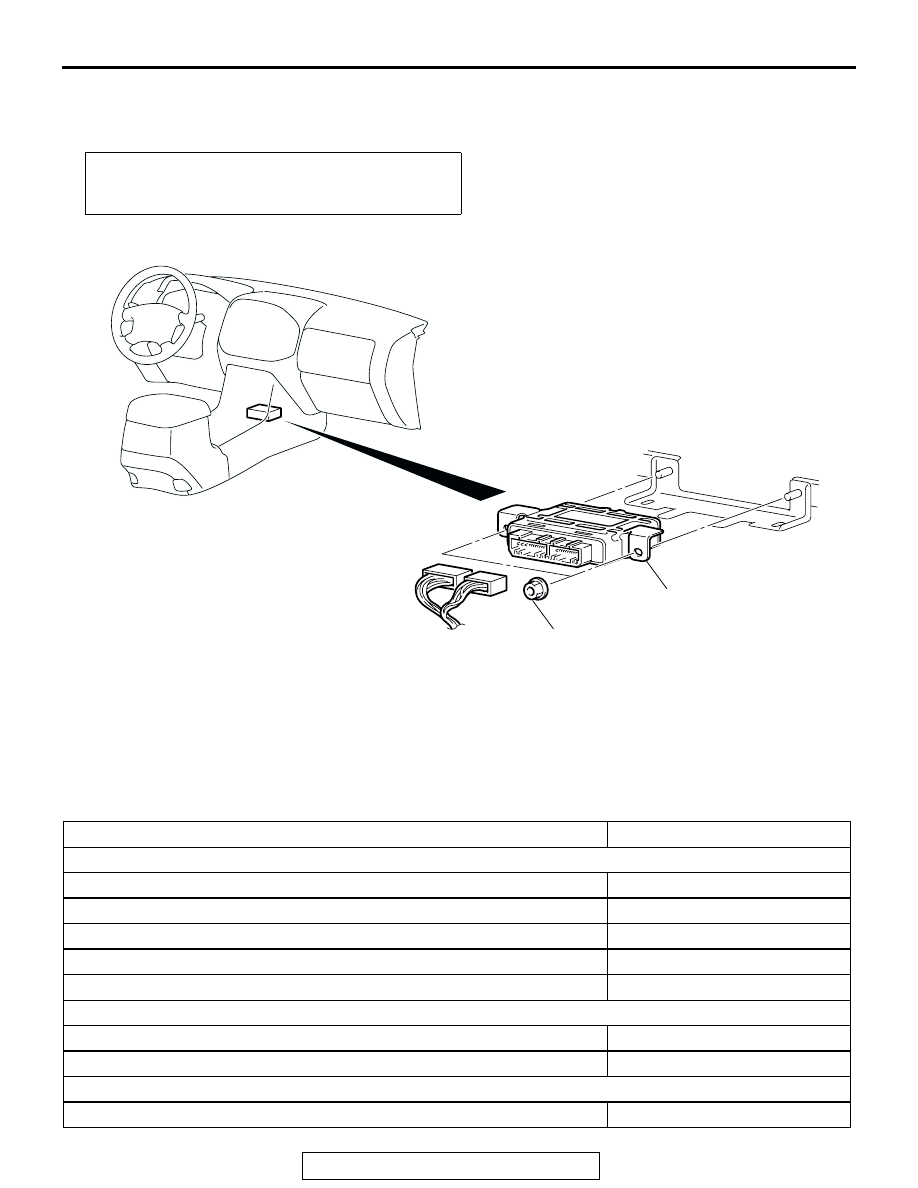

TRANSFER-ECU

REMOVAL AND INSTALLATION

M1231102400047

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATION

M1231104700130

Pre-removal and Post-installation Operations
Indicator panel, floor console panel removal and installation
(GROUP 52A

− Floor Console

P.52A-7

).

AC204337AC

4.9 ± 1.0 N·m
44 ± 8 in-lb

TRANSFER-ECU

ITEM

SPECIFICATION

Oil pan
Oil pan mounting bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Transmission fluid dipstick guide mounting bolt (engine side)

24

± 4 N⋅m (18 ± 3 ft-lb)

Transmission fluid dipstick guide mounting bolt (transmission side)

44

± 8 N⋅m (33 ± 5 ft-lb)

Transmission mount center member assembly mounting bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Transmission mount insulator assembly mounting nut

26

± 4 N⋅m (19 ± 3 ft-lb)

Powertrain control module (PCM)
Powertrain control module (PCM) mounting bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Powertrain control module (PCM) bracket mounting bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Shift lock cable unit
Shift lock cable unit mounting bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSMISSION

23A-572

Transfer
Transfer oil filler plug

32

± 2 N⋅m (24 ± 1 ft-lb)

Transfer oil drain plug

32

± 2 N⋅m (24 ± 1 ft-lb)

Transfer-ECU
Transfer-ECU mounting nut

4.9

± 1.0 N⋅m (44 ± 8 in-lb)

Transmission assembly
Cover mounting bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Dynamic damper mounting bolt (left side)

35

± 6 N⋅m (26 ± 4 ft-lb)

Dynamic damper mounting bolt (right side)

36

± 6 N⋅m (27 ± 5 ft-lb)

Transmission fluid dipstick guide mounting bolt (engine side)

24

± 4 N⋅m (18 ± 3 ft-lb)

Transmission fluid dipstick guide mounting bolt (transmission side)

44

± 8 N⋅m (33 ± 5 ft-lb)

Oil cooler tube connecting eye bolt

42

± 2 N⋅m (31 ± 1 ft-lb)

Oil cooler tube mounting bolt (M6 bolt)

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Oil pan connection bolt

36

± 5 N⋅m (26 ± 4 ft-lb)

Starter motor and starter cover mounting bolt

30

± 3 N⋅m (22 ± 2 ft-lb)

Starter harness connection nut

11

± 1 N⋅m (98 ± 8 in-lb)

Tension wire mounting bolt

24

± 5 N⋅m (18 ± 3 ft-lb)

Tension wire bracket mounting bolt

53

± 5 N⋅m (39 ± 4 ft-lb)

Torque converter and drive plate connecting bolt

49

± 3 N⋅m (36 ± 2 ft-lb)

Transmission assembly upper part coupling bolt

74

± 10 N⋅m (55 ± 7 ft-lb)

Transmission assembly lower part coupling bolt

89

± 9 N⋅m (66 ± 6 ft-lb)

Transmission fluid drain plug

39

± 5 N⋅m (29 ± 3 ft-lb)

Transmission mount center member assembly mounting bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Transmission mount insulator assembly mounting bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Transmission mount insulator assembly mounting nut

26

± 4 N⋅m (19 ± 3 ft-lb)

Transmission control
Bracket to selector lever assembly mounting bolt

11

± 2 N⋅m (98 ± 17 in-lb)

Detent plate assembly mounting bolt

4.9

± 1.0 N⋅m (44 ± 8 in-lb)

Detent spring mounting screw

2.5

± 0.4 N⋅m (22 ± 4 in-lb)

Lever assembly and universal joint connecting nut

13

± 2 N⋅m (115 ± 18 in-lb)

Selector lever assembly mounting bolt

11

± 2 N⋅m (98 ± 17 in-lb)

Shift lock cable unit mounting bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Transfer shift lever bracket assembly mounting bolt

11

± 2 N⋅m (98 ± 17 in-lb)

Transfer shift lever switch mounting bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Transmission control cable adjusting nut

23

± 4 N⋅m (17 ± 3 ft-lb)

Transmission control harness connecting bolt

11

± 2 N⋅m (98 ± 17 in-lb)

Transmission range switch adjusting nut

23

± 4 N⋅m (17 ± 3 ft-lb)

Transmission range switch mounting bolt

11

± 1 N⋅m (98 ± 8 in-lb)

ITEM

SPECIFICATION

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSMISSION

23A-573

SERVICE SPECIFICATION

M1231100300118

LUBRICANTS

M1231100400137

SEALANT AND ADHESIVE

M1231100500123

Transmission oil cooler
Eye bolt

42

± 2 N⋅m (31 ± 1 ft-lb)

Transmission fluid return tube mounting bolt

12

± 2 N⋅m (107 ± 17 in-lb)

Transmission oil cooler bracket mounting bolt

12

± 2 N⋅m (107 ± 17 in-lb)

Transmission oil cooler tube assembly mounting bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Transmission oil cooler tube bracket mounting bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

ITEM

SPECIFICATION

ITEMS

STANDARD VALUE

Line pressure MPa (psi)

0.98

− 1.05 (142 − 152)

Transmission fluid temperature sensor k

Ω

at 0

°C (32°F)

16.7

− 20.5

at 20

°C (68°F)

7.3

− 8.9

at 40

°C (104°F)

3.4

− 4.2

at 60

°C (140°F)

1.9

− 2.2

at 80

°C (176°F)

1.0

− 1.2

at 100

°C (212°F)

0.57

− 0.69

Resistance of torque converter clutch control solenoid valve coil [at 20

°C

(68

°F)] Ω

2.7

− 3.4

Resistance of low-reverse/direction solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Resistance of second solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Resistance of underdrive solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Resistance of overdrive solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Resistance of reduction solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Stall speed r/min

2,200

− 2,700

ITEM

SPECIFIED LUBRICANT

SPECIFICATION

Automatic transmission fluid dm

3

 (qt) DIAMOND ATF SP III

9.7 (10.2)

Transfer oil dm

3

 (qt)

Gear oil API classification GL-4 SAE
75W-85W or 75W-90

2.8 (3.0)

ITEM

SPECIFIED SEALANT AND ADHESIVE

Oil pan
Oil pan

MITSUBISHI GENUINE Part No.MR166584 or equivalent

Transmission control
Gasket

3M

 AAD part No.8663 or equivalent

Stopper plate
Transfer control lever mounting bolt

3M

 AAD part No.8730 or equivalent
