SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-185

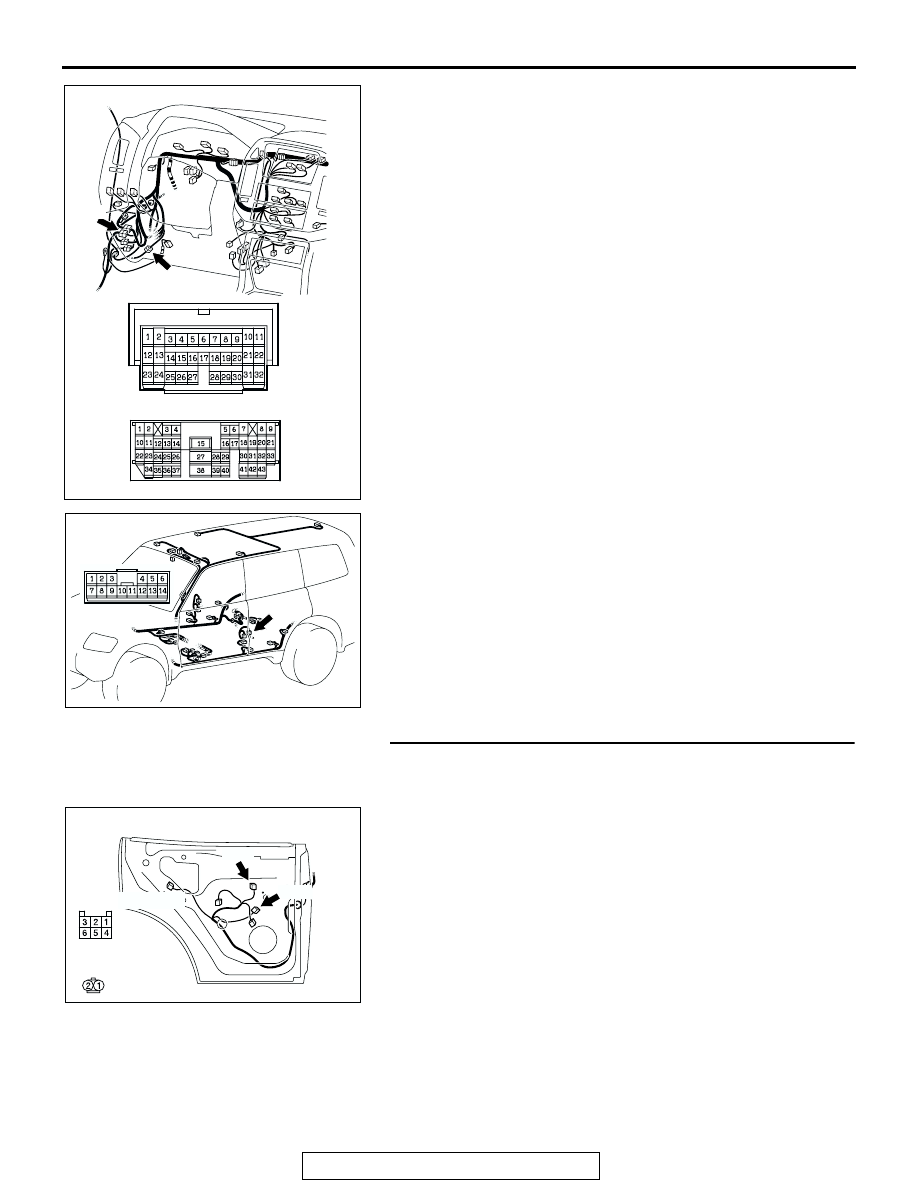

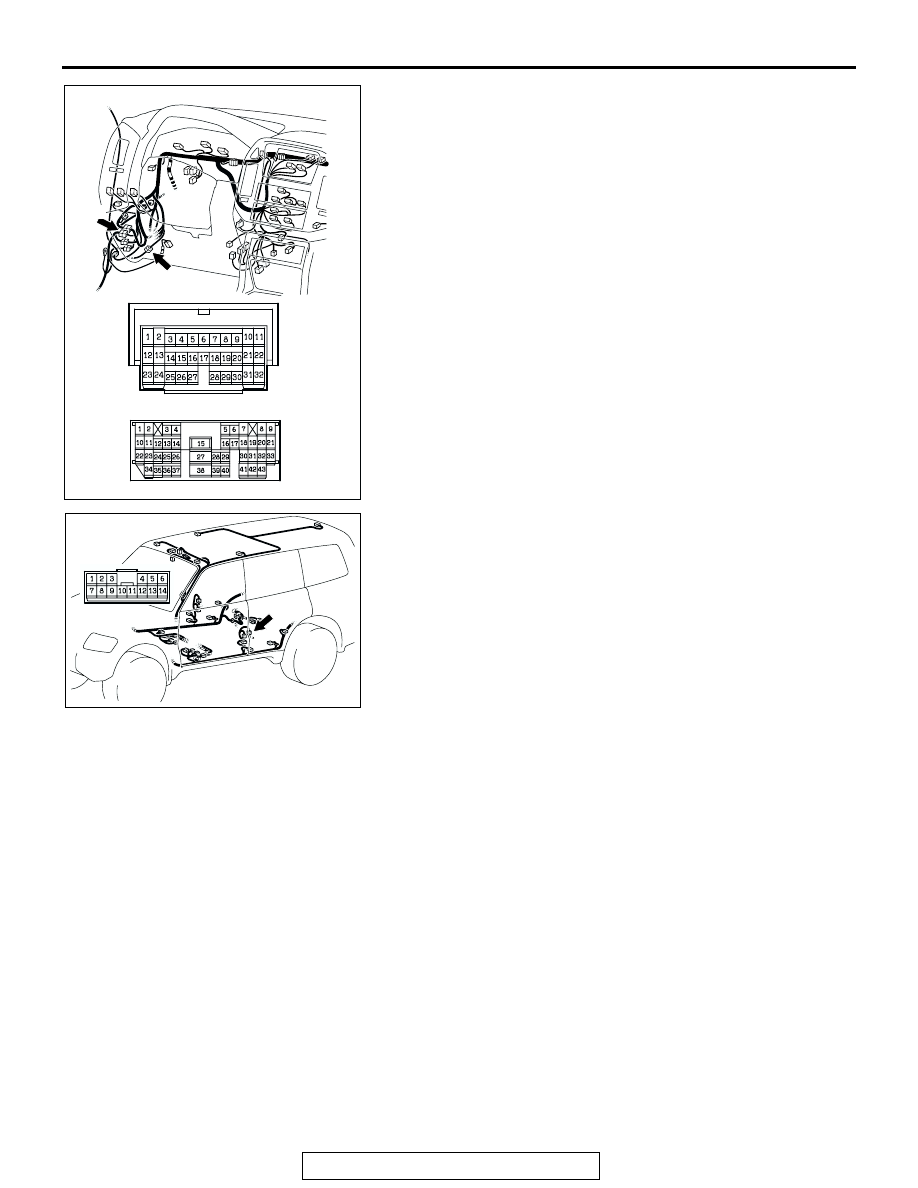

NOTE: Also check intermediate connectors, D-125, D-25 and
F-12. If intermediate connector F-12, D-125 or D-25 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the harness wiring between power window main

switch connector H-05 (terminal 13) and rear power
window sub-switch (LH) connector H-02 (terminal 5) in
good condition?
YES : Replace the power window main switch. Verify that

the rear power window sub-switch (LH) should now
work normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (LH) should now
work normally.

AC203859 AE

CONNECTORS: D-25, D-125

D-25

D-25

D-125

D-125

AC204484

AB

CONNECTOR: F-12

F-12

F-12

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-186

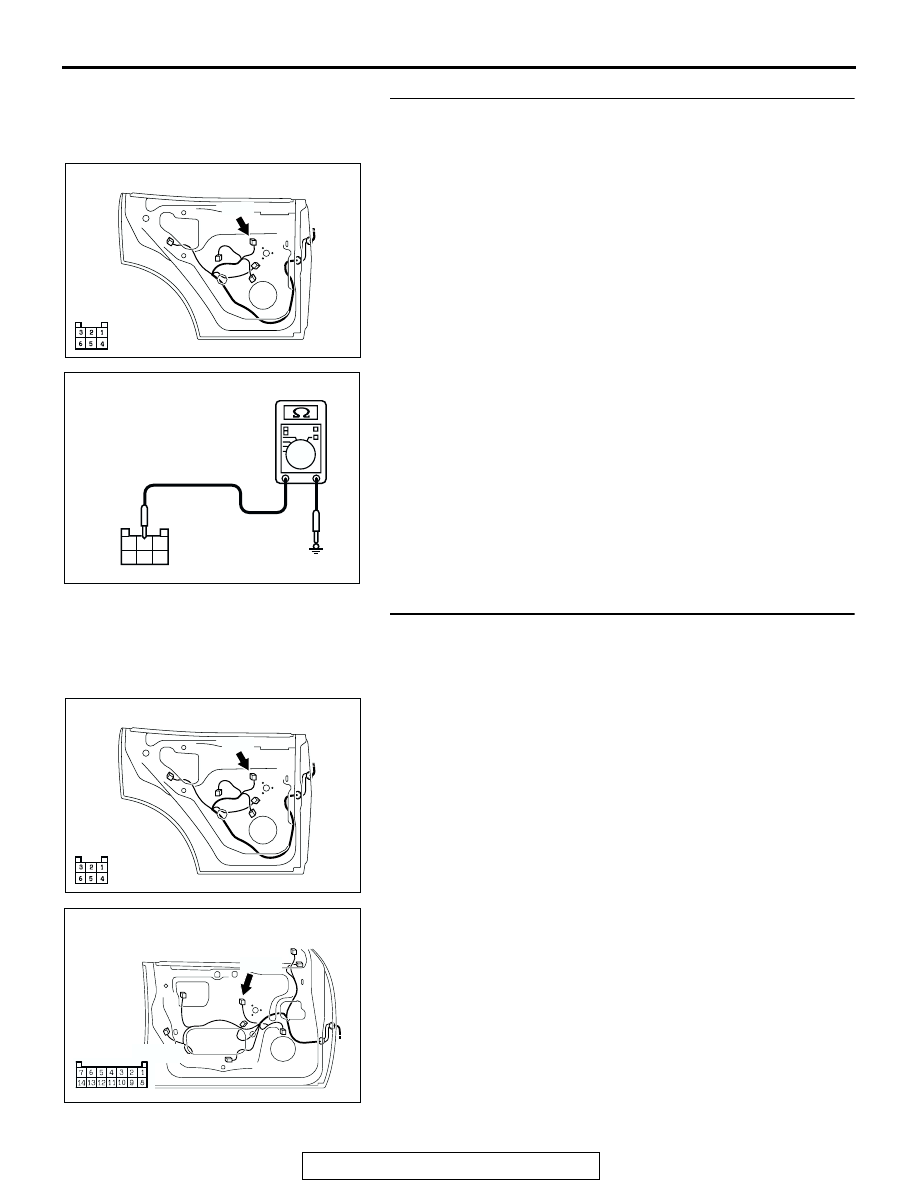

STEP 27. Check at rear power window sub-switch (LH)
connector H-02 in order to check the ground circuit to the
rear power window sub-switch (LH).
(1) Disconnect rear power window sub-switch (LH) connector

H-02, and measure at the harness side.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should measure 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 29.
NO :  Go to Step 28.

STEP 28. Check the harness wiring between power
window main switch connector H-05 (terminal 6) and rear
power window sub-switch (LH) connector H-02 (terminal
2).

AC000237AF

H-02

CONNECTOR: H-02

REAR DOOR<LH>

H-02
(HARNESS SIDE)

AC204323

1

2

3

4

5

6

AE

CONNECTOR H-02
(HARNESS SIDE)

AC000237AF

H-02

CONNECTOR: H-02

REAR DOOR<LH>

H-02
(HARNESS SIDE)

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-187

NOTE: Also check intermediate connectors, D-125, D-25 and
F-12. If intermediate connector F-12, D-125 or D-25 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the harness wiring between power window main

switch connector H-05 (terminal 6) and rear power
window sub-switch (LH) connector H-02 (terminal 2) in
good condition?
YES : Replace the power window main switch. Verify that

the rear power window sub-switch (LH) should now
work normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (LH) should now
work normally.

STEP 29. Check the harness wiring between rear power
window sub-switch (LH) connector H-02 (terminal 6) and
rear power window motor (LH) connector H-11 (terminal 6).
Q: Is the harness wiring between rear power window

sub-switch (LH) connector H-02 (terminal 6) and rear
power window motor (LH) connector H-11 (terminal 6) in
good condition?
YES : Go to Step 30.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (LH) should now
work normally.

AC203859 AE

CONNECTORS: D-25, D-125

D-25

D-25

D-125

D-125

AC204484

AB

CONNECTOR: F-12

F-12

F-12

AC000237AL

H-02

CONNECTORS: H-02, H-11

REAR DOOR <LH>

H-02

H-11

(HARNESS SIDE)

H-17

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-188

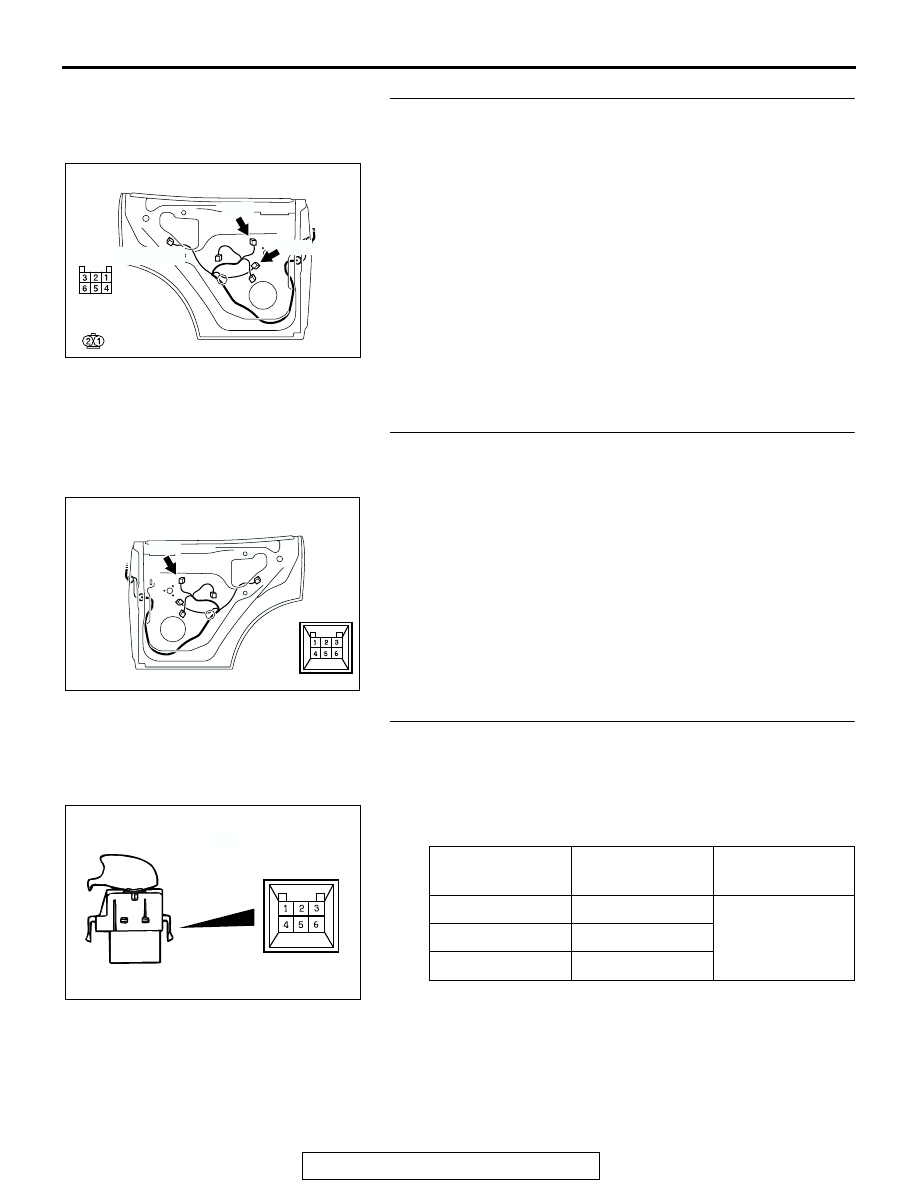

STEP 30. Check the harness wiring between rear power
window sub-switch (LH) connector H-02 (terminal 1) and
rear power window motor (LH) connector H-11 (terminal 2).
Q: Is the harness wiring between rear power window

sub-switch (LH) connector H-02 (terminal 1) and rear
power window motor (LH) connector H-11 (terminal 2) in
good condition?
YES : Replace the power window main switch. Verify that

the rear power window sub-switch (LH) should now
work normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (LH) should now
work normally.

STEP 31. Check rear power window sub-switch (RH)
connector H-19 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.
Q: Is rear power window sub-switch (RH) connector H-19 in

good condition?
YES : Go to Step 32.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the rear power window

sub-switch (RH) should now work normally.

STEP 32. Check the rear power window sub-switch (RH)
for continuity.
(1) Remove the rear power window sub-switch (RH). Refer to

GROUP 42, Door-Door Trim and Waterproof Film

P.42-31

.

(2) Check continuity when the rear power window sub-switch

(RH) is operated to "UP" or "DOWN" position.

Q: Is the rear power window sub-switch (RH) normal?

YES : Go to Step 33.
NO :  Replace the rear power window sub-switch (RH).

Verify that the rear power window sub-switch (RH)
should now work normally.

AC000237AL

H-02

CONNECTORS: H-02, H-11

REAR DOOR <LH>

H-02

H-11

(HARNESS SIDE)

H-17

(HARNESS SIDE)

AC000316 AD

H-19

CONNECTOR: H-19

REAR DOOR<RH>

H-19

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

UP

1

− 2, 4 − 6

Less than 2 ohms

OFF

1

− 2, 5 − 6

DOWN

1

− 4, 5 − 6

AC204336
