SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-129

STEP 24. Check ETACS-ECU connector D-222 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-222 in good condition?

YES : Go to Step 25.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that all the doors (including the back

door) can be locked and unlocked normally.

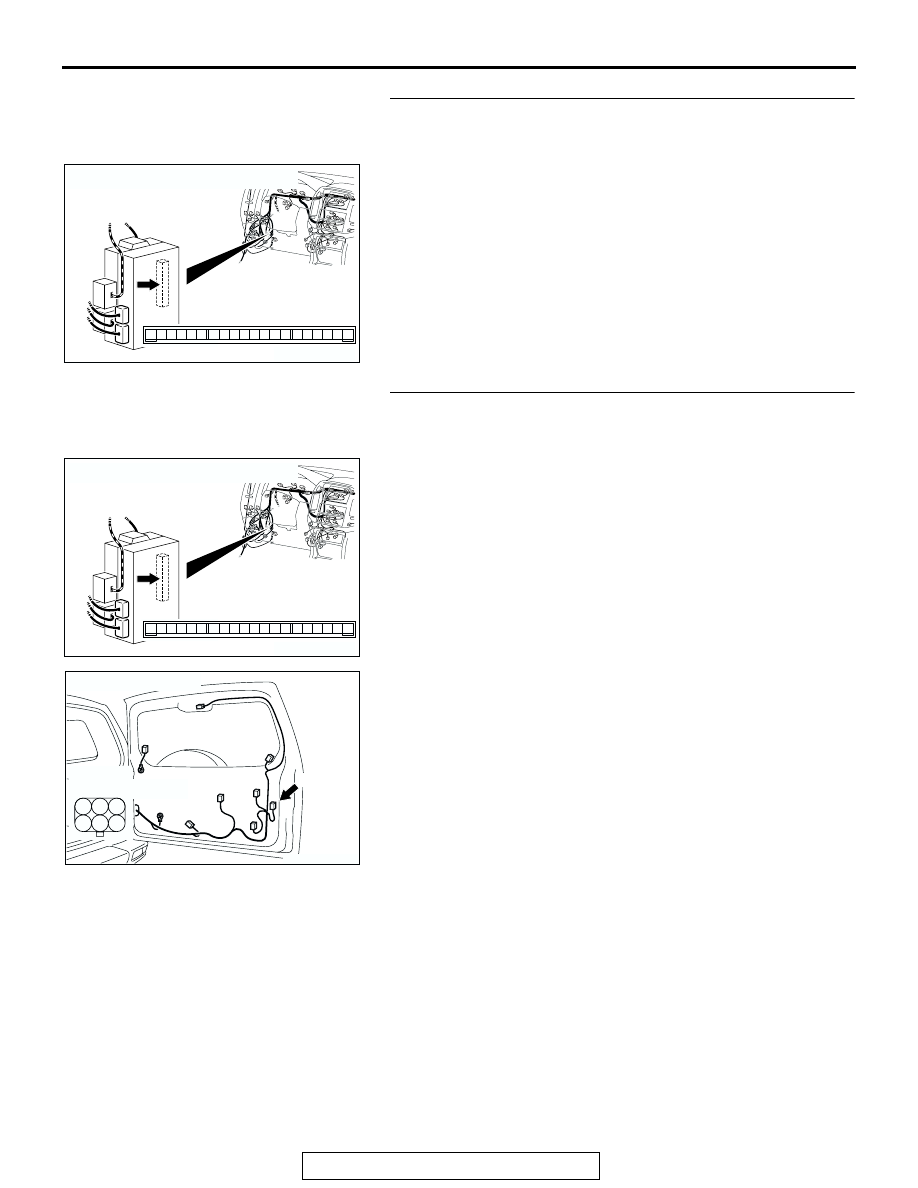

STEP 25. Check the harness wiring from ETACS-ECU
connector D-222 (terminal 17) to back door lock actuator
connector I-05 (terminal 3).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

ACX02293

CONNECTOR: I-05

AM

I-05 (B)

1

2

3

4

5

6

I-05 (B)

(HARNESS SIDE)

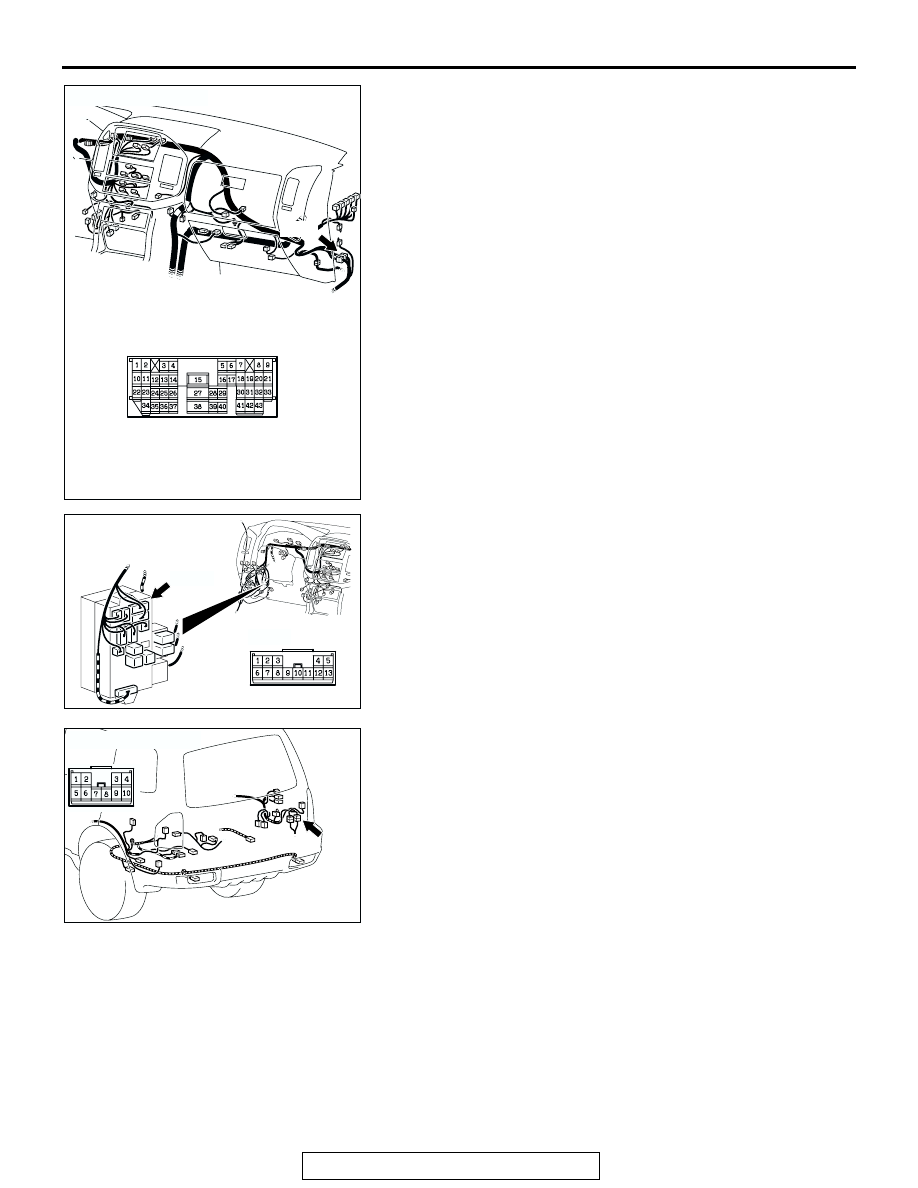

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-130

NOTE: Also check junction block connector D-209 and inter-
mediate connector D-111 and G-10 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If junction block connector D-209 or intermediate connector
D-111 or G-10 is damaged, repair or replace the damaged com-
ponent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the harness wiring from ETACS-ECU connector D-222

(terminal 17) to back door lock actuator connector I-05
(terminal 3) in good condition?
YES : Go to Step 26.
NO :  The harness wiring may be damaged or the

connectors may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the harness wiring as necessary. Verify that all
the doors (including the back door) can be locked and
unlocked normally.

AC203860AC

D-111

CONNECTOR: D-111

D-111

AC203850

CONNECTOR: D-209

AE

D-209

D-209

JUNCTION BLOCK
(FRONT VIEW)

AC204524

CONNECTOR: G-10

AC

G-10

G-10

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-131

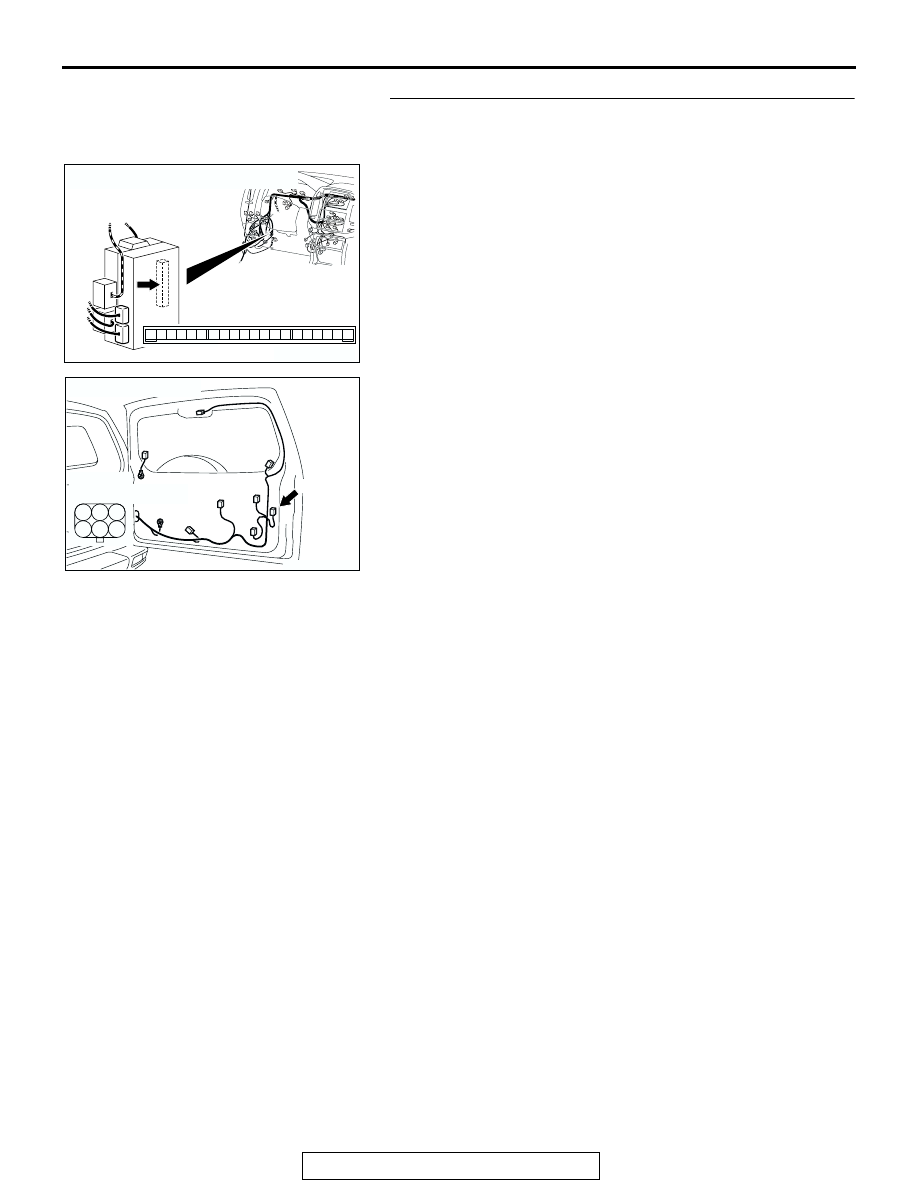

STEP 26. Check the harness wiring from ETACS-ECU
connector D-222 (terminal 4) to back door lock actuator
connector I-05 (terminal 2).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

ACX02293

CONNECTOR: I-05

AM

I-05 (B)

1

2

3

4

5

6

I-05 (B)

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-132

NOTE: Also check junction block connector D-209 and inter-
mediate connector D-111 and G-10 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If junction block connector D-209 or intermediate connector
D-111 or G-10 is damaged, repair or replace the damaged com-
ponent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the harness wiring from ETACS-ECU connector D-222

(terminal 4) to back door lock actuator connector I-05
(terminal 2) in good condition?
YES : Replace the ETACS-ECU. Verify that all the doors

(including the back door) can be locked and unlocked
normally.

NO :  The harness wiring may be damaged or the

connectors may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the harness wiring as necessary. Verify that all
the doors (including the back door) can be locked and
unlocked normally.

AC203860AC

D-111

CONNECTOR: D-111

D-111

AC203850

CONNECTOR: D-209

AE

D-209

D-209

JUNCTION BLOCK
(FRONT VIEW)

AC204524

CONNECTOR: G-10

AC

G-10

G-10
