SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-97

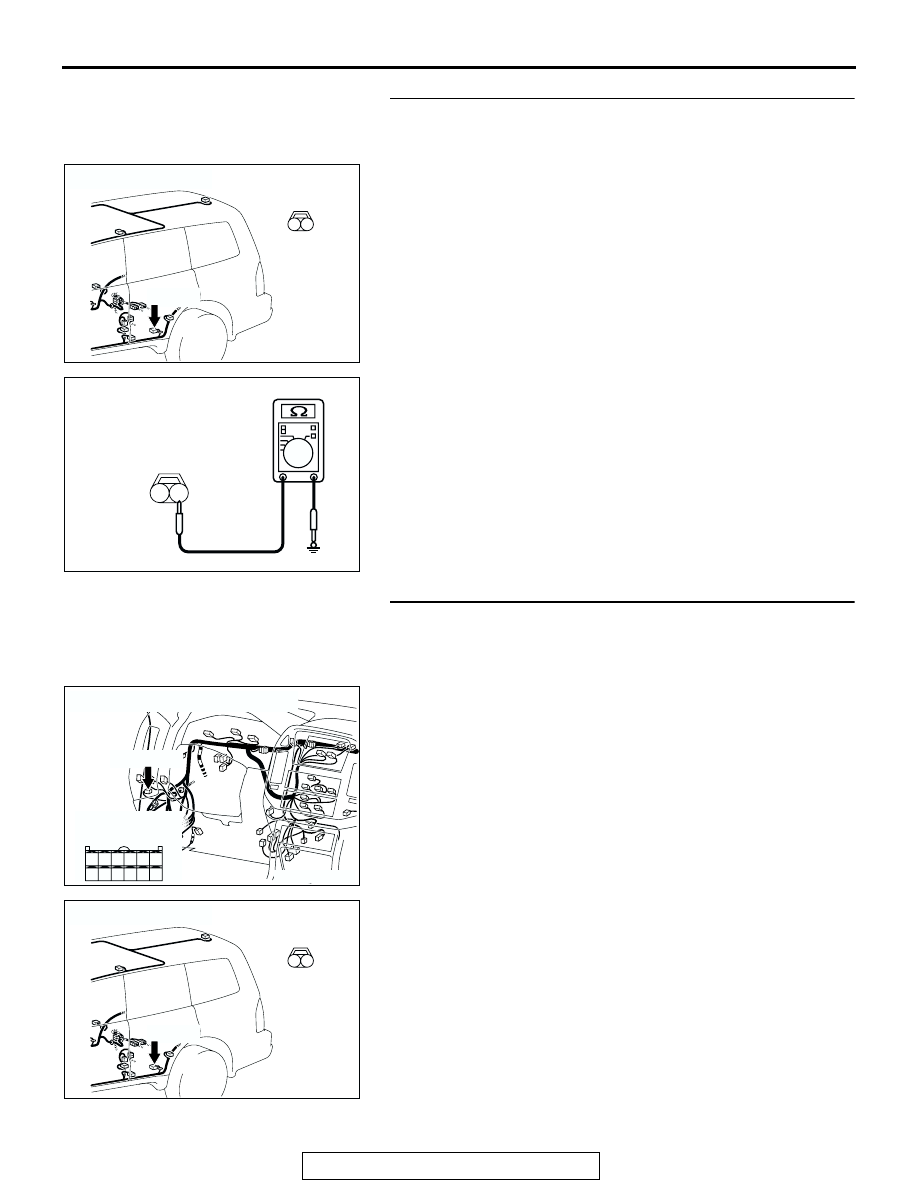

 STEP 7. Check the ground circuit to the side step
light-ECU. Test at side step light-ECU connector D-137.

(1) Disconnect side step light-ECU connector D-137 and

measure the resistance available at the harness side of the
connector.

(2) Measure the resistance value between terminal 12 and

ground.

• The resistance should equal 2 ohms or less.

Q:  Is the measured resistance 2 ohms or less?

YES : Replace the side step light-ECU. Verify that the side

step light illuminate normally.

NO :  Go to Step 8.

 STEP 8. Check side step light-ECU connector D-137 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:  Is side step light-ECU connector D-137 in good

condition?
YES : Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the side step light illuminate

normally.

 STEP 9. Check the wiring harness between side step
light-ECU connector D-137 (terminal 7) and ground.

Q:  Is the wiring harness between side step light-ECU

connector D-137 (terminal 7) and the ground in good
condition?
YES : Replace the side step light-ECU. Verify that the side

step light illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the side step light illuminate normally.

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

1

2

8 7

4

5

10

11

12

6

9

3

AC204601

CONNECTOR D-137
(HARNESS SIDE)

AB

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-98

INSPECTION PROCEDURE 2: One of the side step lights does not illuminate.

.

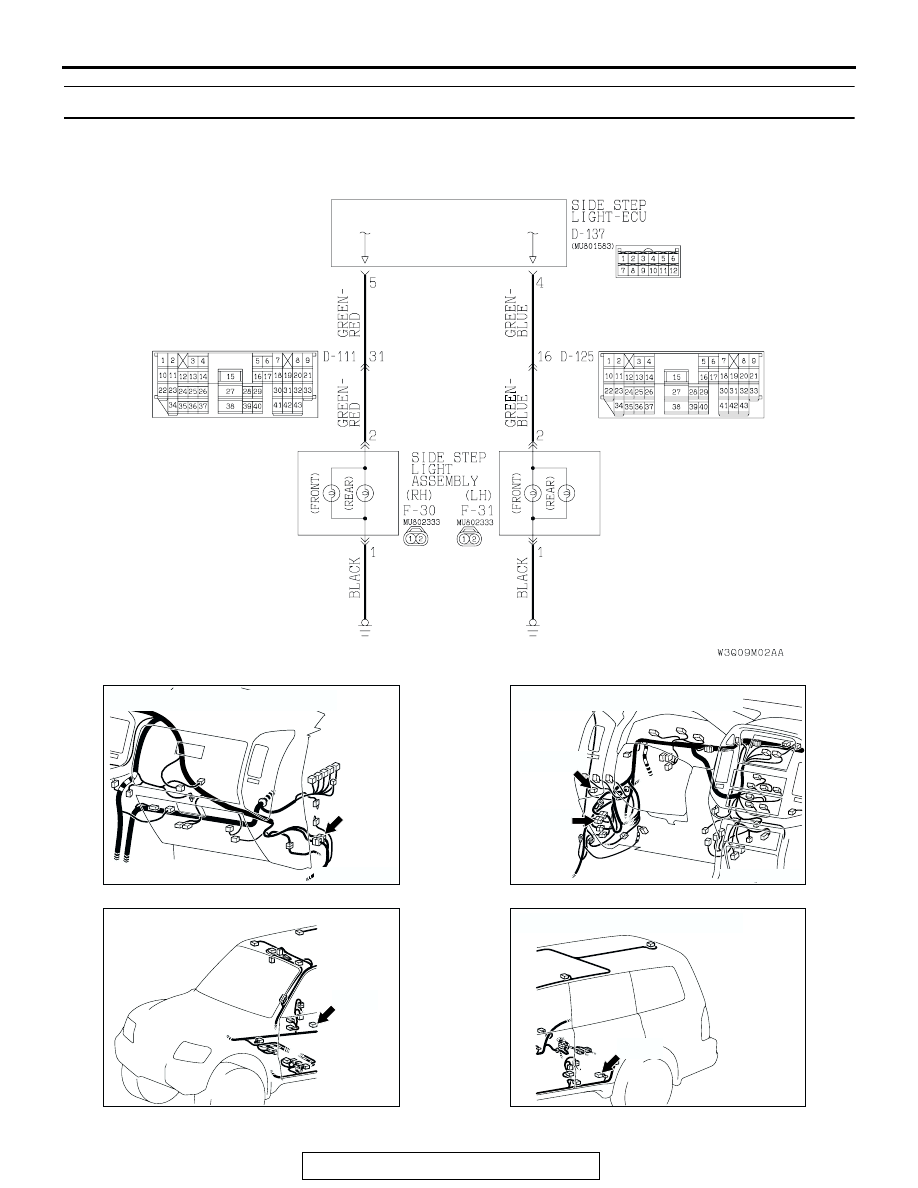

Side Step Light Circuit

AC204171

CONNECTOR : D-111

AG

AC204170

CONNECTORS : D-125, D-137

D-125

AW

D-137(GR)

AC204177

CONNECTOR : F-30

AI

F-30(B)

AC204178

CONNECTOR : F-31

AI

F-31(B)

SIDE STEP LIGHT
