SPECIFICATIONS
TSB Revision

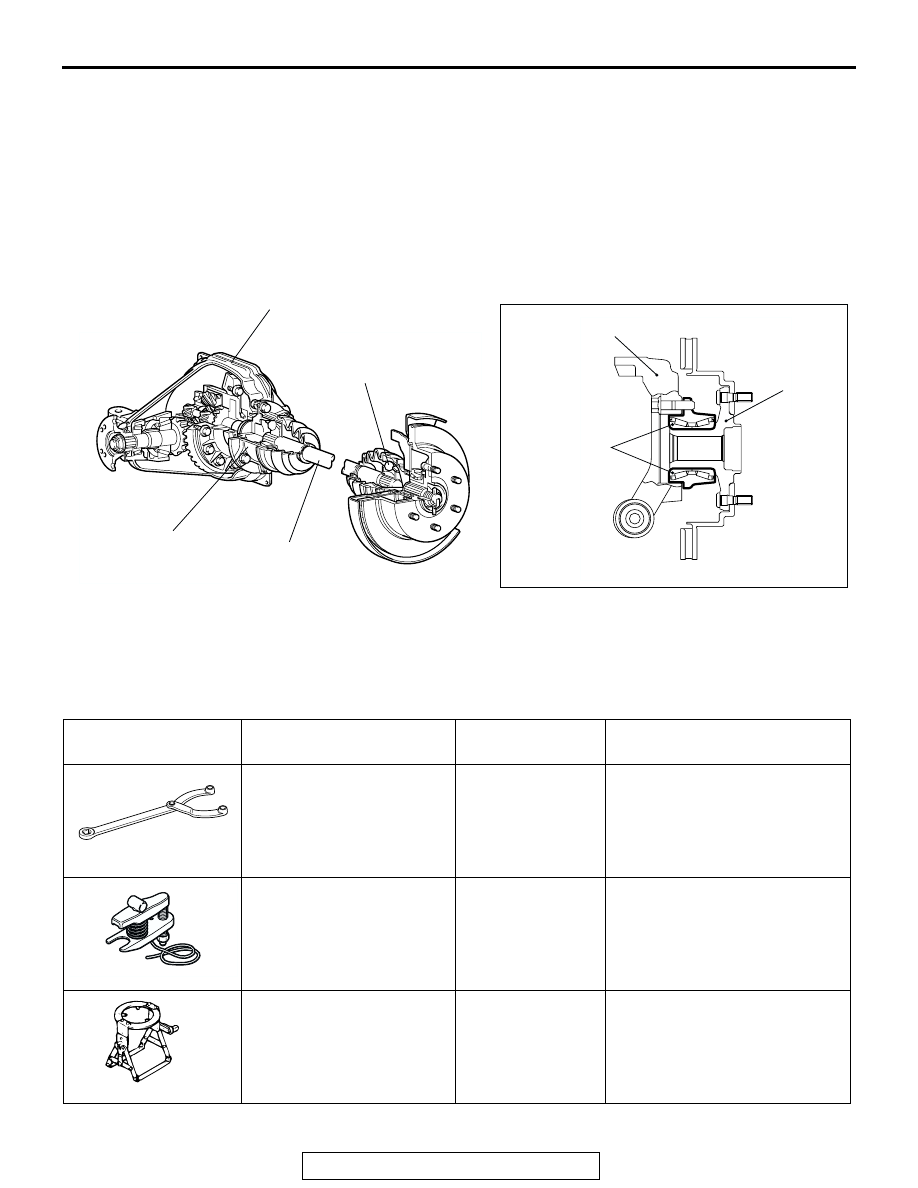

FRONT AXLE
26-65
GENERAL SPECIFICATIONS
M1261000200258
SERVICE SPECIFICATIONS
M1261000300299
Breather pipe bolt
12
± 2 N⋅m (107 ± 17 in-lb)
Differential mount bracket <RH> and housing tube connection nut
89
± 9 N⋅m (65 ± 7 ft-lb)
Differential mount bracket bolt
69
± 9 N⋅m (51 ± 7 ft-lb)
Free wheeling engage switch assembly
25
± 5 N⋅m (22 ± 4 ft-lb)
Housing tube and differential carrier connection bolt
90
± 10 N⋅m (67 ± 7 ft-lb)
Vacuum tank bolt
12
± 2 N⋅m (107 ± 17 in-lb)
Solenoid valve, Vacuum pipe
Actuator bolt
17
± 3 N⋅m (13 ± 2 ft-lb)
Solenoid valve assembly bolt
9.0
± 1.0 N⋅m (80 ± 9 in-lb)
Vacuum pipe bolt
12
± 2 N⋅m (107 ± 17 in-lb)
Vacuum tank bolt
12
± 2 N⋅m (107 ± 17 in-lb)
ITEM
SPECIFICATION
ITEM
SPECIFICATION
Front axle hub bearing
Type
Taper roller type nut bearing
Driveshaft
Joint type
Outer
Under cut joint
Inner
Double-offset joint
Differential
Final drive gear type
Hypoid gear
Reduction ratio
4.300
Pinion gear type
2 pinion
ITEM
STANDARD VALUE
LIMIT
Wheel bearing axis backlash mm (in)
-
0 (0)
Front axle total backlash mm (in)
-
11 (0.4)
Solenoid valve resistance [at 20
°C (68°F)] Ω
36
− 46
-
Hub rotation starting torque N
⋅m (in-ft)
-
1.75 (15.48)
Hub rotary rotation starting torque N
⋅m (ft-lb)
80
± 5 (3.2 ± 0.1)
-
Opening dimension of the
special tool (MB991561) mm (in)
When the BJ boot
band (small) is
crimped
2.9 (0.11)
-
When the BJ boot
band (large) is
crimped
3.2 (0.13)
-
Crimped width of the BJ boot band mm (in)
2.4
− 2.8 (0.09 − 0.11)
-
Crimped height of BJ boot band (larger) mm (in)
-
9.5 (0.37)
Final drive gear backlash mm (in)
0.11
− 0.16 (0.004 − 0.006)
-
Drive gear runout mm (in)
-
0.05 (0.002)
Differential gear backlash mm (in)
0
− 0.076 (0 − 0.0030)
0.2 (0.007)
