ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-47

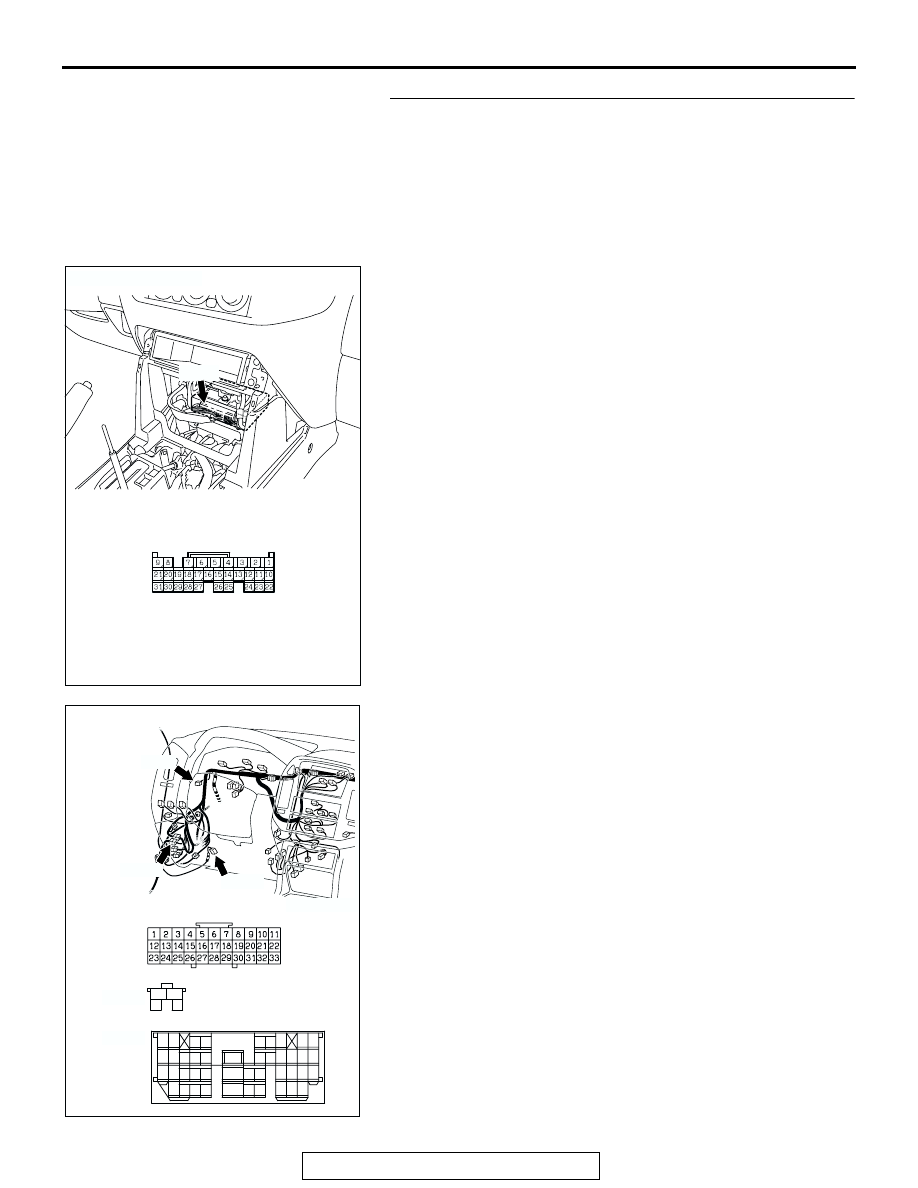

STEP 7. Check the harness wire between M-ASTC-ECU
connector E-119 terminal 19 and stoplight connector D-123
terminal 1.
NOTE: After inspecting joint connector D-29, D-116, intermedi-
ate connector E-111and D-125, inspect the wire. If joint connec-
tor D-29, D-116, intermediate connector E-111and D-125 are
damaged, repair or replace them. Refer to GROUP 00E, Har-
ness Connector Inspection

P.00E-2

.Then go to Step 8.

AC203901

AC204627AC

CONNECTOR: E-119

E-119

HARNESS CONNECTOR:
COMPONENT SIDE

E-119

AC204677

AC204701AC

CONNECTORS: D-29, D-123, D-125

D-29

D-125

D-123

D-29

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

D-125

4

2

3

1

D-123

HARNESS CONNECTOR:

COMPONENT SIDE

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-48

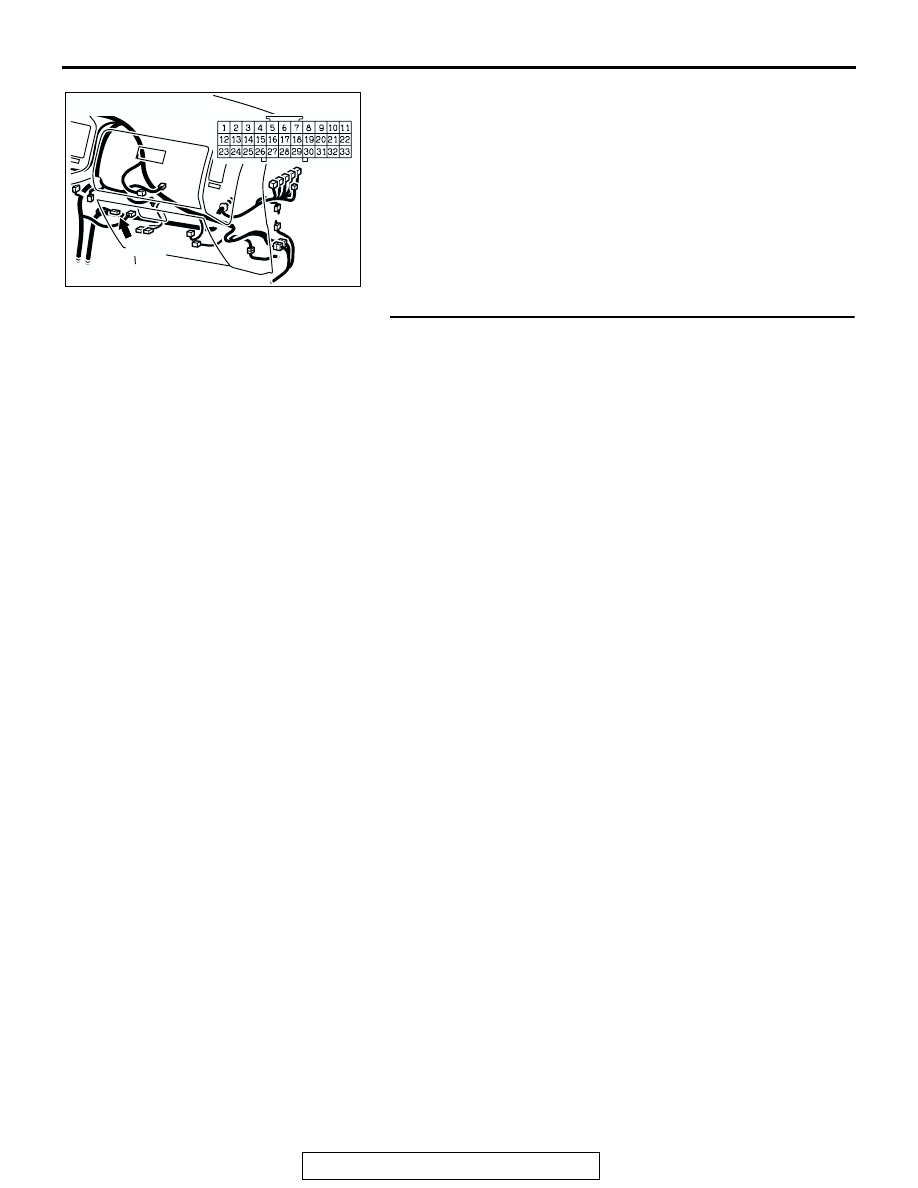

Q: Is the harness wire between M-ASTC-ECU connector

E-119 terminal 19 and stoplight switch connector D-123
terminal 1 damaged?
YES : Repair it and then go to Step 8.
NO :  Go to Step 8.

STEP 8. Recheck for diagnostic trouble code.
Q: Does DTC 33 reset?

YES : Return to Step 1.
NO :  The procedure is complete.

AC204384

D-116

AE

CONNECTOR: D-116

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-49

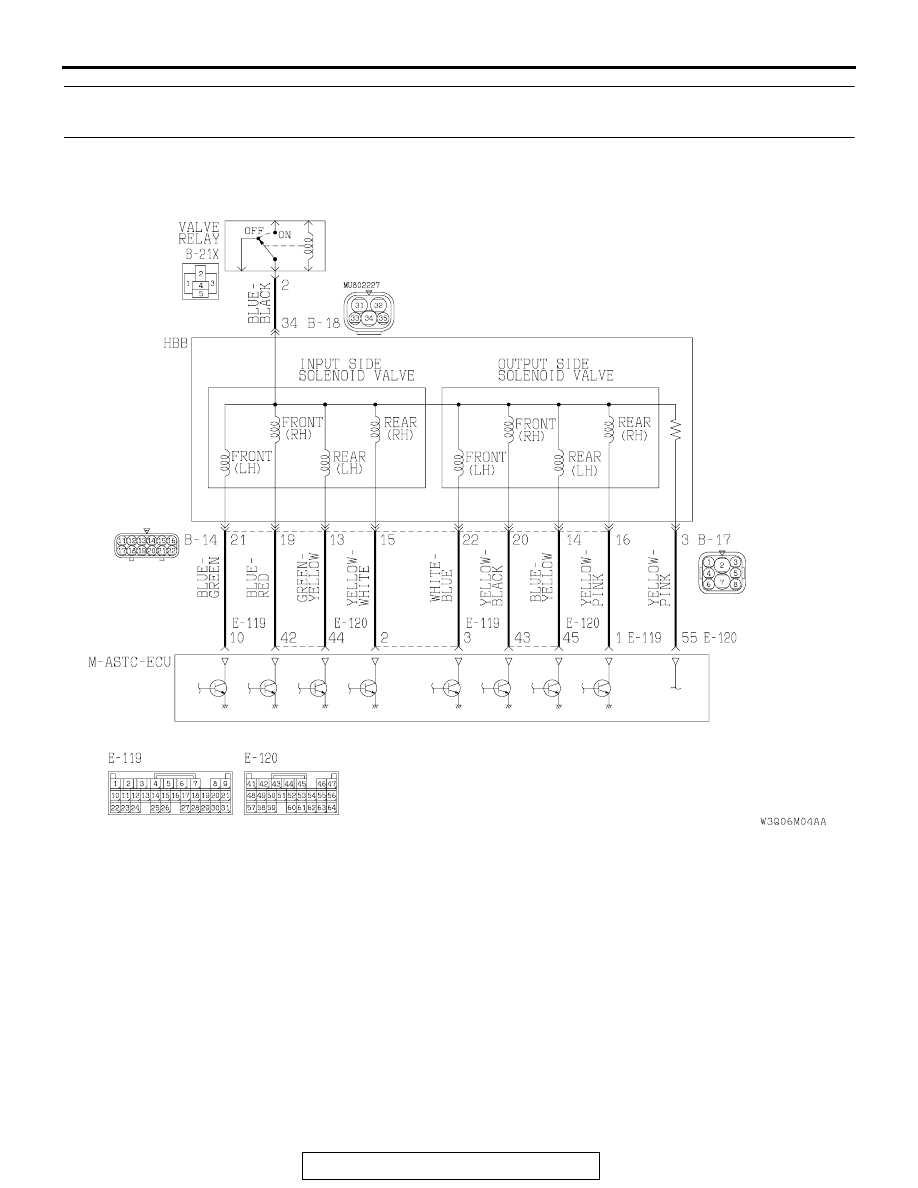

DTC 41, 42, 43, 44: Control Solenoid Valve
DTC 45, 46: Select Solenoid Valve

AC204647AB

Control Solenoid Valve Circuit

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

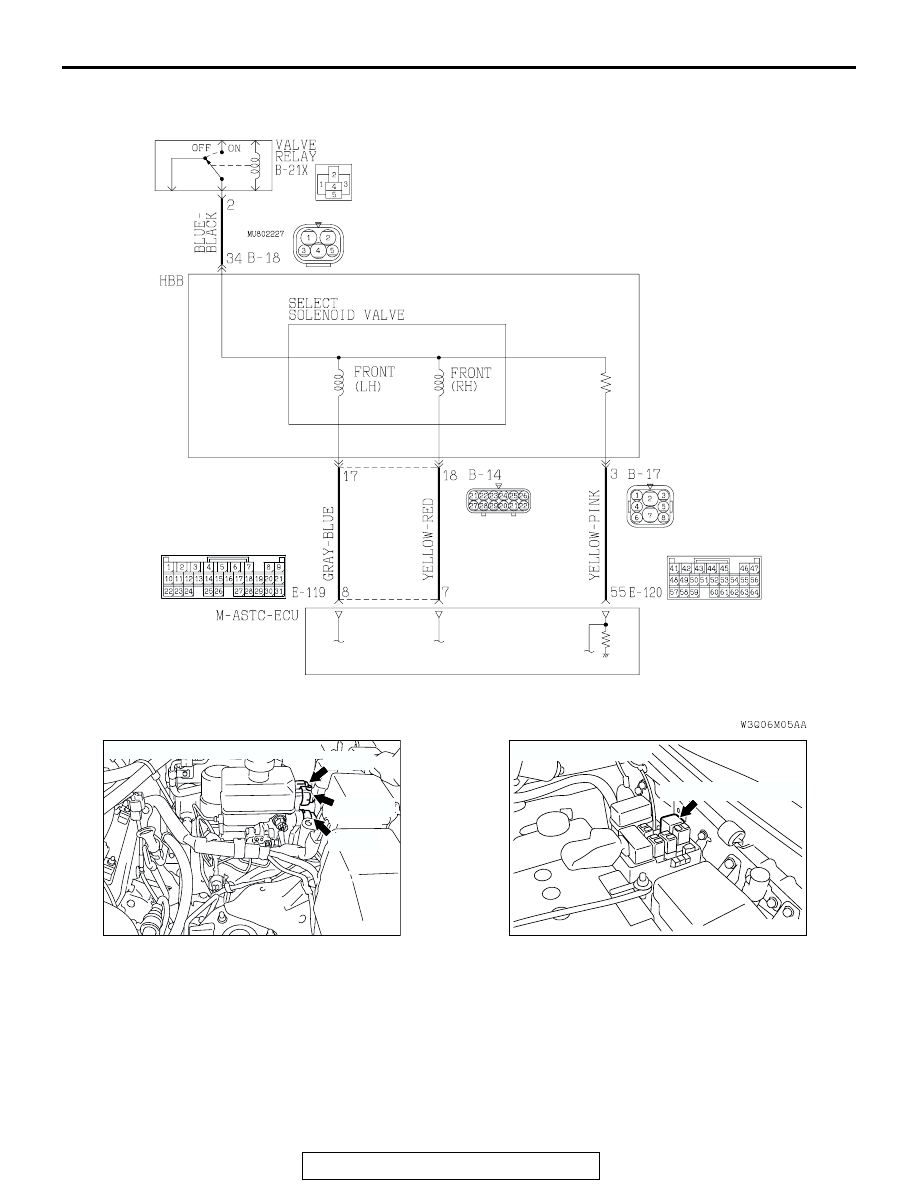

35B-50

AC204648AB

Select Solenoid Valve Circuit

AC204702AB

B-17(GR)

CONNECTORS: B-14, B-17, B-18

B-18(B)

B-14(B)

AC204674

AB

B-21X (VALVE RELAY)

CONNECTOR: B-21X
