HYDRAULIC BRAKE BOOSTER (HBB) DIAGNOSIS

TSB Revision

BASIC BRAKE SYSTEM

35A-55

STEP 22. Check the following connectors.

• HBB connector B-17

• M-ASTC-ECU connector E-119

Check connectors, for loose, corroded or damaged terminals,
or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 23.
NO :  Repair the faulty connector or terminal. Then go to

Step 25.

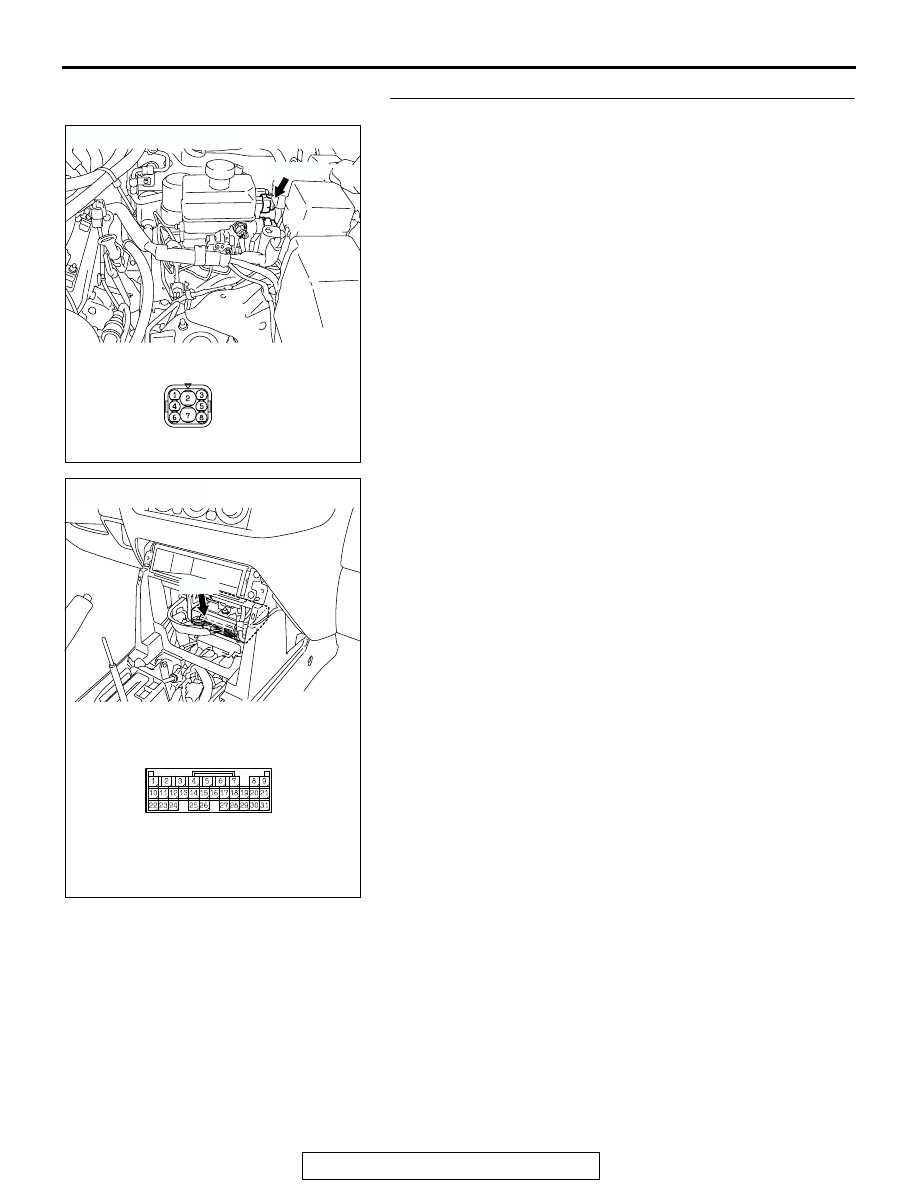

AC204629 AC

CONNECTOR: B-17

B-17 (GR)

HBB CONNECTOR

B-17

AC203901

AC204627 AB

CONNECTOR: E-119

E-119

M-ASTC-ECU CONNECTOR

E-119

HYDRAULIC BRAKE BOOSTER (HBB) DIAGNOSIS

TSB Revision

BASIC BRAKE SYSTEM

35A-56

STEP 23. Check the following harness wire.

• The wire between M-ASTC-ECU connector E-119 (terminal

25) and HBB connector B-17 (terminal 4)

Q: Is the harness wire damaged?

YES : Repair or replace it and then go to Step 25.
NO :  Go to Step 24.

STEP 24. Recheck for diagnostic trouble code.
(1) Erase the DTC memory.
(2) Recheck for diagnostic trouble code.
Q: Is DTC 54 set?

YES : Replace the M-ASTC-ECU (Refer to GROUP 35C,

M-ASTC-ECU

P.35C-213

). Then go to Step 25.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

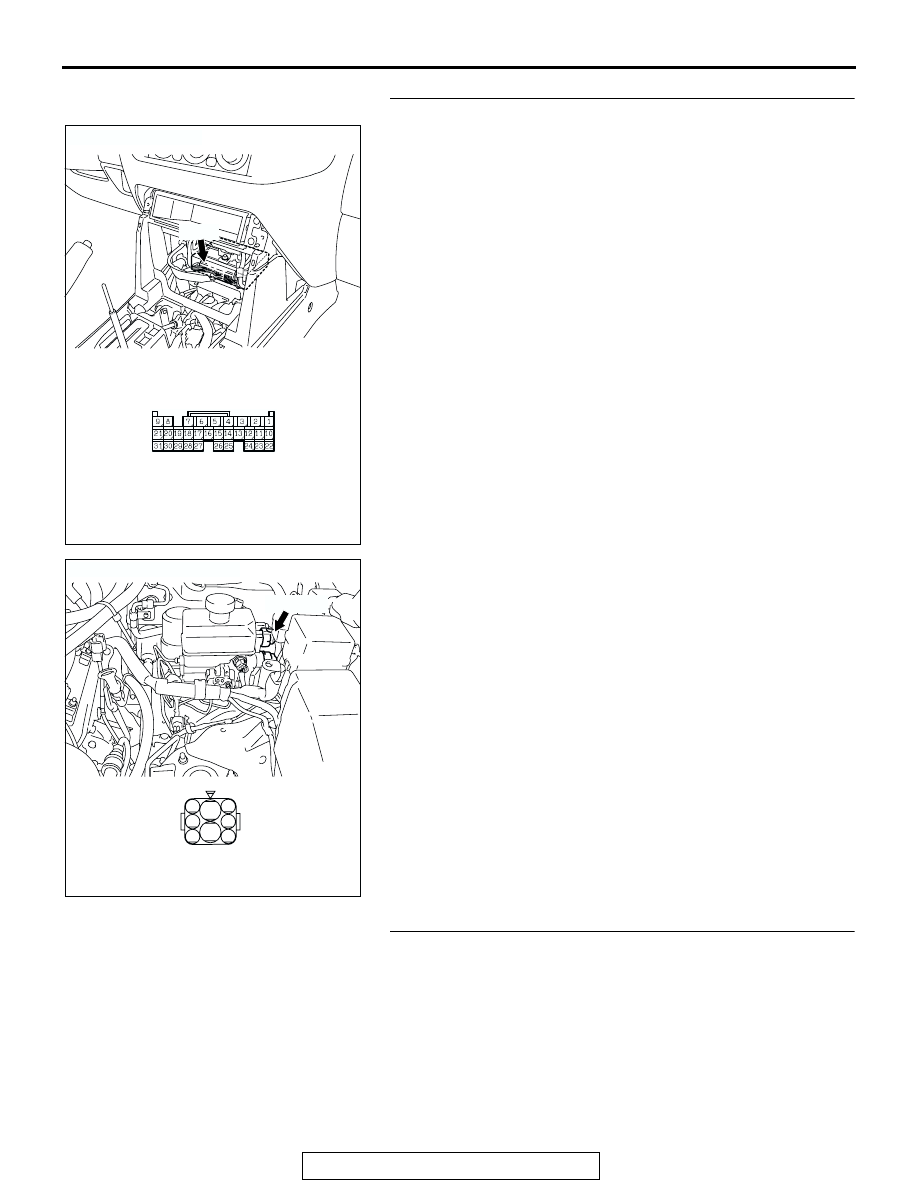

AC203901

AC204627AC

CONNECTOR: E-119

E-119

HARNESS CONNECTOR:
COMPONENT SIDE

E-119

AC204629 AE

CONNECTOR: B-17

B-17 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

1

2

3

4

5

6

7

8

B-17

HYDRAULIC BRAKE BOOSTER (HBB) DIAGNOSIS

TSB Revision

BASIC BRAKE SYSTEM

35A-57

STEP 25. Recheck for diagnostic trouble code.
(1) Erase the DTC memory.
(2) Recheck for diagnostic trouble code.
Q: Is DTC 54 set?

YES : Start over at Step 1.
NO :  The procedure is complete.

HYDRAULIC BRAKE BOOSTER (HBB) DIAGNOSIS

TSB Revision

BASIC BRAKE SYSTEM

35A-58

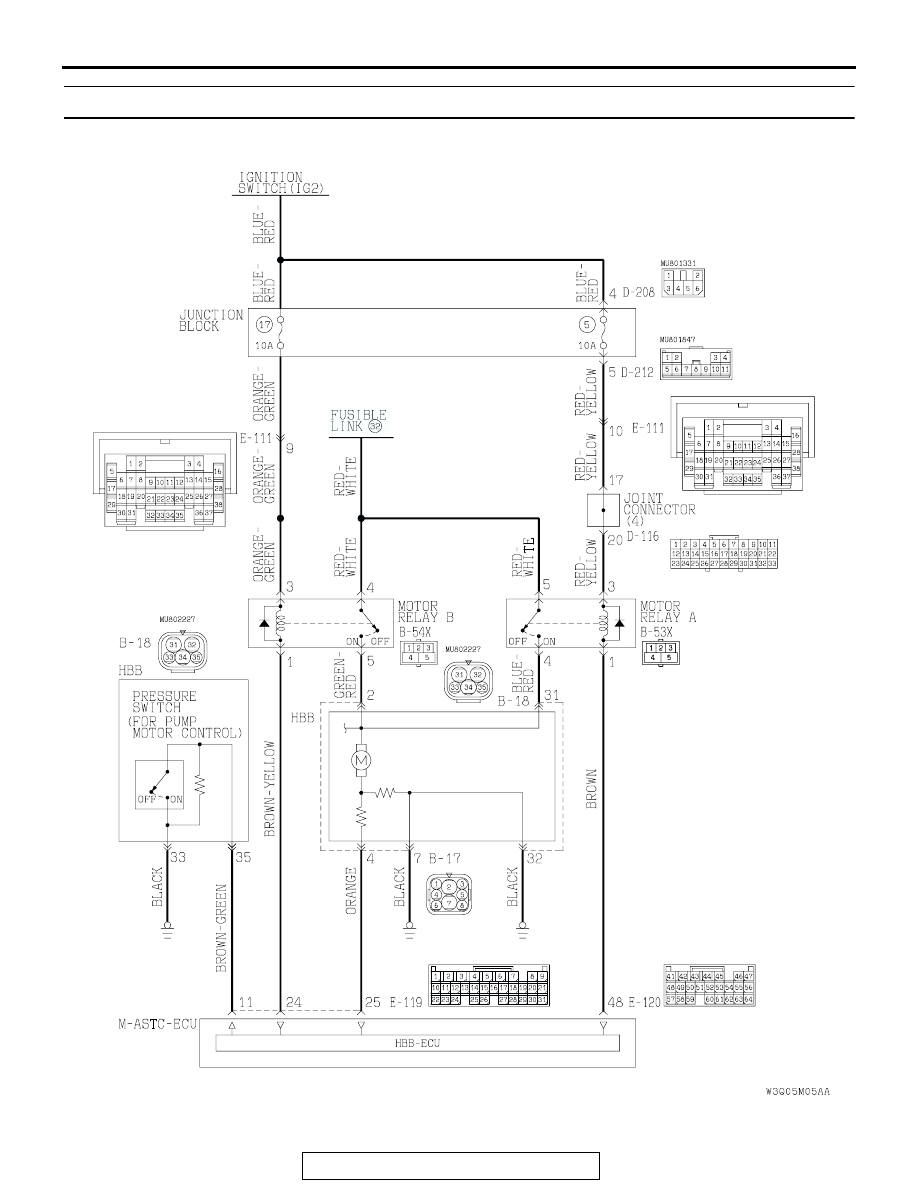

DTC 55 : Pump Motor Circuit (Pump Motor Energized Abnormally for Long Period)

AC204496AB

Pump Motor Control Circuit
