Mitsubishi Montero (2002-2004). Manual - part 697

TSB Revision

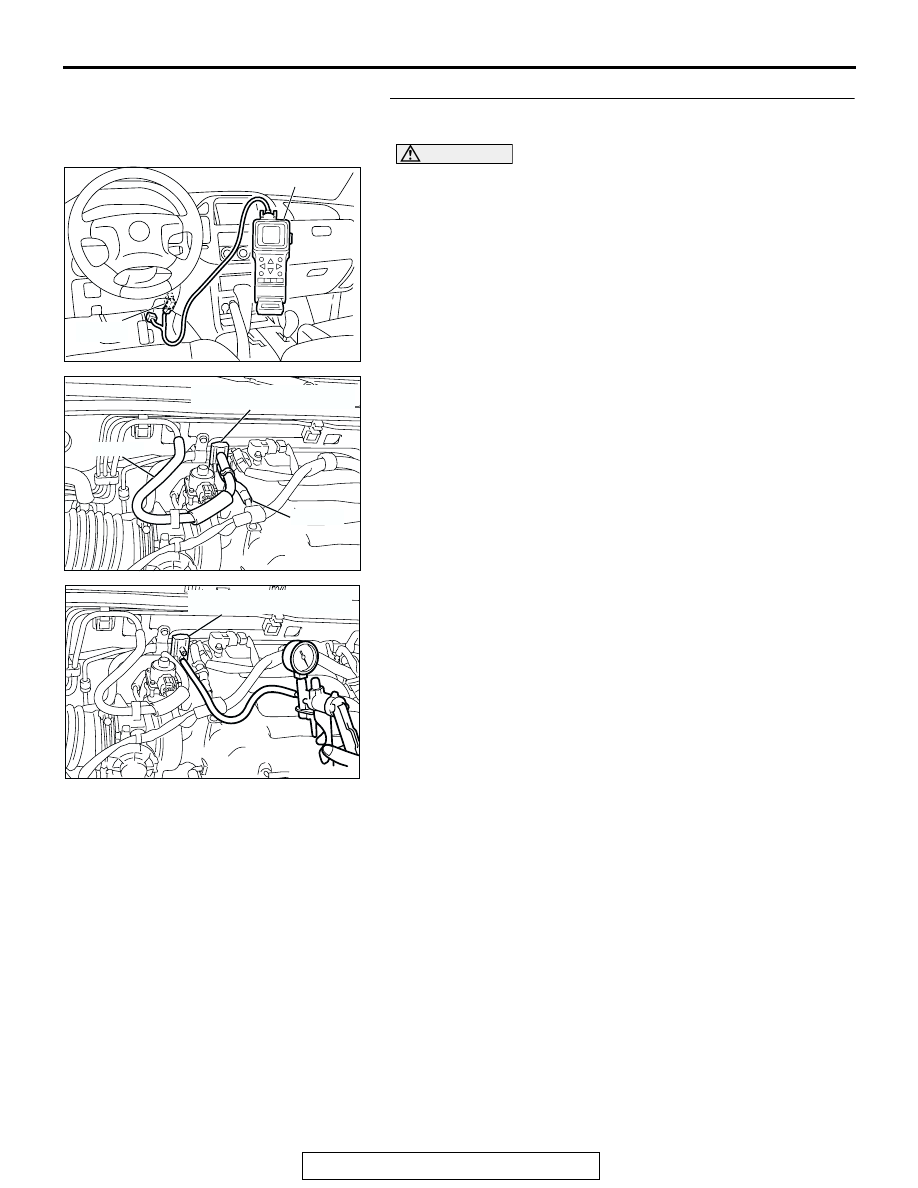

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-485

STEP 2. Check for leaks in the evaporative emission purge
solenoid.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.

(2) Disconnect hoses A and B from the evaporative emission

purge solenoid.

(3) Connect the hand vacuum pump to the evaporative

emission purge solenoid instead of hose A.

(4) Turn the ignition switch to the "ON" position.
(5) Set scan tool MB991502 to actuator test mode for item 08:

Evaporative Emission Purge Solenoid. When the
evaporative emission purge solenoid is operated, apply a
pressure on the hand vacuum pump and confirm that air is
blown from the other side nipple.

(6) Turn the ignition switch to the "LOCK" (OFF) position.
(7) Disconnect the hand vacuum pump and connect hoses A

and B to the evaporative emission purge solenoid.

Q: Does the evaporative emission purge solenoid nipple

blow the air?
YES : Go to Step 3.
NO :  Replace the evaporative emission purge solenoid. Go

to Step 26.

ACX01543

MB991502

AB

16-PIN

AC203994 AB

HOSE A

HOSE B

EVAPORATIVE EMISSION

PURGE SOLENOID

AC203995 AB

EVAPORATIVE EMISSION

PURGE SOLENOID

TSB Revision

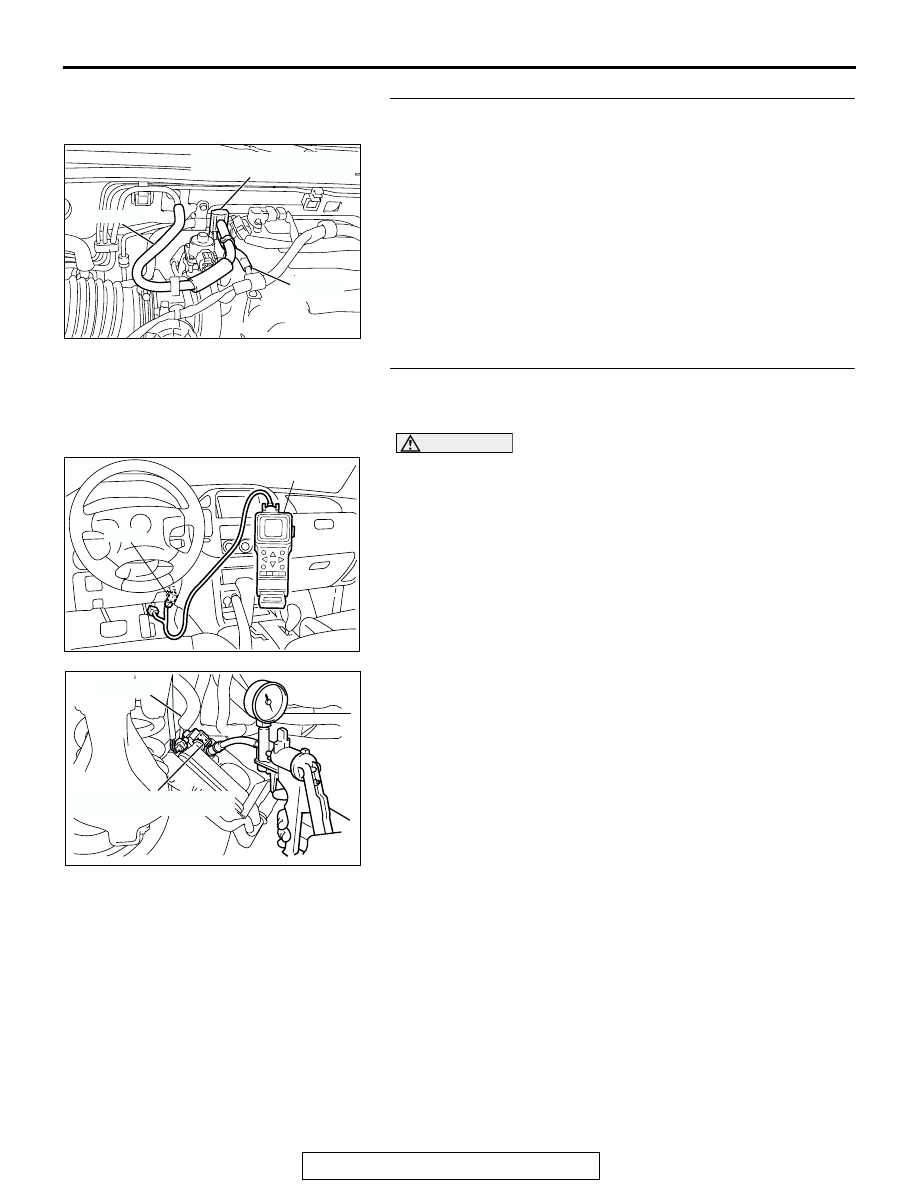

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-486

STEP 3. Check for leaks and clogging in the evaporative
emission system hoses A and hose B.

Using a hand vacuum pump, do leakage test and clogging
test on each hose A and B.

Q: Are the hoses in good condition?

YES : Go to Step 4.
NO :  Replace any damaged hose. Go to Step 26.

STEP 4. Check the evaporative emission ventilation
solenoid using scan tool MB991502. (Actuator test item
29).

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.

(2) Disconnect hose S from the evaporative emission

ventilation solenoid and connect a hand vacuum pump.

(3) Turn the ignition switch to the "ON" position.
(4) Set scan tool MB991502 to actuator test mode for item 29:

Evaporative Emission Ventilation Solenoid Valve. While the
evaporative emission ventilation solenoid is energized,
operate the hand vacuum pump and confirm that solenoid
holds vacuum.

(5) Turn the ignition switch to the "LOCK" (OFF) position and

disconnect scan tool MB991502.

(6) Disconnect the hand vacuum pump and connect hose S to

the evaporative emission ventilation solenoid.

Q: Does the evaporative emission ventilation solenoid hold

vacuum?
YES : Go to Step 5.
NO :  Replace the evaporative emission ventilation

solenoid. (Refer to GROUP 17, Evaporative Emission
Canister and Fuel Tank Pressure Relief Valve

P.17-

66

). Go to Step 26.

AC203994 AB

HOSE A

HOSE B

EVAPORATIVE EMISSION

PURGE SOLENOID

ACX01539

16-PIN

MB991502

AC

AC101769

HOSE S

AC

EVAPORATIVE EMISSION

VENTILATION SOLENOID

TSB Revision

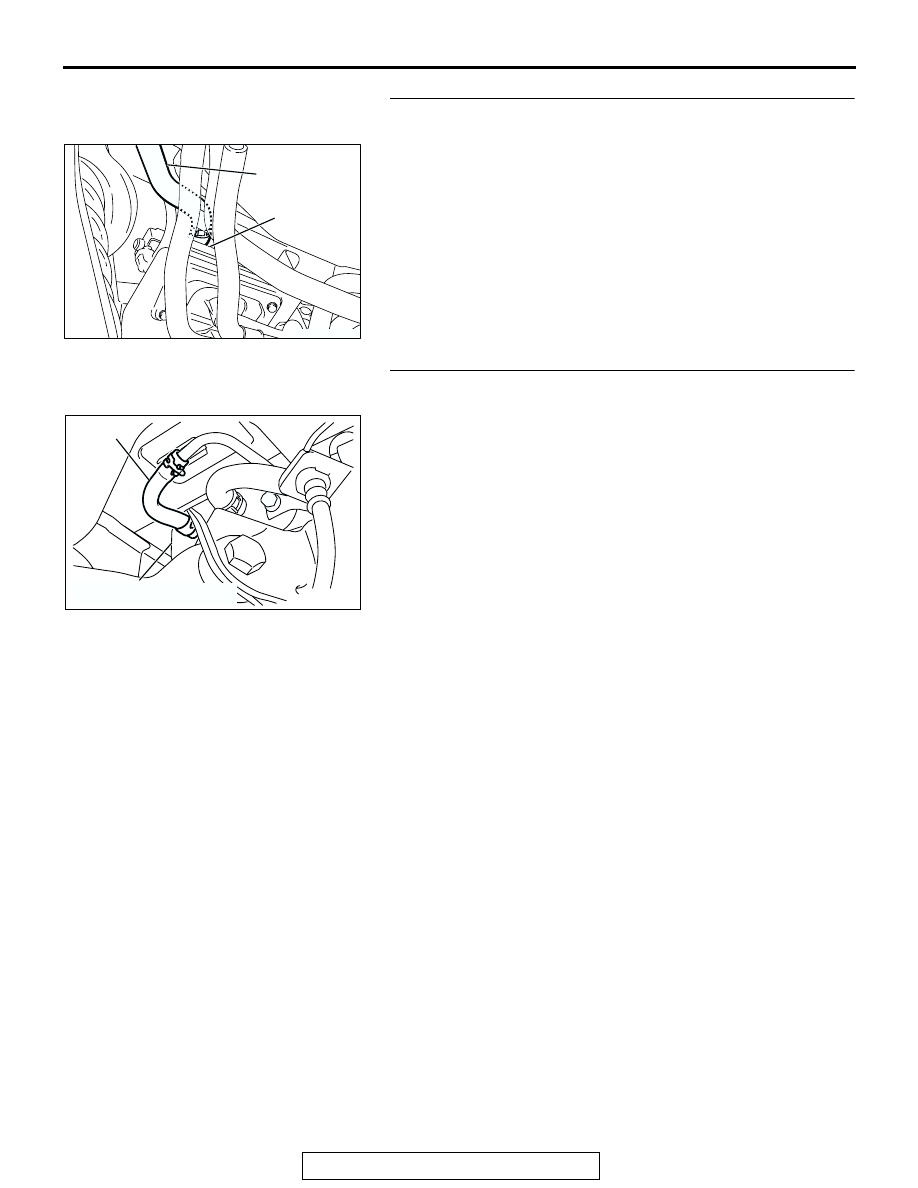

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-487

STEP 5. Check for leaks and clogging in the evaporative
emission system hose S.

Using a hand vacuum pump, do leakage test and clogging
test on hose S.

Q: Does hose S in good condition?

YES : Go to Step 6.
NO :  Replace hose S. Go to Step 26.

STEP 6. Check for leaks and clogging in evaporative
emission system hose E

Using a hand vacuum pump, do leakage test and clogging
test on hose E.

Q: Does hose E in good condition?

YES : Go to Step 7.
NO :  Replace hose E. Go to Step 26.

AC102452

HOSE S

AC

OVER VENT

VALVE

MODULE

AC101772

HOSE E

AC

EVAPORATIVE EMISSION

CANISTER

TSB Revision

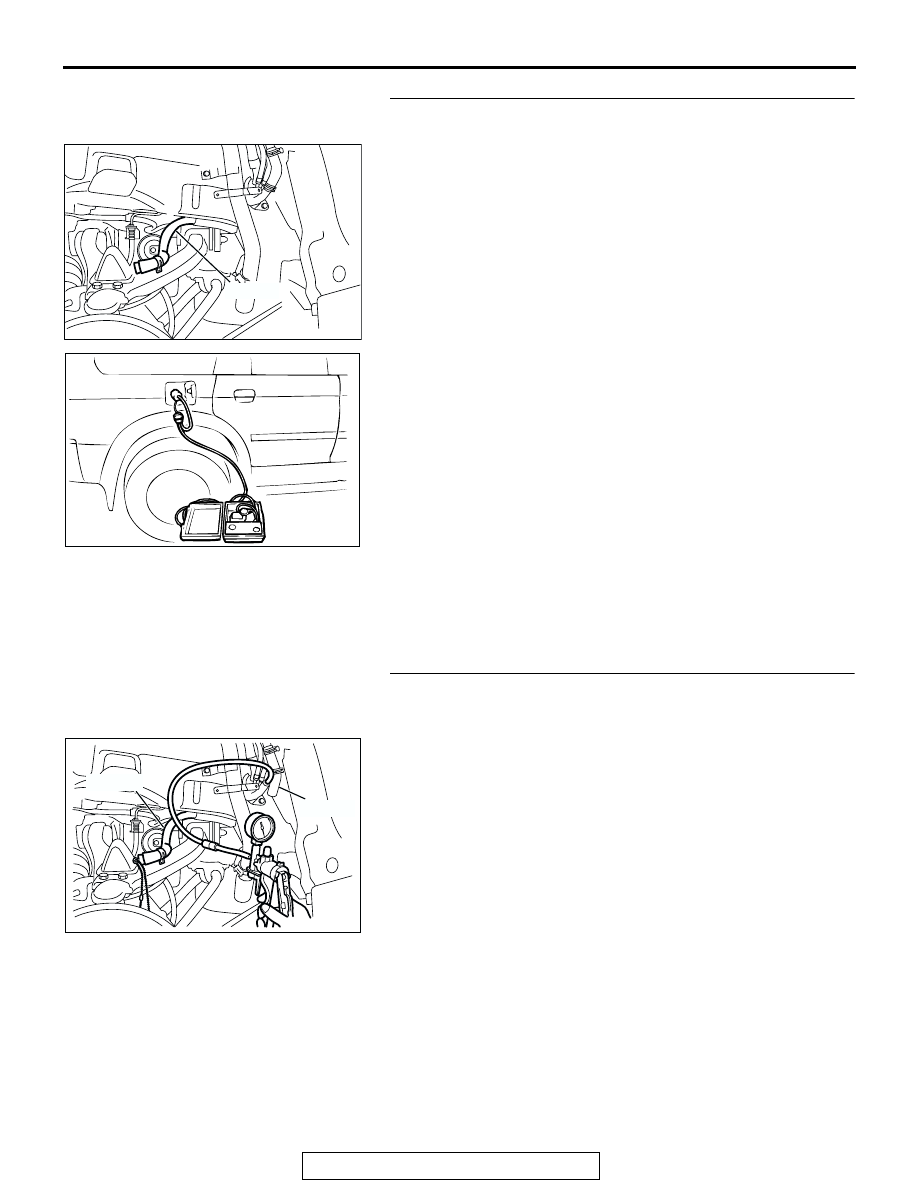

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-488

STEP 7. Pressure test the evaporative emission system
lines between hose F and R.
(1) Disconnect hose F from the evaporative emission canister

and plug hose F securely.

(2) Confirm that the evaporative emission system pressure

pump (Miller number 6872A) is operating properly. Perform
the self-test as described in the manufacturer's instructions.

(3) Remove the fuel cap.

(4) Connect the evaporative emission system pressure pump

to the fuel tank filler tube.

(5) Pressure test the system to determine whether any leaks

are present.
NOTE: The "Pressure test" in this procedure refers to the I/
M240 Simulation Test. The eight steps of this test are
described in the manufacturer's instructions for the evapo-
rative emission system pressure pump, Miller number
6872A.

(6) Disconnect the evaporative emission system pressure

pump and reinstall the fuel cap.

(7) Connect hose F to the evaporative emission canister.
Q: Is the evaporative emission system line free of leaks?

YES : Go to Step 15.
NO :  Go to Step 8.

STEP 8. Check for leaks in the evaporator line hose F.
(1) Remove the fuel tank filler tube protector. (Refer to GROUP

13B, Fuel Tank

P.13B-11

).

(2) Disconnect hose F from the evaporative emission canister

and plug hose F securely.

(3) Disconnect hose G from the evaporative emission canister

side, and connect a hand vacuum pump.

(4) Apply vacuum with the hand vacuum pump and confirm that

the vacuum holds.

(5) Disconnect the hand vacuum pump and connect hose F

and G.

Q: Does hose F hold vacuum?

YES : Go to Step 9.
NO :  Replace hose F and reinstall the fuel tank filler tube

protector. (Refer to GROUP 13B, Fuel Tank

P.13B-

11

). Go to Step 26.

AC102602 AC

HOSE F

ACX01358

AC101767 AC

HOSE F

HOSE G
