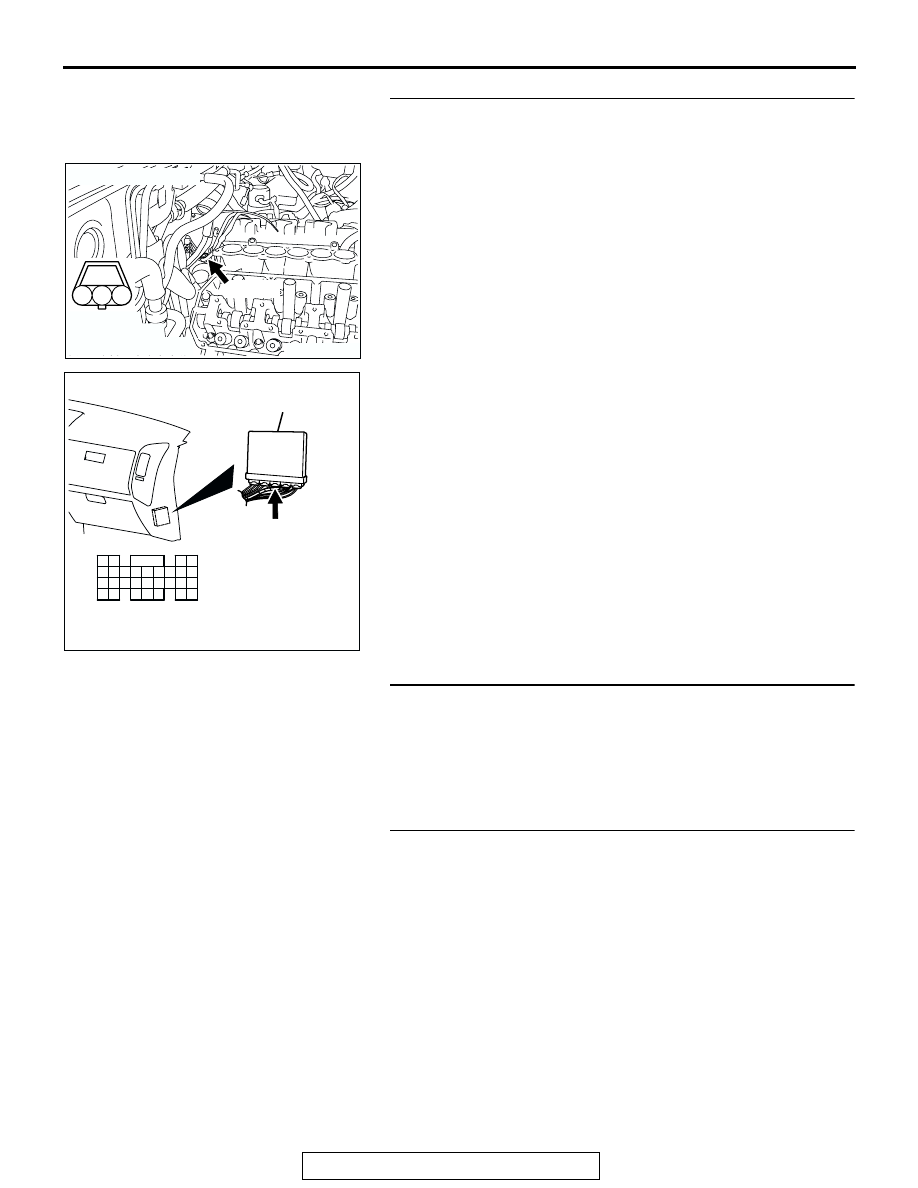

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-385

STEP 14. Check for open circuit and harness damage
between camshaft position sensor connector B-10
(terminal No. 1) and PCM connector D-134 (terminal No.
88).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 20.
NO :  Repair it. Then go to Step 20.

STEP 15. Check connector B-22X at the MFI relay for
damage.
Q: Is the connector in good condition?

YES : Go to Step 16.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

AK200965

1

2

3

AB

B-10(B)

CONNECTOR: B-10

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

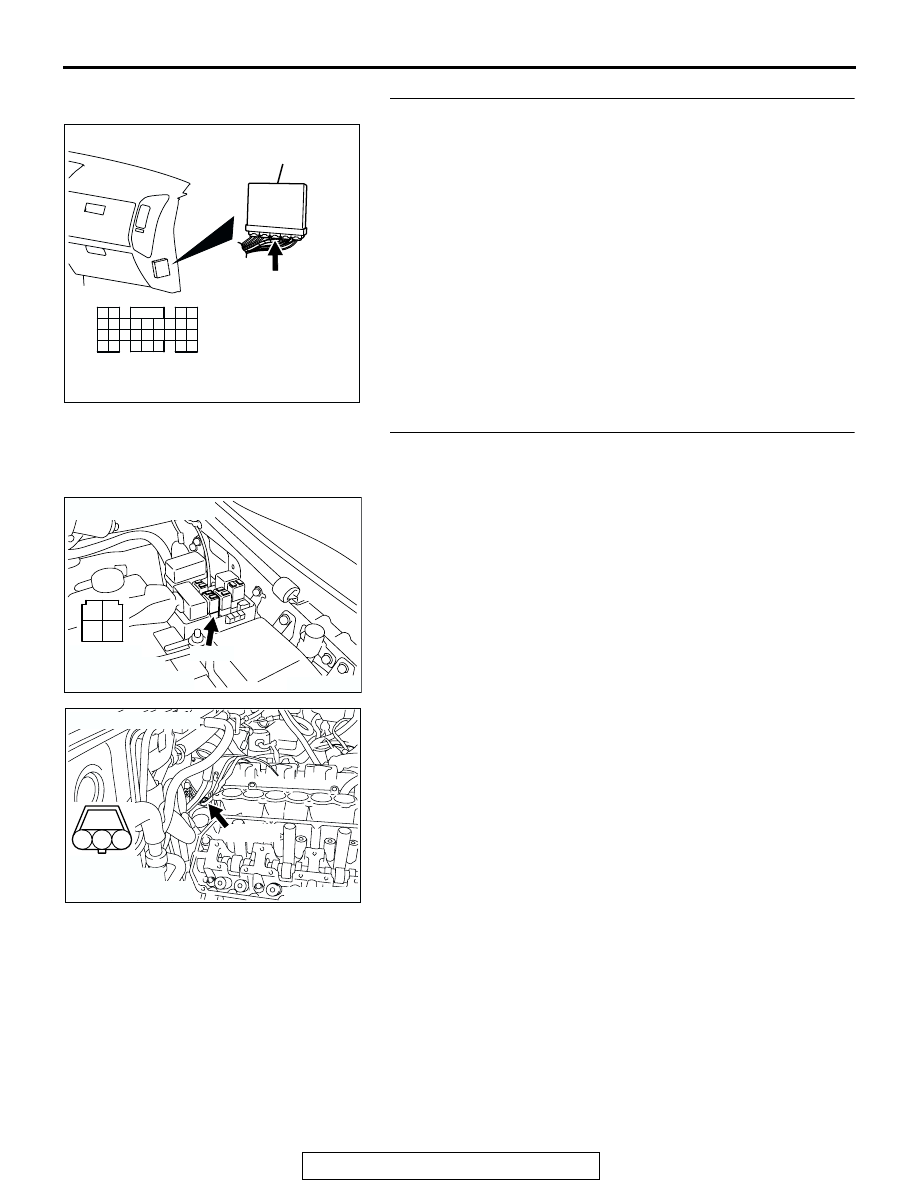

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-386

STEP 16. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 17.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

STEP 17. Check for harness damage between MFI relay
connector B-22X (terminal No. 1) and camshaft position
sensor connector B-10 (terminal No. 3).
Q: Is the harness wire in good condition?

YES : Go to Step 18.
NO :  Repair it. Then go to Step 20.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200965

1

2

3

AB

B-10(B)

CONNECTOR: B-10

HARNESS
CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-387

STEP 18. Check for harness damage between camshaft
position sensor connector B-10 (terminal No. 2) and PCM
connector D-134 (terminal No. 70).
Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair it. Then go to Step 20.

STEP 19. Check the camshaft position sensing cylinder.
Q: Is the camshaft position sensing cylinder in a good

condition?
YES : Replace the camshaft position sensor. Then go to

Step 20.

NO :  Repair it. Then go to Step 20.

STEP 20. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

GROUP 13A, Trouble Code Diagnosis

− OBD-II Drive Cycle

− Procedure 6 − Other Monitor

P.13Ab-2

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0340 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK200965

1

2

3

AB

B-10(B)

CONNECTOR: B-10

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-388

DTC P0401: Exhaust Gas Recirculation Flow Insufficient Detected

.

TECHNICAL DESCRIPTION

• When the EGR valve (stepper motor) is actuated

from the fully closed position toward the open
position while the engine is running, EGR gas
flows.

• The PCM checks how the EGR gas flow signal

changes.

.

DTC SET CONDITIONS

Check Conditions

• At least 20 seconds have passed since the last

monitor was complete.

• Engine coolant temperature is higher than 76°C

(169

°F).

• Engine speed is at between 910 and 1,650 r/min.

• Intake air temperature is higher than 0°C (32°F).

• Barometric pressure is higher than 76 kPa (11

psi).

• Vehicle speed is 30 km/h (18.7 mph) or more.

• At least 90 seconds have passed since manifold

differential pressure sensor output voltage fluctu-
ated 1.5 volts or more.

• The throttle valve is closed.

• Volumetric efficiency is lower than 28 percent.

• The PCM monitors for this condition for 3 cycles

of 2 seconds each during the drive cycle.

Judgement Criteria

• When the EGR valve opens to the prescribed

opening, when intake manifold pressure fluctua-
tion width is lower than 2.6 kPa (0.37 psi).

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Dirtiness of the EGR valve and EGR passage.

• EGR valve (stopper motor) failed.

• Open or shorted EGR valve (stopper motor) cir-

cuit, or loose connector.

• Manifold differential pressure sensor failed.

• PCM failed.

DIAGNOSIS

Required Special Tool:

• MB991502: Scan Tool (MUT-II)

STEP 1. Check the EGR system
Refer to GROUP 17, Emission Control System

− Exhaust Gas

Recirculation (EGR) System

− General Information

P.17-63

.

Q: Are there any abnormalities?

YES : Go to Step 2.
NO :  Repair it. Then go to Step 3.
