Mitsubishi Montero (2002-2004). Manual - part 625

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-197

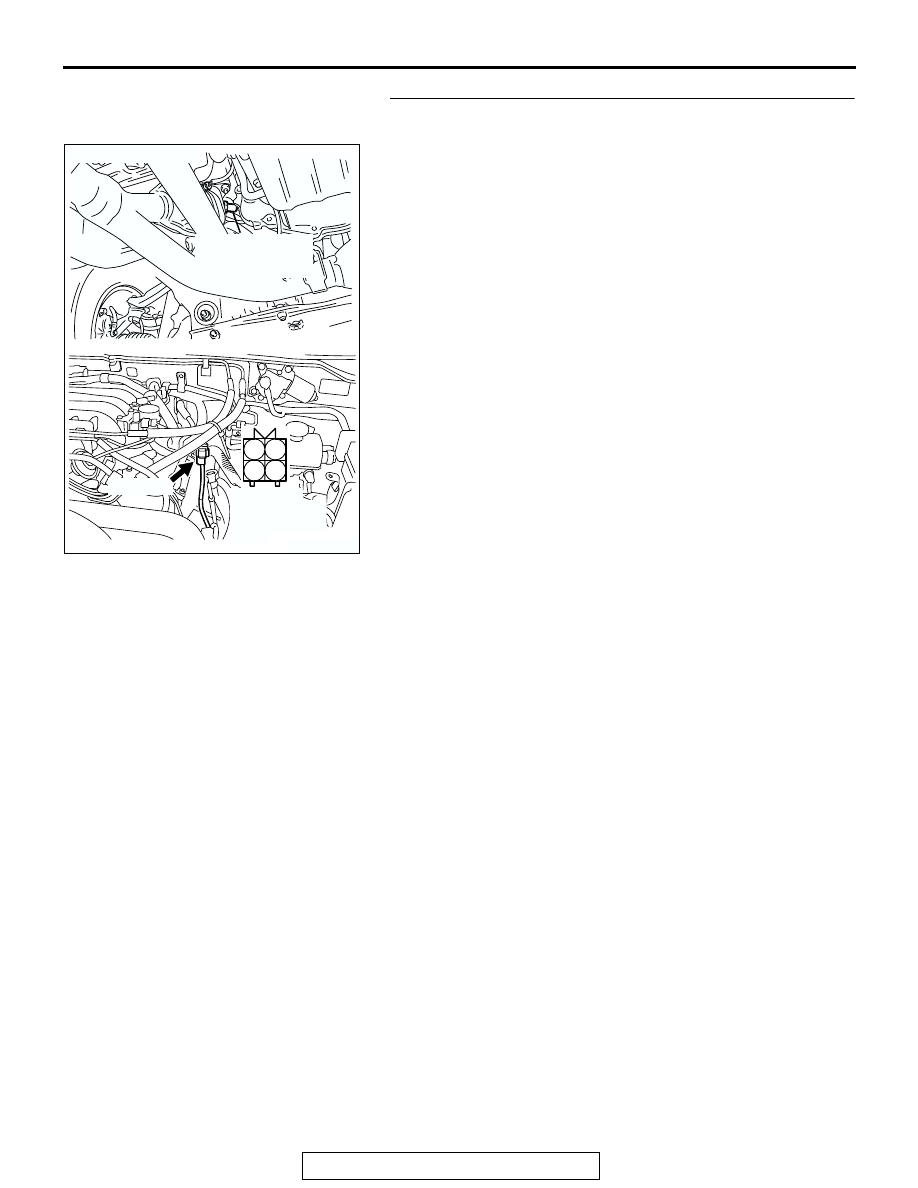

STEP 7. Check harness connector B-26 at left bank heated
oxygen sensor (front) for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK201278

1

2

3

4

CONNECTOR: B-26

B-26(GR)

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-198

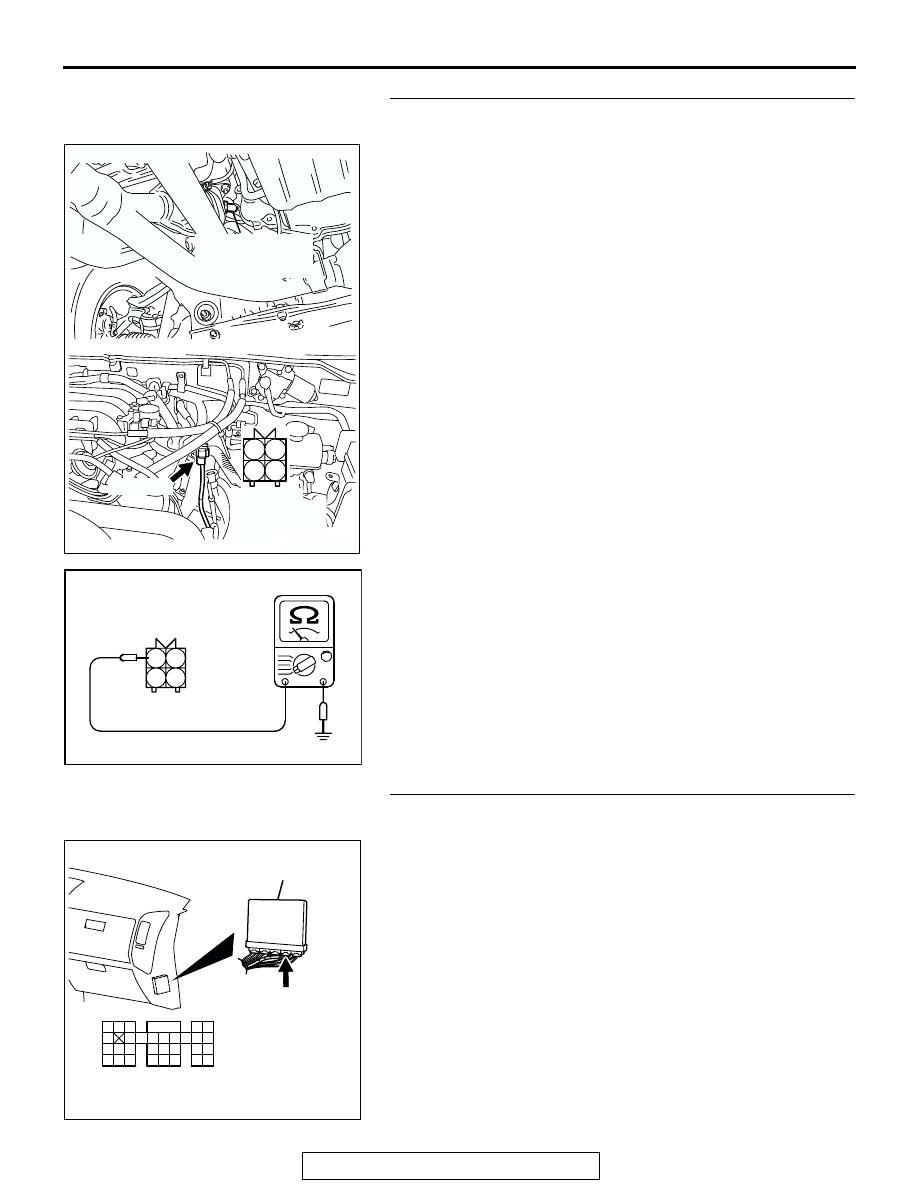

STEP 8. Check the continuity at left bank heated oxygen
sensor (front) harness side connector B-26.
(1) Disconnect the connector B-26 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 11.
NO :  Go to Step 9.

STEP 9. Check harness connector D-135 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK201278

1

2

3

4

CONNECTOR: B-26

B-26(GR)

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

AKX01497

B-26 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

4

3

AG

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-199

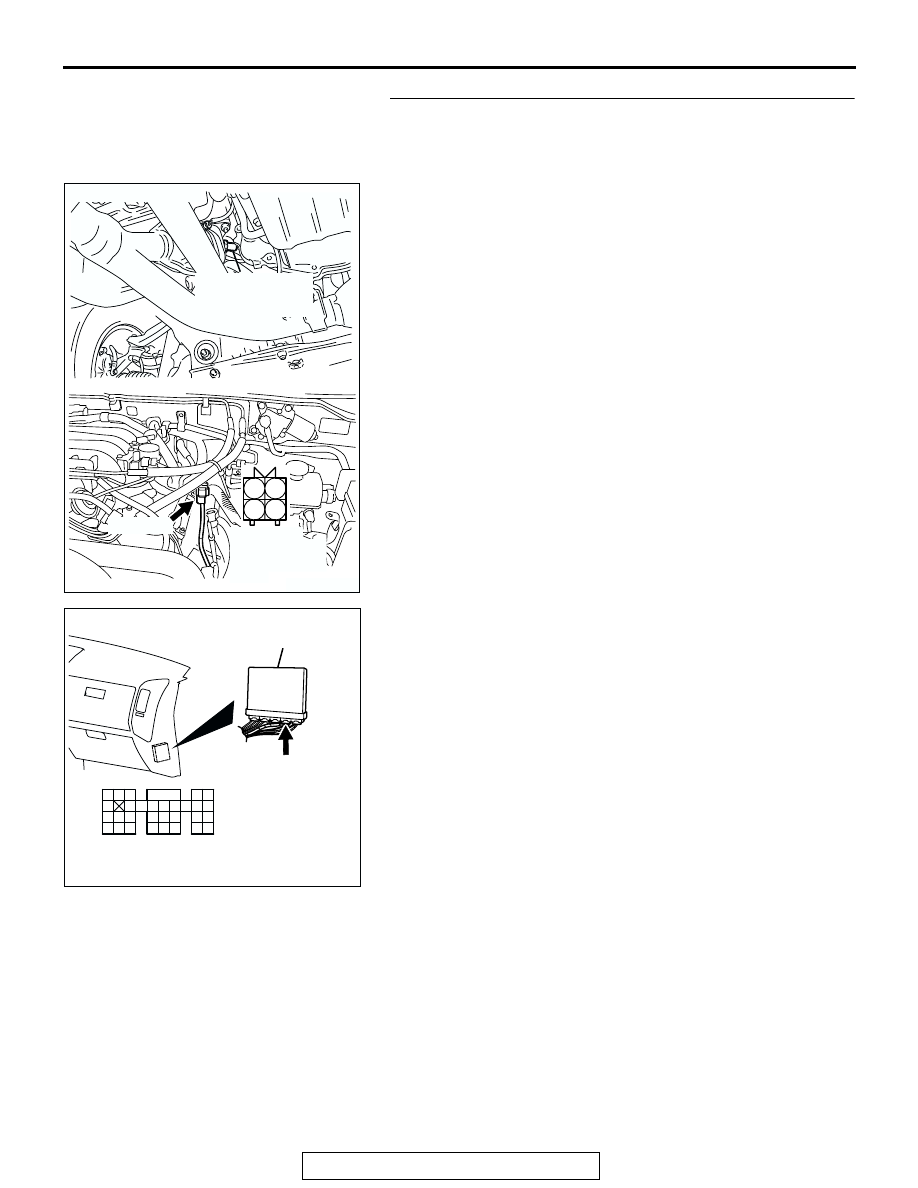

STEP 10. Check for open circuit and harness damage
between left bank heated oxygen sensor (front) connector
B-26 (terminal No. 2) and PCM connector D-135 (terminal
No. 96).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 15.
NO :  Repair it. Then go to Step 15.

AK201278

1

2

3

4

CONNECTOR: B-26

B-26(GR)

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-200

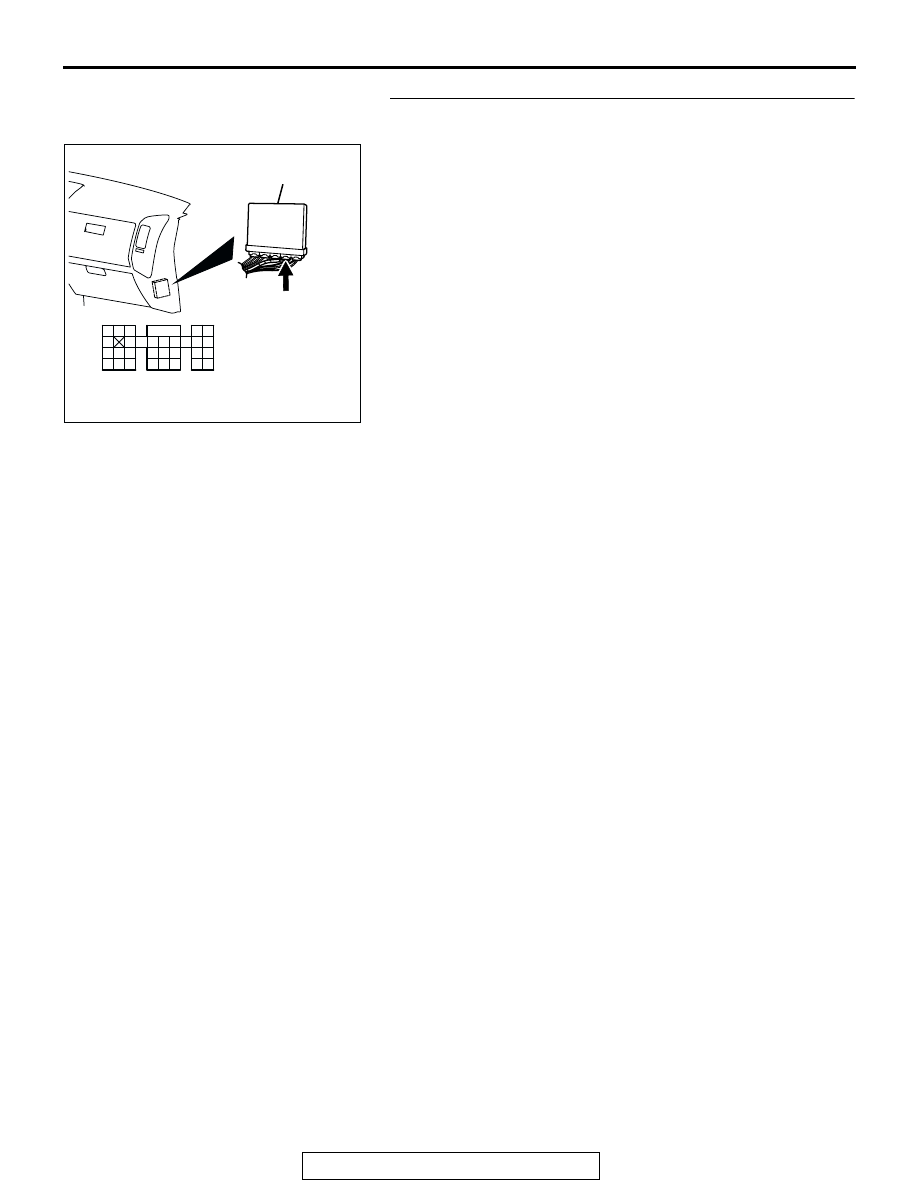

STEP 11. Check harness connector D-135 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 12.
NO :  Repair or replace it. Then go to Step 15.

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)
