RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-143

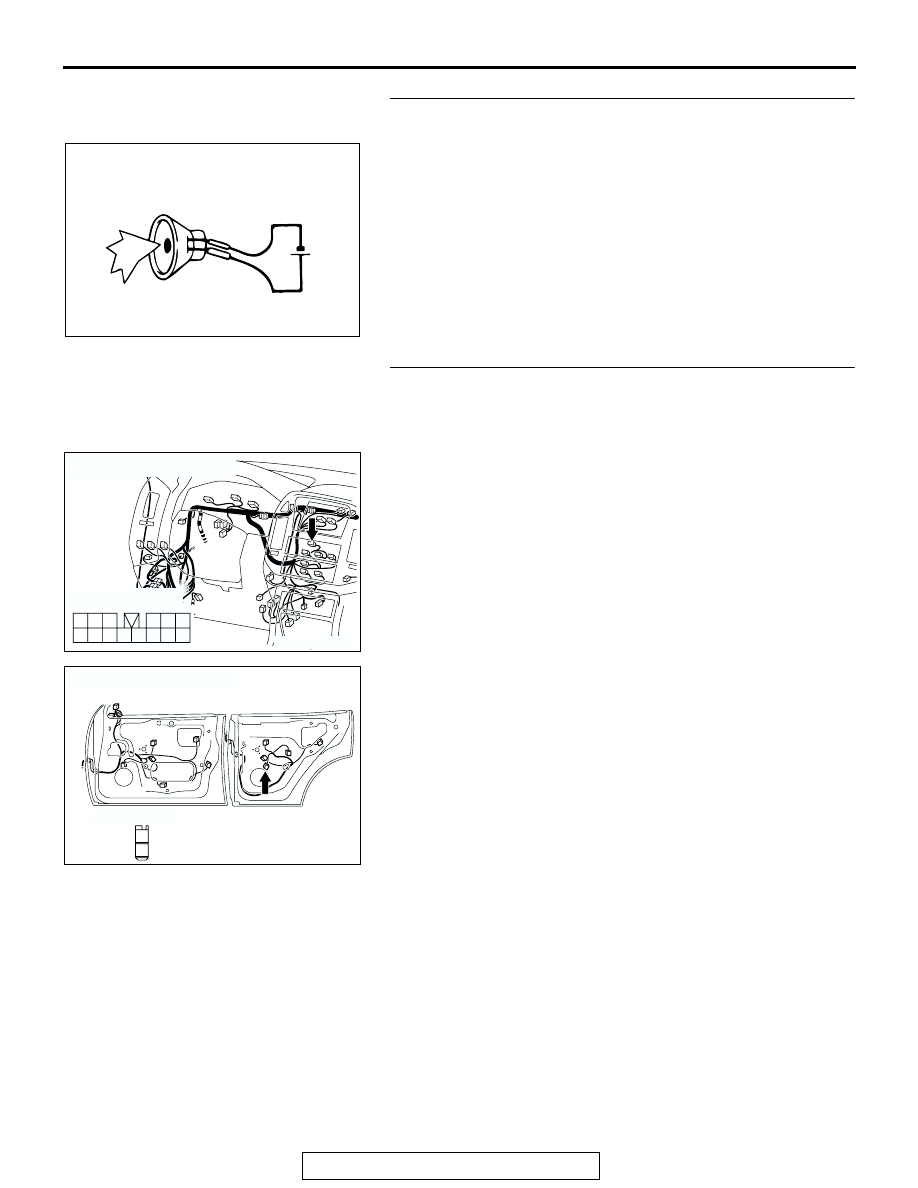

STEP 17. Check the rear door speaker (RH).
(1) Remove the rear door speaker (RH). Refer to

P.54A-183

.

(2) Check that the rear door speaker (RH) generates noise

when a five-volt voltage is applied on the rear door speaker
(RH) terminal.

Q: Is the rear door speaker (RH) generating noise?

YES : Go to Step 18.
NO :  Replace the rear door speaker (RH). The rear door

speaker (RH) should sound.

STEP 18. Check rear door speaker (RH) connector H-22
and radio and CD player connector D-06 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are harness connectors H-22 and D-06 in good

condition?
YES : Go to Step 19.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The rear door speaker (RH) should sound.

ACX01868AB

5V

AC204170

CONNECTOR : D-06

CS

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

AC204181

CONNECTOR :  H-22

AK

HARNESS SIDE

2

1

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-144

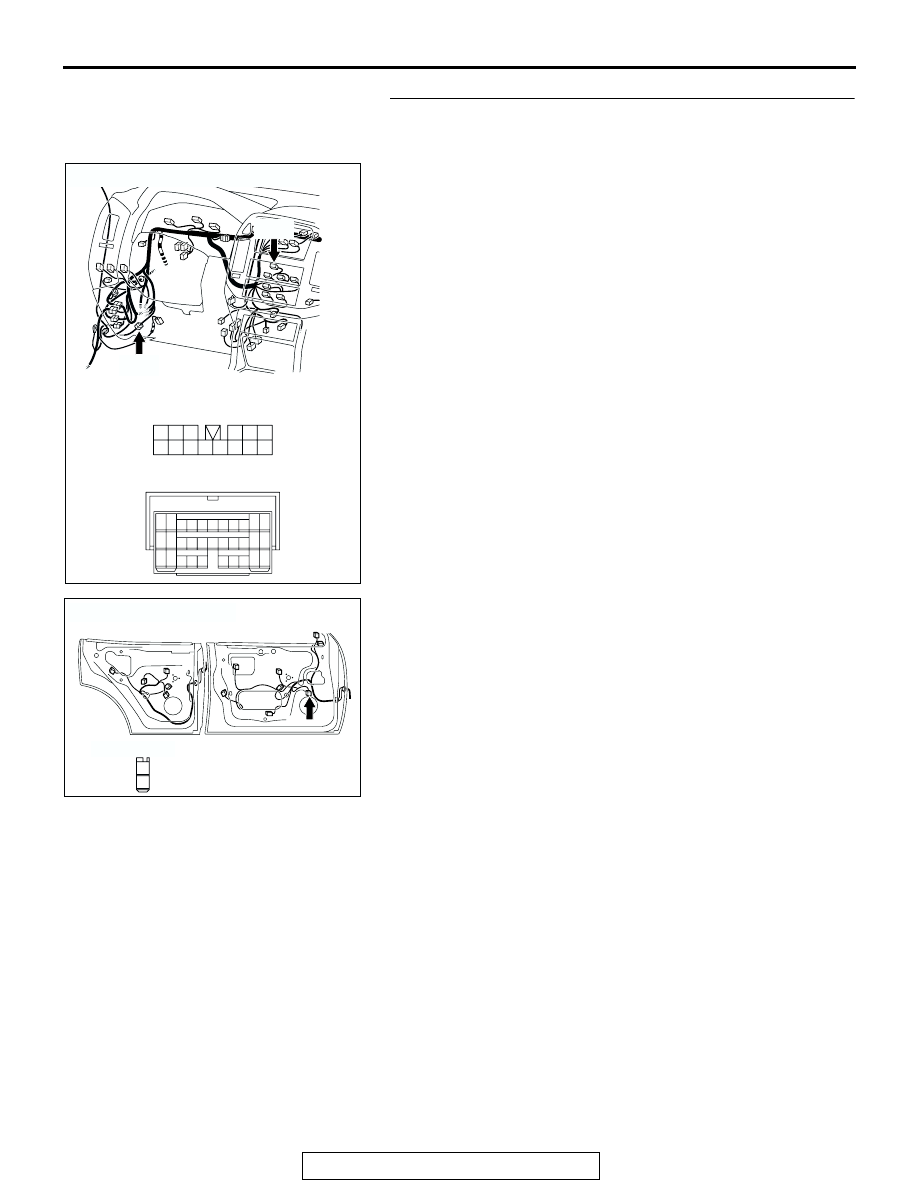

STEP 19. Check the wiring harness between rear door
speaker (RH) connector H-22 (terminals 1 and 2) and radio
and CD player connector D-06 (terminals 1 and 7).

NOTE: Also check intermediate connector F-23 and D-111. If
intermediate connector F-23 and D-111 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear door speaker (RH)

connector H-22 (terminals 1 and 2) and radio and CD
player connector D-06 (terminals 1 and 7) in good
condition?
YES : Repair or replace the radio and CD player. The rear

door speaker (RH) should sound.

NO :  Repair the wiring harness. The rear door speaker

(RH) should sound.

AC204170

CONNECTOR : D-06

CS

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

AC204181

CONNECTOR :  H-22

AK

HARNESS SIDE

2

1

AC204171

CONNECTOR : D-111

AQ

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC204177

CONNECTOR : F-23

AF

14

13

4

1112

5

3

10

8 9

2

7

1

6

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-145

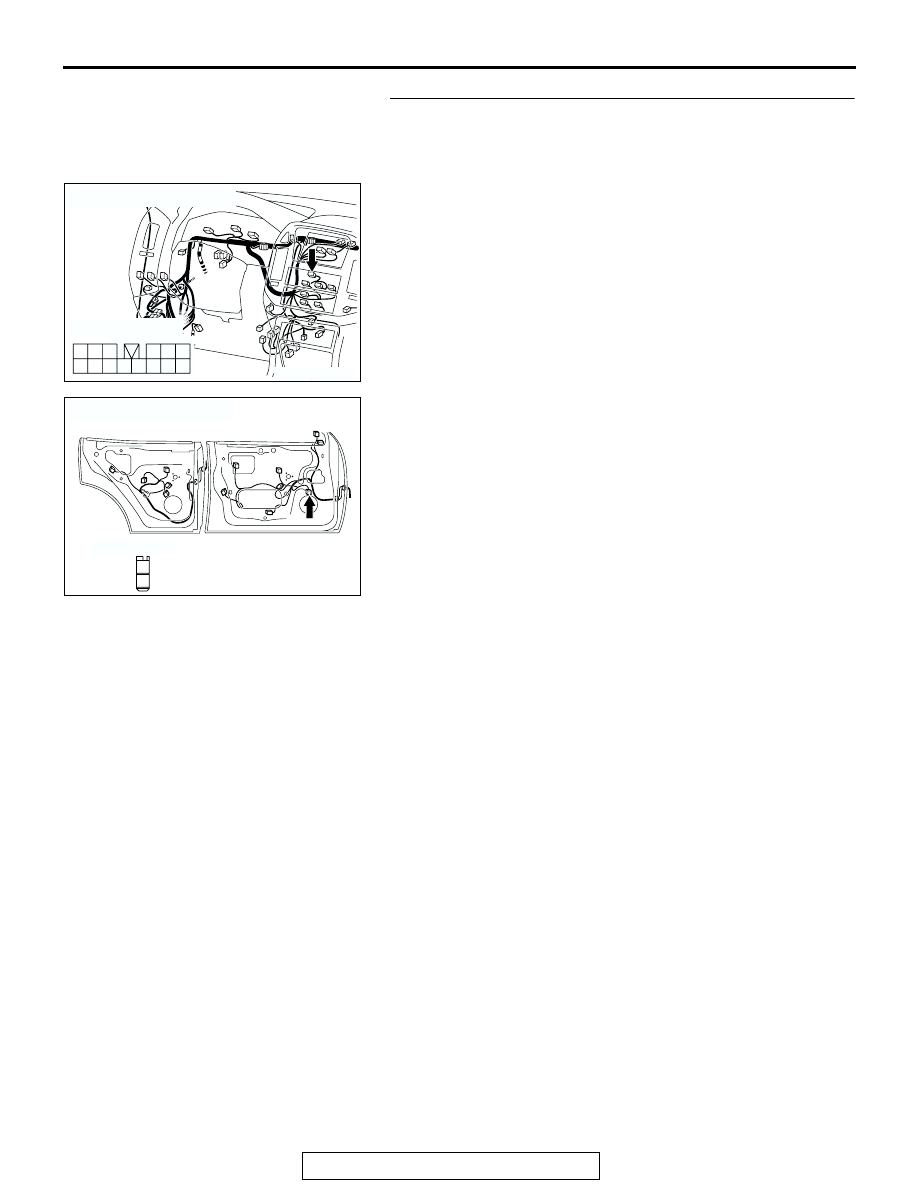

STEP 20. Check front door speaker (LH) connector H-08
and radio and CD player connector D-06 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are harness connectors H-08 and D-06 in good

condition?
YES : Go to Step 21.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The door speaker (LH) should sound.

AC204170

CONNECTOR : D-06

CS

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

AC204180

CONNECTOR :  H-08

AJ

HARNESS SIDE

2

1

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-146

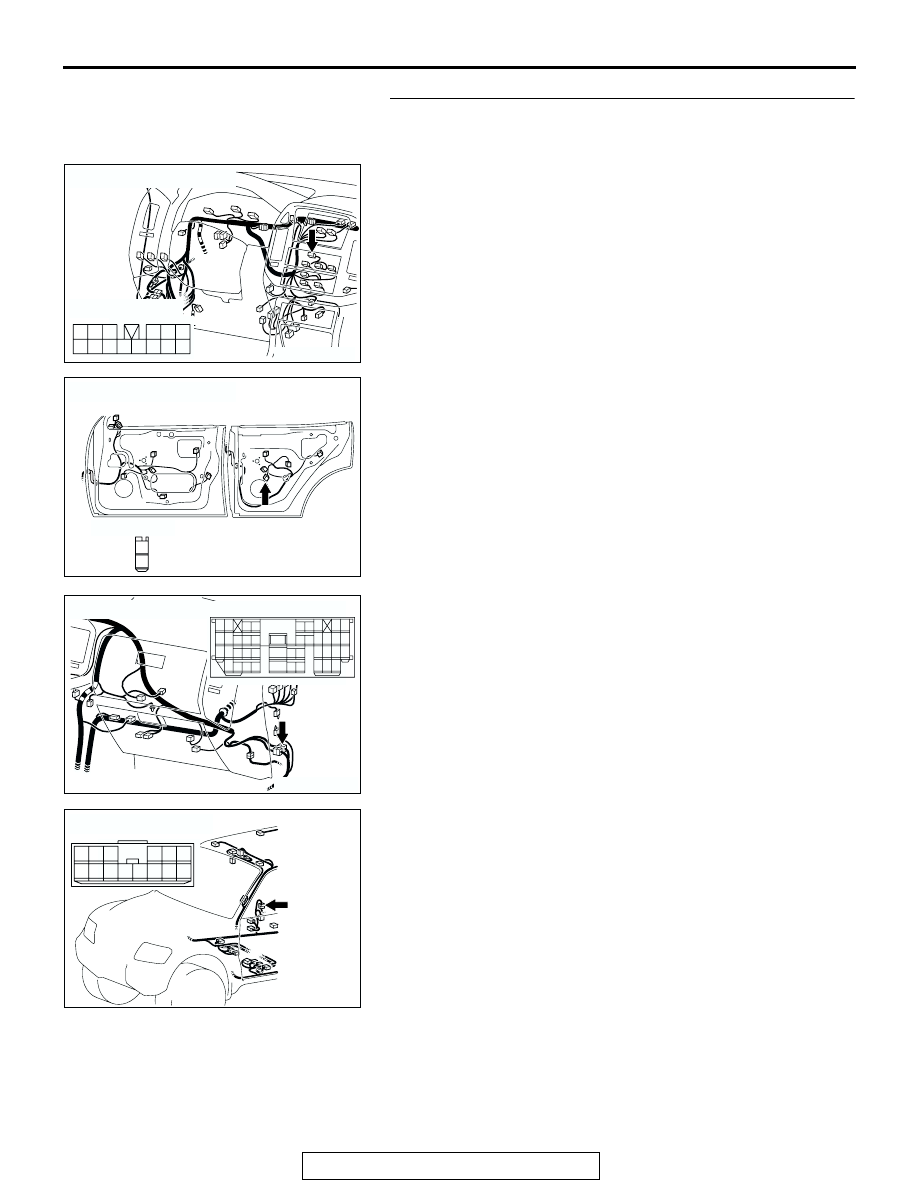

STEP 21. Check the wiring harness between front door
speaker (LH) connector H-08 (terminals 1 and 2) and radio
and CD player connector D-06 (terminals 5 and 13).
NOTE: Also check intermediate connector D-25. If intermediate
connector D-25 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door speaker (LH)

connector H-08 (terminals 1 and 2) and radio and CD
player connector D-06 (terminals 5 and 13) in good
condition?
YES : Repair or replace the radio and CD player. The front

door speaker (LH) should sound.

NO :  Repair the wiring harness. The front door speaker

(LH) should sound.

AC204188

CONNECTORS : D-06, D-25

D-06

D-06

D-25

BJ

D-25

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

10

9

31

30

20 21

7

6

28

17 18

8

19

29

4

3

25 26

14 15

1

23

12

2

13

24

5

16

27

11

22

32

AC204180

CONNECTOR :  H-08

AJ

HARNESS SIDE

2

1
