SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-215

STEP 3. Check the harness wires between sunroof motor
assembly connector F-02 (terminal 1) and fusible link (4).

NOTE: Also check intermediate connectors F-24, D-26 and D-
28 for loose, corroded or damaged terminals, or terminals
pushed back in the connectors. If intermediate connector F-24,
D-26 or D-28 is damaged, repair or replace the damaged com-
ponent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between sunroof motor assembly

connector F-02 (terminal 1) and fusible link (4) in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The sunroof
function should now work normally.

AC203849AD

CONNECTOR: F-02

F-02

10

1

2

3

4

5

6

7

8

9

(HARNESS SIDE)

F-02

ACX02274

FUSIBLE LINK (4)

AD

BATTERY

AC204484

AF

CONNECTOR: F-24

F-24

F-24

AC000758

CONNECTORS: D-26, D-28

AL

D-26

D-28

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-216

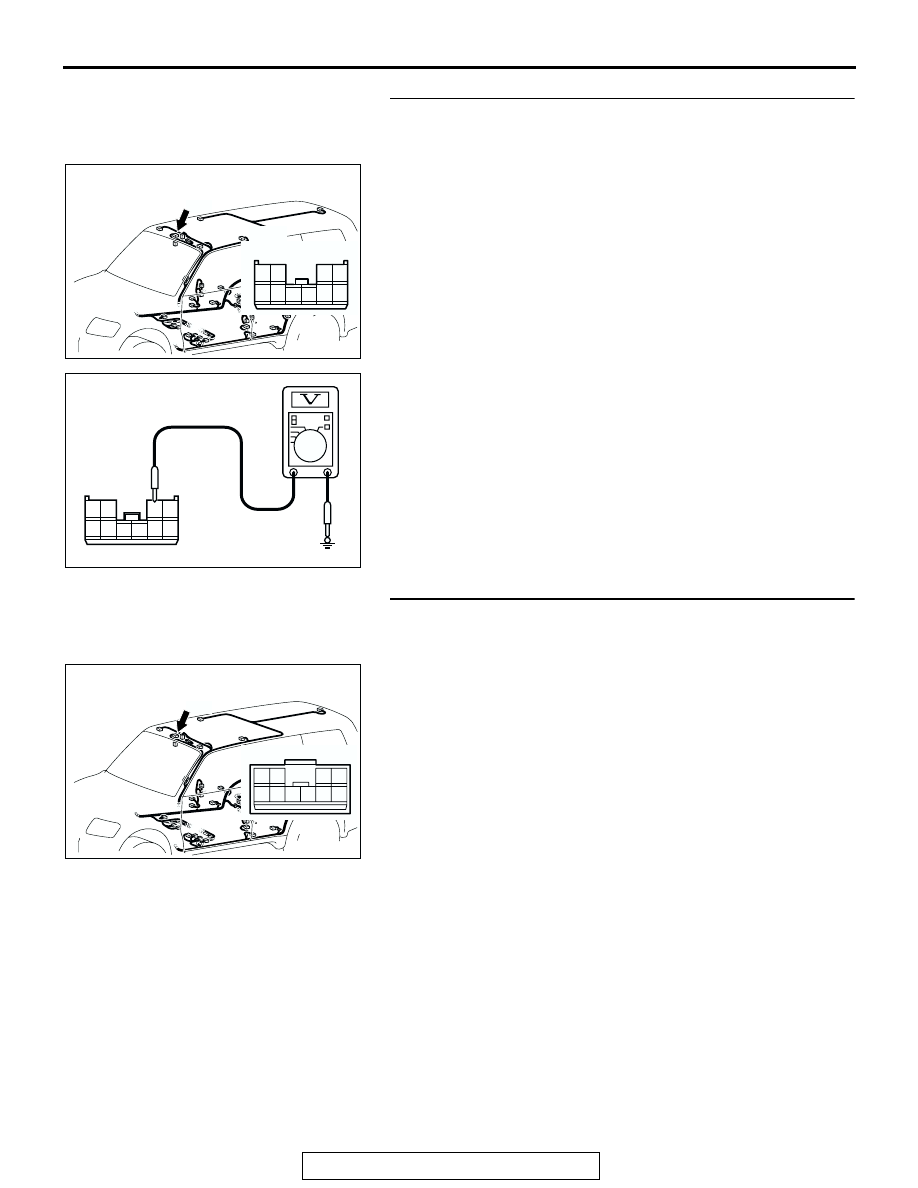

STEP 4. Check the ignition switch (IG2) circuit to the
sunroof motor assembly. Test at sunroof motor assembly
connector F-02.
(1) Disconnect sunroof motor assembly connector F-02 and

measure the voltage available at the wiring harness side of
the connector.

(2) Turn the ignition switch to “ON” position.

(3) Measure the voltage between terminal 2 and ground.

• The voltage should be approximately 12 volts (battery

positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check sunroof motor assembly connector F-02 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is sunroof motor assembly connector F-02 in good

condition?
YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The sunroof function should now work

normally.

AC203849AD

CONNECTOR: F-02

F-02

10

1

2

3

4

5

6

7

8

9

(HARNESS SIDE)

F-02

10

1

2

3

4

5

6

7

8

9

AC106230

CONNECTOR F-02
(HARNESS SIDE)

AD

AC203849AE

CONNECTOR: F-02

F-02

5

4

3

2

1

10

9

8

7

6

F-02

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-217

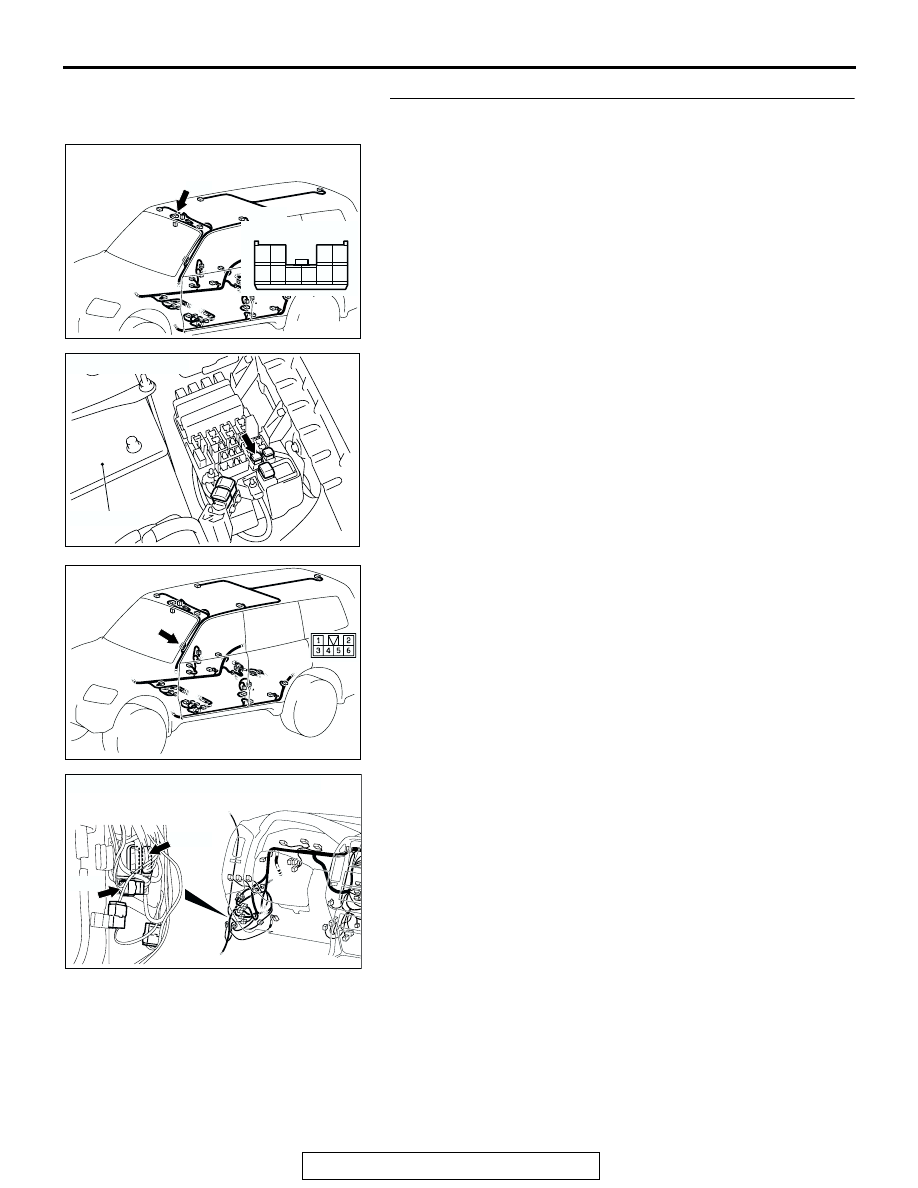

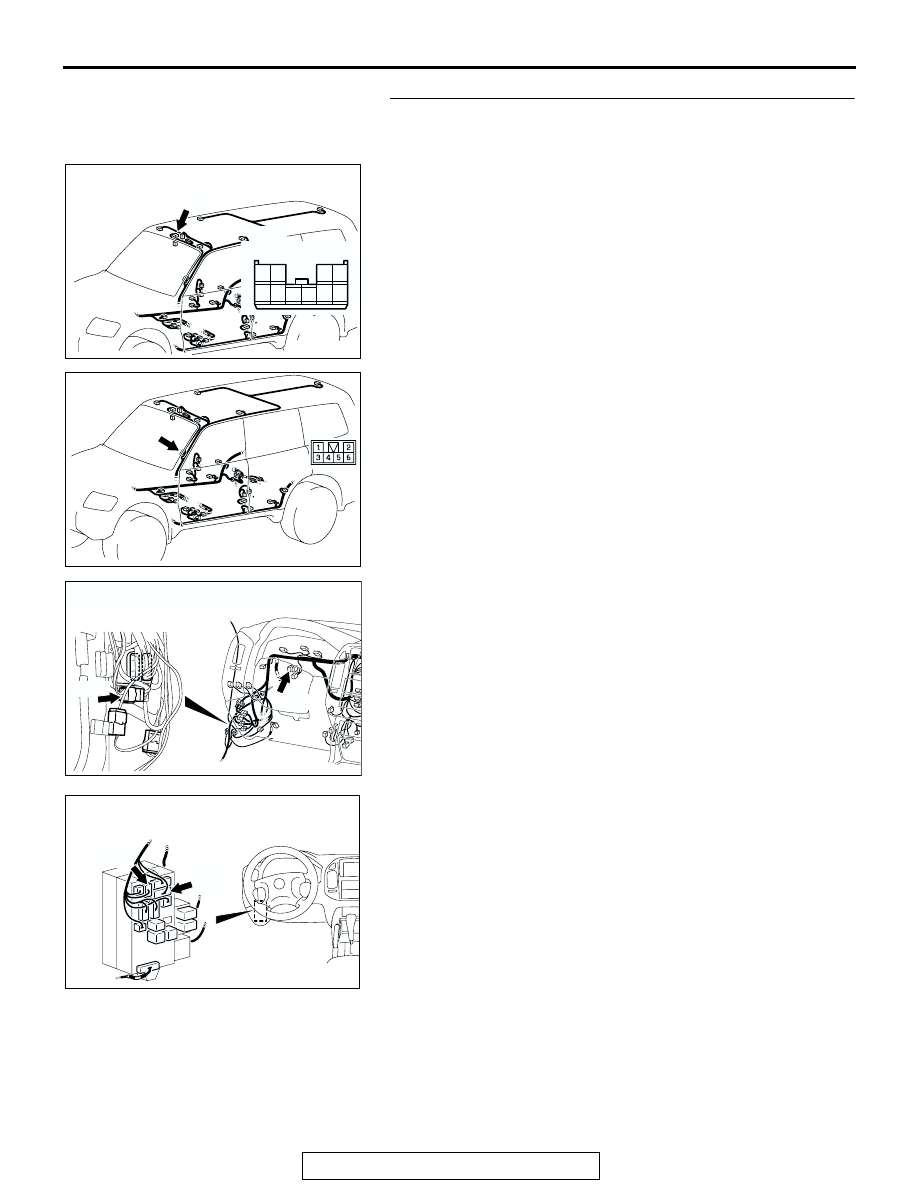

STEP 6. Check the harness wires between sunroof motor
assembly connector F-02 (terminal 2) and ignition switch
(IG2).

NOTE: Also check junction block connectors D-208, D-210,
intermediate connectors F-24, D-26 and joint connector D-01
for loose, corroded or damaged terminals, or terminals pushed
back in the connectors. If junction block connectors D-208, D-
210, intermediate connectors F-24, D-26 and joint connector D-
01 are damaged, repair or replace the damaged component(s)
as described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between sunroof motor assembly

connector F-02 (terminal 2) and ignition switch (IG2) in
good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof function should now work normally.

AC203849AD

CONNECTOR: F-02

F-02

10

1

2

3

4

5

6

7

8

9

(HARNESS SIDE)

F-02

AC204484

AF

CONNECTOR: F-24

F-24

F-24

AC000758

CONNECTORS: D-01, D-26

AD

D-01

D-26

ACX02285

CONNECTORS: D-208, D-210

AE

D-208

D-210

JUNCTION BLOCK (FRONT VIEW)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-218

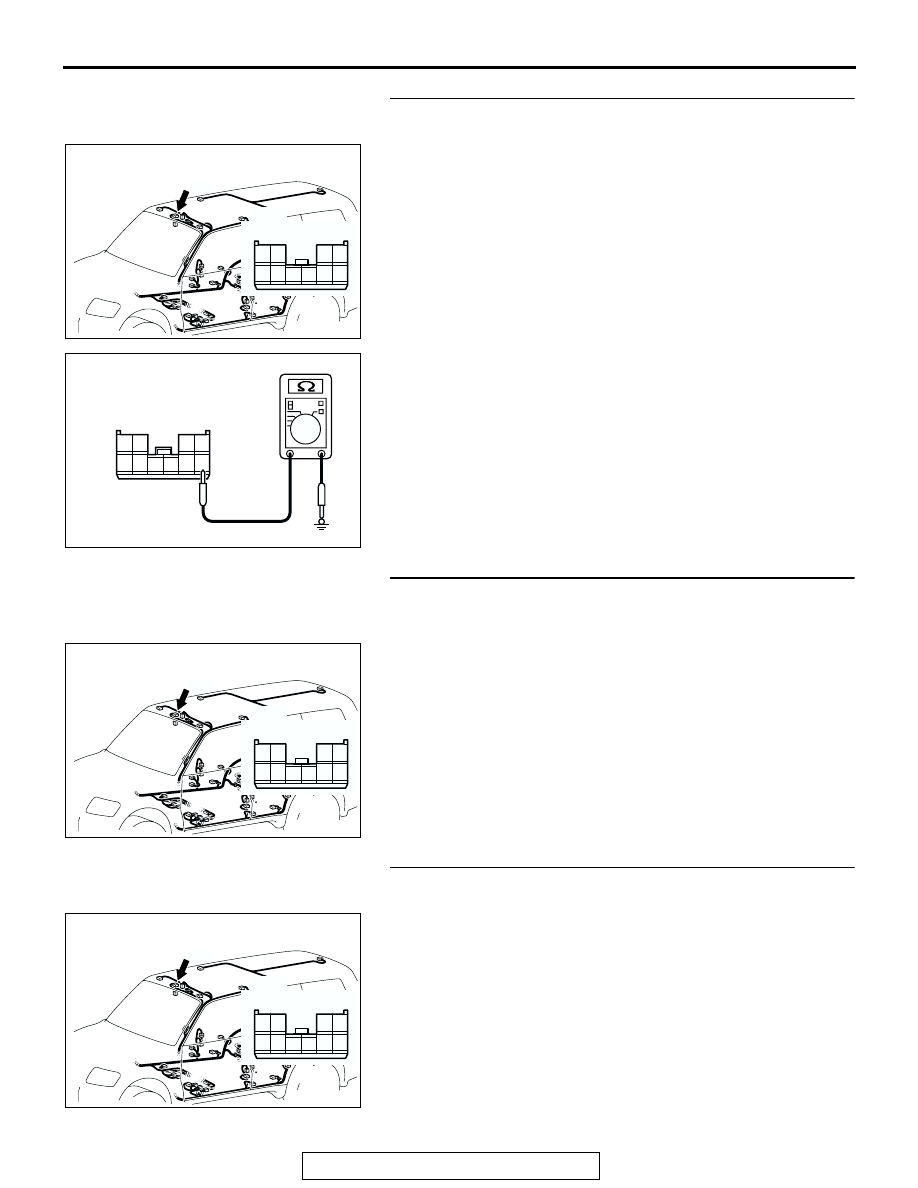

STEP 7. Check the ground circuit to the sunroof motor
assembly. Test at sunroof motor assembly connector F-02.
(1) Disconnect sunroof motor assembly connector F-02 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance between terminal 5 and ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 10.
NO :  Go to Step 8.

STEP 8. Check sunroof motor assembly connector F-02 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is sunroof motor assembly connector F-02 in good

condition?
YES : Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The sunroof should now work normally.

STEP 9. Check the harness wire between sunroof motor
assembly connector F-02 (terminal 5) and ground.
Q: Is the harness wire between sunroof motor assembly

connector F-02 (terminal 5) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The sunroof
should now work normally.

AC203849AD

CONNECTOR: F-02

F-02

10

1

2

3

4

5

6

7

8

9

(HARNESS SIDE)

F-02

10

1

2

3

4

5

6

7

8

9

AC102939

CONNECTOR F-02
(HARNESS SIDE)

AD

AC203849AD

CONNECTOR: F-02

F-02

10

1

2

3

4

5

6

7

8

9

(HARNESS SIDE)

F-02

AC203849AD

CONNECTOR: F-02

F-02

10

1

2

3

4

5

6

7

8

9

(HARNESS SIDE)

F-02
