SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-111

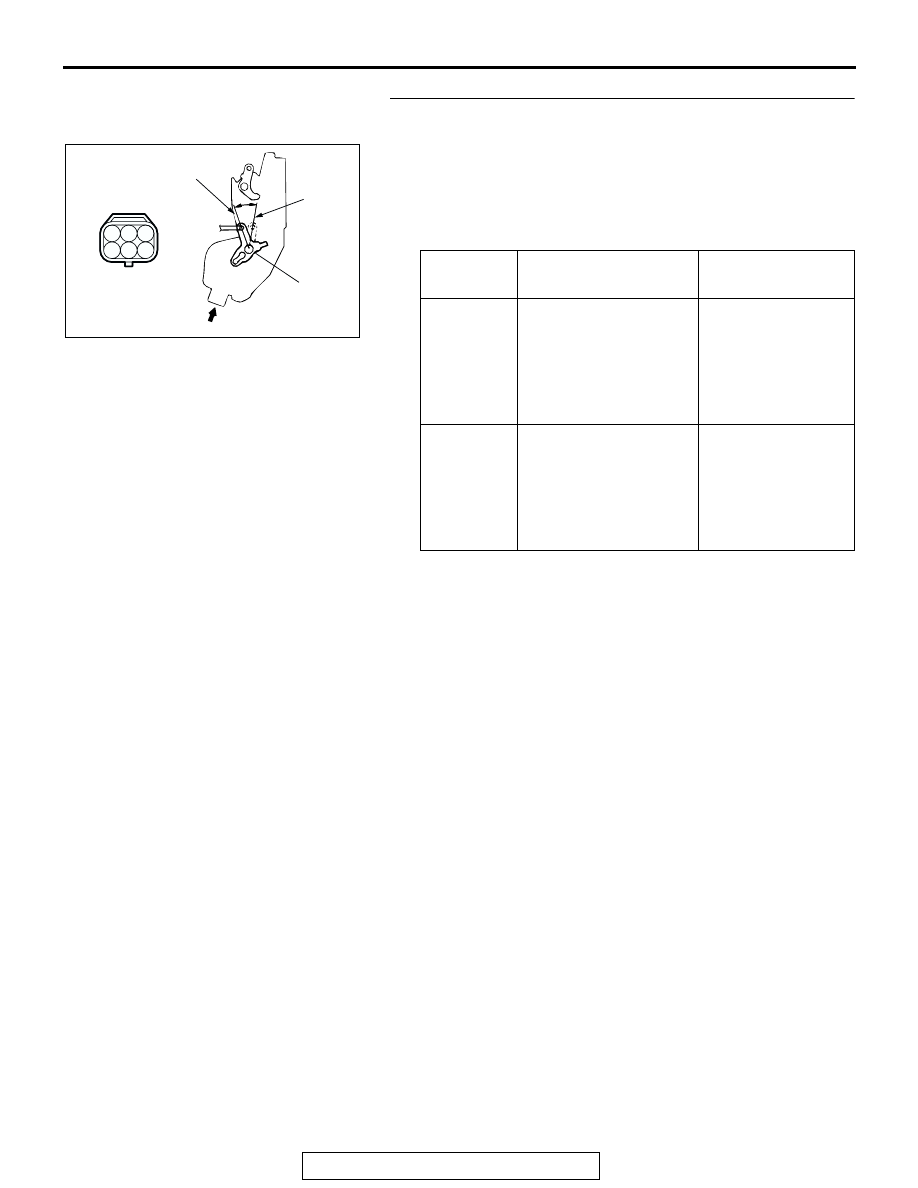

STEP 14. Check the rear passenger's door lock actuator
(RH).

1. Remove the rear passenger’s door lock actuator (RH), and

check it. Refer to GROUP 42

− Door Handle and Latch

P.42-40

.

2. Follow the table below to check the rear passenger's door

lock actuator (RH) for correct operation.

Q: Is the rear passenger's seat door lock actuator (RH)

normal?
YES : Go to Step 15.
NO :  Replace the rear passenger’s seat door lock actuator

(RH). Verify that all the doors can be locked and
unlocked normally.

LEVER
POSITION

BATTERY
CONNECTION

LEVER
OPERATION

At the
"LOCK"
position

• Connect terminal 3

to the positive
battery terminal

• Connect terminal 2

to the negative
battery terminal

The lever moves
from the "LOCK"
position to the
"UNLOCK" position.

At the
"UNLOCK"
position

• Connect terminal 2

to the positive
battery terminal

• Connect terminal 3

to the negative
battery terminal

The lever moves
from the "UNLOCK"
position to the
"LOCK" position.

AC201170

1 2 3

4 5 6

LEVER

LOCK

UNLOCK

VIEW A

A

AB

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-112

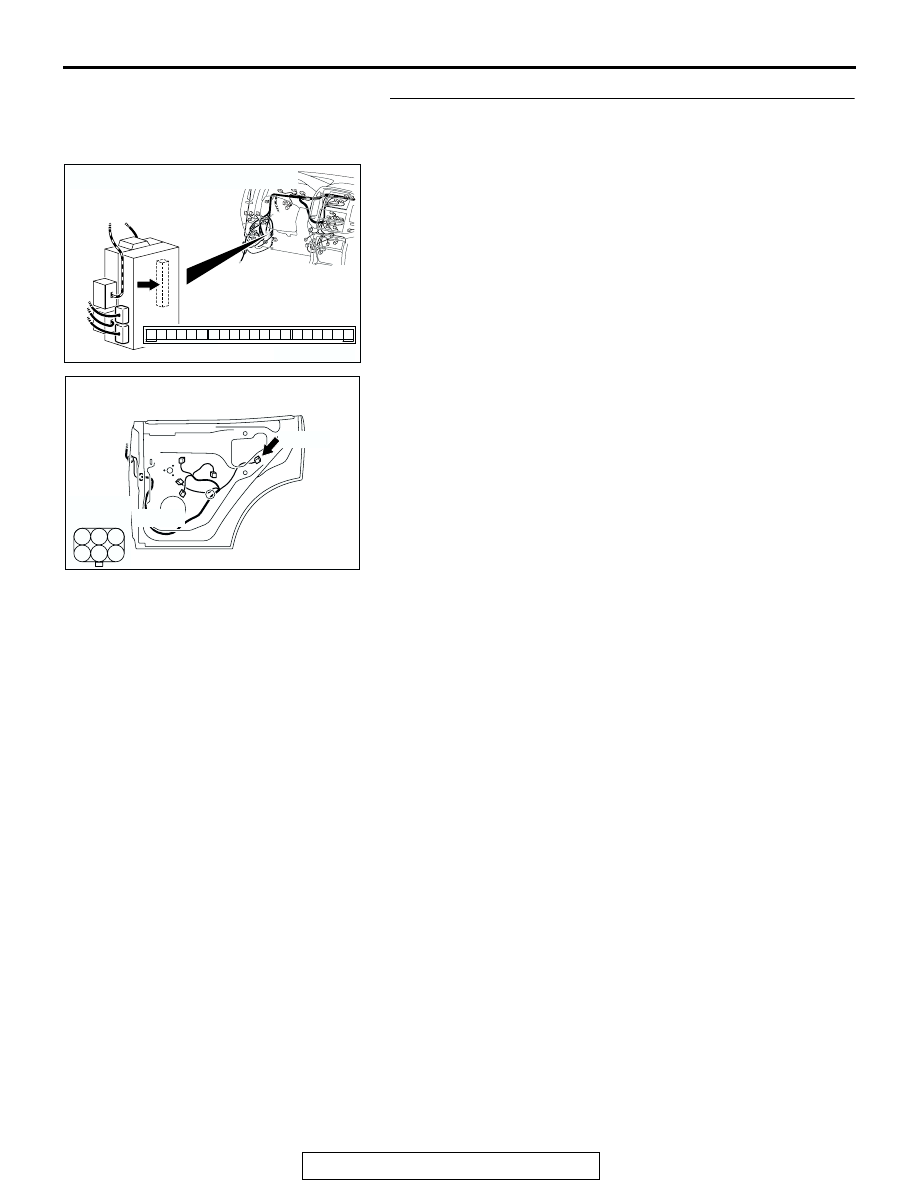

STEP 15. Check ETACS-ECU connector D-222 and rear
passenger’s door lock actuator (RH) connector H-21 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are ETACS-ECU connector D-222 and rear passenger’s

seat door lock actuator (RH) connector H-21 in good
condition?
YES : Go to Step 16.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. After repairs have been made, verify that all

the doors can now be locked and unlocked normally.

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC000316AI

CONNECTOR: H-21

REAR DOOR <RH>

1 2 3

4 5 6

H-21 (B)

H-21 (B)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-113

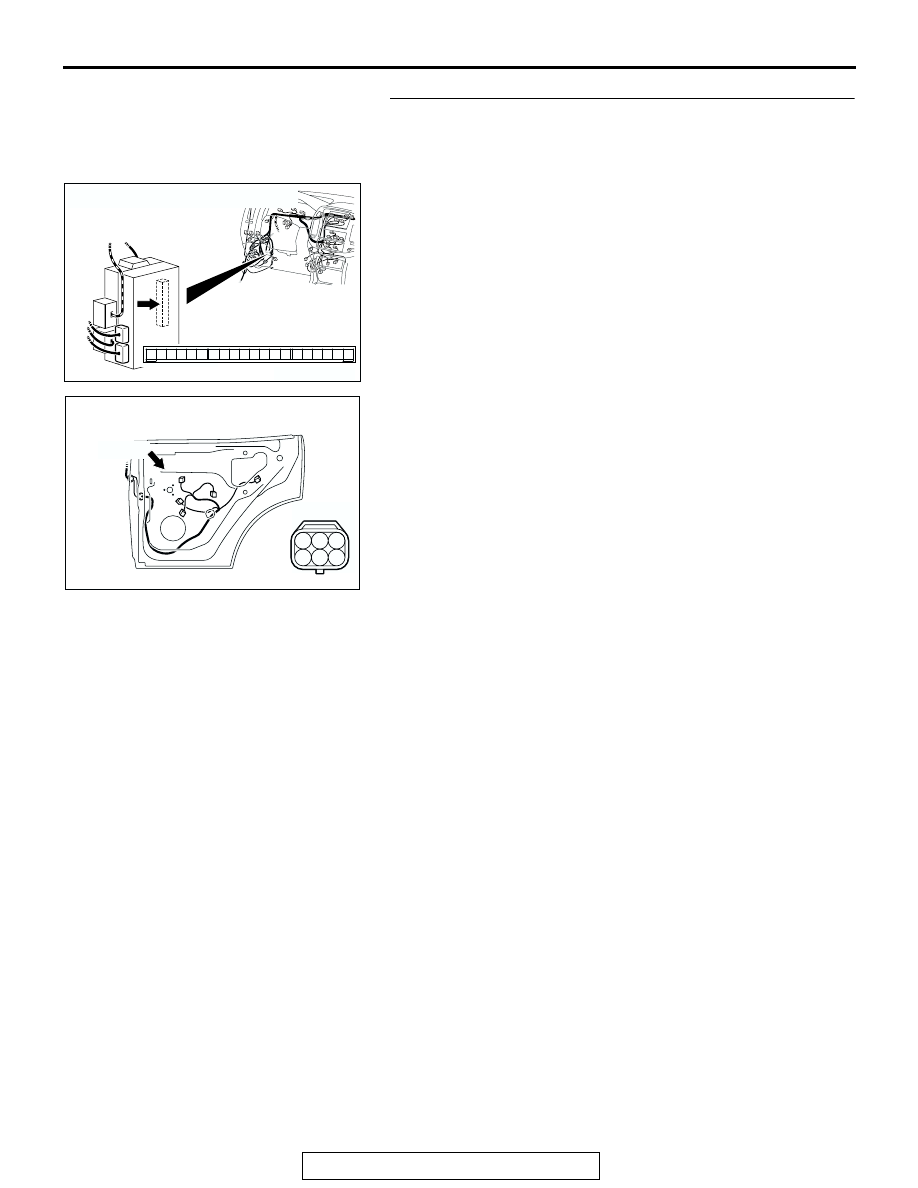

STEP 16. Check the harness wiring from ETACS-ECU
connector D-222 (terminal 4) to rear passenger's door lock
actuator (RH) connector H-21 (terminal 3).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC000316 AJ

CONNECTOR: H-21

REAR DOOR <RH>

1

2

3

4

5

6

H-21 (B)

H-21 (B)

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-114

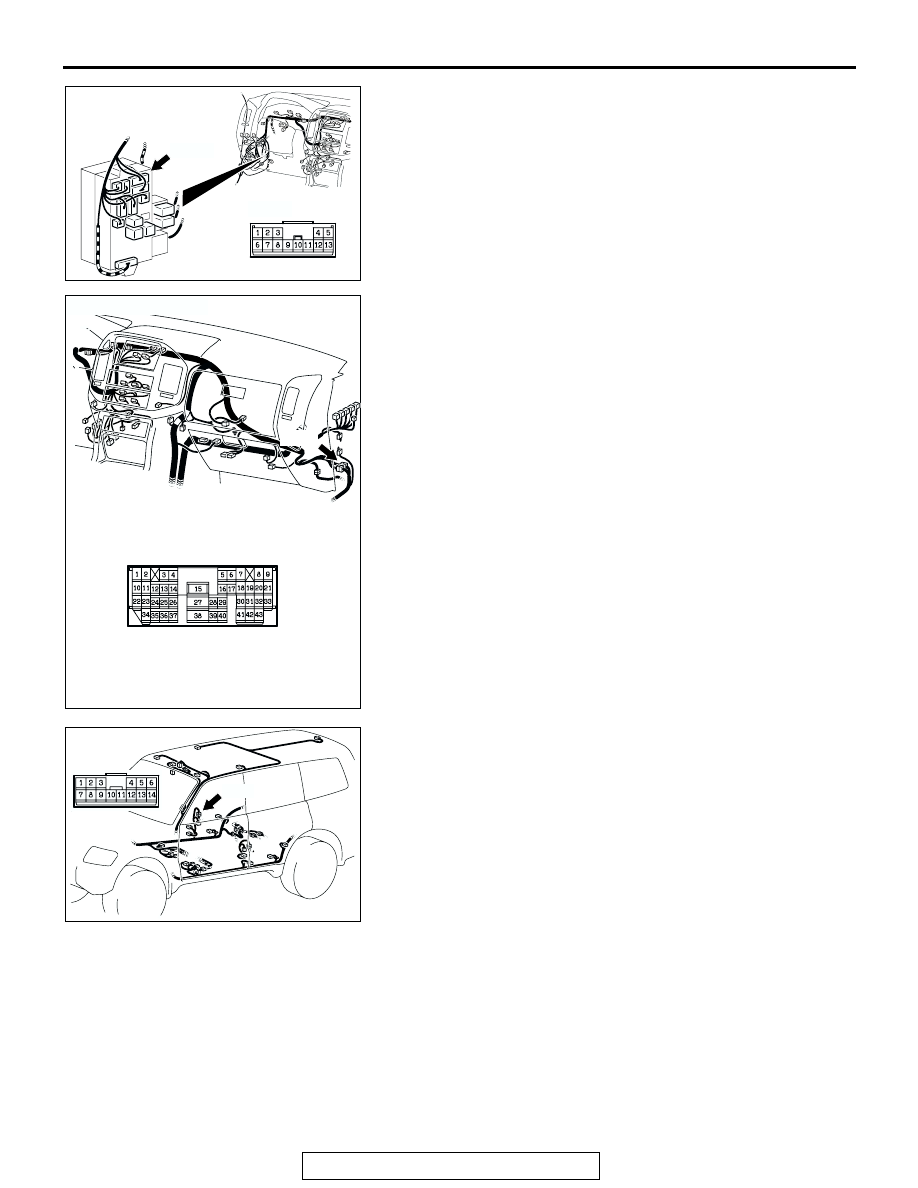

NOTE: Also check junction block connector D-209 and inter-
mediate connector D-111 and F-23 for loose, corroded, or dam-
aged terminals, or terminals pushed back in the connector. If
junction block connector D-209 or intermediate connector D-
111 or F-23 are damaged, repair or replace the damaged com-
ponent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the harness wiring from ETACS-ECU connector D-222

(terminal 4) to rear passenger's door lock actuator (RH)
connector H-21 (terminal 3) in good condition?
YES : Replace the ETACS-ECU. Verify that all the doors

can be locked and unlocked normally.

NO :  The harness wiring may be damaged or the

connectors may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the harness wiring as necessary. After repairs
have been made, verify that all the doors can now be
locked and unlocked normally.

AC203850

CONNECTOR: D-209

AE

D-209

D-209

JUNCTION BLOCK
(FRONT VIEW)

AC203860AC

D-111

CONNECTOR: D-111

D-111

AC204484

AC

CONNECTOR: F-23

F-23

F-23
