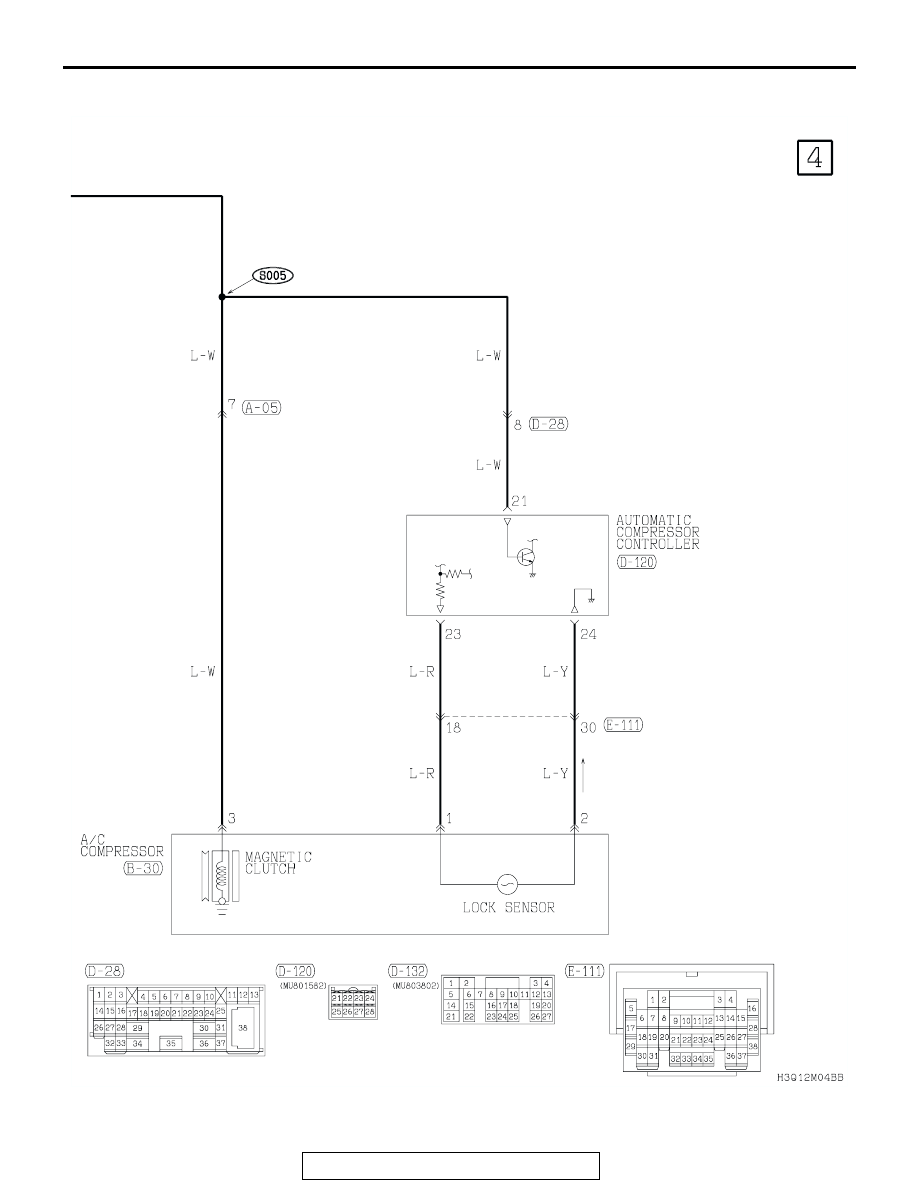

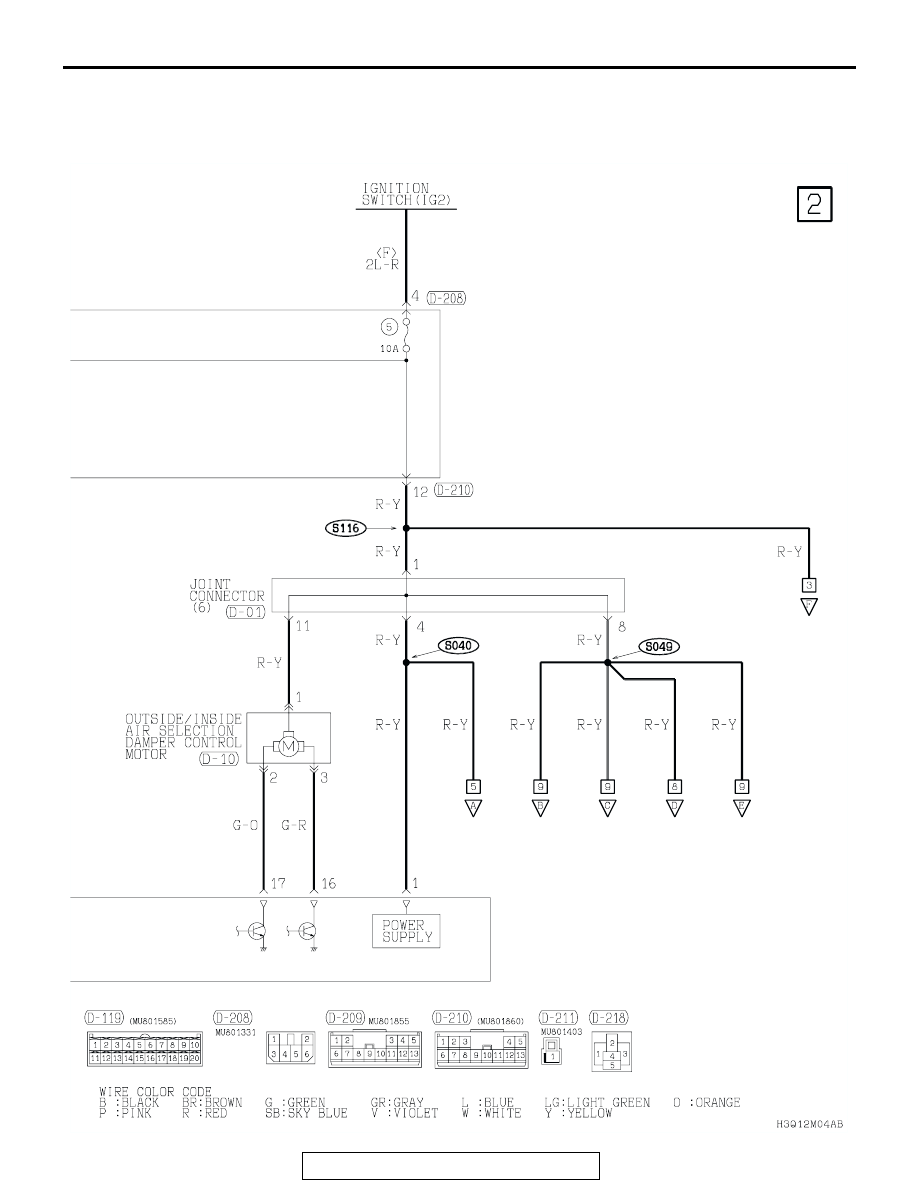

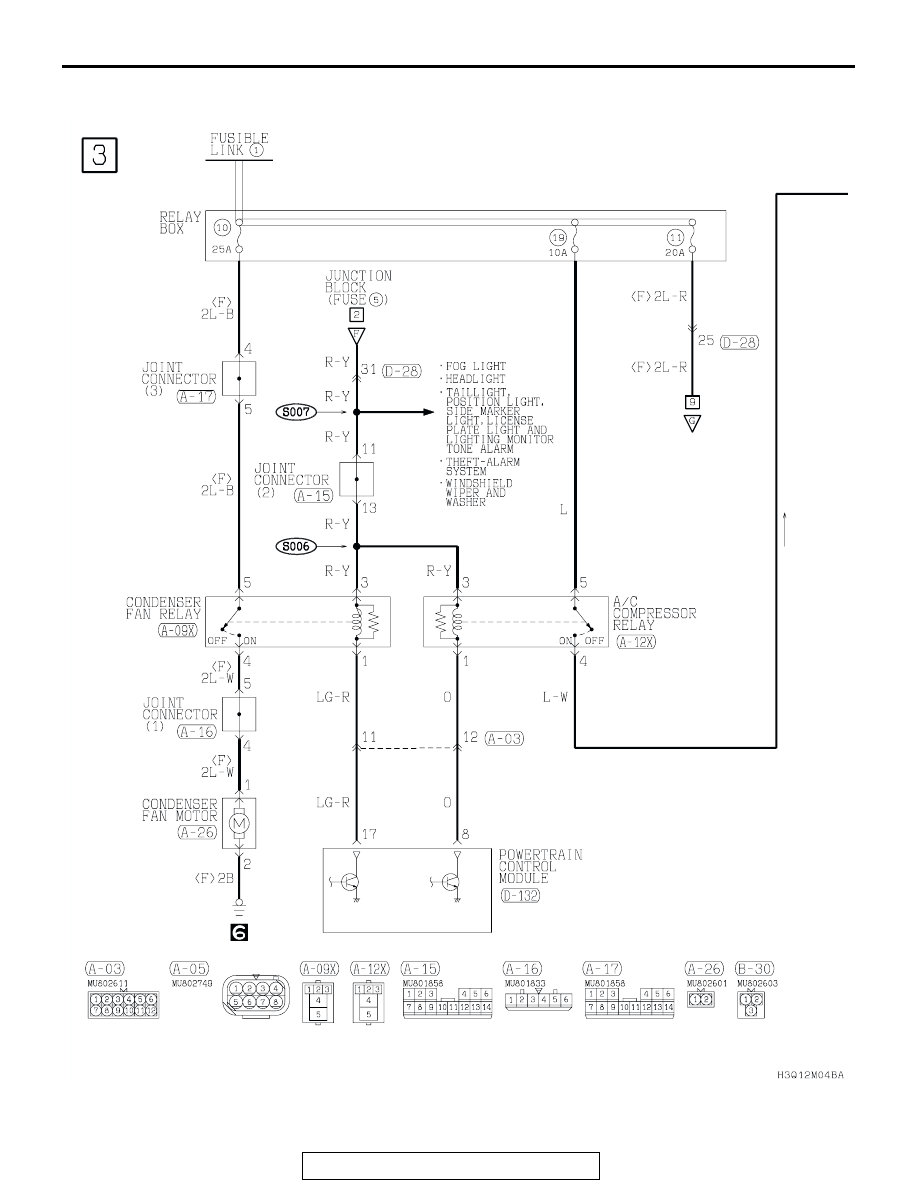

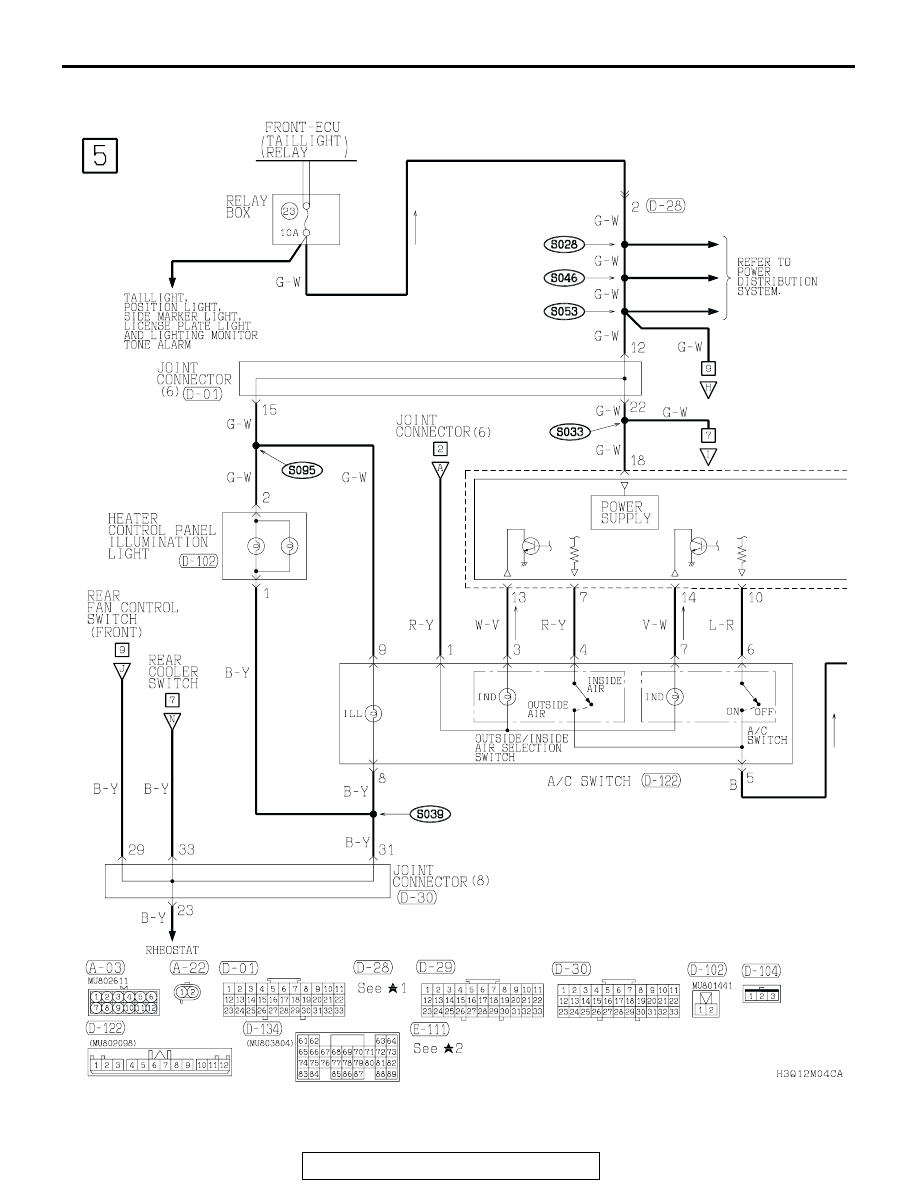

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER>

TSB Revision

CIRCUIT DIAGRAMS

90-143

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER>

TSB Revision

CIRCUIT DIAGRAMS

90-144

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER> (CONTINUED)

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER>

TSB Revision

CIRCUIT DIAGRAMS

90-145

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER>

TSB Revision

CIRCUIT DIAGRAMS

90-146

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER> (CONTINUED)
