AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-117

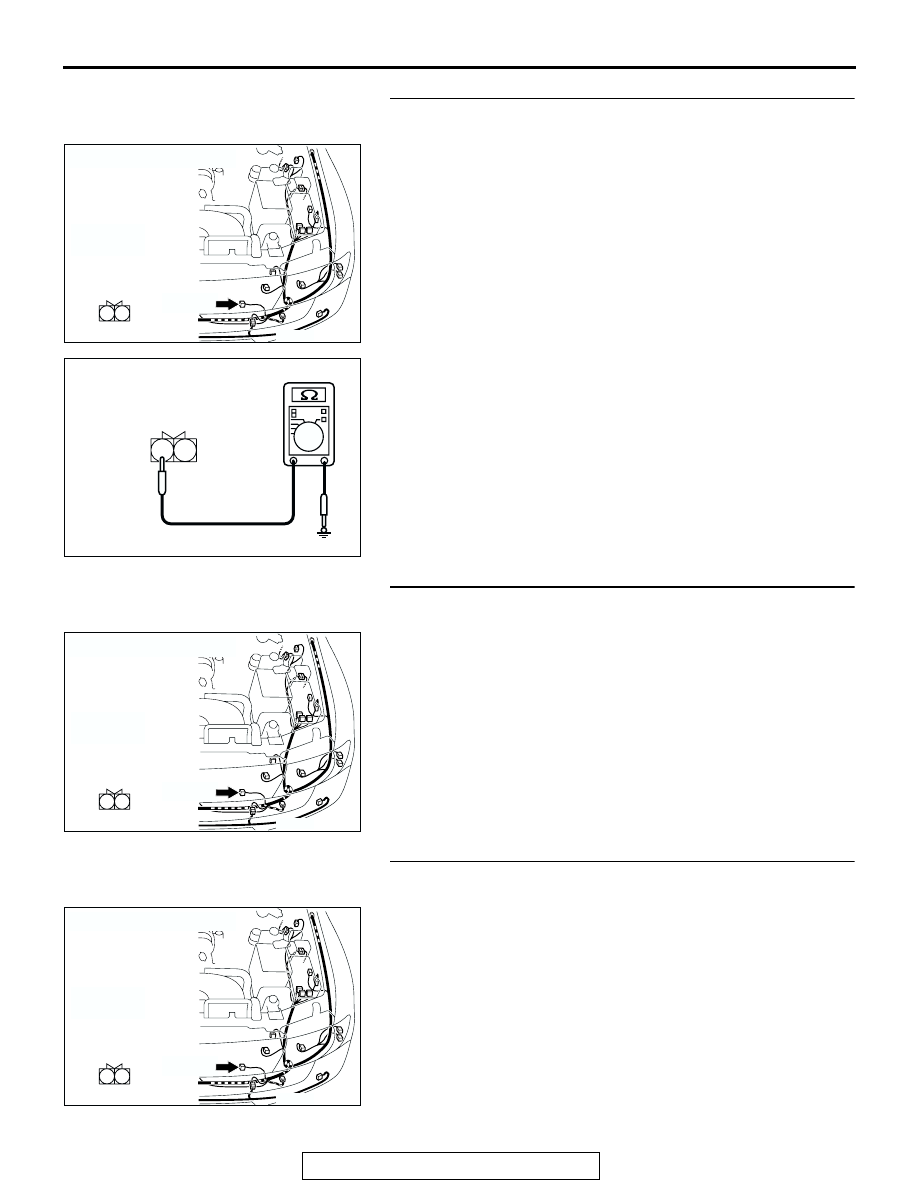

STEP 15. Measure the resistance at condenser fan motor
connector A-26.
(1) Disconnect condenser fan motor connector A-26, and

measure the resistance at the wiring harness side.

(2) Measure the resistance value between terminal 2 and

ground.

• 2 ohms or less

Q: Does the measured resistance value correspond with

this range?
YES : No action to be taken.
NO :   Go to Step 16.

STEP 16. Check condenser fan motor connector A-26 for
damage.
Q: Is condenser fan motor connector A-26 in good

condition?
YES : Go to Step 17.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

blower motor should operate normally.

STEP 17. Check the wiring harness between condenser fan
motor connector A-26 (terminal 2) and ground.
Q: Is the wiring harness between condenser fan motor

connector A-26 (terminal 2) and ground in good
condition?
YES : No action to be taken.
NO :  Repair the wiring harness. The blower motor should

operate normally.

AC204167

CONNECTOR : A-26

AX

A-26(B)

A-26(B)

1

2

HARNESS SIDE

AC204738

HARNESS SIDE : A-26

1

2

DK

AC204167

CONNECTOR : A-26

AX

A-26(B)

A-26(B)

1

2

HARNESS SIDE

AC204167

CONNECTOR : A-26

AX

A-26(B)

A-26(B)

1

2

HARNESS SIDE

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-118

INSPECTION PROCEDURE 10: Malfunction of the A/C-ECU Power Supply System.

.

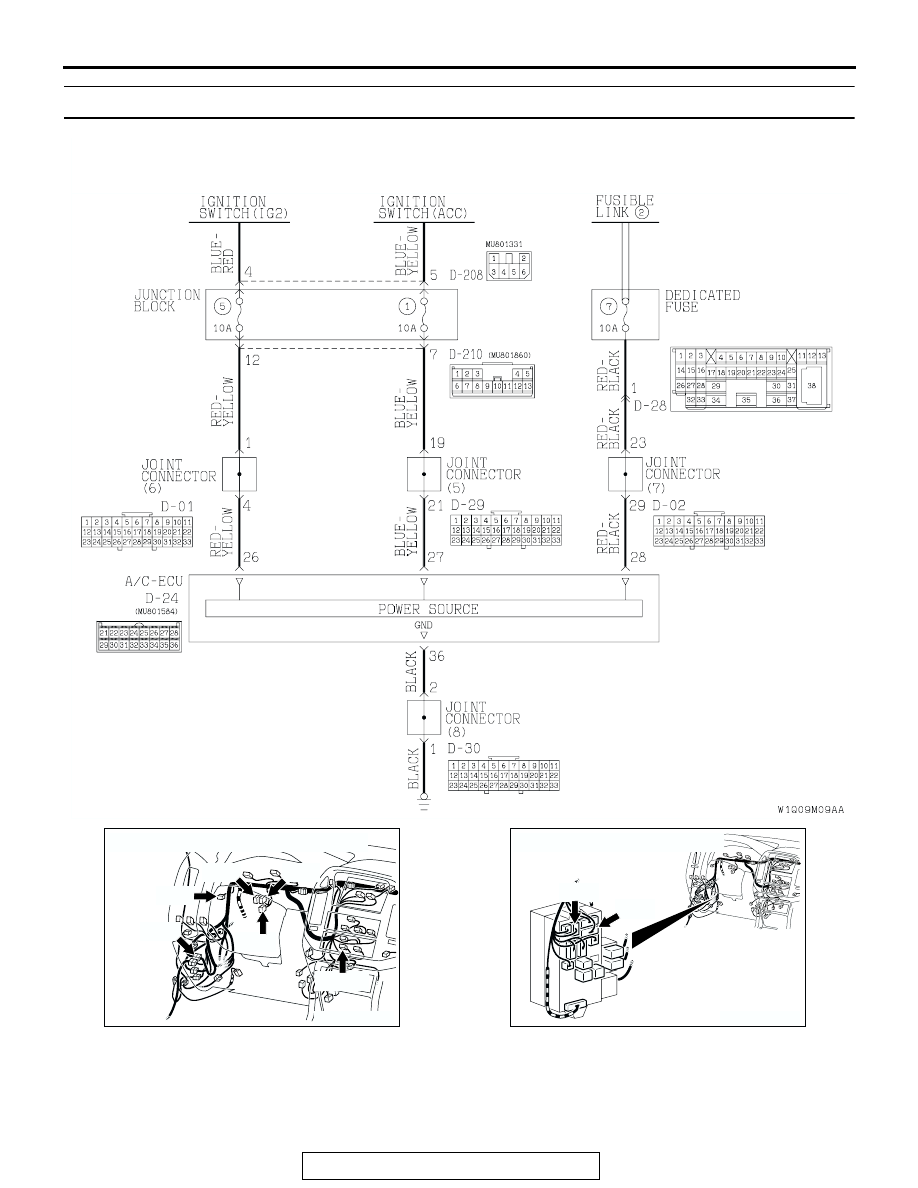

A/C-ECU Power Supply Circuit

AC204170

CONNECTORS : D-01, D-02, D-24, D-28,
D-29, D-30

DR

D-24(B)

D-30

D-01

D-28

D-29

D-02

AC204173

CONNECTORS : D-208, D-210

BF

D-208

D-210

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-119

TECHNICAL DESCRIPTION (COMMENT)
The A/C-ECU power system may be defective if the
air conditioning, defogger, and outside/inside air
changeover damper motor all do not operate nor-
mally.

.

TROUBLESHOOTING HINTS

• Malformation of the A/C-ECU

• Damaged harness wires or connectors

DIAGNOSIS

Required Special Tool:

• MB991223: Test Harness Set

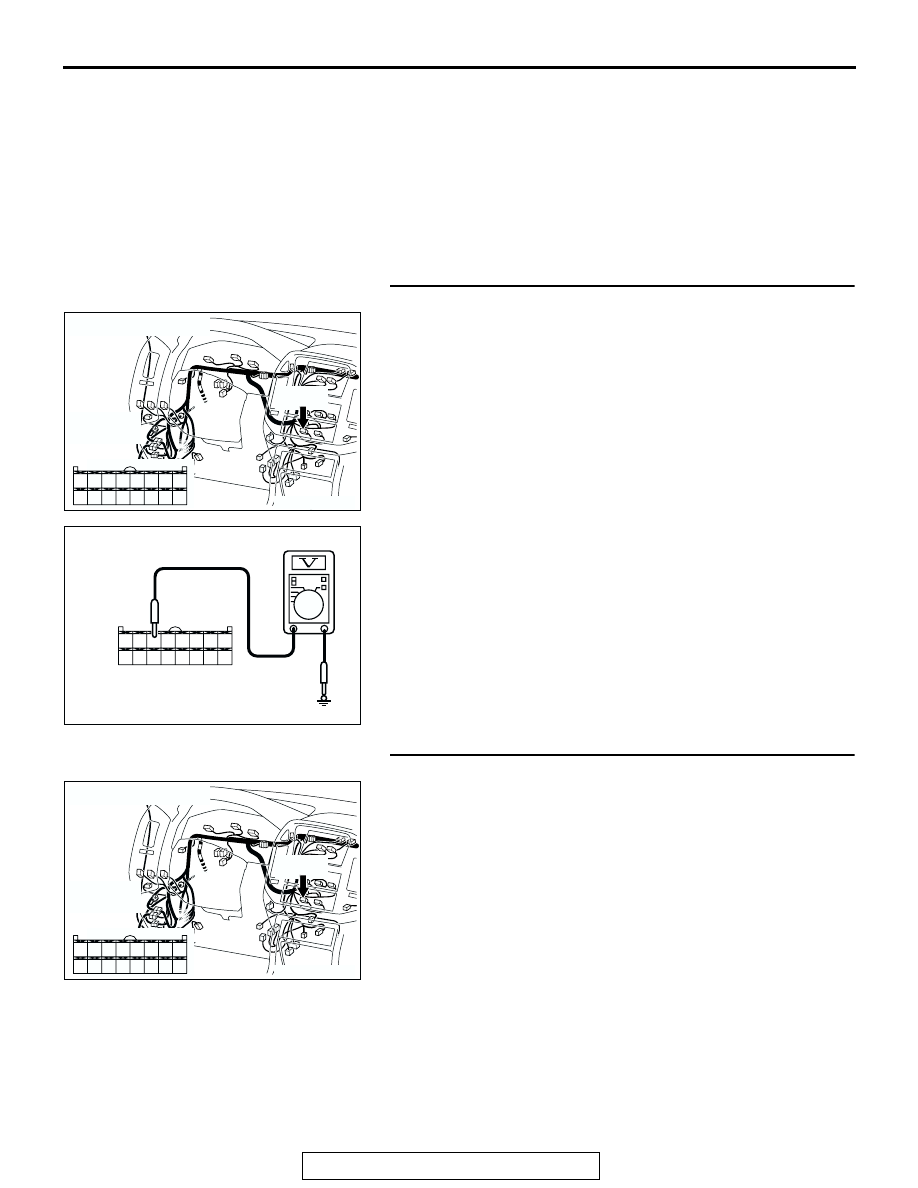

STEP 1. Measure the voltage at A/C-ECU connector D-24.
(1) Disconnect A/C-ECU connector D-24 and measure the

voltage at the harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 26 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES :  Go to Step 4.
NO :   Go to Step 2.

STEP 2. Check A/C-ECU connector D-24 for damage.
Q:  Is A/C-ECU connector D-24 in good condition?

YES : Go to Step 3.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

AC204170

CONNECTOR : D-24

D-24(B)

D-24(B)

CQ

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

HARNESS
SIDE

AC204738 DH

HARNESS SIDE : D-24

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

AC204170

CONNECTOR : D-24

D-24(B)

D-24(B)

CQ

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

HARNESS
SIDE

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-120

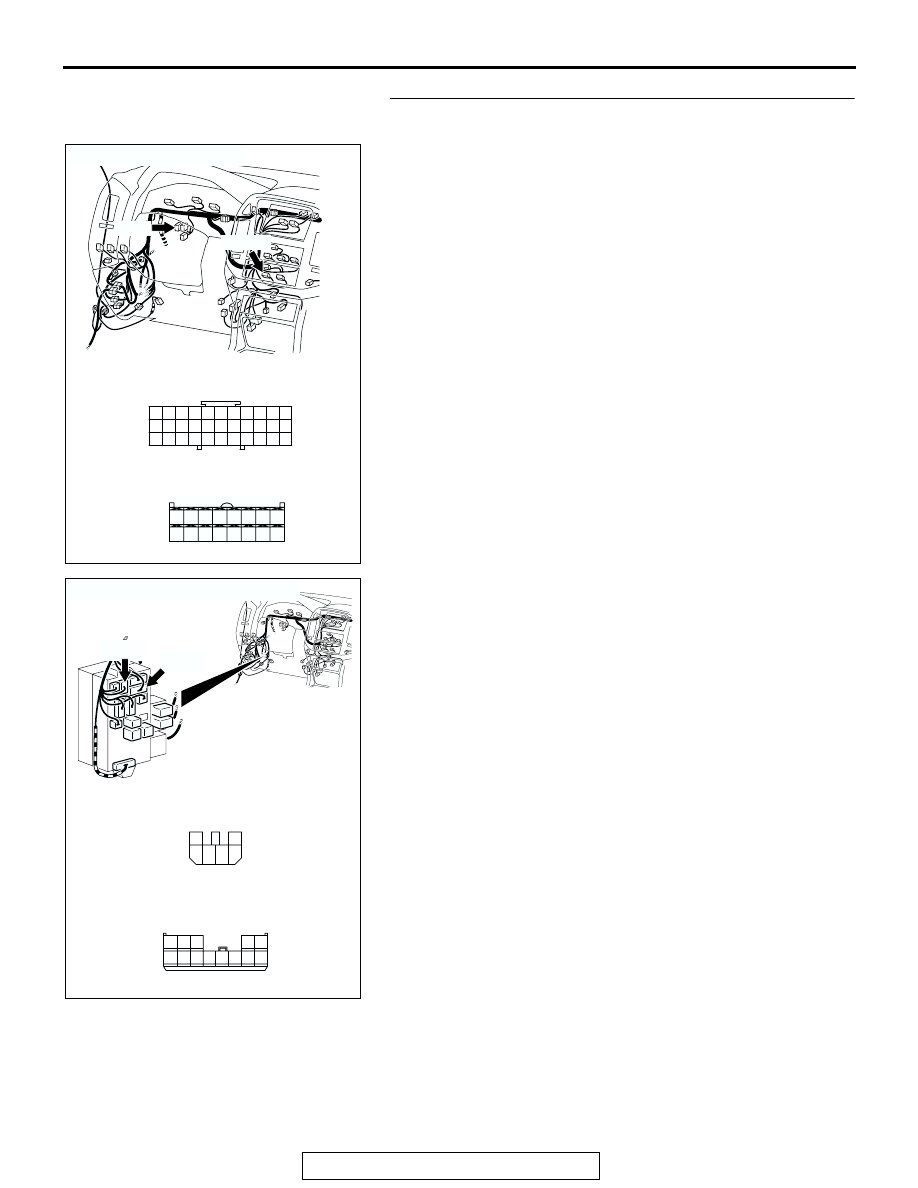

STEP 3. Check the wiring harness between A/C-ECU
connector D-24 (terminal 26) and the ignition switch (IG2).

NOTE: Also check joint connector (6) D-01, junction block con-
nectors D-210 and D-208. If joint connector (6) D-01, junction
block connectors D-210 or D-208 is damaged, repair or replace
the connector as described in GROUP 00E, Harness Connec-
tor Inspection

P.00E-2

.

Q: Is the wiring harness between A/C-ECU connector D-24

(terminal 26) and the ignition switch (IG2) in good
condition?
YES : Check that the air conditioning works normally.
NO :  Repair the wiring harness. Check that the air

conditioning works normally.

AC204188

CONNECTOR : D-01, D-24

D-24(B)

D-24(B)

CM

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

HARNESS SIDE
