REAR HEATER UNIT

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-143

INSPECTION

M1554010400025

.

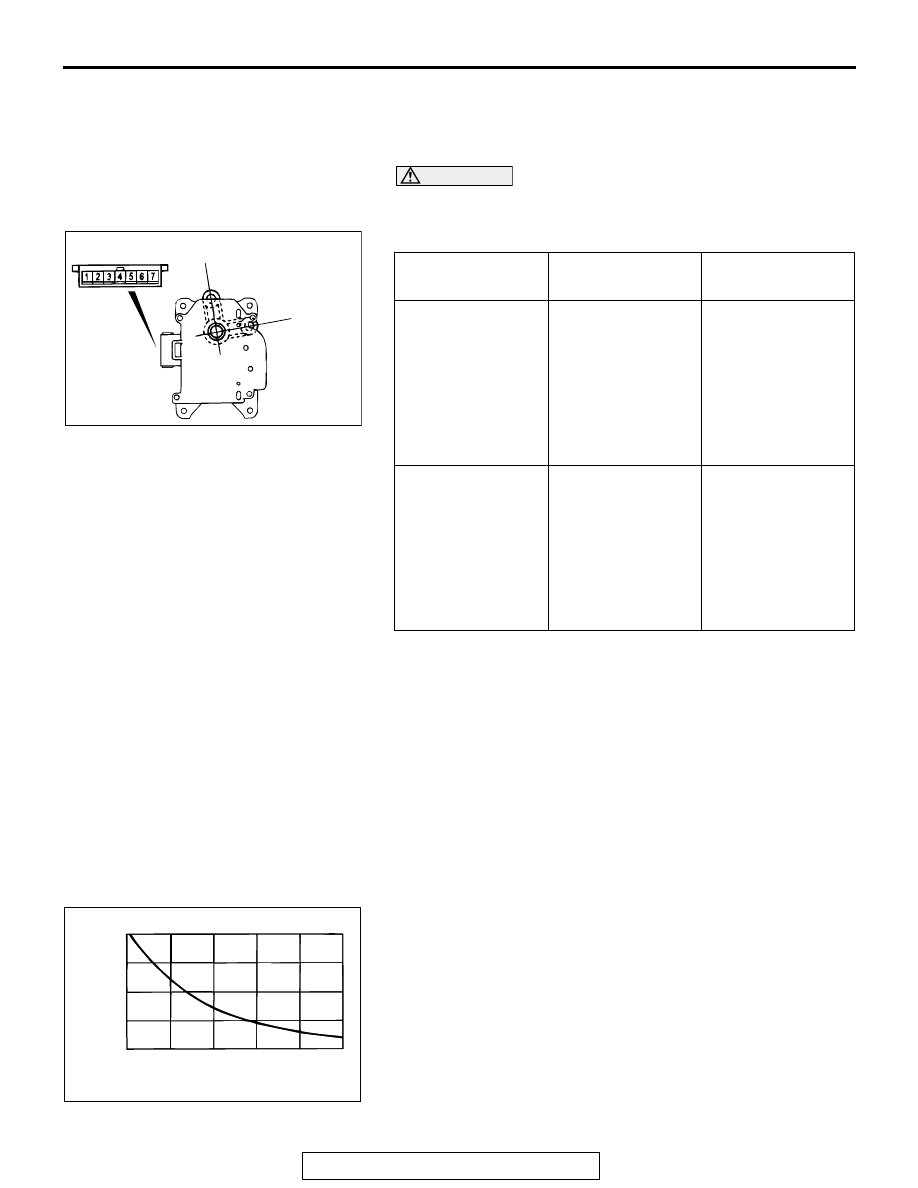

AIR MIX DAMPER MOTOR CHECK <VEHICLES WITH REAR
HEATER OR REAR A/C>

CAUTION

Do not apply battery voltage when the damper is in the
MAX HOT/MAX COOL position.
Check the air mix damper motor by the following procedures.

.

AIR MIX DAMPER POTENTIOMETER CHECK <VEHICLES
WITH REAR HEATER OR REAR A/C>
When checking the air mix damper motor, measure the resis-
tance value between the terminals 3 and 5, between the termi-
nals 3 and 7. At this time, make sure that the measured
resistance value changes slowly within the standard value.

Standard value: 1.2

− 4.8 kΩ

.

AIR THERMO SENSOR CHECK <VEHICLES WITH REAR
COOLER OR REAR A/C>
NOTE: The temperature conditions when checking should not
exceed the range shown in the diagram.
When the resistance between the sensor terminals is mea-
sured under two or more temperature conditions, the resis-
tance should approximately satisfy the illustrated values.

.

LEVER POSITION BATTERY

CONNECTION

LEVER
OPERATION

At the MAX COOL
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 2 to the
negative battery
terminal

The lever moves
from the MAX
COOL position to
the outside air
position

At the MAX HOT
position

• Connect

terminal 2 to the
positive battery
terminal

• Connect

terminal 1 to the
negative battery
terminal

The lever moves
from the MAX HOT
position to the
inside air position

AC001049AB

MAX HOT POSITION

MAX
COOL
POSITION

AC001043

RESISTANCE k

Ω

8

6

4

2

0

-10

0

 10

 20

 30

   40

TEMPERATURE ˚C(˚F)

AB

(14)

(32)

(50)

(86)

(104)

(68)

REAR HEATER UNIT

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-144

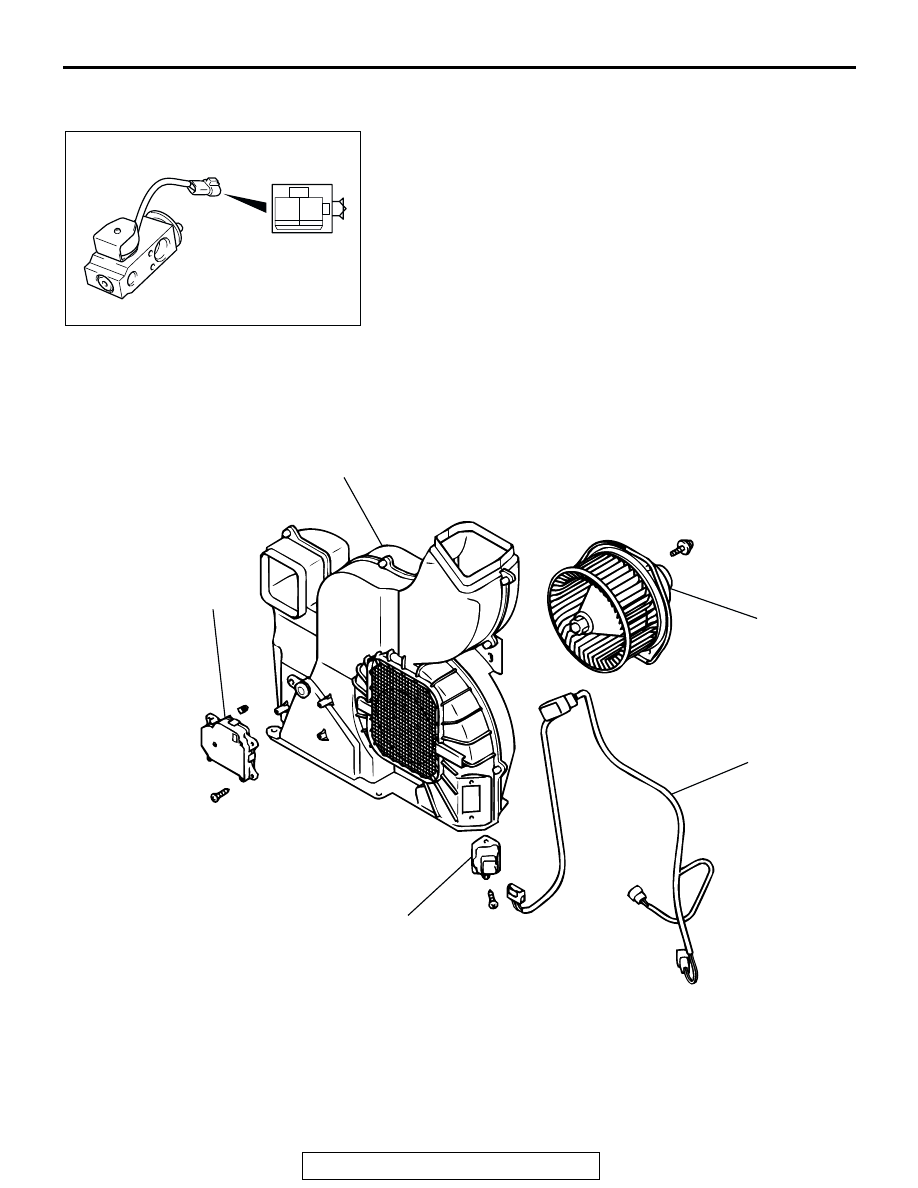

EXPANSION VALVE (MAGNET VALVE) CHECK <VEHICLES
WITH REAR A/C SYSTEM>
When battery voltage is applied to the magnetic valve terminal
No.1 and No.2 terminal is ground, operating sound should be
heard from the magnetic valve.

REAR BLOWER DISASSEMBLY AND REASSEMBLY

M1554010600029

1 2

AC205153

AC001679AB

1

4

2

5

3

DISASSEMBLY STEPS

1.

HARNESS ASSEMBLY

2.

RESISTOR

3.

AIR OUTLET CHANGEOVER
DAMPER MOTOR

4.

BLOWER MOTOR ASSEMBLY

5.

CASE

DISASSEMBLY STEPS (Continued)

REAR HEATER UNIT

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-145

INSPECTION

M1554010700026

.

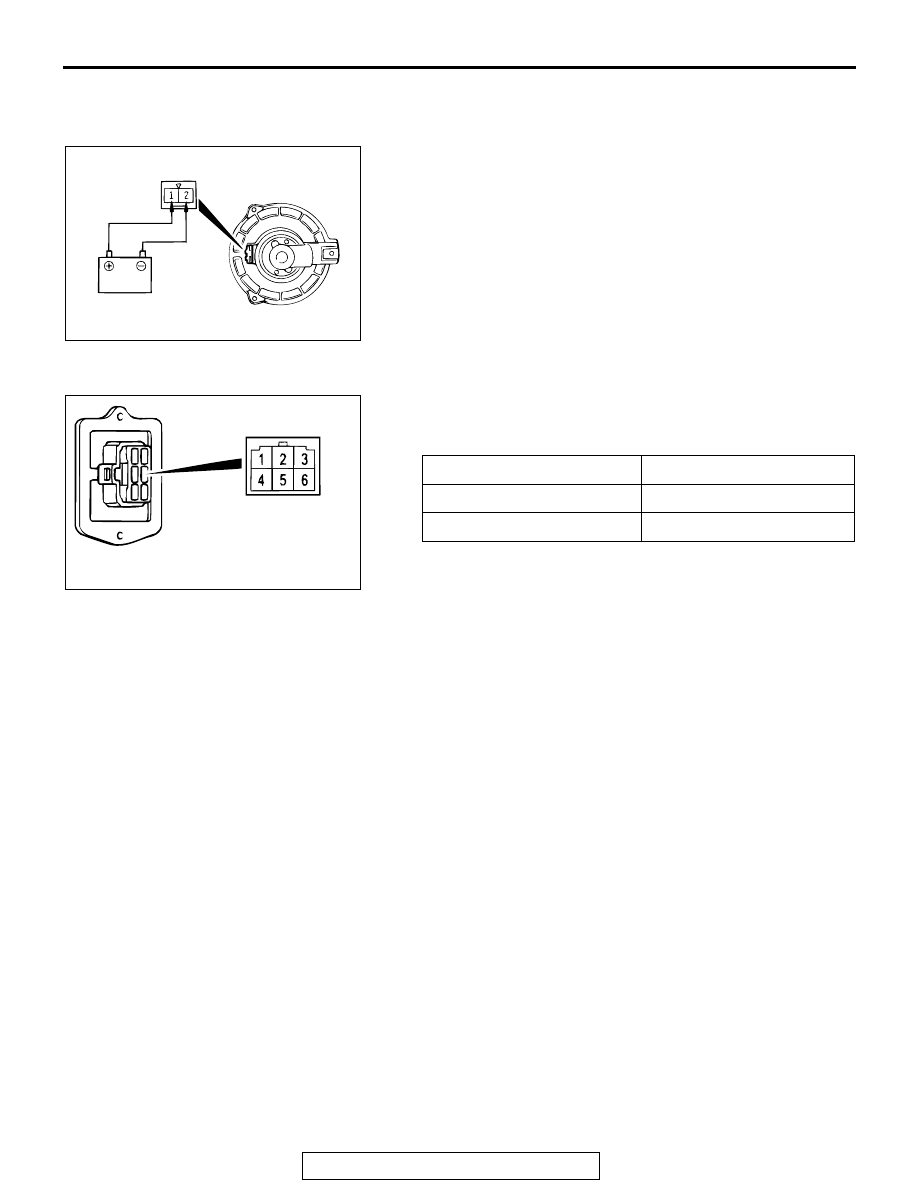

BLOWER MOTOR CHECK
When battery voltage is applied between the terminals, check
that the motor operates. Also, check that there is no abnormal
noise.

.

RESISTOR CHECK
Use an ohmmeter to measure the resistance between the ter-
minals. Check that the measured value is at the standard
value.

AC001038 AB

TESTER CONNECTION

STANDARD VALUE

Ω

1

− 6

4.9

± 0.343

1

− 3

1.25

± 0.0875

AC001039AB

COMPRESSOR ASSEMBLY

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-146

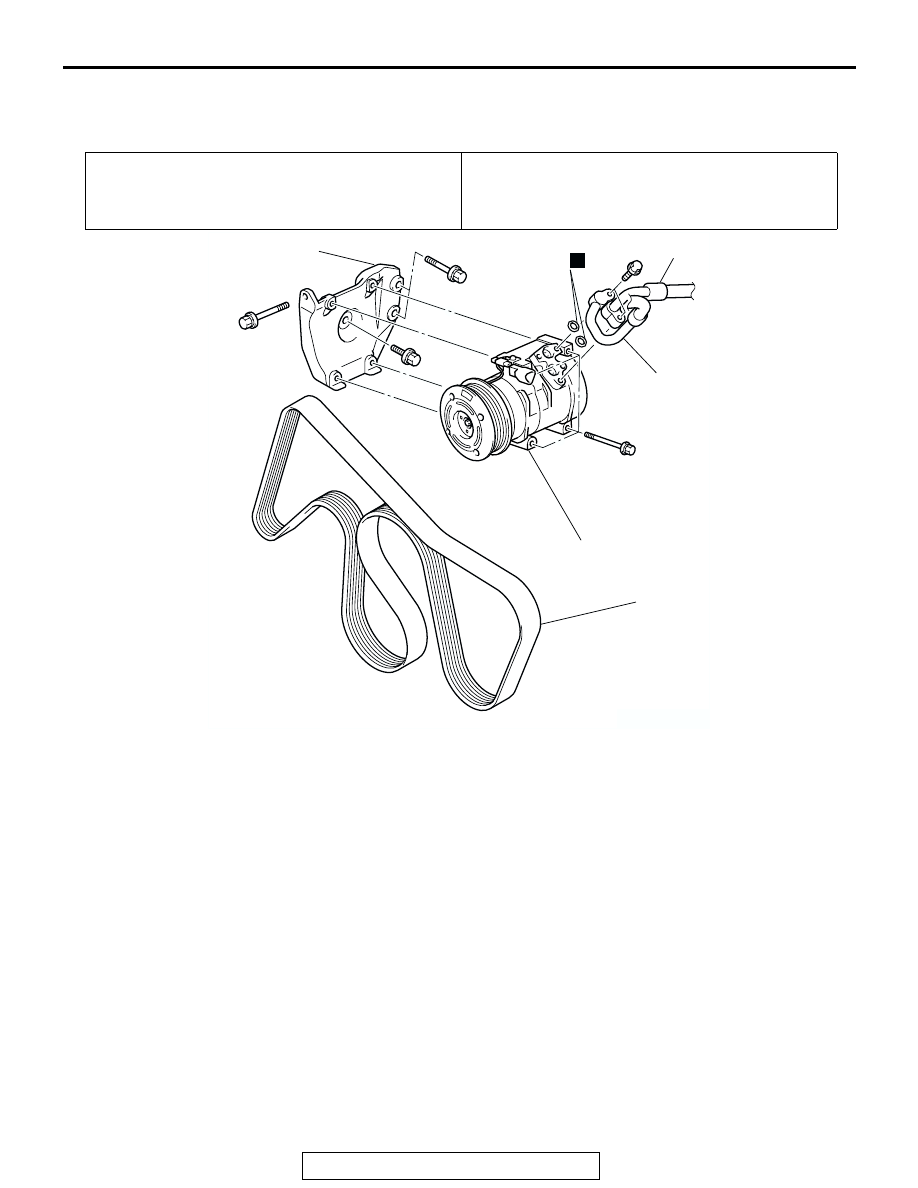

COMPRESSOR ASSEMBLY

REMOVAL AND INSTALLATION

M1552004400105

Pre-removal Operation
Refrigerant discharging (Refer to

P.55A-119

.)

Post-installation Operation
• Refrigerant charging (Refer to

P.55A-119

.)

• Drive Belt Tension Adjustment (Refer to GROUP 00,

Maintenance Service

− Drive Belts

P.00-39

.)

AC001052

1

2

3

5

6

AC001052AB

N

4

REMOVAL STEPS

<<A>>

1.

DRIVE BELT

<<B>>

2.

DISCHARGE HOSE

<<B>>

3.

SUCTION HOSE

4.

O-RING

<<C>>

>>A<<

5.

COMPRESSOR

6.

COMPRESSOR BRACKET

REMOVAL STEPS (Continued)
