ENGINE

TSB Revision

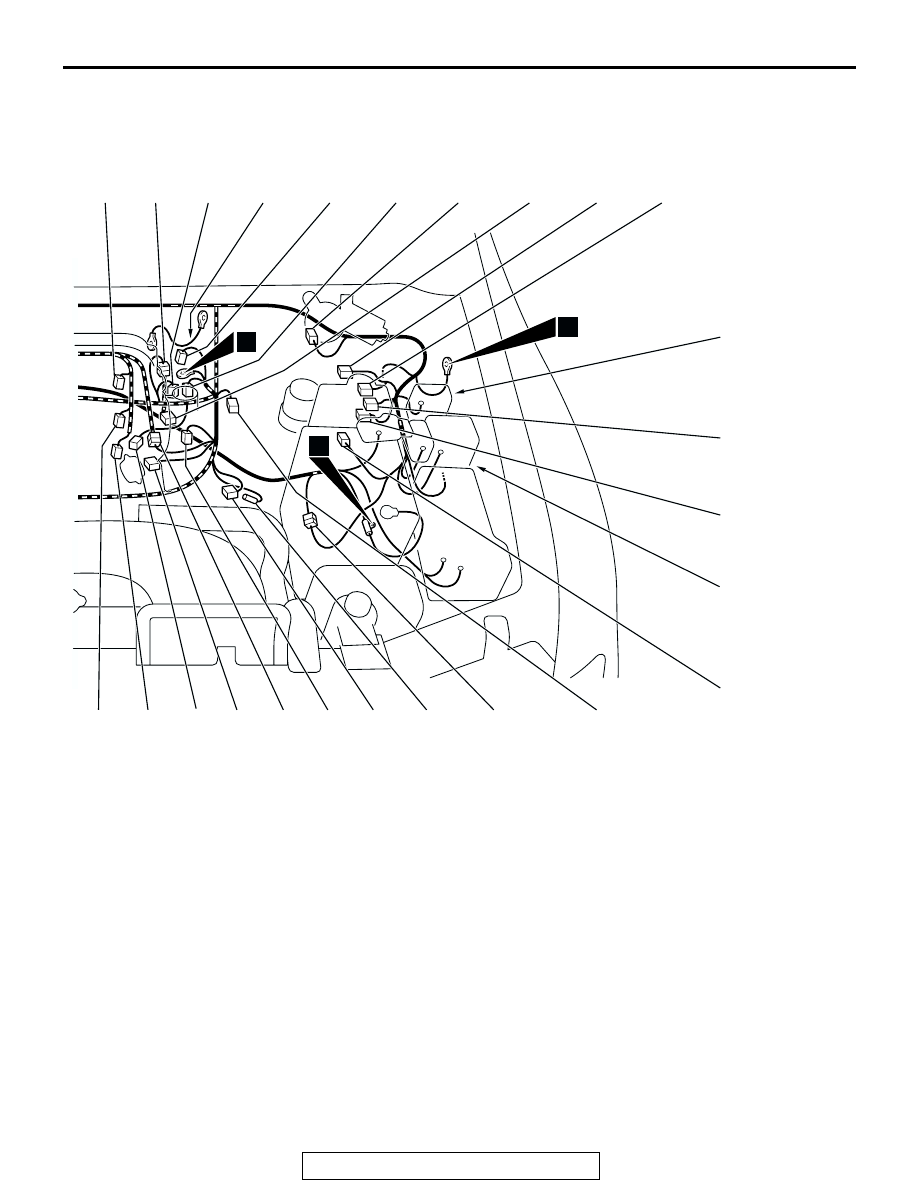

CONFIGURATION DIAGRAMS

80A-7

AC203871

B-52

GROUND
CABLE

B-11

B-08

B-09

B-31

B-32

B-12

B-10

B-13

B-53X
B-54X

B-17

B-18

B-19X
B-20X
B-21X
B-22X
B-23X
B-24X
B-25X

B-26

B-27

B-30

B-34

B-44

B-04

B-33

B-35

AB

B-29

2

5

3

B-14

B-55

B-27  (8-B)

CONTROL WIRING HARNESS AND
BATTERY WIRING HARNESS
COMBINATION

B-28 (3-B)

MANIFOLD

DIFFERENTIAL

PRESSURE SENSOR

B-29  (1-B)

POWER STEERING PRESSURE
SWITCH

B-30 (3-B)

A/C

COMPRESSOR

B-31  (2-GR)

IGNITION COIL 3

B-32  (2-GR)

IGNITION COIL 1

B-33 (2-GR)

INJECTOR

2

B-34  (2-GR)

IGNITION COIL 2

B-35 (2-GR)

INJECTOR

4

B-36 (3-B)

CRANKSHAFT

POSITION

SENSOR

B-37  (2-B)

ENGINE COOLANT TEMPERATURE
SENSOR

B-38  (1-B)

ENGINE COOLANT TEMPERATURE
GAUGE UNIT

B-39 (2-GR)

FREE-WHEELING

ENGAGE

SWITCH

B-40  (1-B)

OIL PRESSURE SWITCH

B-41 (2-B)

GENERATOR

B-42 (1)

GENERATOR

B-44  (8-B)

CONTROL WIRING HARNESS AND
INJECTOR WIRING HARNESS
COMBINATION

B-45 (1-B)

STARTER

B-46 (1)

STARTER

B-48  (7-B)

VOLUME AIRFLOW SENSOR

B-52 (1-B)

CAPACITOR

B-53X (5)

MOTOR RELAY A

B-54X (5)

MOTOR RELAY B

B-55 (3-GR)

PRESSURE

SENSOR

B-56 (6-GR)

EGR

VALVE

TRANSMISSION

TSB Revision

CONFIGURATION DIAGRAMS

80A-8

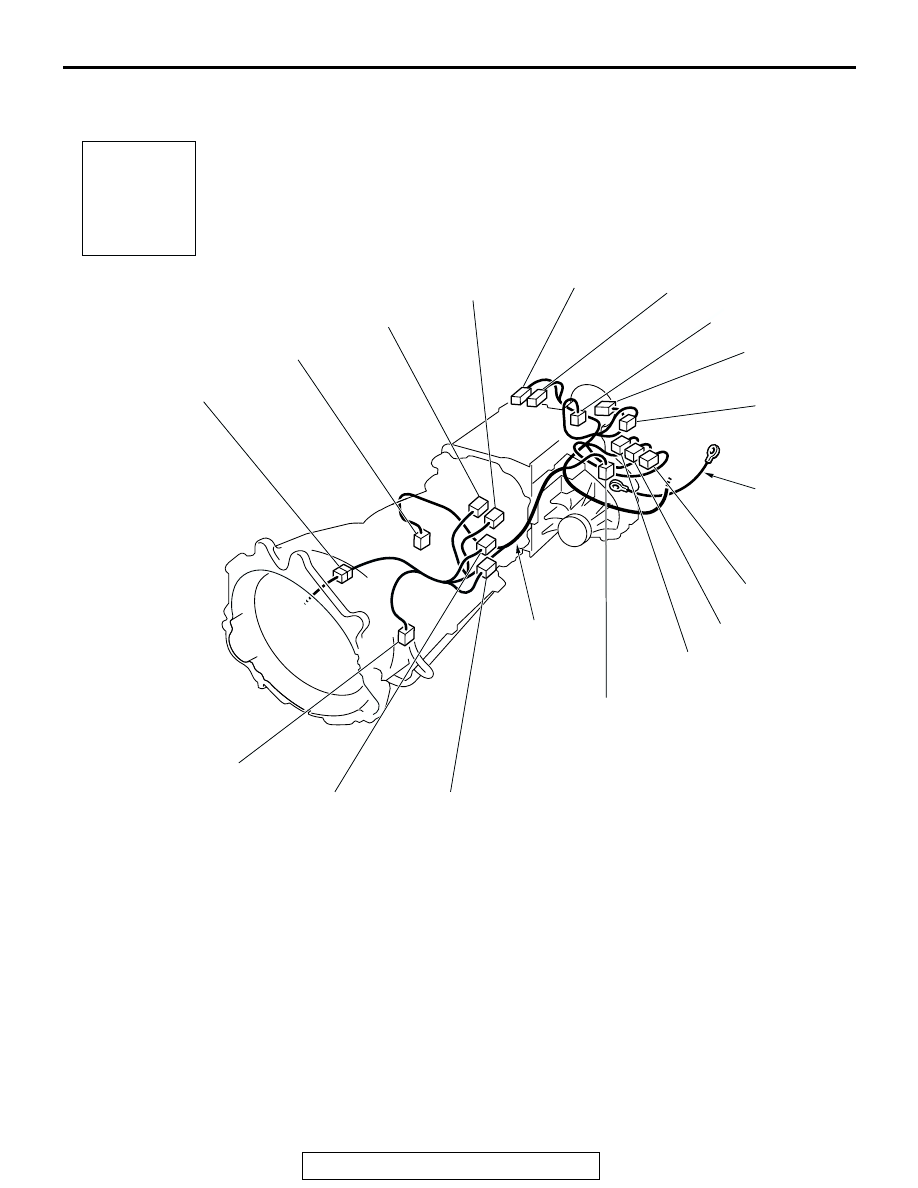

TRANSMISSION

M1801000500192

AC203983

C-02

AB

GROUND
CABLE

C-03

C-01

C-04

C-05

C-06

C-07

C-08

C-09

C-10

C-11

C-12

C-13

C-14

C-15

C-16

TRANSMISSION
WIRING
HARNESS

Connector
symbol

C

CONNECTOR
COLOR CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

C-01

(1-GR)

TRANSMISSION WIRING HARNESS
AND BATTERY WIRING HARNESS
COMBINATION

C-02

(3-GR)

OUTPUT SHAFT SPEED SENSOR

C-03

(10-B)

A/T CONTROL SOLENOID VALVE
ASSEMBLY

C-04

(10-B)

TRANSMISSION RANGE SWITCH

C-05

(1-BR)

4LLc DETECTION SWITCH

C-06 (1-B)

2WD

DETECTION

SWITCH

C-07

(3-GR)

REAR PROPELLER SHAFT SPEED
SENSOR

C-08

(3-B)

VEHICLE SPEED SENSOR

C-09 (2-GR)

SHIFT

ACTUATOR

C-10

(1-B)

2WD/4WD DETECTION SWITCH

C-11

(1-W)

4H DETECTION SWITCH

C-12

(1-BR)

CENTER DIFFERENTIAL LOCK
DETECTION SWITCH

C-13

(3-B)

FRONT PROPELLER SHAFT SPEED
SENSOR

C-14

(4-GR)

RIGHT BANK HEATED OXYGEN
SENSOR (REAR)

C-15

(4-B)

LEFT BANK HEATED OXYGEN
SENSOR (REAR)

C-16

(3-B)

INPUT SHAFT SPEED SENSOR

TRANSMISSION

TSB Revision

CONFIGURATION DIAGRAMS

80A-9

NOTES

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-10

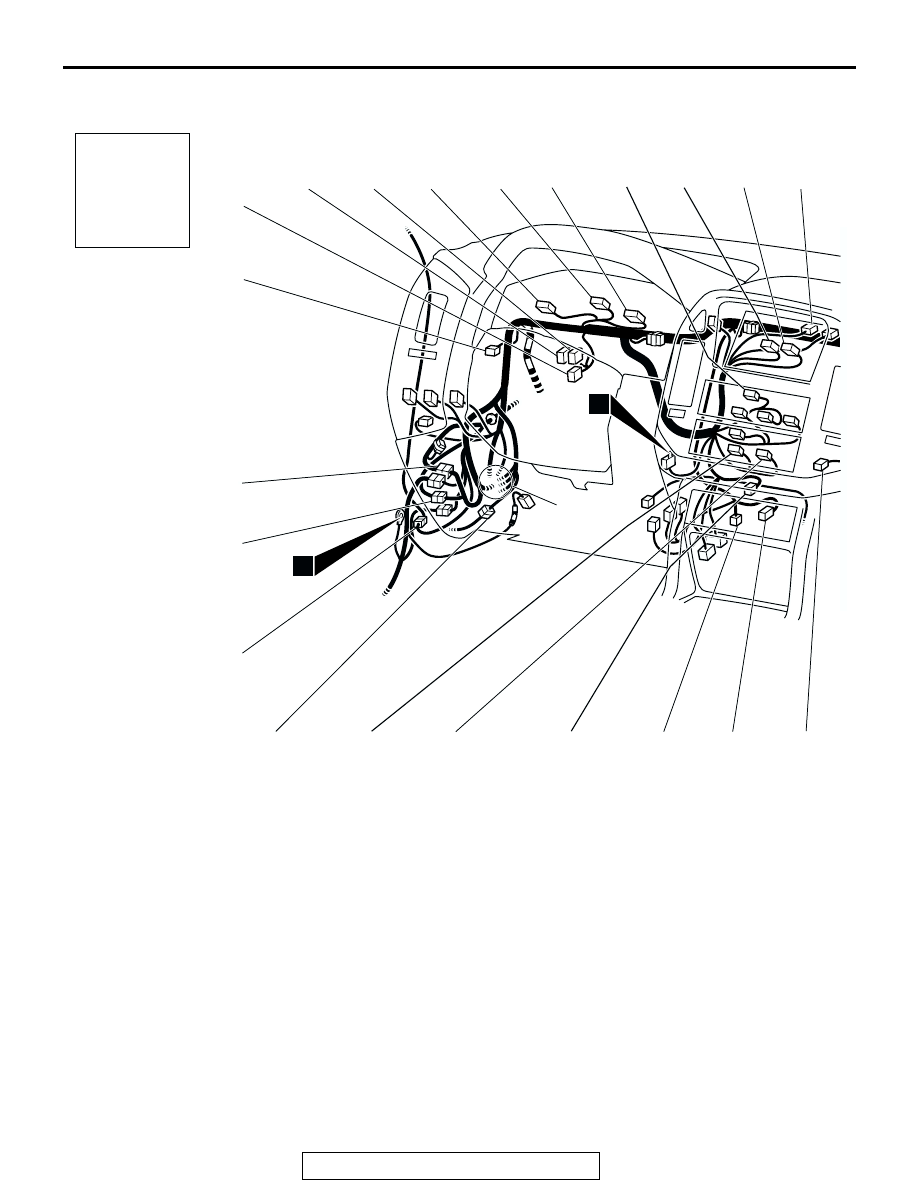

DASH PANEL

M1801000600531

AC203872

Connector
symbol

-01
thru
-32

D

D-01

JUNCTION
BLOCK

D-02

D-03

D-04

D-32

D-06

D-07
D-31

D-08

D-09

D-19

D-20

D-21

D-22

D-23

D-24

D-25

D-26

D-27

D-28

D-29

D-30

AB

7

10

D-01  (33)

JOINT CONNECTOR (6)

D-02  (33)

JOINT CONNECTOR (7)

D-03 (17-GR) COMBINATION

METER

D-04 (17-GR) COMBINATION

METER

D-06  (14)

RADIO AND CD PLAYER

D-07 (16-B)

RV

METER

D-08 (20-B)

RV

METER

D-09  (2)

PHOTO SENSOR <AUTOMATIC A/
C>

D-10  (3)

OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTOR

D-11  (2-R)

AIR BAG MODULE (SQUIB)
(PASSENGER'S SIDE)

D-13  (4)

A/T CONTROL RELAY

D-14  (10)

GROUND JOINT CONNECTOR

D-15  (32)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (PASSENGER'S
SIDE) COMBINATION

D-16 (14)

MOTOR

ANTENNA-ECU

D-17  (4)

HEATER BLOWER CONTROLLER
UNIT <AUTOMATIC A/C>

D-18  (1)

GLOVE BOX LIGHT SWITCH

D-19  (2)

HEATER WATER TEMPERATURE
SENSOR <AUTOMATIC A/C>
