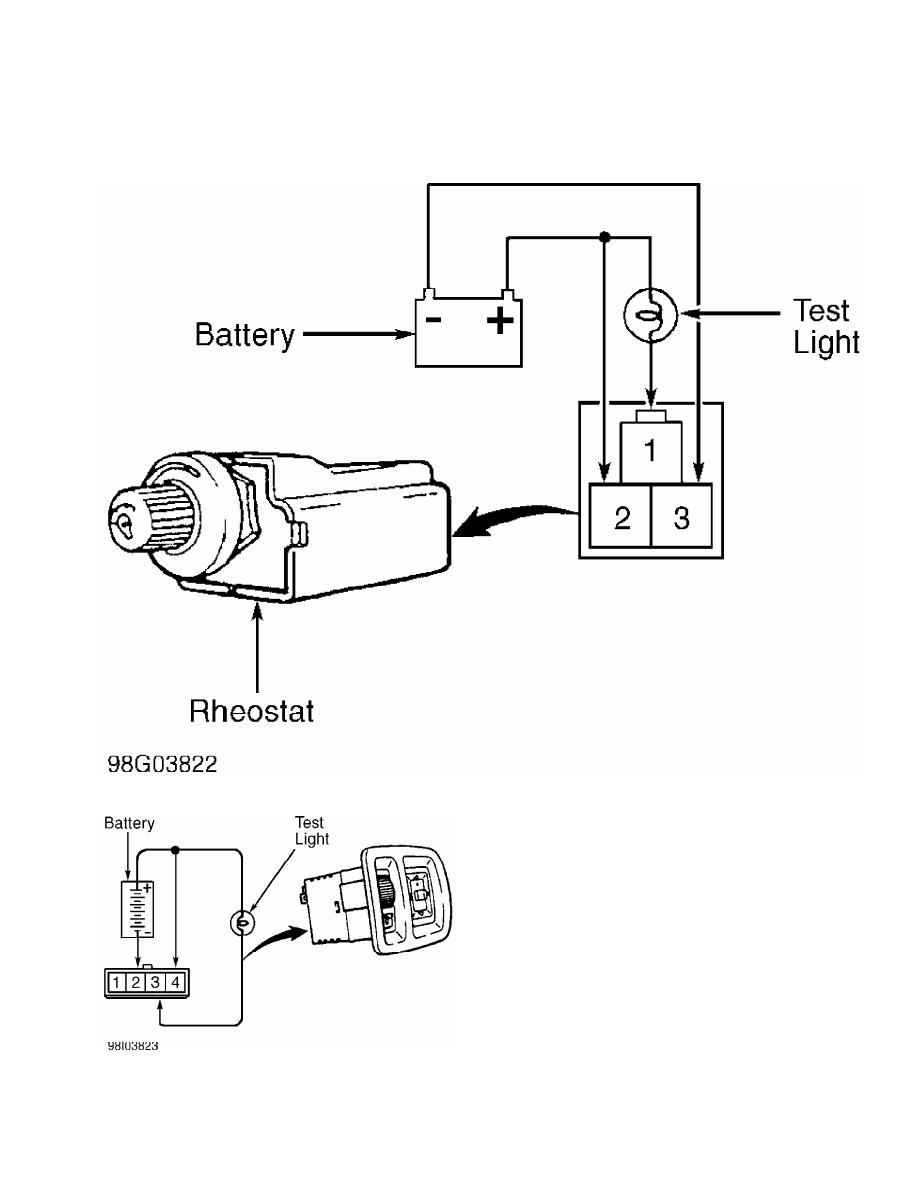

Fig. 37:  Identifying Rheostat Connector Terminals (Montero)

Courtesy of Mitsubishi Motor Sales of America

Fig. 38:  Identifying Rheostat Connector Terminals (3000GT)

Courtesy of Mitsubishi Motor Sales of America

         REMOVAL & INSTALLATION

         * PLEASE READ THIS FIRST *

WARNING: Deactivate air bag system before performing any service

         operation. See AIR BAG RESTRAINT SYSTEMS article. Do not

         apply electrical power to any component on steering column

         without first deactivating air bag system. Air bag may

         deploy.

         INSTRUMENT CLUSTER

         Removal & Installation (Eclipse, Galant & Mirage)

         Disconnect negative battery cable. Remove cluster cover.

Remove cluster mounting screws. Remove cluster by turning upper part

toward front. Disconnect all necessary electrical connectors. Remove

instrument cluster. To install, reverse removal procedure. See  Fig. 39

, 40 or 42.

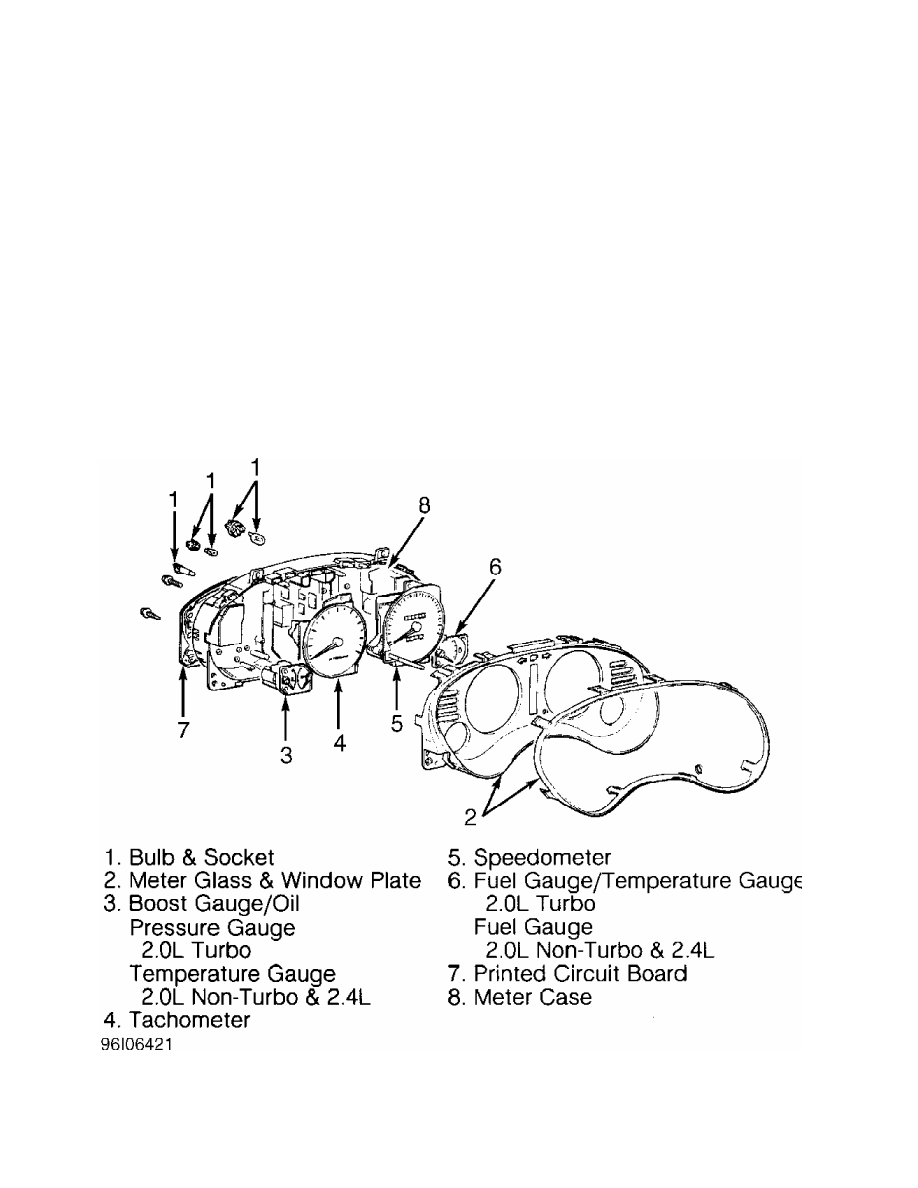

Fig. 39:  Identifying Instrument Cluster Components (Eclipse)

Courtesy of Mitsubishi Motor Sales of America

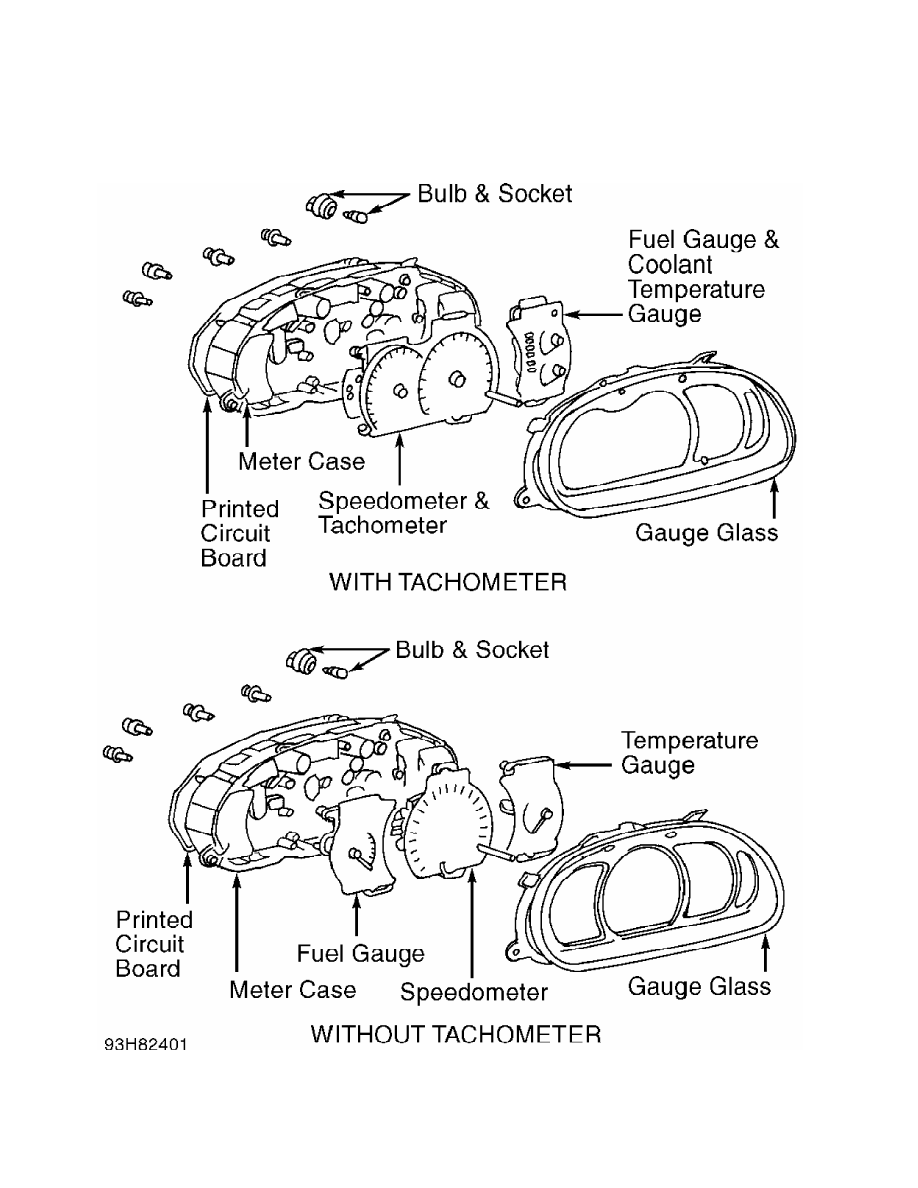

Fig. 40:  Identifying Instrument Cluster Components (Galant)

Courtesy of Mitsubishi Motor Sales of America

Fig. 41:  Identifying Instrument Cluster Components (Montero)

Courtesy of Mitsubishi Motor Sales of America

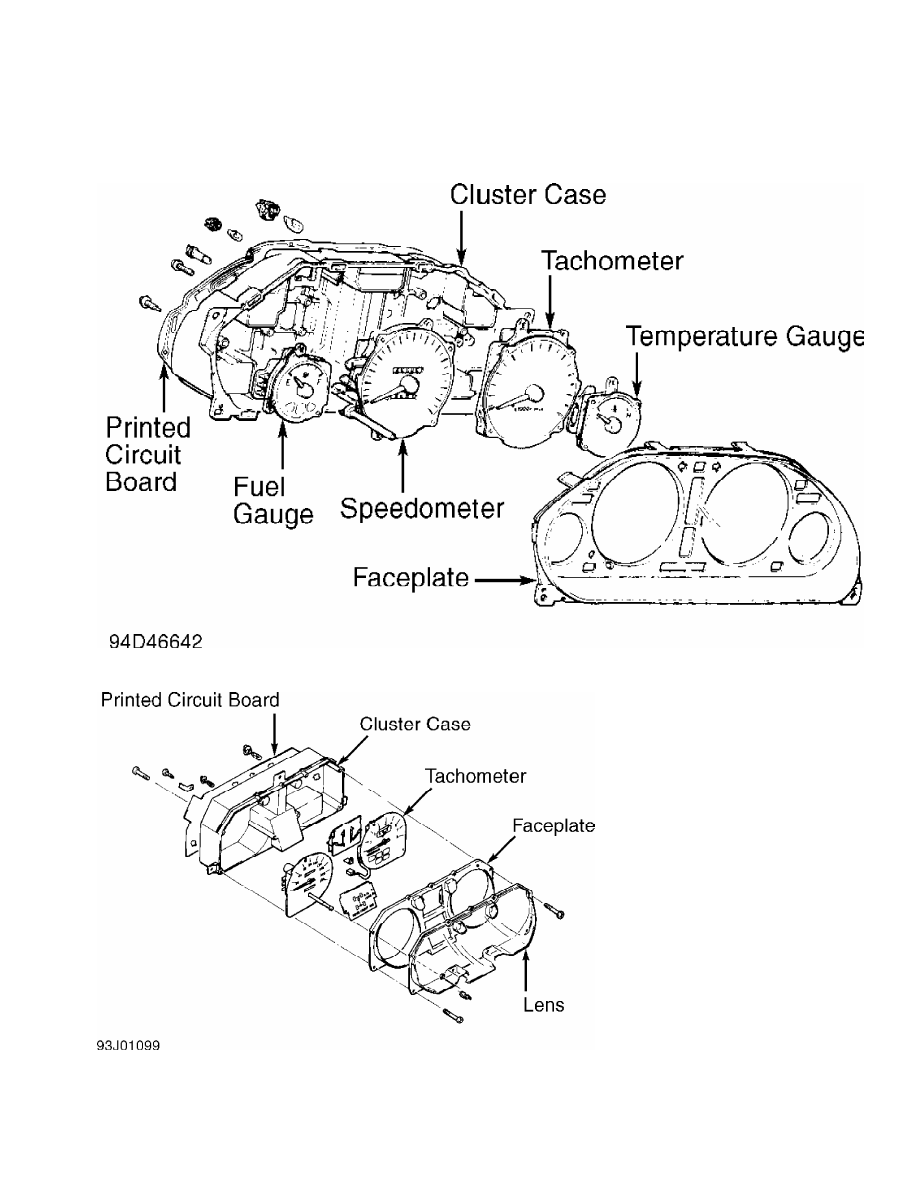

Fig. 42:  Identifying Instrument Cluster Components (Mirage)

Courtesy of Mitsubishi Motor Sales of America

         Removal & Installation (Montero)

         Disconnect negative battery cable. Remove instrument cluster
