Junction Block                          Behind left side of dash.

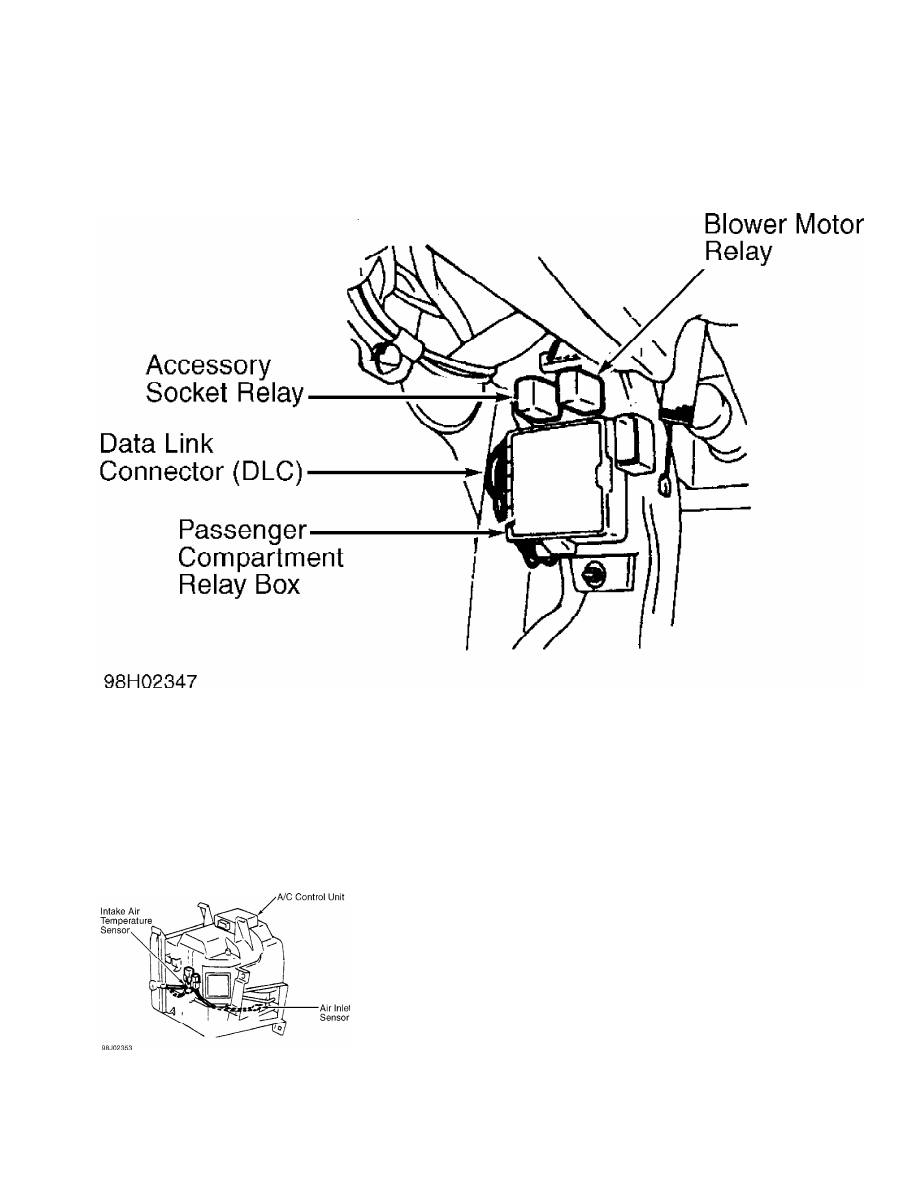

Passenger Compartment Relay Box         Behind left side of dash.

Power Seat Relay Box                    Under driver’s seat.

         CONTROL UNITS

Component                               Component Location

ABS Control Unit                        Mounted on top of right rear

                                        wheelwell, under metal plate.

A/C Control Unit                        On top of evaporator case.

Antenna Motor ECU                       Behind center console.

Auto-Cruise Control ECU                 Behind center of dash.

Door Lock Control Unit                  Behind left side of dash.

ELC 4-Speed Automatic Transmission

 Control Module                         Behind left side of dash.

Engine Control Module (ECM)             Behind right kick panel.

Keyless Entry Control Unit              Behind right side quarter

                                        panel.

Rear Differential Lock Control Unit     Mounted on top of left rear

                                        wheelwell.

SRS Air Bag Control Unit                Behind center of dash.

Sun Roof Control Unit                   On center of roof, behind

                                        sun roof.

Variable Shock Absorber Control Unit    Behind left rear wheelwell,

                                        behind quarter panel.

4WD Indicator Control Unit              Behind center of dash.

         MOTORS

Component                               Component Location

Blower Motor                            Behind right side of dash.

Condenser Fan Motor                     On left front of engine

                                        compartment.

Fuel Pump                               In fuel tank.

Headlight Washer Motor                  Right side of engine

                                        compartment, in washer fluid

                                        reservoir.

Idle Air Control Motor                  On throttle body.

Motor Antenna                           Rear of right front wheelwell.

Rear Differential Lock Air Pump         On left rear of vehicle.

Rear Washer Motor                       In rear of cargo area.

Rear Wiper Motor                        On center of tailgate.

Sun Roof Motor                          On center of roof, behind

                                        sun roof.

Windshield Washer Motor                 Bottom of windshield washer

                                        reservoir.

Windshield Wiper Motor                  On left side of firewall.

         SENDING UNITS & SENSORS

Component                               Component Location

ABS Speed Sensors (4)                   On bracket, on each wheel hub.

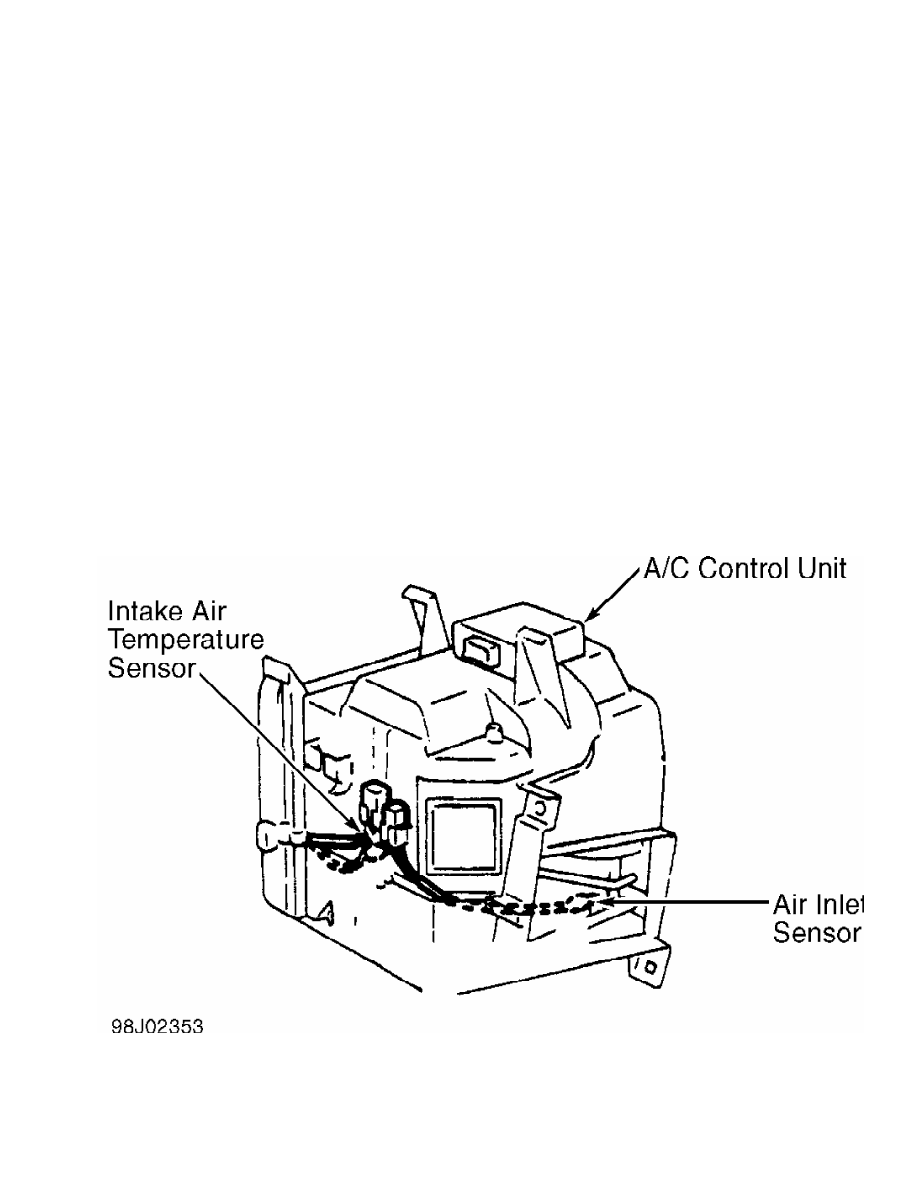

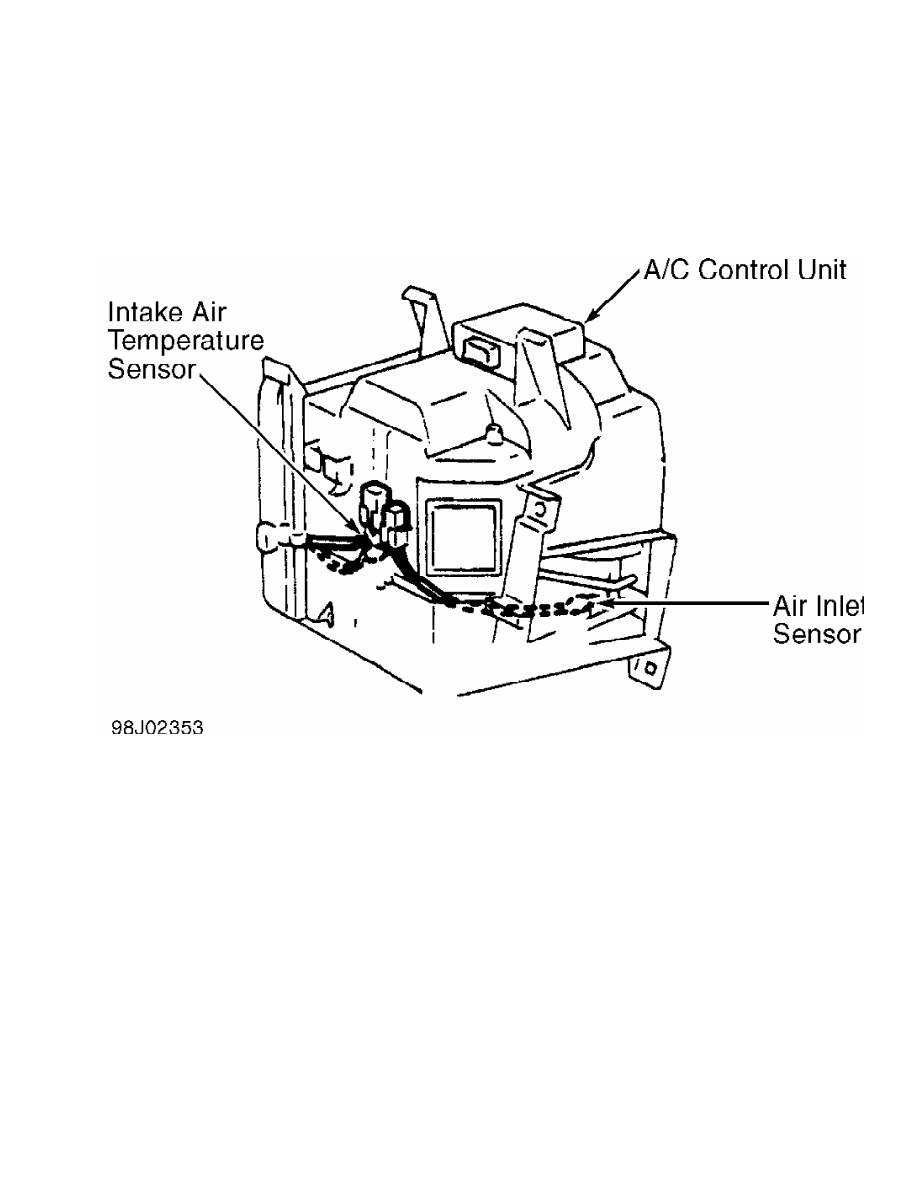

Air Inlet Sensor                        In evaporator air duct.

Camshaft Position Sensor                At bottom of left camshaft

                                        gear.

Crankshaft Position Sensor              Above crankshaft gear.

Engine Coolant Temperature Gauge Unit   On thermostat housing.

Engine Coolant Temperature Sensor       On thermostat housing.

Front Impact Sensor (Left) (SRS)        On left front of engine

                                        compartment.

Front Impact Sensor (Right) (SRS)       On right front of engine

                                        compartment.

Fuel Gauge Unit                         In fuel tank.

Fuel Tank Differential Pressure Sensor

 (Calif.)                               Top of fuel tank.

G-Sensor (ABS)                          In center console, rear of

                                        parking brake lever.

Geomagnetic Sensor (Compass)            On top center of dash.

Heated Oxygen Sensor (Front)

 (Federal)                              Underside of vehicle, forward

                                        of catalytic converter.

Heated Oxygen Sensor (Front)

 (Left Bank) (Calif.)                   In left exhaust manifold.

Heated Oxygen Sensor (Front)

 (Right Bank) (Calif.)                  In right exhaust manifold.

Heated Oxygen Sensor (Rear)

 (Federal)                              Underside of vehicle, behind

                                        catalytic converter.

Heated Oxygen Sensor (Rear) (Left Bank)

 (Calif.)                               In left exhaust pipe, below

                                        engine.

Heated Oxygen Sensor (Rear) (Right Bank)

 (Calif.)                               In right exhaust pipe, below

                                        engine.

Input Shaft Speed Sensor                On side of transmission.

Intake Air Temperature Sensor           Mounted on outside of

                                        evaporator case.

Manifold Differential Pressure Sensor   On top left rear of engine.

Output Shaft Speed Sensor               On rear of transmission.
